Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) SENSOR

REMOVAL
1. Disconnect the battery ground cable.

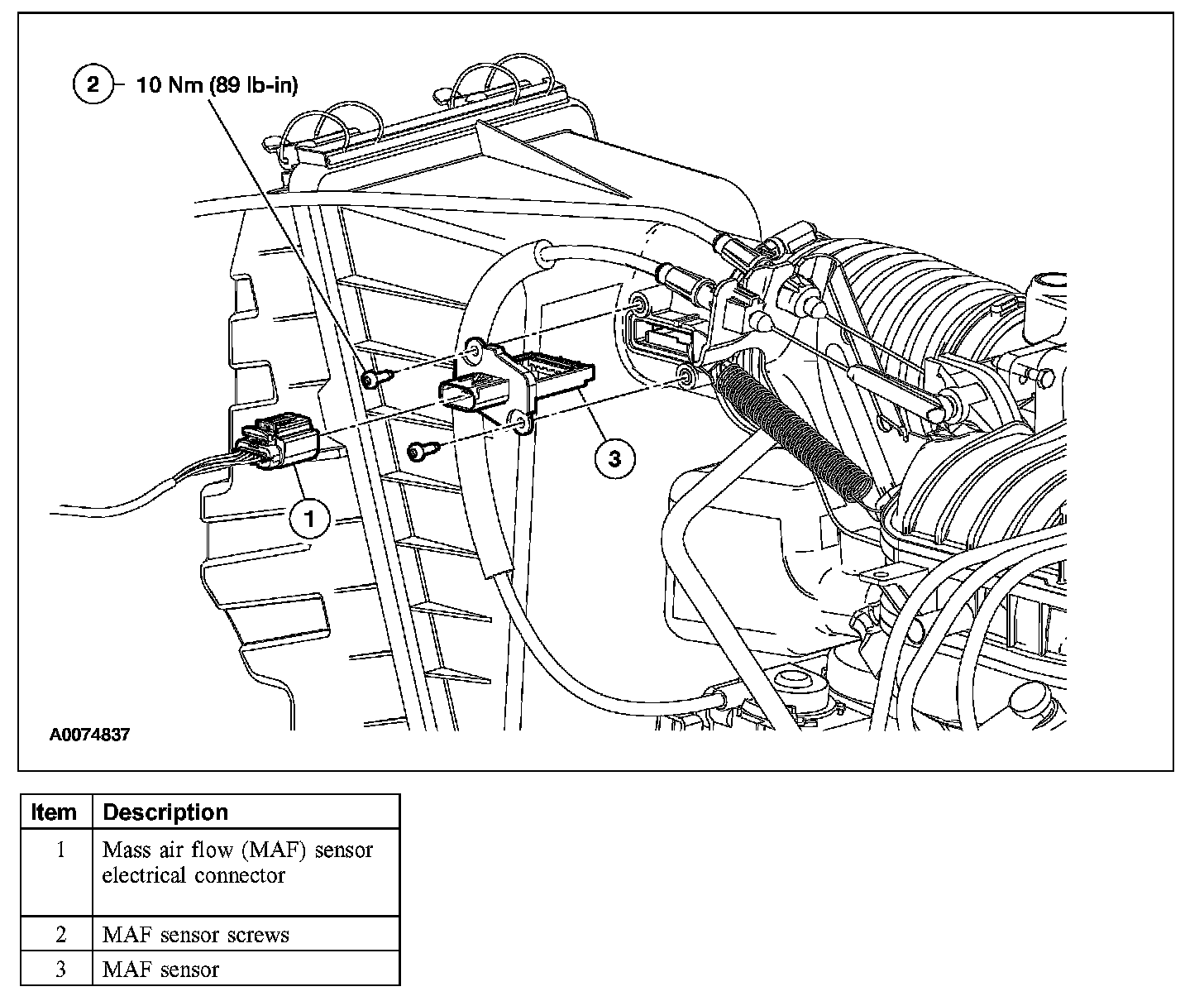

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
