Engine Control Module: Service and Repair

POWERTRAIN CONTROL MODULE (PCM)

REMOVAL
1. Disconnect the battery ground cable.

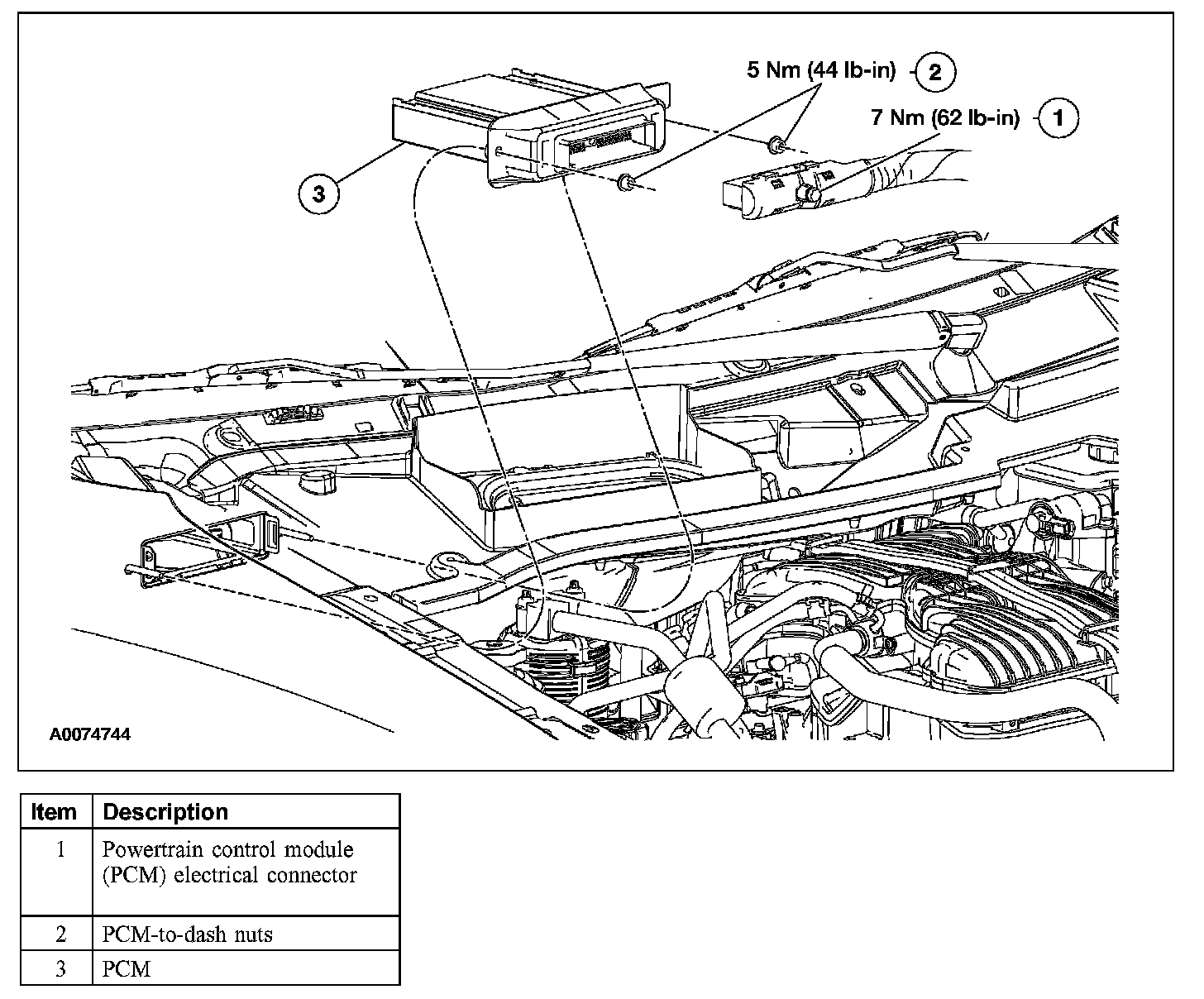

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
