Transmission Position Sensor/Switch: Service and Repair

Digital Transmission Range (TR) Sensor

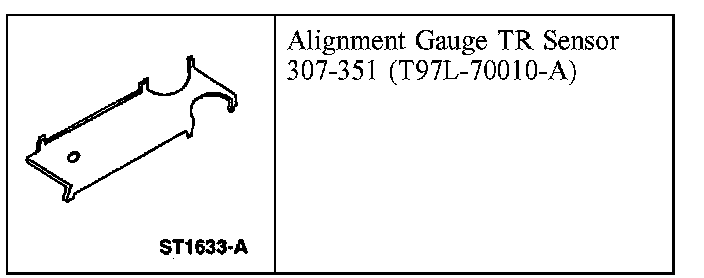

Special Tool(s)

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

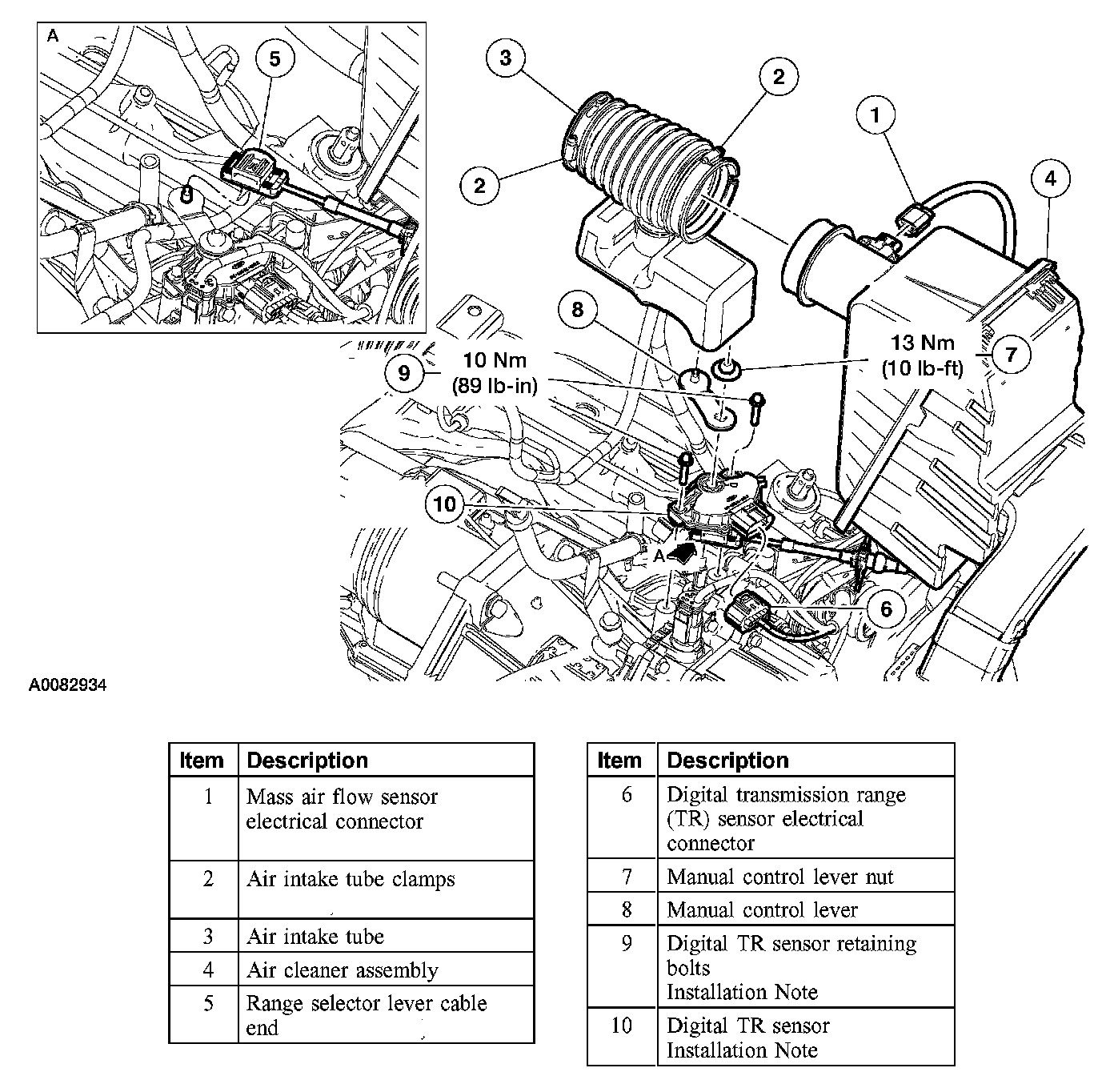

2. Remove the parts in the order indicated in the following illustration and table.
3. To install, reverse the removal procedure.
4. Verify that the shift cable is correctly adjusted. For additional information, refer to Selector Lever Cable Adjustment.





Items 9 and 10: Digital TR Sensor and Retaining Bolts Installation Note

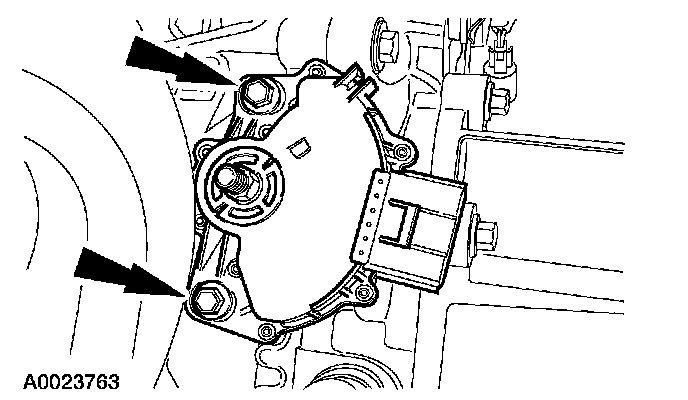

1. Install the digital TR sensor and loosely install the bolts.

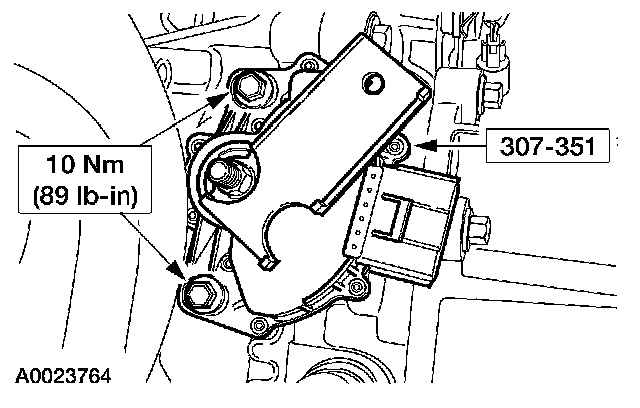

2. Using the special tool, align the digital TR sensor.
