System Specifications

Timing chain tensioner 11 Nm (8 ft. lbs.)
Synchronizer drive gear 45 Nm (33 ft. lbs.)

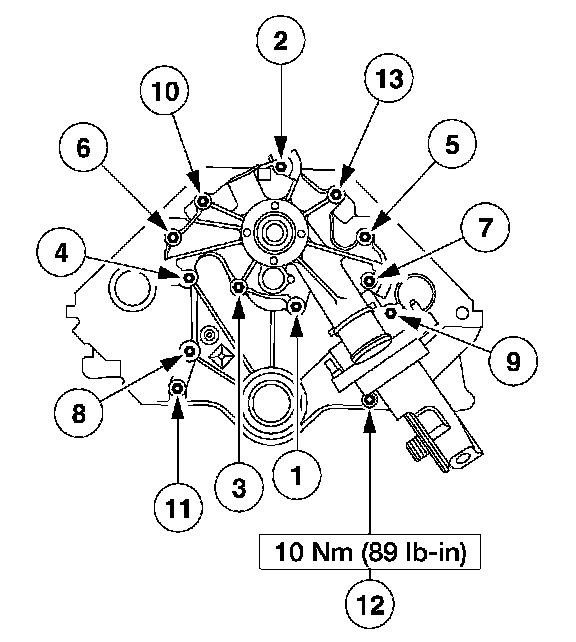

Timing Cover Torque Sequence:

Engine front
Cover studs 7 Nm (62 inch lbs.)
Cover Bolt no. 12 10 Nm (89 inch lbs.)
All other fasteners 28 Nm (21 ft. lbs.)
Crankshaft pulley bolt 160 Nm (118 ft. lbs.)
