Test K

PINPOINT TEST K: DTC C1179 - EXCESSIVE CABLE SLACK IN SPEED CONTROL CABLE, DTC C1109 - THROTTLE DID NOT RETURN TO IDLE AFTER SELF-TEST

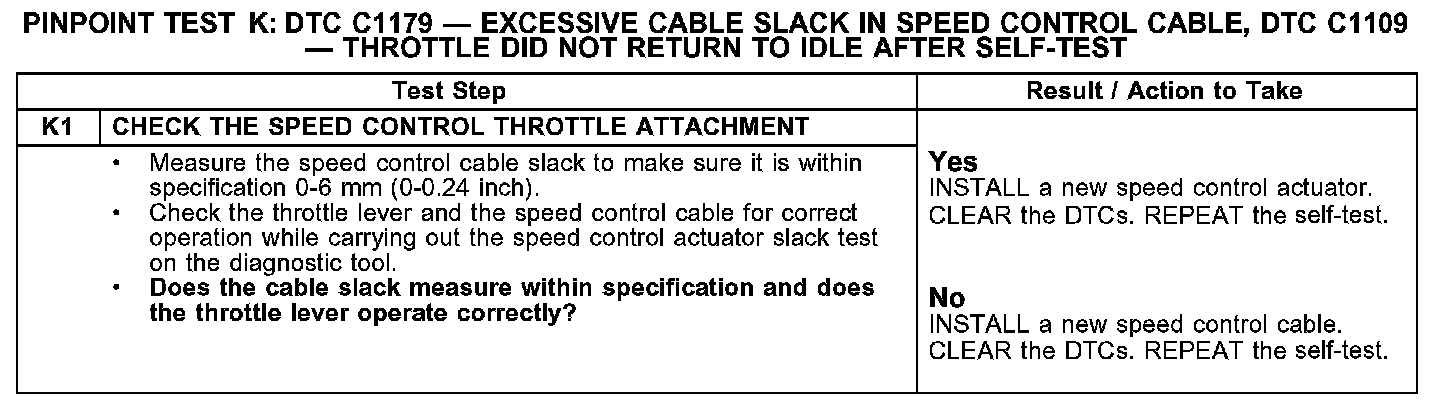

Test K1:

Normal Operation
When the inputs are received by the speed control actuator, a stepper motor is prompted to pull the throttle through a speed control cable to maintain the selected speed.

Possible Causes
- speed control cable
- speed control actuator
