Intake Manifold

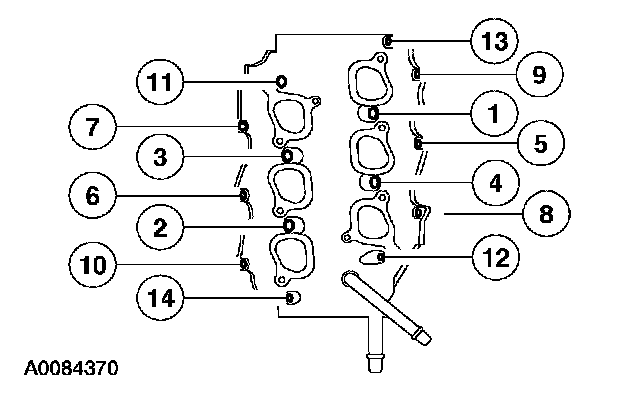

Lower Intake Manifold Torque Sequence:

Lower Intake Manifold bolts
Stage 1 5 Nm (44 inch lbs.)
Stage 2 10 Nm (89 inch lbs.)

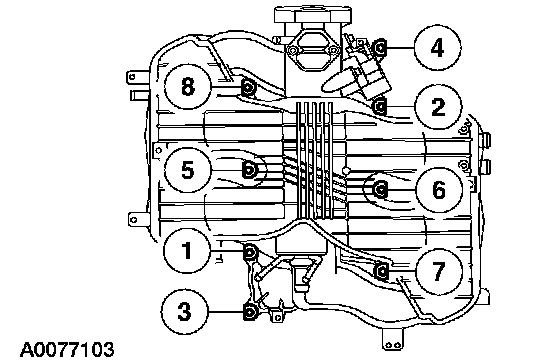

Upper Intake Manifold Torque Sequence:

Upper Intake Manifold bolts
Stage 1 6 Nm (53 inch lbs.).
Stage 2 10 Nm (89 inch lbs.).
