Test F

PINPOINT TEST F: THE GENERATOR IS NOISY

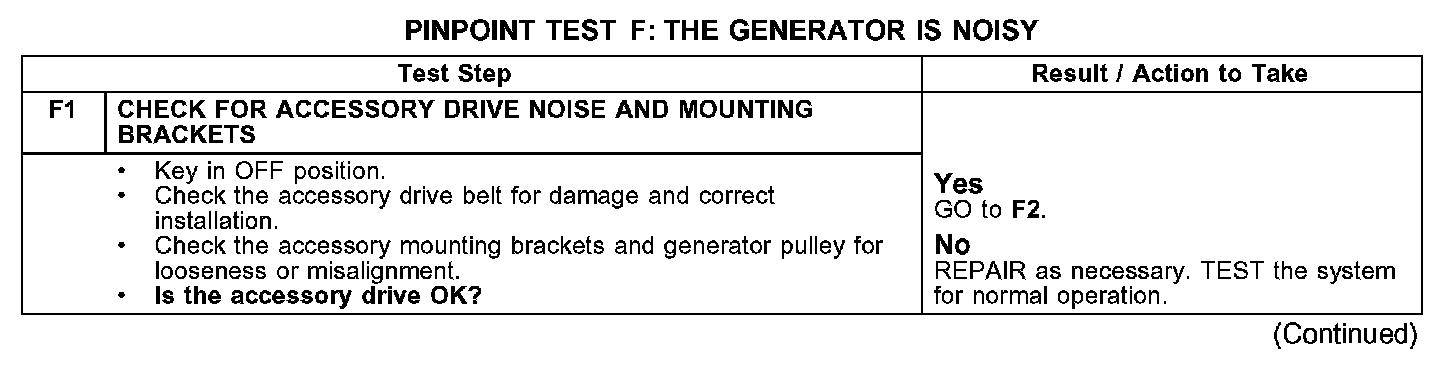

Test F1:

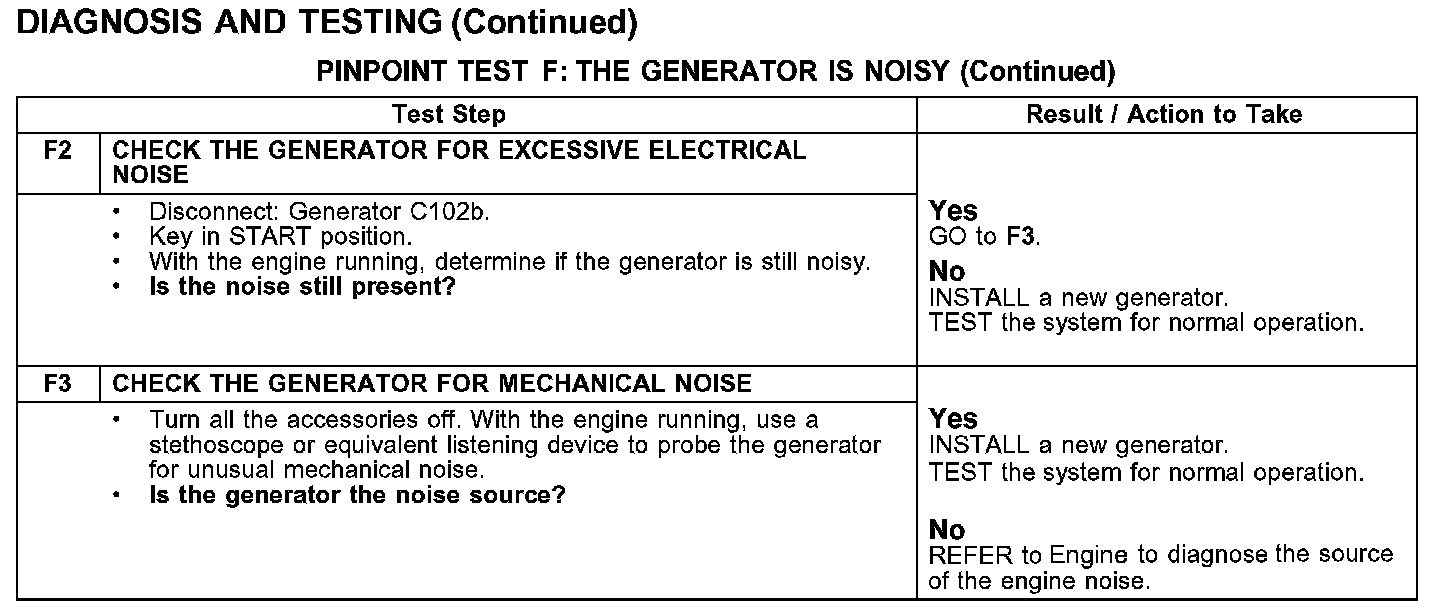

Test F2-F3:

Normal Operation
The generator is belt-driven by the engine accessory drive system.

Possible Causes
- accessory drive belt
- loose bolts/brackets
- generator/pulley
