Lead Terminal Repair: Material
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Rear Window Defroster Repair PM-11 (CPM-11 in Canada) or equivalent | WSB-M4J58-B |

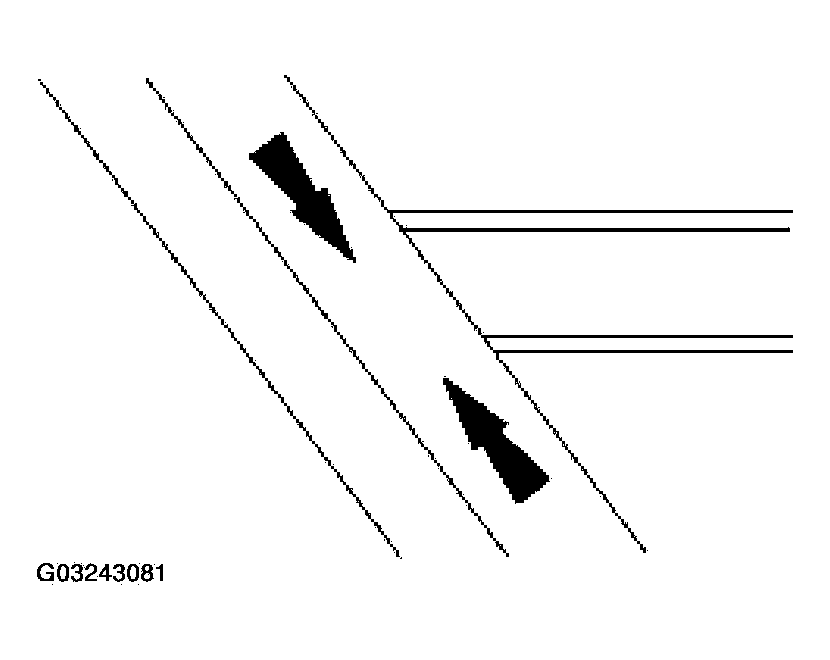

- Clean the bus bar in the area to be repaired with steel wool (3/0 to 4/0 grade).

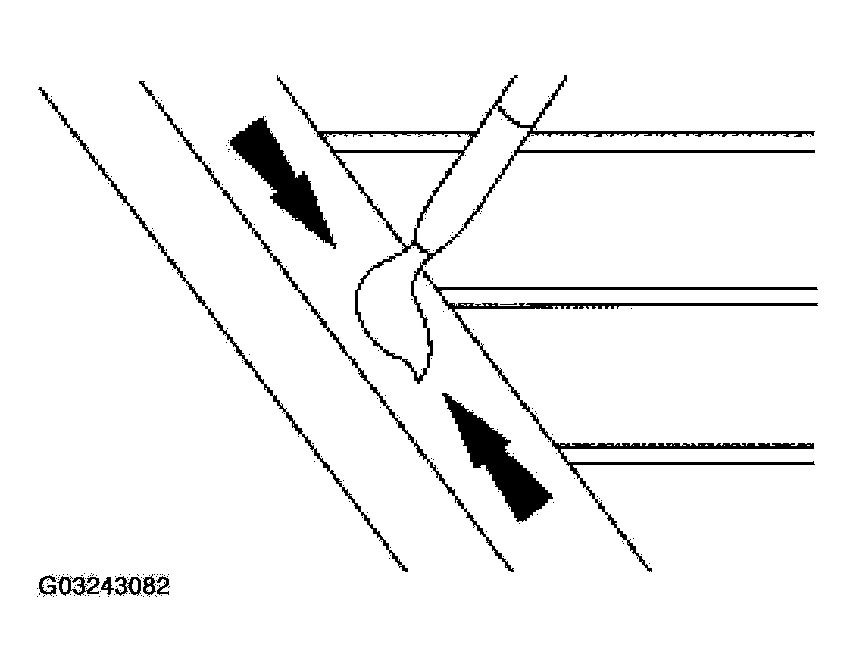

- Apply 3 coats of rear window defroster repair to the surface.
- Tin the bus bar repair area with solder.

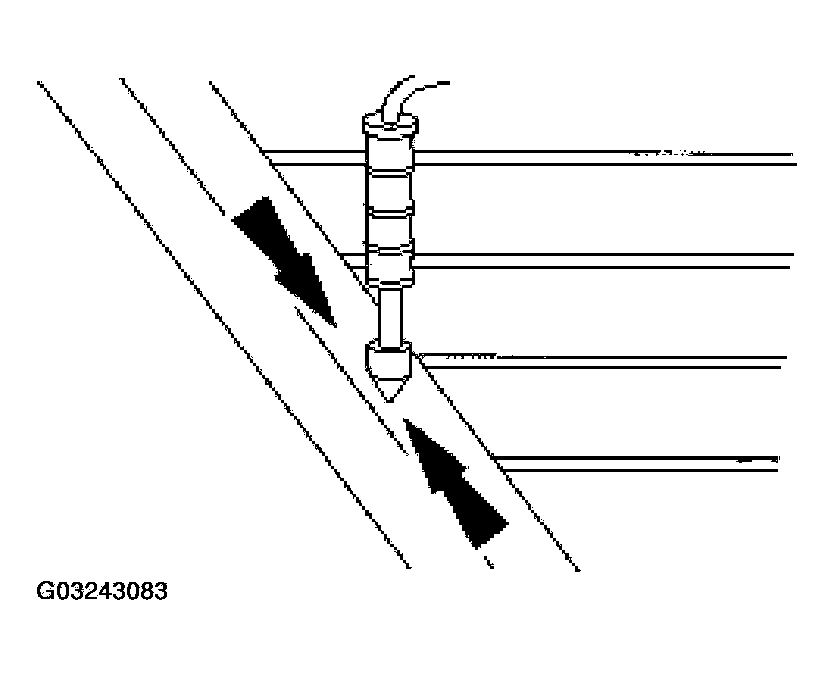

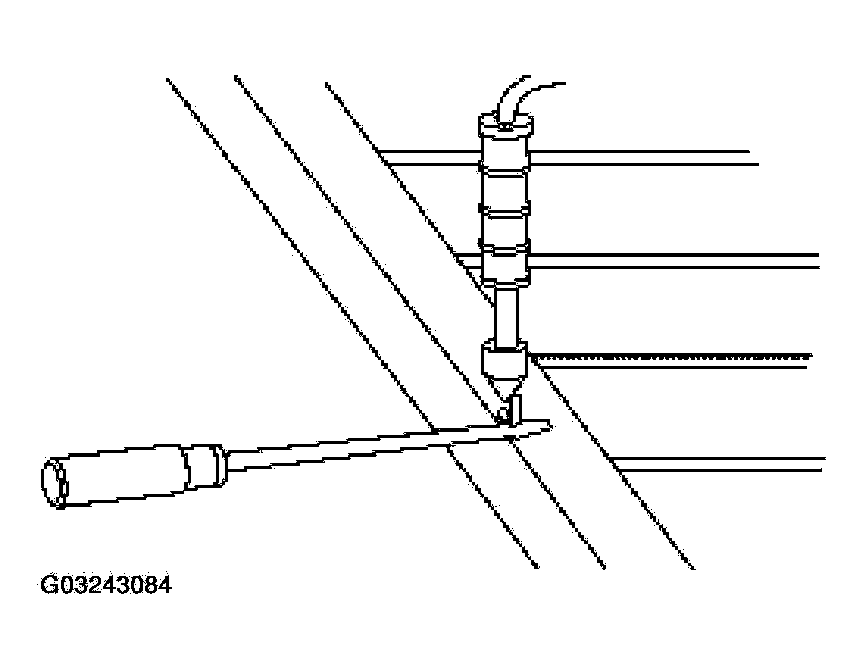

- Preheat the rear window glass in the area to be repaired using the special tool and solder the terminal to the bus bar.
- Apply rear window defroster repair to the area as needed.
NOTE:
The rear window glass must be at room temperature at the time of the repair.
NOTE:
Allow 10 minutes of drying time between the coats.
CAUTION:
Do not overheat the rear window glass or damage to the rear window glass may occur.
CAUTION:
To prevent overheating the rear window glass, remove the soldering gun as soon as the solder flows.
NOTE:
Turn the heated rear window switch on for 5 minutes prior to the final inspection of the repair.
