Power Steering
>>
System View
>>
Steering System Components - 4.6L Engine
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Steering System Components - 4.6L Engine

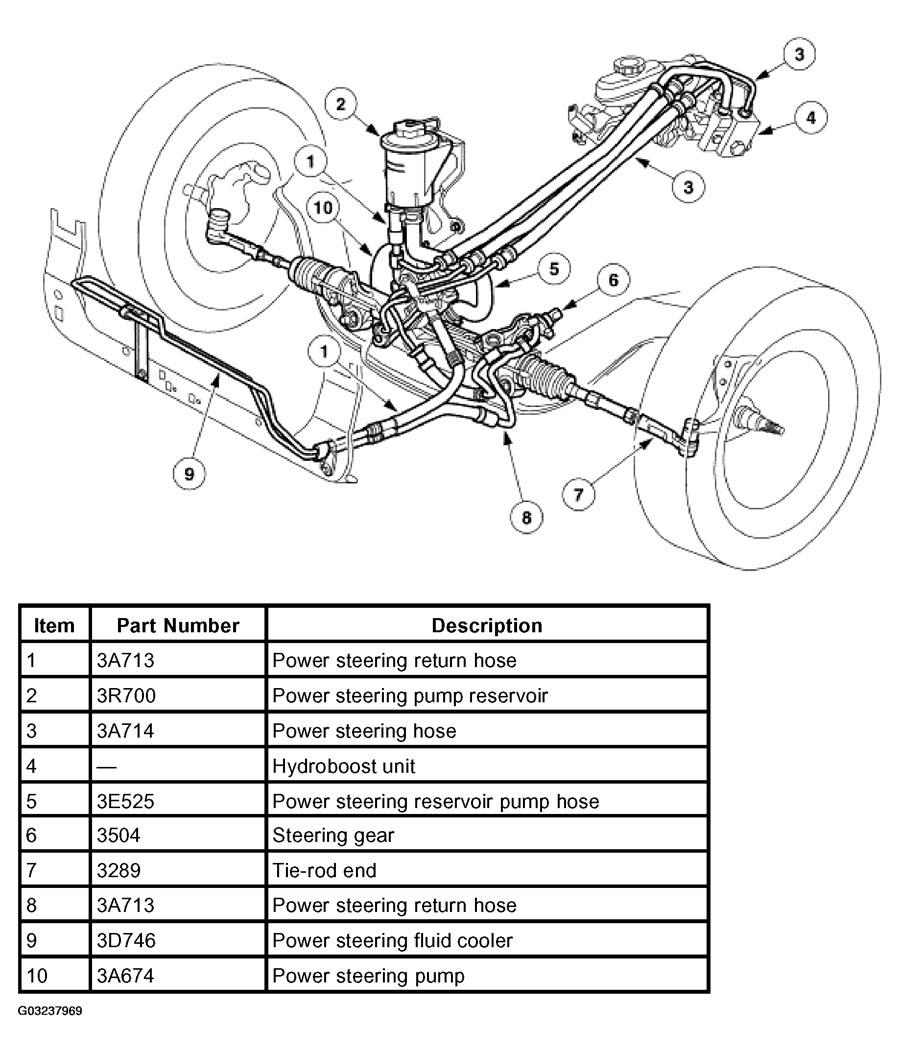

Fig 1: Identifying Steering System Components - 4.6L Engine
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
