Forward Clutch Cylinder: Disassembly

  1. Inspect the clutch cylinder thrust surfaces, piston bore and clutch plate serrations for scores or burrs. Minor scores or burrs may be removed with crocus cloth. Install a new clutch cylinder if badly scored or damaged.
  2. Check the fluid passage in the clutch cylinder for obstructions. Clean out all of the fluid passages. Inspect the clutch piston for scores and install new, if necessary. Inspect check balls for freedom of movement and correct seating.
  3. Check the clutch release spring for distortion and cracks. Install a new spring (including wave spring) if distorted or cracked.
  4. Inspect the composition clutch plates, steel clutch plates and clutch pressure plate for worn or scored bearing surfaces. Install new parts if deeply scored or burred.
  5. Check the clutch plates for flatness and fit on clutch hub serrations. Discard any plate that does not slide freely on serrations or that is not flat.
  6. Check the clutch hub thrust surfaces for scores and clutch hub splines for wear.
    7. NOTE: The forward clutch hub may remain in the shell during disassembly.

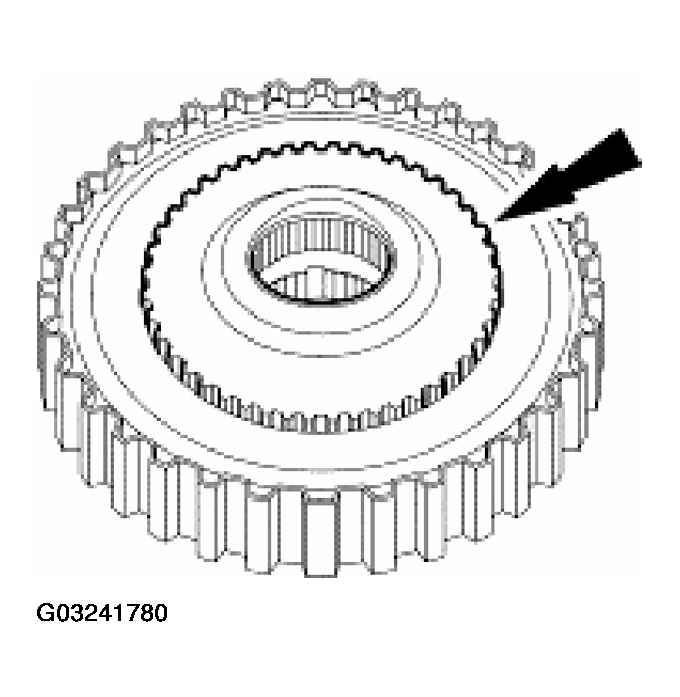

    Fig 1: Removing Forward Clutch Hub And No. 3 Forward Clutch Hub Front Bearing
    G03241780Courtesy of FORD MOTOR CO.
  7. Remove the forward clutch hub and the No. 3 forward clutch hub front bearing.
    8. NOTE: To aid handling, the forward clutch assembly may be set in the extension housing or a hole in the work bench.

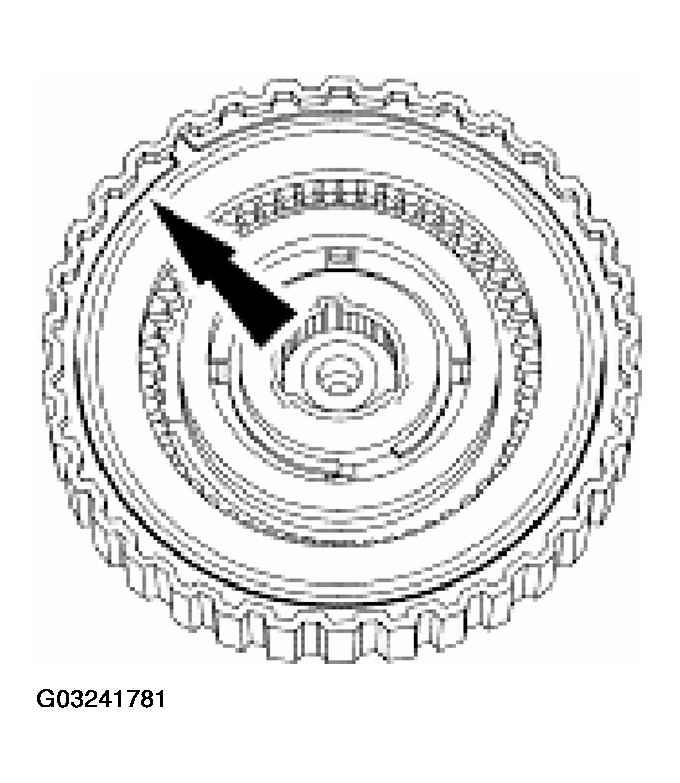

    Fig 2: Removing Clutch Pack Selective Retaining Ring
    G03241781Courtesy of FORD MOTOR CO.
  8. Remove the clutch pack selective retaining ring.
  9. Remove the following components.
    1. Remove the pressure plate.
    2. Remove the clutch pack.
    3. Remove the pressure spring.

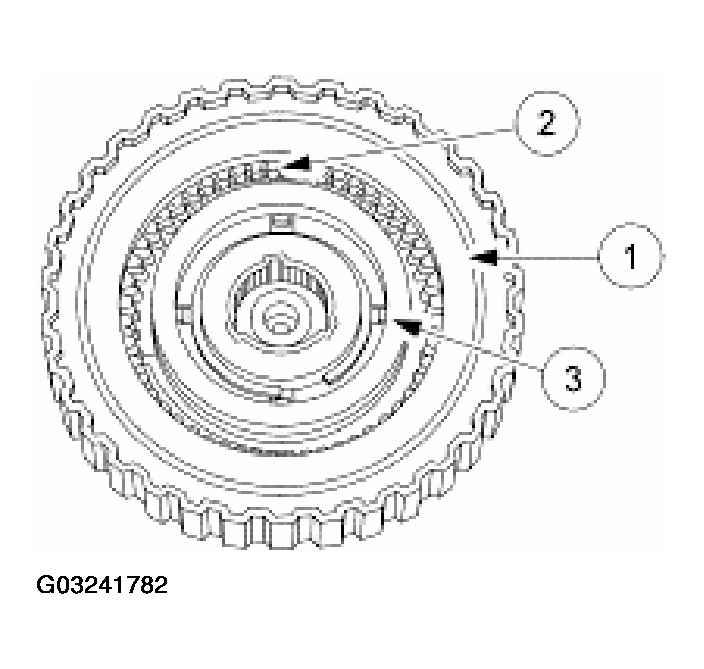

    Fig 3: Removing Pressure Plate, Clutch Pack & Pressure Spring
    G03241782Courtesy of FORD MOTOR CO.
    10. CAUTION: Apply only enough pressure to release pressure on the retaining ring. If too much pressure is applied, the spring may break.

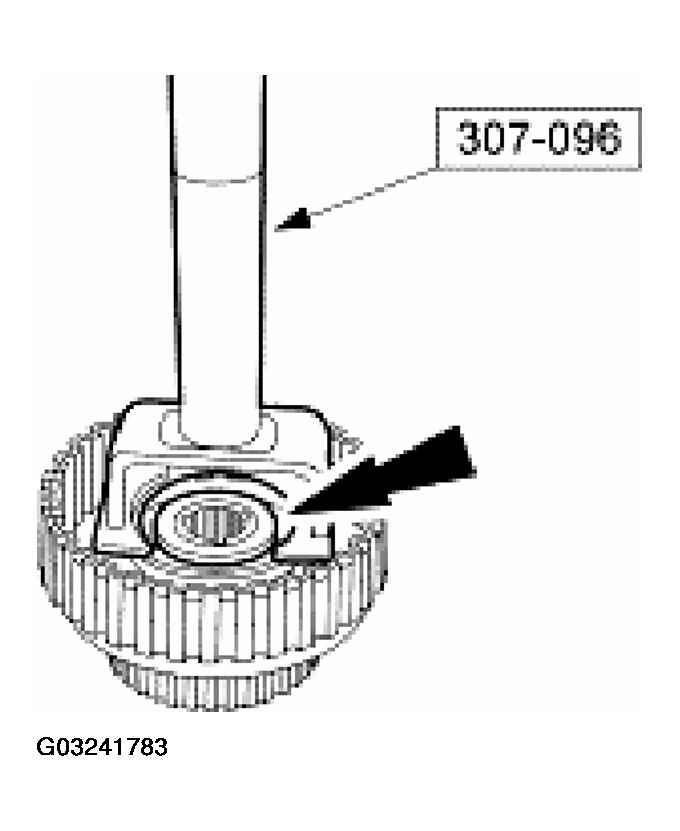

    Fig 4: Removing Forward Clutch Retaining Ring
    G03241783Courtesy of FORD MOTOR CO.
  10. Using the special tool, remove the forward clutch retaining ring.
  11. Slowly release the press and remove the forward clutch from the press.
  12. Remove the forward clutch retainer and the return spring.

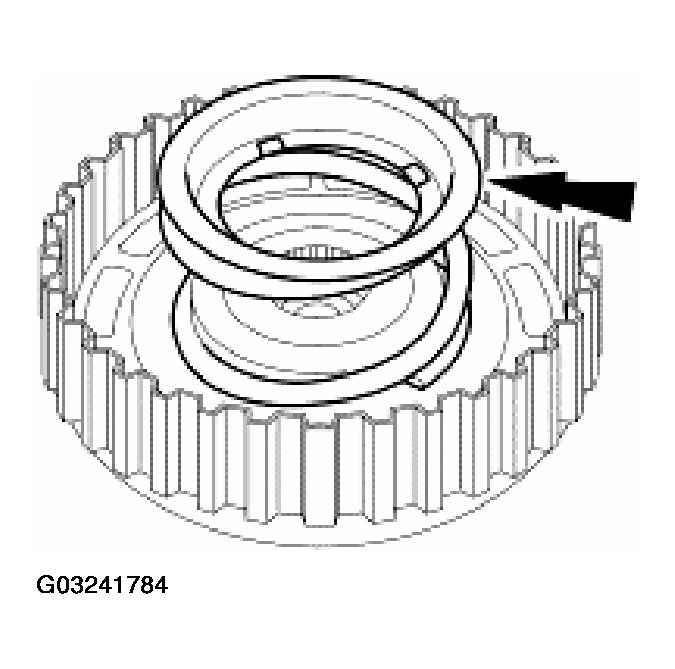

    Fig 5: Removing Forward Clutch Retainer And Return Spring
    G03241784Courtesy of FORD MOTOR CO.
    13. NOTE: Air pressure may be required to remove the forward clutch piston.

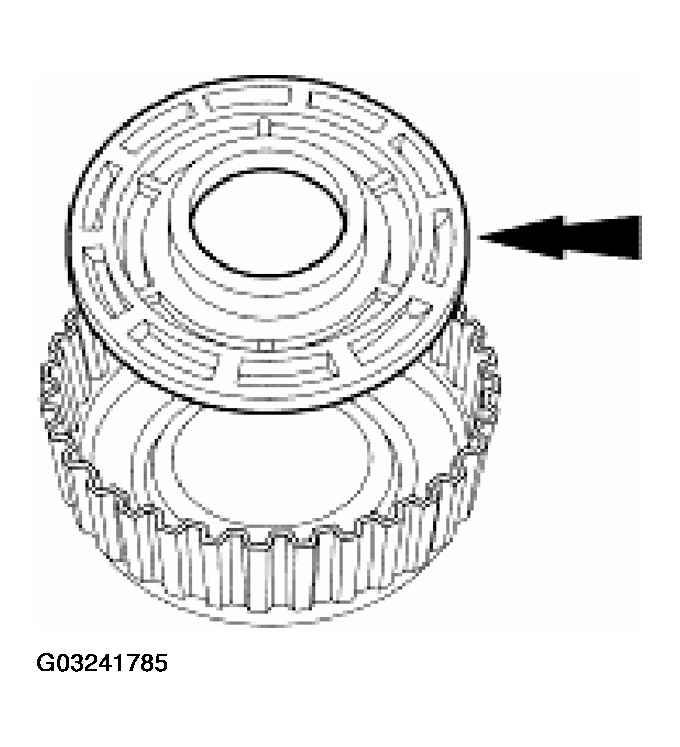

    Fig 6: Removing Forward Clutch Piston
    G03241785Courtesy of FORD MOTOR CO.
  13. Remove the forward clutch piston.
  14. Remove the inner and outer forward clutch piston seals.

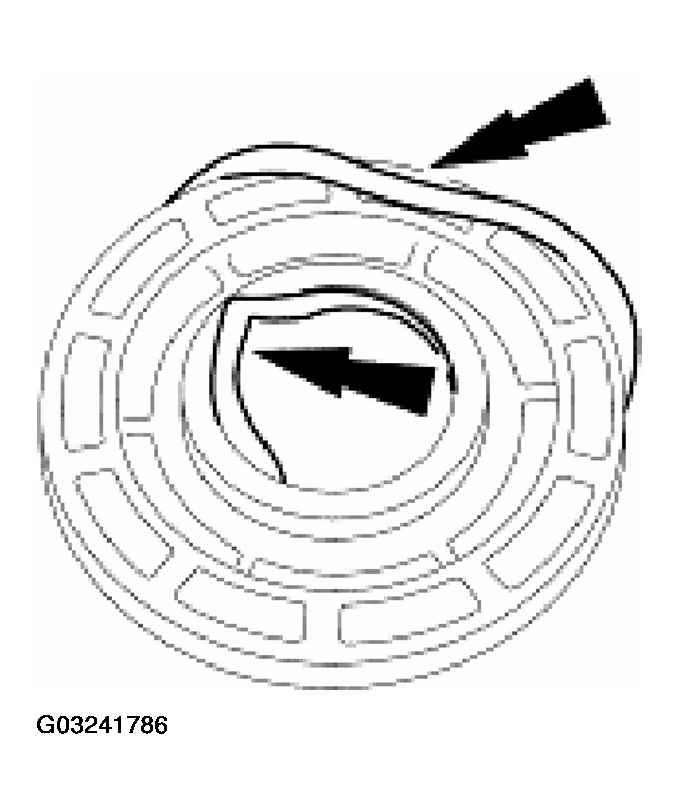

    Fig 7: Removing Inner And Outer Forward Clutch Piston Seals
    G03241786Courtesy of FORD MOTOR CO.
    15. NOTE: The seals are solid seals, but new scarf cut seals will be installed in their place.

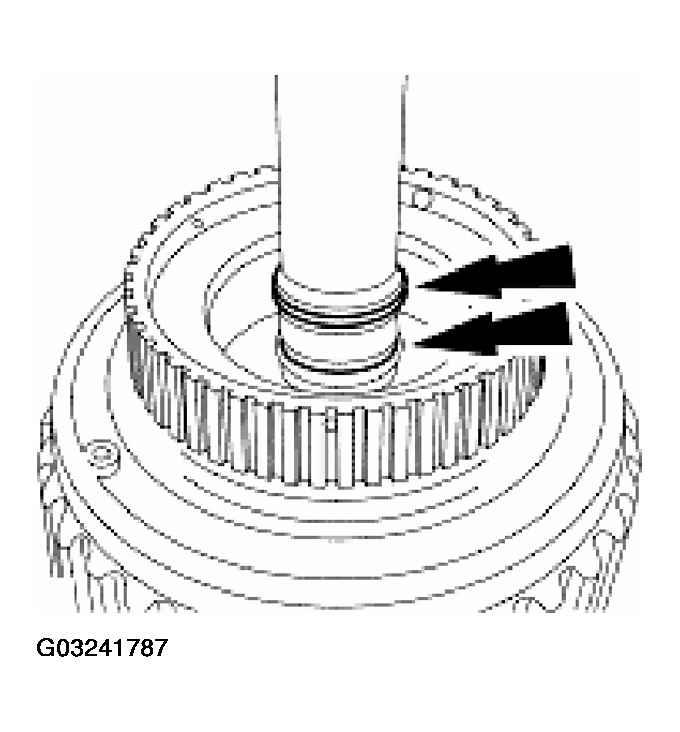

    Fig 8: Removing Forward Clutch Input Shaft Seals
    G03241787Courtesy of FORD MOTOR CO.
  15. Remove the forward clutch input shaft seals.
  16. Make sure the check ball in the clutch cylinder is free and clean. Check for correct seating.

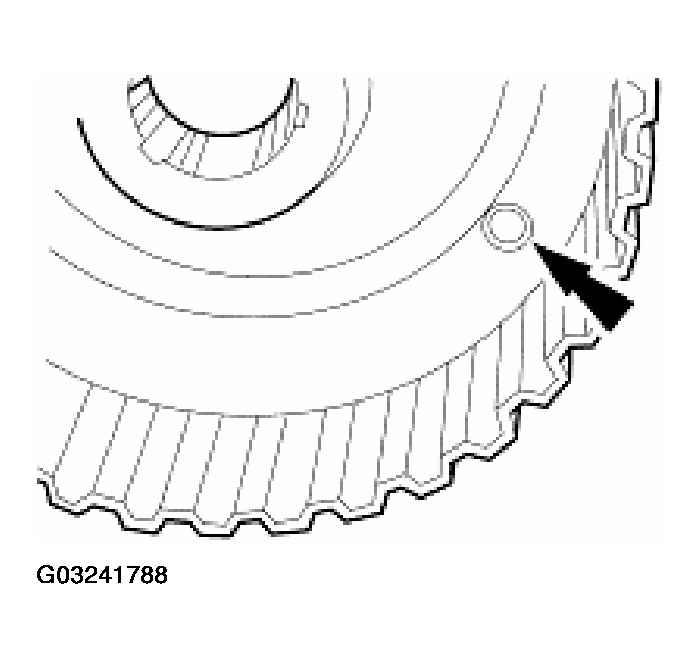

    Fig 9: Inspecting Check Ball In Clutch Cylinder
    G03241788Courtesy of FORD MOTOR CO.
