Intermediate One-Way Clutch: Assembly

    NOTE: The intermediate one-way clutch must rotate counterclockwise when installed on the reverse clutch drum and will make a ratchet sound.
  1. Install the intermediate one-way clutch.
    1. Install the intermediate one-way clutch.
    2. Install the snap ring.

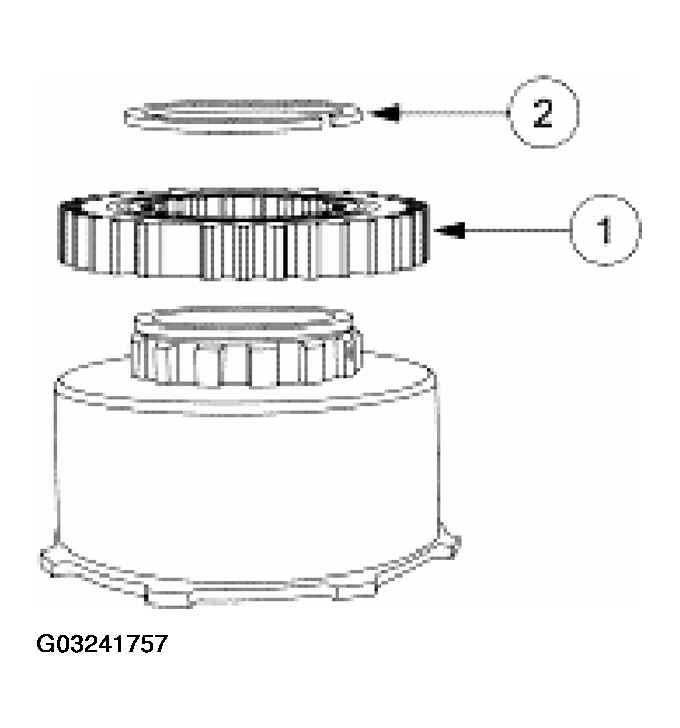

      Fig 1: Installing Intermediate One-Way Clutch
      G03241757Courtesy of FORD MOTOR CO.
