Main Control Valve Body: Disassembly

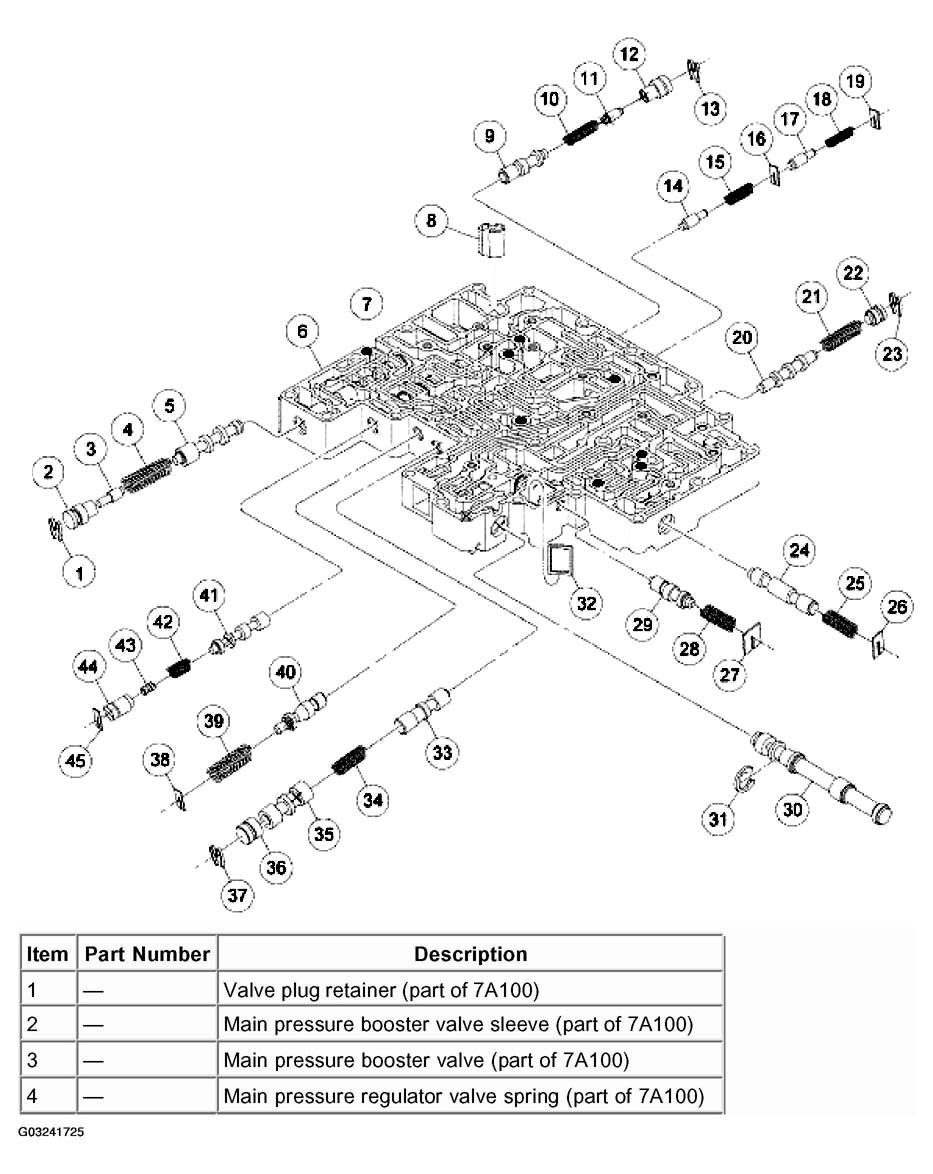

Fig 1: Identifying Main Control Valve Body Components & Legend (Items 1-4)

Courtesy of FORD MOTOR CO.

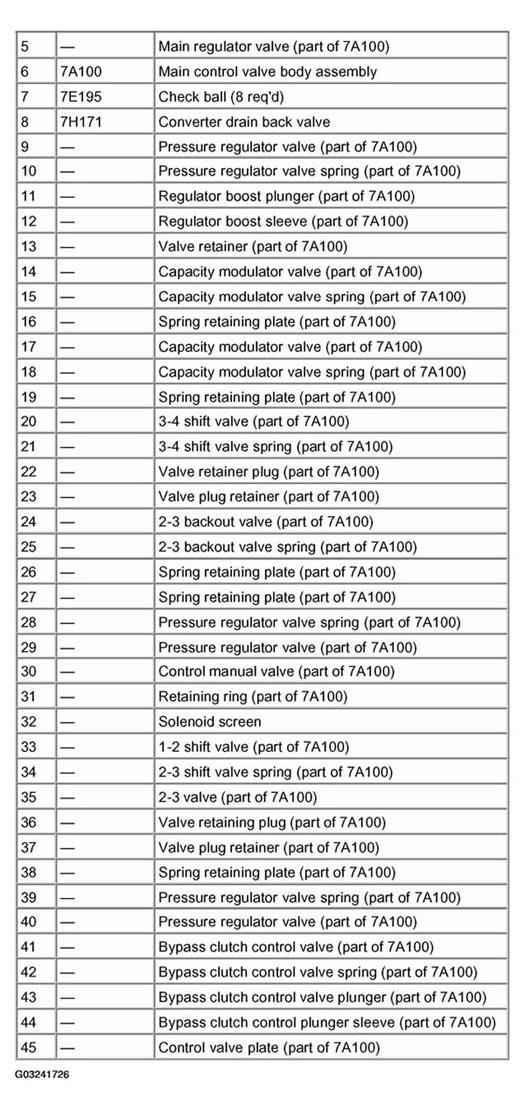

Fig 2: Main Control Valve Body Components Legends (Items 5-46)

Courtesy of FORD MOTOR CO.

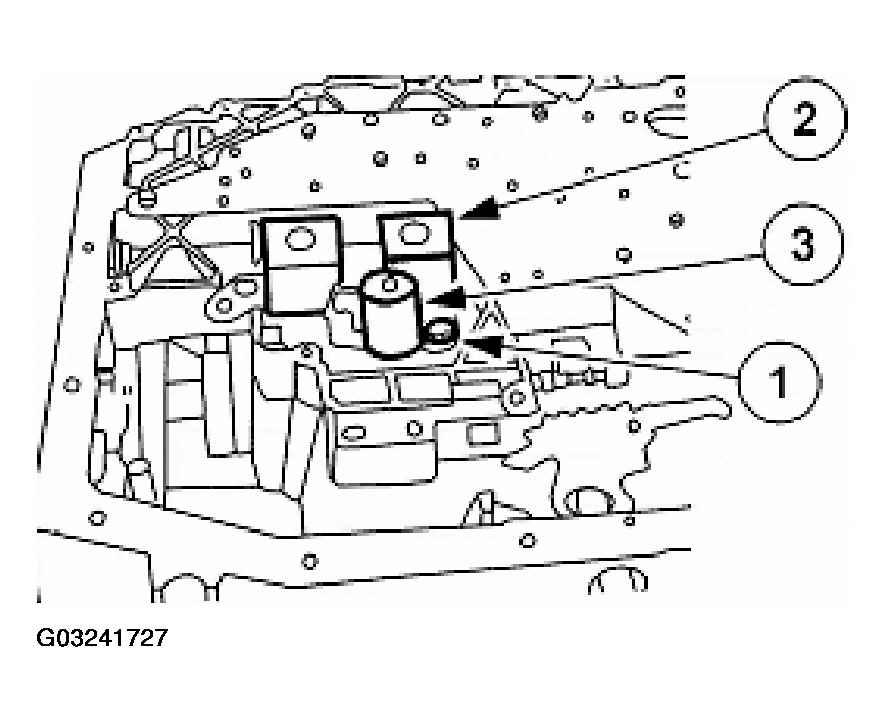

Remove the torque converter clutch (TCC) solenoid and the shift solenoid.
1. Remove the bolt.
2. Remove the shift solenoid.
3. Remove the TCC solenoid.

  Fig 3: Removing Torque Converter Clutch (TCC) Solenoid And Shift Solenoid
  Courtesy of FORD MOTOR CO.

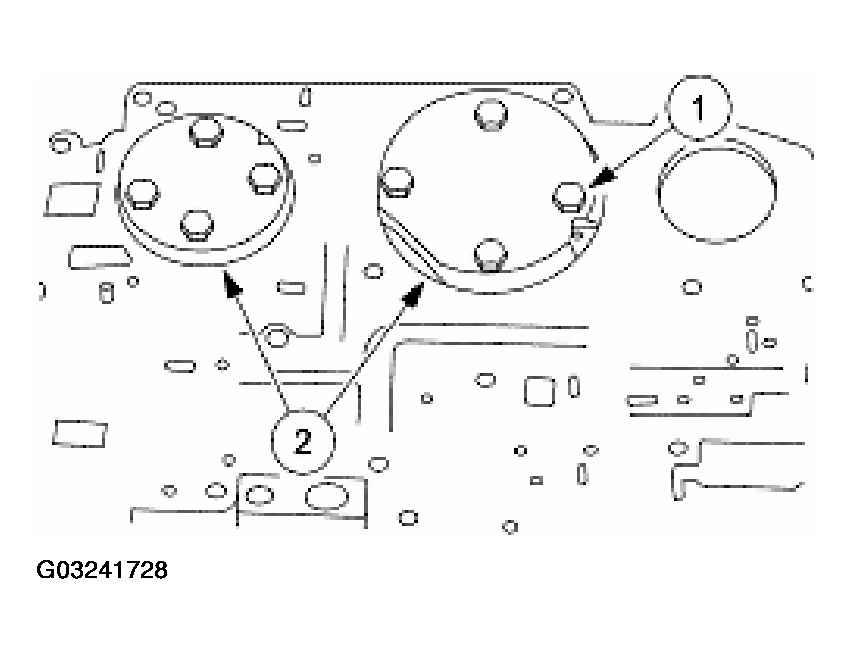

Remove the two reinforcement plates.
1. Remove the bolts.
2. Remove the plates.

  Fig 4: Removing Reinforcement Plates
  Courtesy of FORD MOTOR CO.

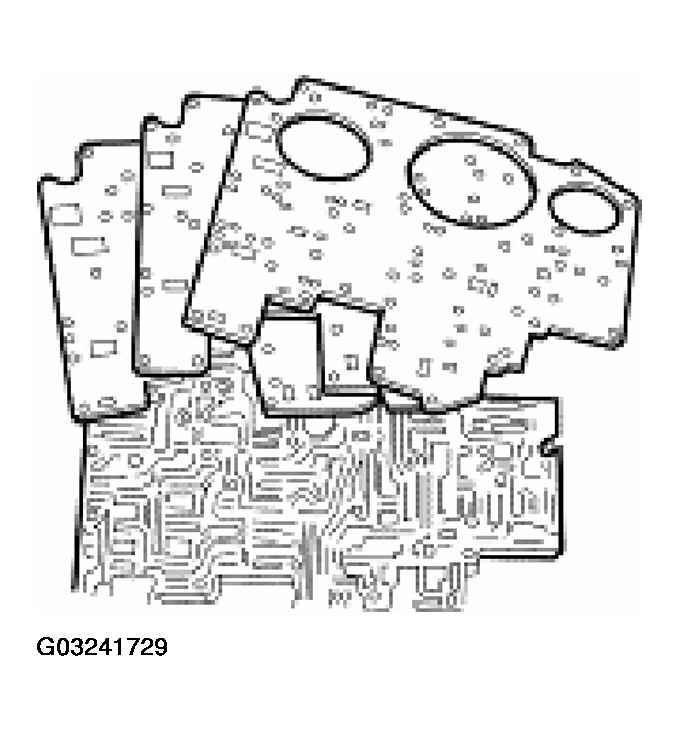

Remove the separator plate and discard the gaskets.

Fig 5: Removing Separator Plate And Gaskets
Courtesy of FORD MOTOR CO.

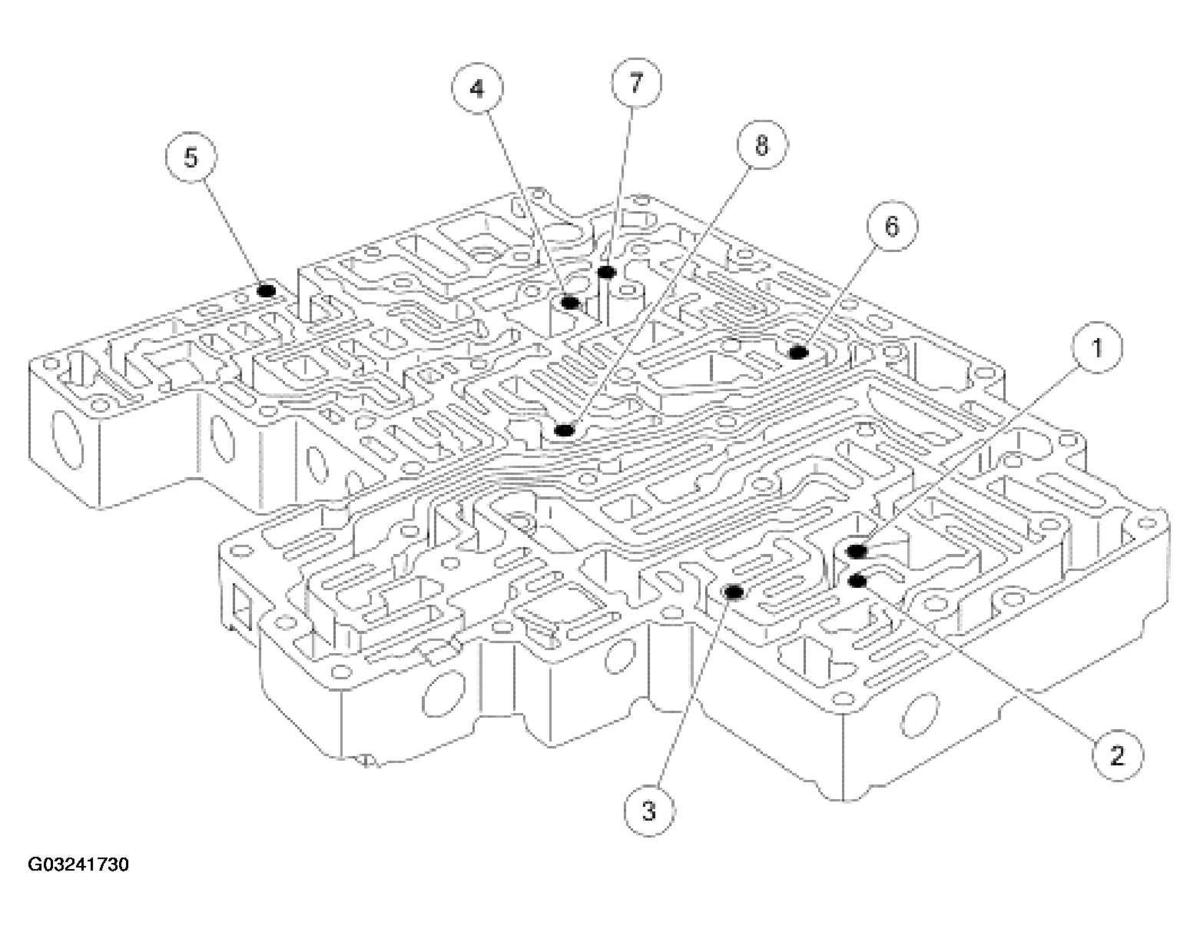

NOTE: Note the location of the eight coasting booster valve shuttle balls for assembly.

Fig 6: Removing Eight Coasting Booster Valve Shuttle Balls

Courtesy of FORD MOTOR CO.

Remove the eight coasting booster valve shuttle balls.

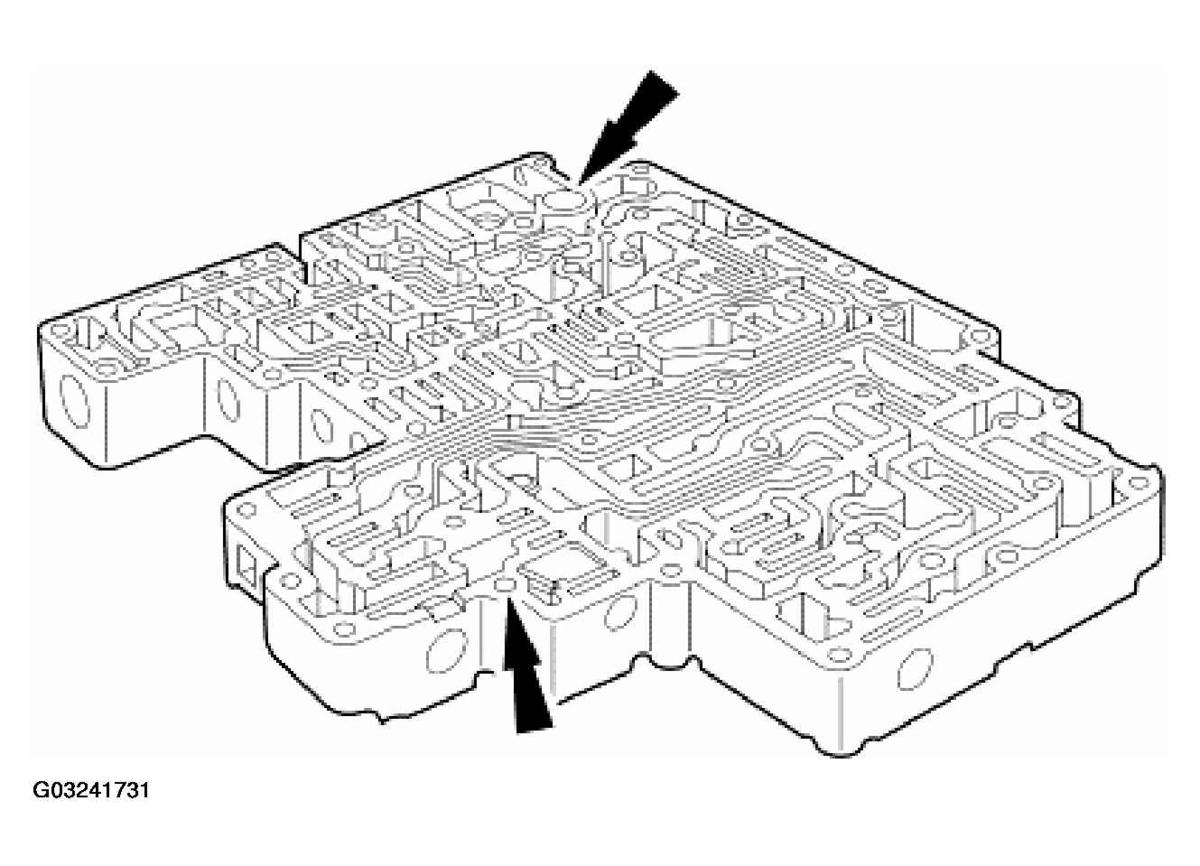

Remove the converter drain back valve and solenoid pressure supply screen.

Fig 7: Removing Converter Drain Back Valve And Solenoid Pressure Supply Screen
Courtesy of FORD MOTOR CO.

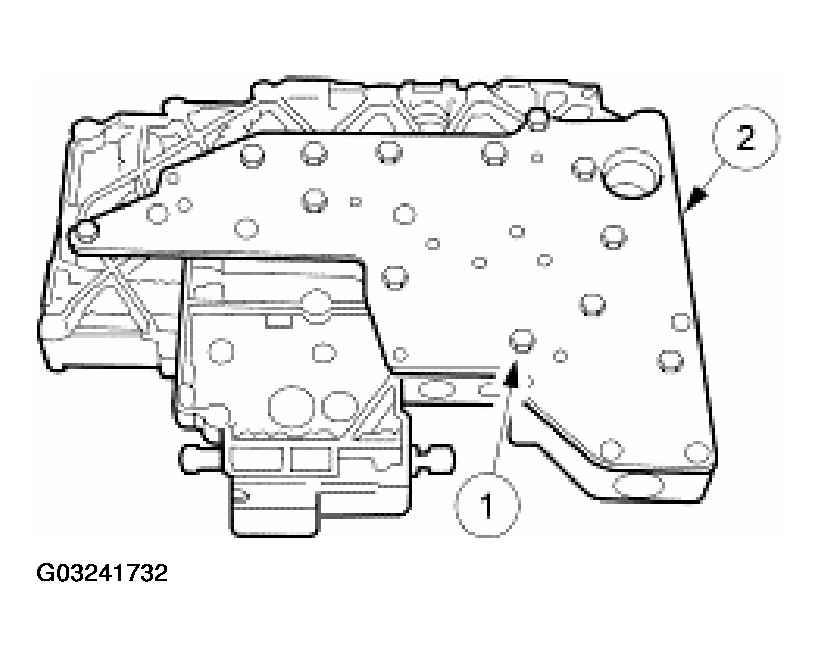

Remove the main control valve body cover plate.
1. Remove the 13 bolts.
2. Remove the valve body cover plate and gasket.

Fig 8: Removing Valve Body Cover Plate And Gasket

Courtesy of FORD MOTOR CO.
