1-2 Accumulator: Installation

  1. Install the 1-2 accumulator.
    1. Install the 1-2 accumulator upper spring.
    2. Install the accumulator piston.
    3. Install the 1-2 accumulator lower spring.
    4. Install the cover and seal assembly.

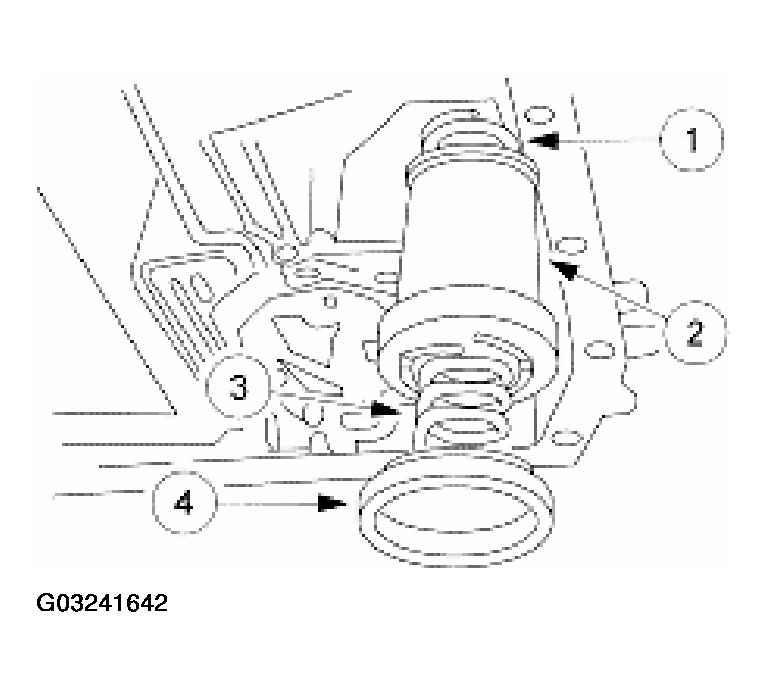

    Fig 1: Installing 1-2 Accumulator Assembly
    G03241642Courtesy of FORD MOTOR CO.
  2. Compress the accumulator and install the accumulator piston retaining ring.

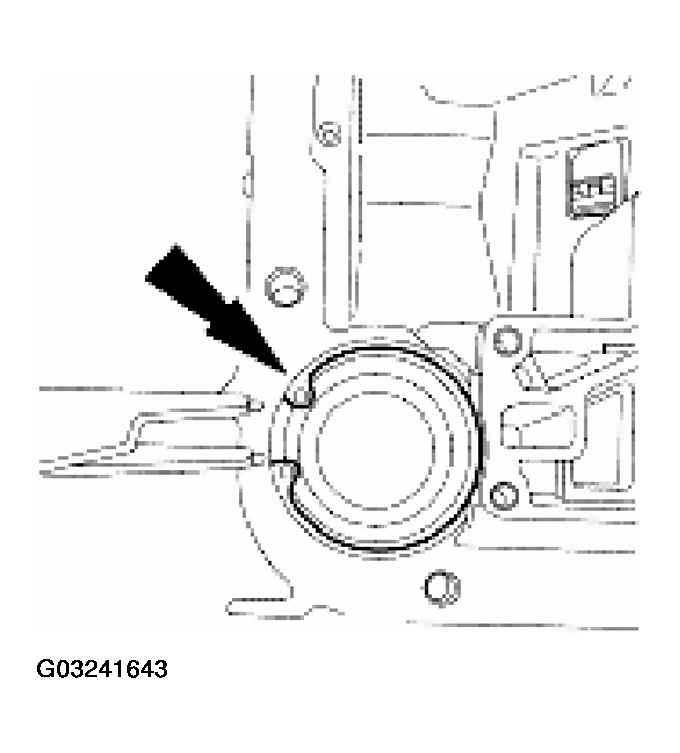

    Fig 2: Installing Accumulator Piston Retaining Ring
    G03241643Courtesy of FORD MOTOR CO.
