2-3 Accumulator: Installation

  1. Install the 2-3 accumulator assembly.
    1. Install the accumulator piston.
    2. Install the accumulator piston spring.
    3. Install the accumulator spring retainer.

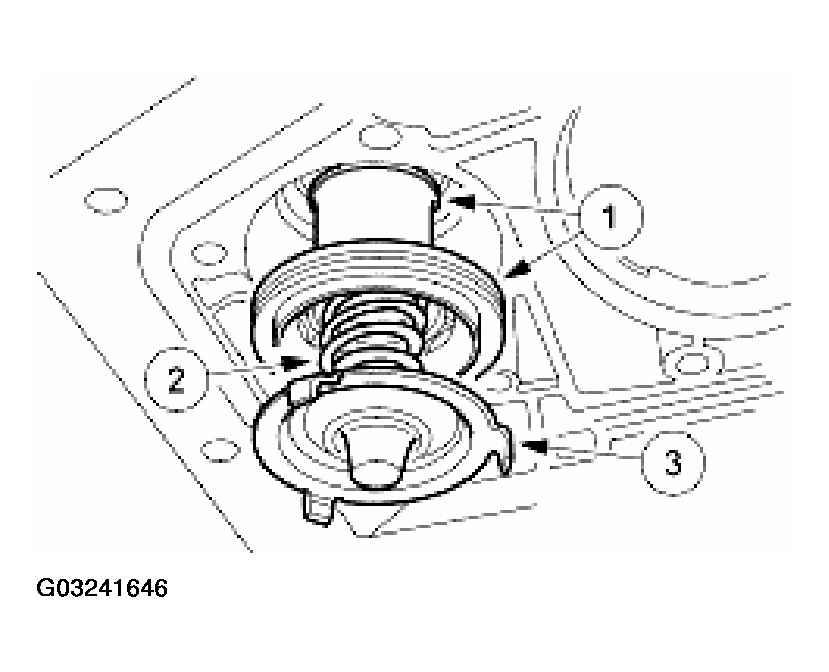

    Fig 1: Installing 2-3 Accumulator Assembly
    G03241646Courtesy of FORD MOTOR CO.
  2. Install the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
