Digital Transmission Range (TR) Sensor: Installation

Install the digital TR and loosely install the bolts.

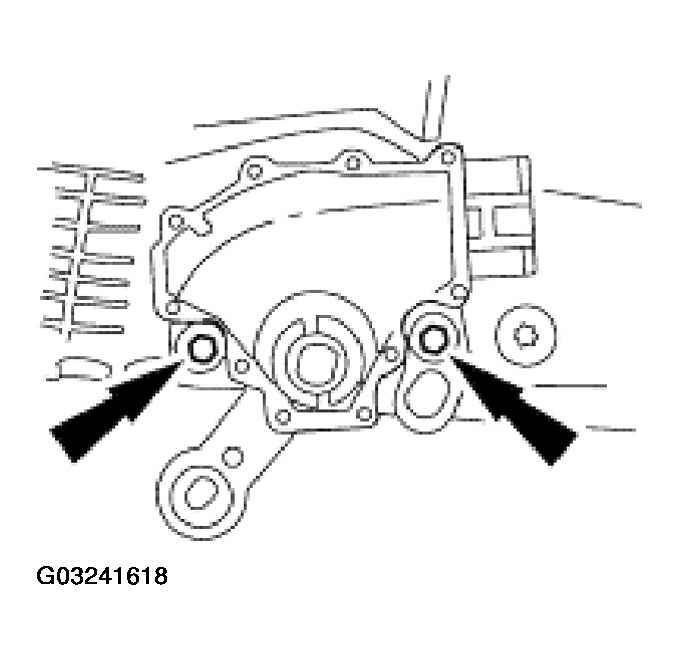

Fig 1: Removing Digital TR Sensor
Courtesy of FORD MOTOR CO.

NOTE: The tool is designed to fit snug.

NOTE: The manual lever must be in the NEUTRAL position.

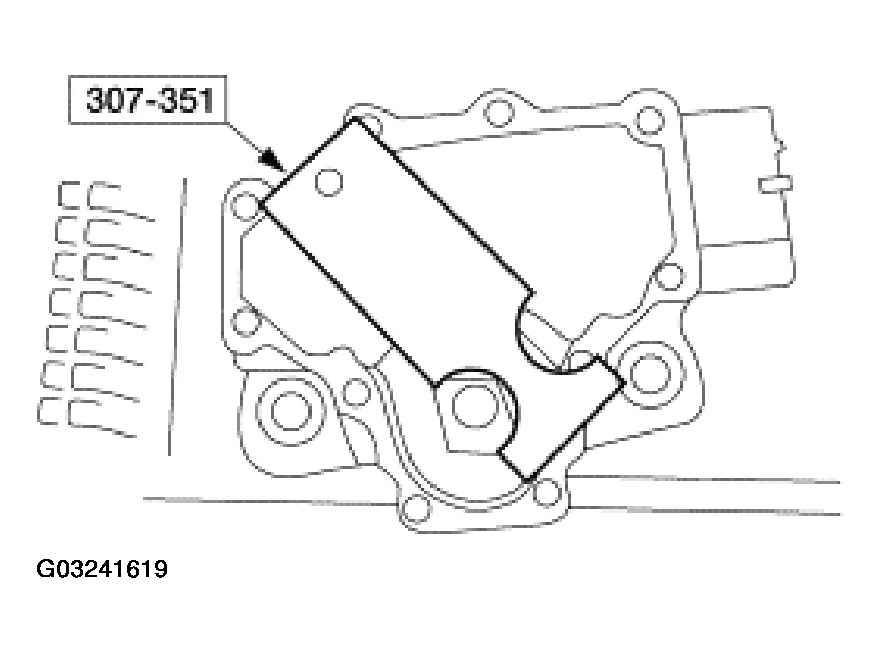

Fig 2: Aligning Digital TR Sensor

Courtesy of FORD MOTOR CO.

Using the special tools, align the digital TR sensor slots.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

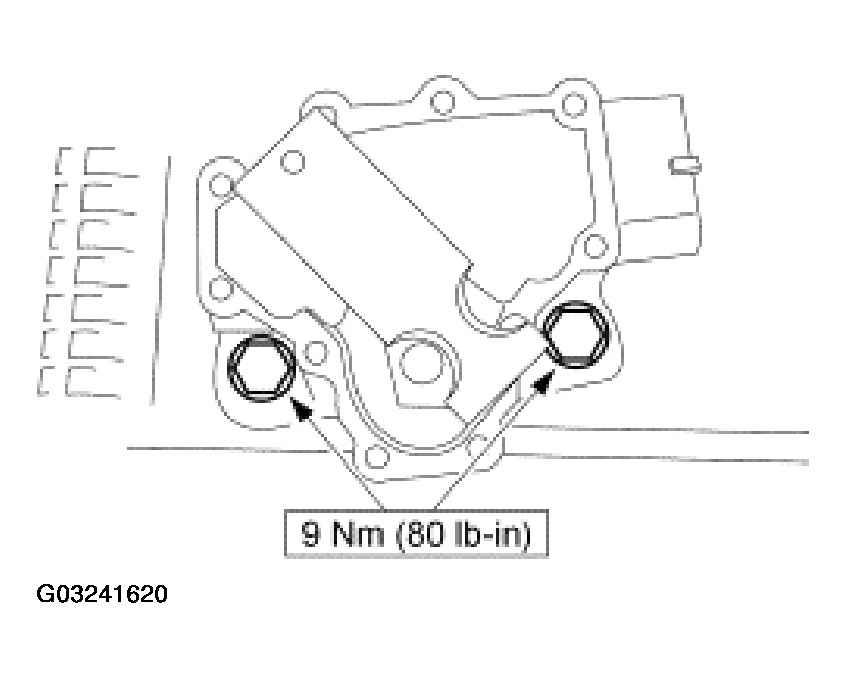

Fig 3: Tightening Digital TR Sensor Bolts

Courtesy of FORD MOTOR CO.

Tighten the bolts in an alternating sequence.
With manual lever in overdrive, connect the shift control cable.

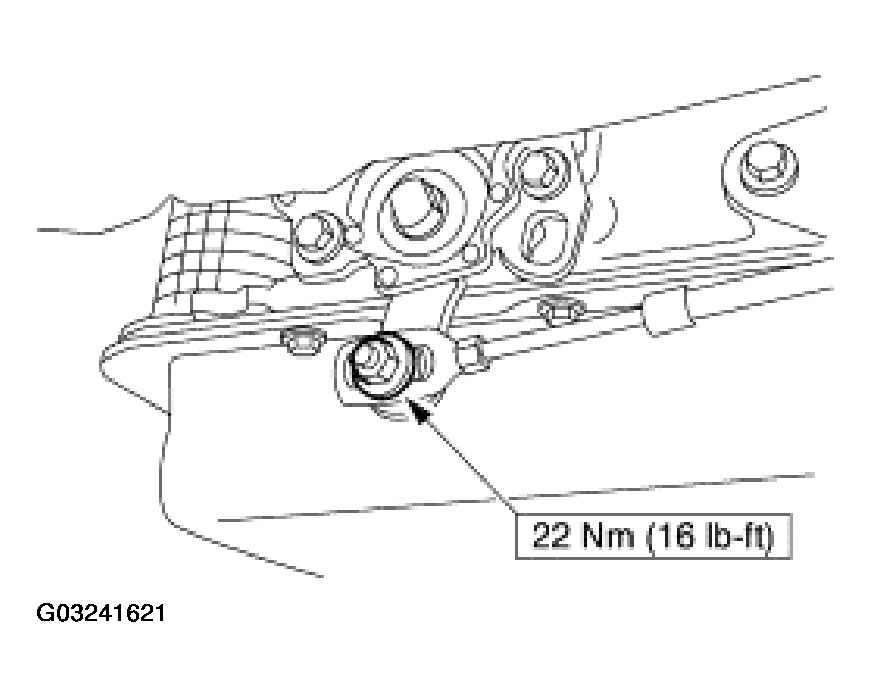

Fig 4: Connecting Shift Control Cable
Courtesy of FORD MOTOR CO.
Install the digital TR sensor electrical connector.

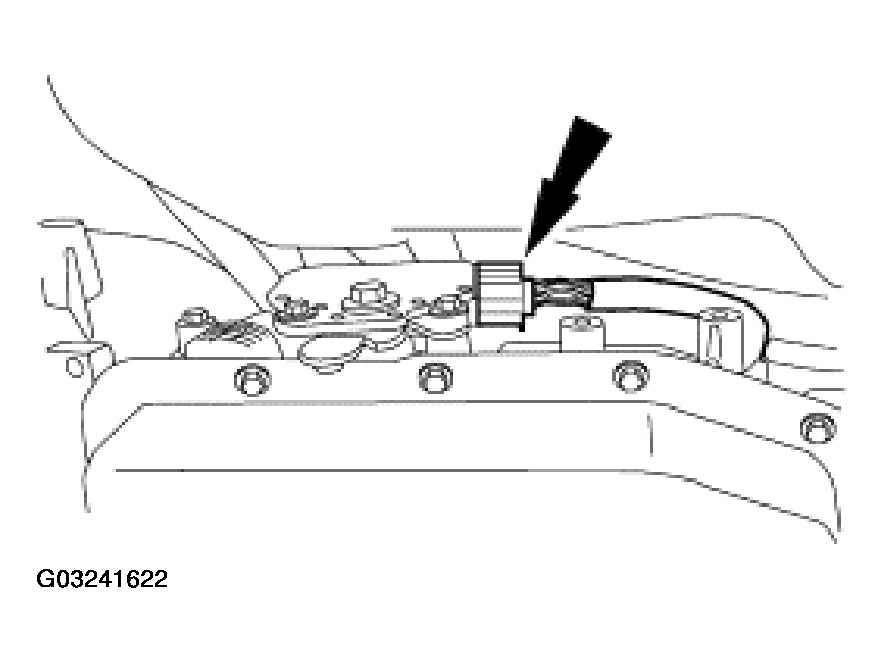

Fig 5: Installing Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: When the battery is disconnected and reconnected, some abnormal driving symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

Connect the battery ground cable. For additional information, refer to JACKING & HOISTING .
