Extension Housing Gasket: Installation

  1. Install the extension housing and gasket.
    1. Install the extension housing gasket and housing.
    2. Install the bolts and the nuts.

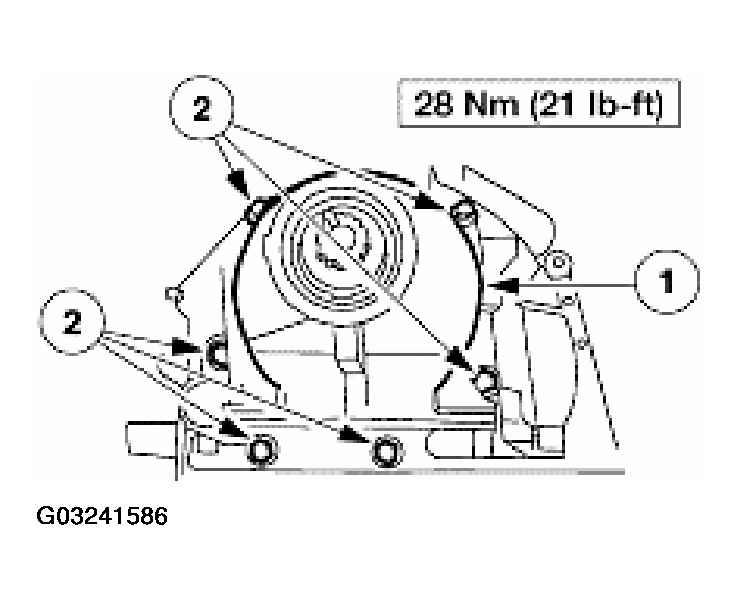

      Fig 1: Installing Extension Housing Gasket And Housing
      G03241586Courtesy of FORD MOTOR CO.
  2. Raise and position the transmission.
  3. Install the transmission mount and crossmember.

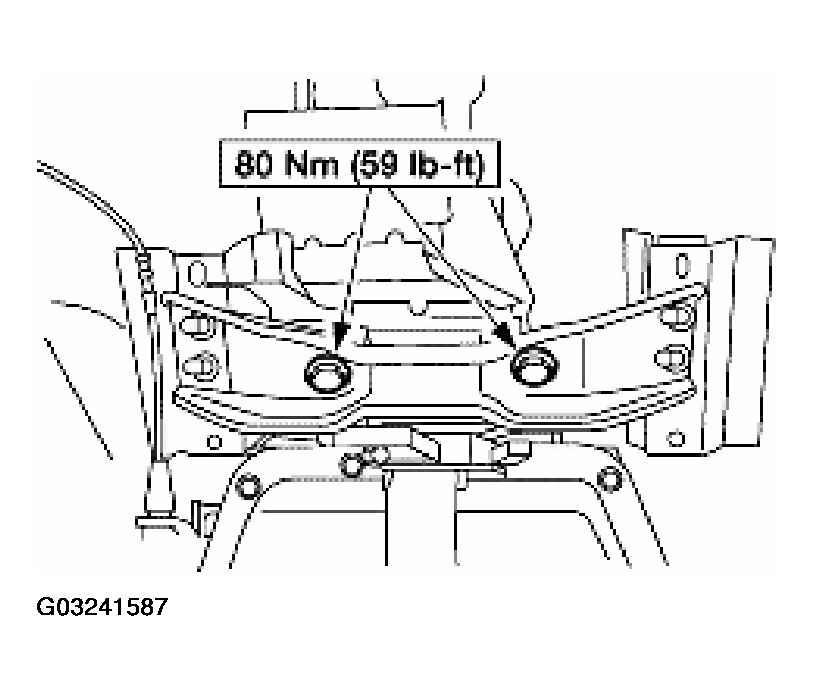

    Fig 2: Installing Transmission Mount And Crossmember
    G03241587Courtesy of FORD MOTOR CO.
  4. Install the transmission crossmember bolts.

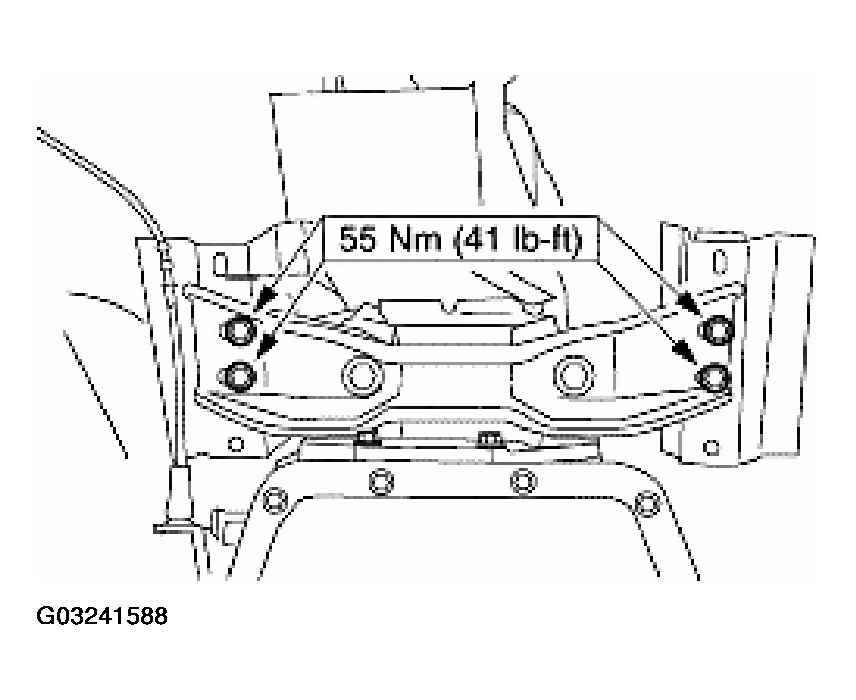

    Fig 3: Installing Transmission Crossmember Bolts
    G03241588Courtesy of FORD MOTOR CO.
  5. Remove high-lift transmission jack.
    6. NOTE: The output shaft and the driveshaft are a balanced assembly.
  6. Install the driveshaft.
    • Align all the index marks and position the driveshaft on the transmission.
    • Install the driveshaft.

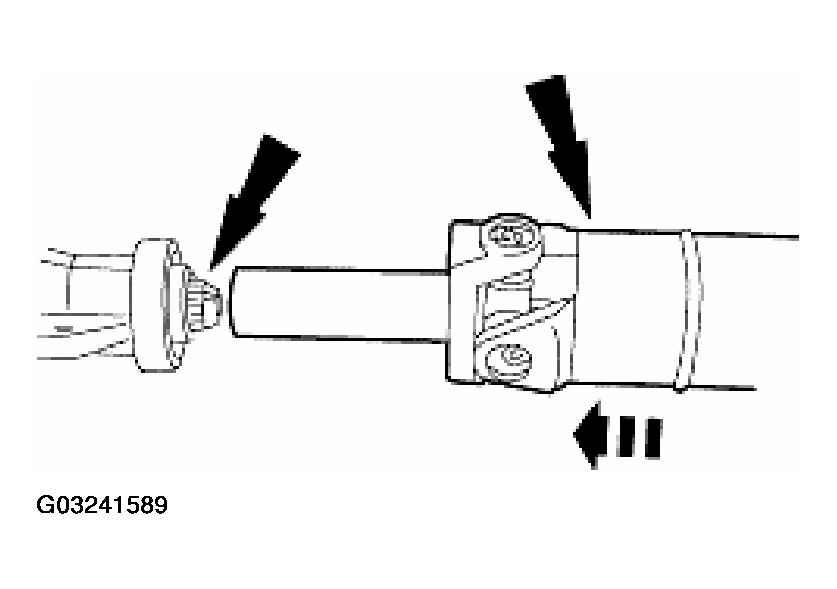

      Fig 4: Installing Driveshaft
      G03241589Courtesy of FORD MOTOR CO.
    7. NOTE: To maintain driveshaft balance, align the marks made during disassembly for the rear axle flange and the driveshaft yoke.
  7. Install the four bolts.

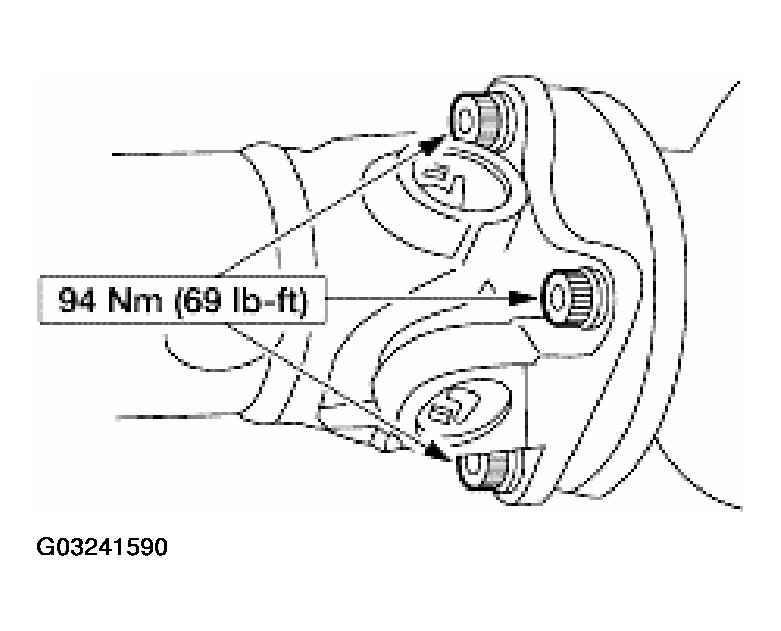

Fig 5: Installing Driveshaft Yoke To Flange
G03241590Courtesy of FORD MOTOR CO.
