Sensor - Rear: Removal

Remove the rear passenger seat.
Disconnect the rear anti -lock brake sensor electrical connector.

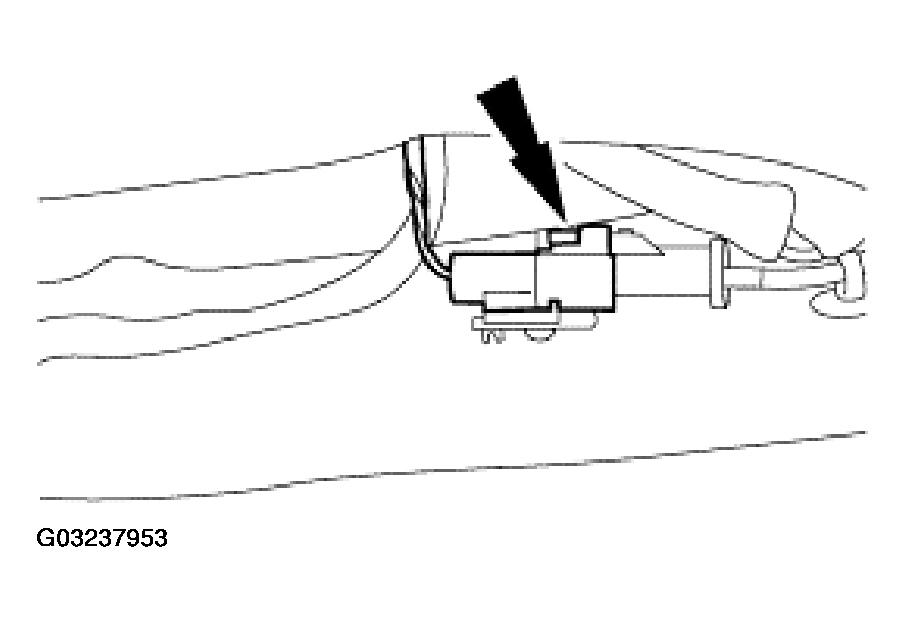

Fig 1: Disconnecting Rear Anti -Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
Remove the rear anti-lock brake sensor harness from the floor pan.

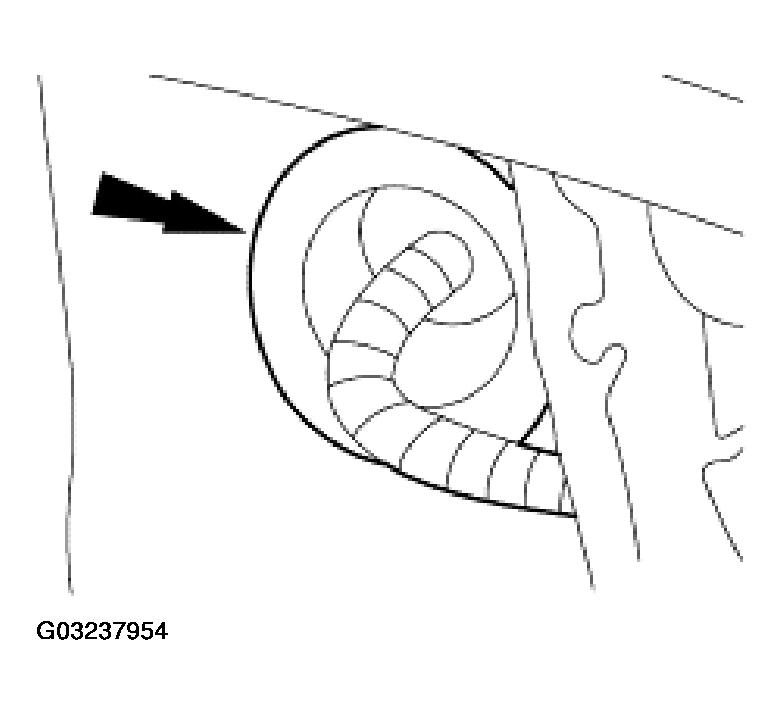

Fig 2: Removing Rear Anti-Lock Brake Sensor Harness From Floor Pan
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake sensor harness bracket bolt.

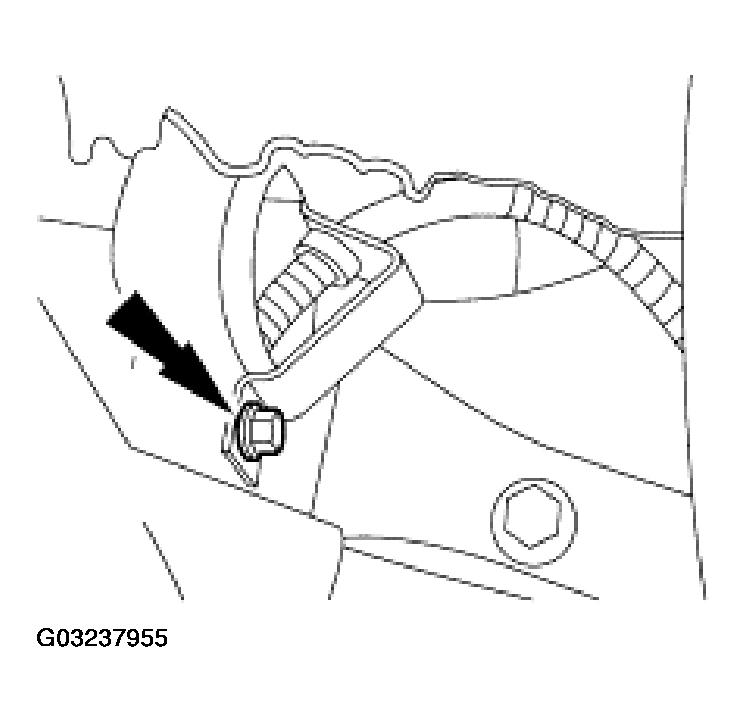

Fig 3: Removing Anti-Lock Brake Sensor Harness Bracket Bolt
Courtesy of FORD MOTOR CO.

NOTE: The sensor may be siezed to the axle. Use Rust Penetrant and Inhibitor F2AZ-19A501-A meeting Ford specification ESR-M99C56-A to loosen the sensor for removal.

Remove the rear anti-lock brake sensor.
1. Remove the rear anti-lock brake sensor bolt.
2. Remove the rear anti-lock brake sensor.

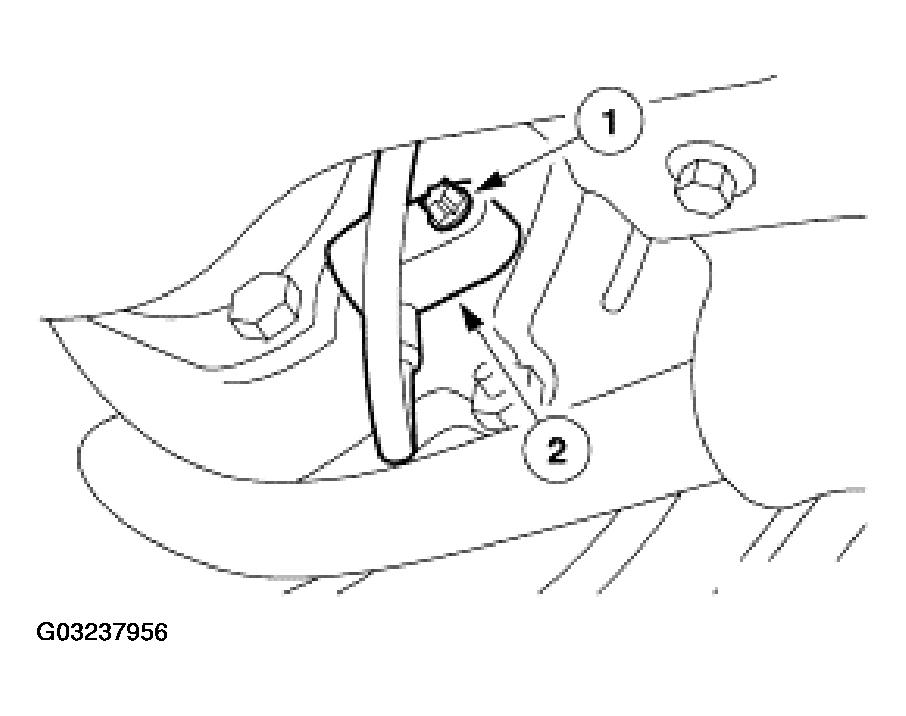

  Fig 4: Removing Rear Anti-Lock Brake Sensor
  Courtesy of FORD MOTOR CO.
