Fuel Line Fittings-Push Connect: Connect
- Connect the fitting.

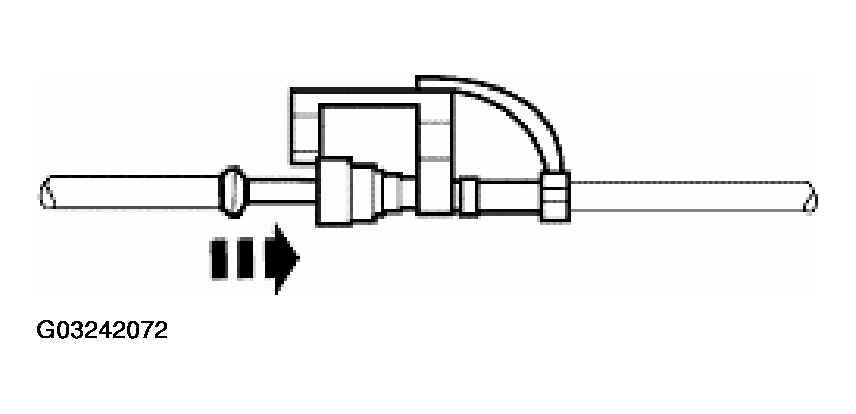

- Align the tube to the fitting and push until you hear a click.

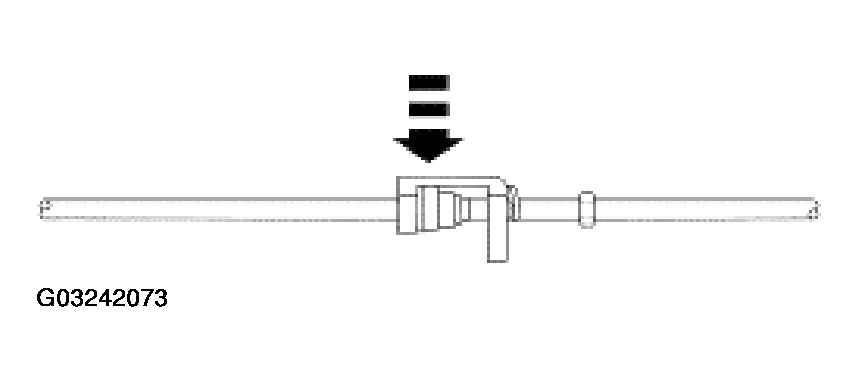

- Pull on the fitting to make sure it is fully engaged, then install the safety clip.
NOTE:
Lubricate the tube end with clean engine oil to ease assembly.
