Pinpoint Test A: The Module Does Not Respond To Diagnostic Tool - Anti-Lock Brake Control Module

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

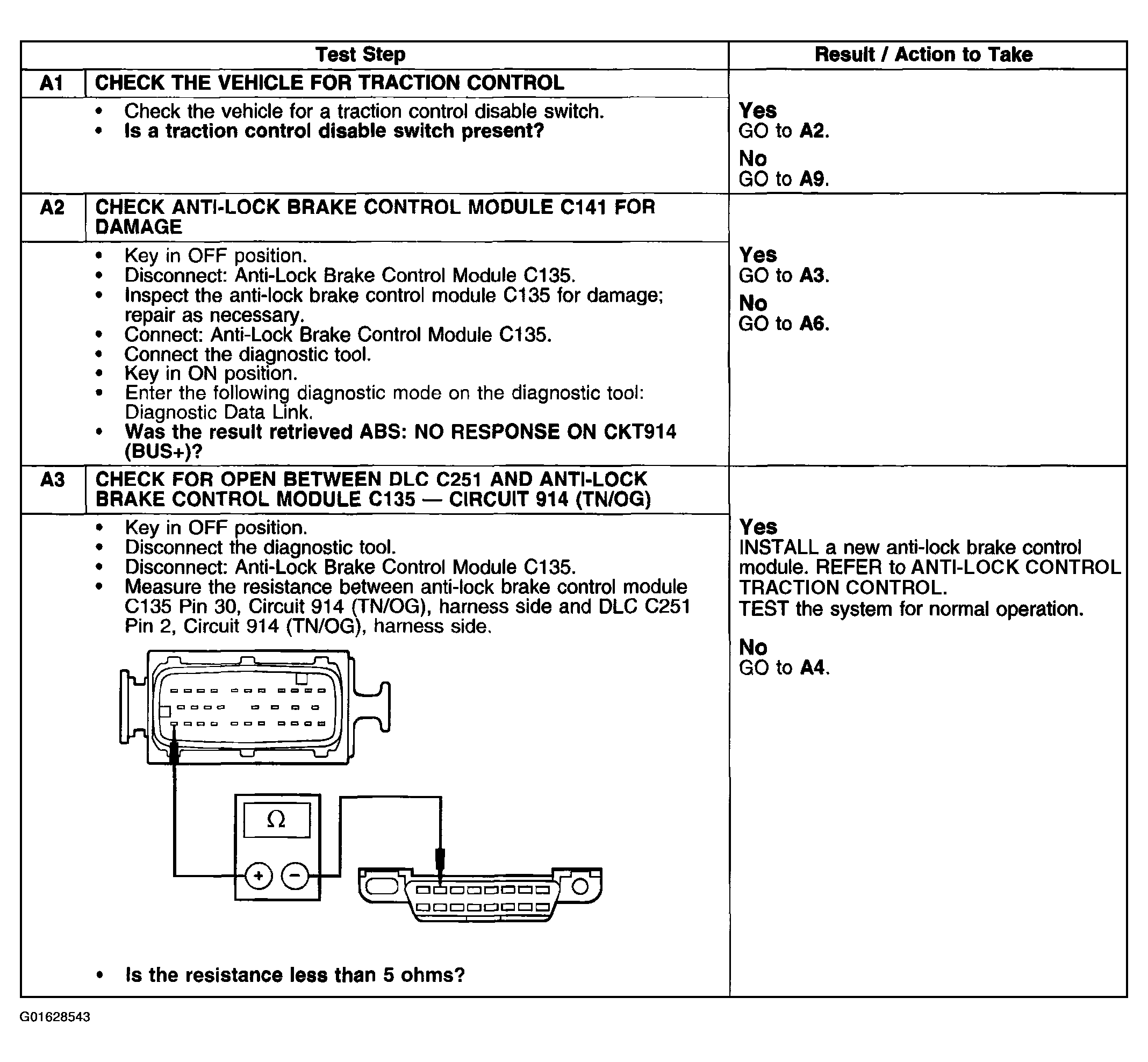

Fig 1: Pinpoint Test A Chart - Module Does Not Respond To Diagnostic Tool - Anti-Lock Brake Control Module (A1-A3)

Courtesy of FORD MOTOR CO.

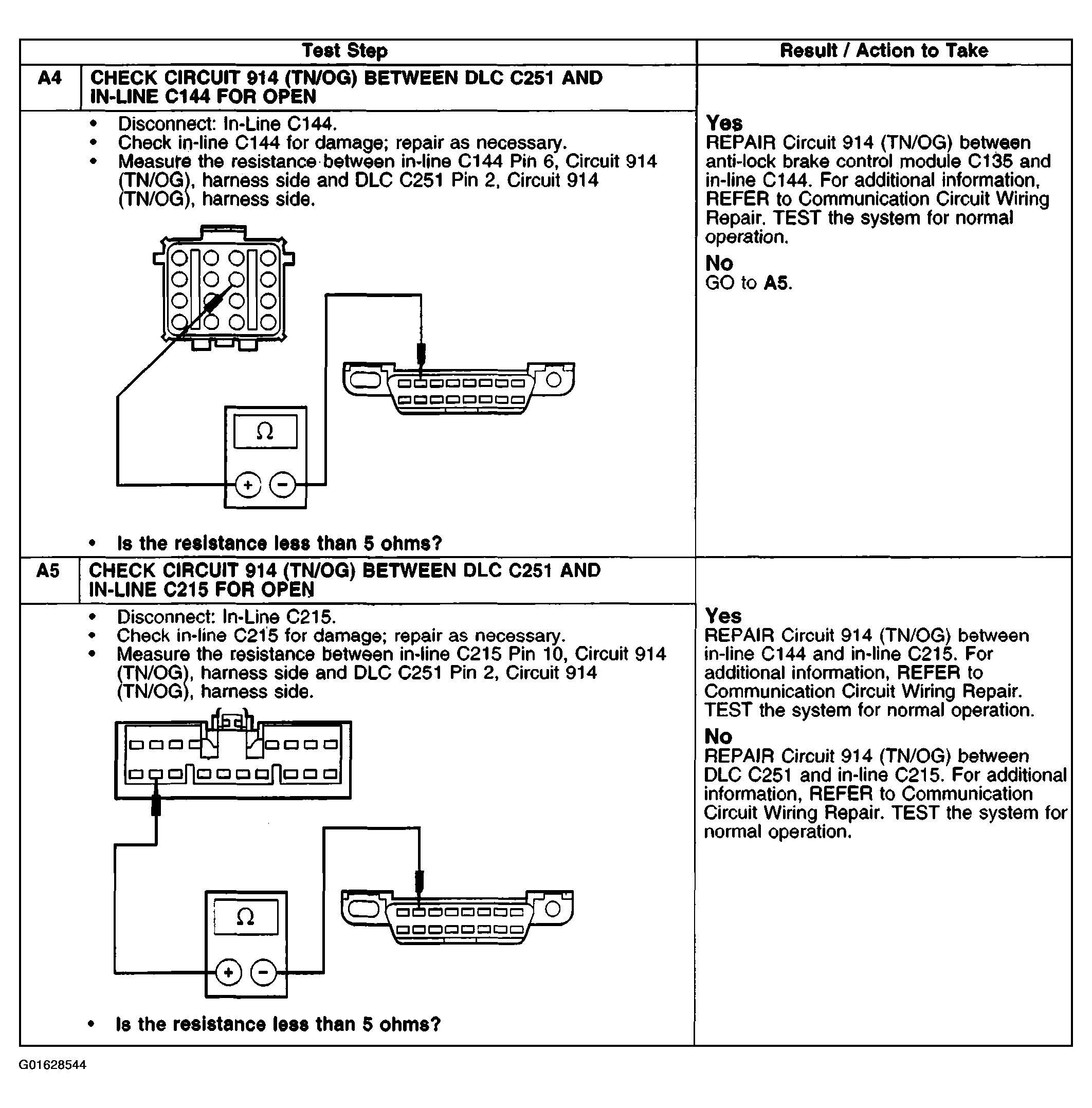

Fig 2: Pinpoint Test A Chart - Module Does Not Respond To Diagnostic Tool - Anti-Lock Brake Control Module (A4 & A5)

Courtesy of FORD MOTOR CO.

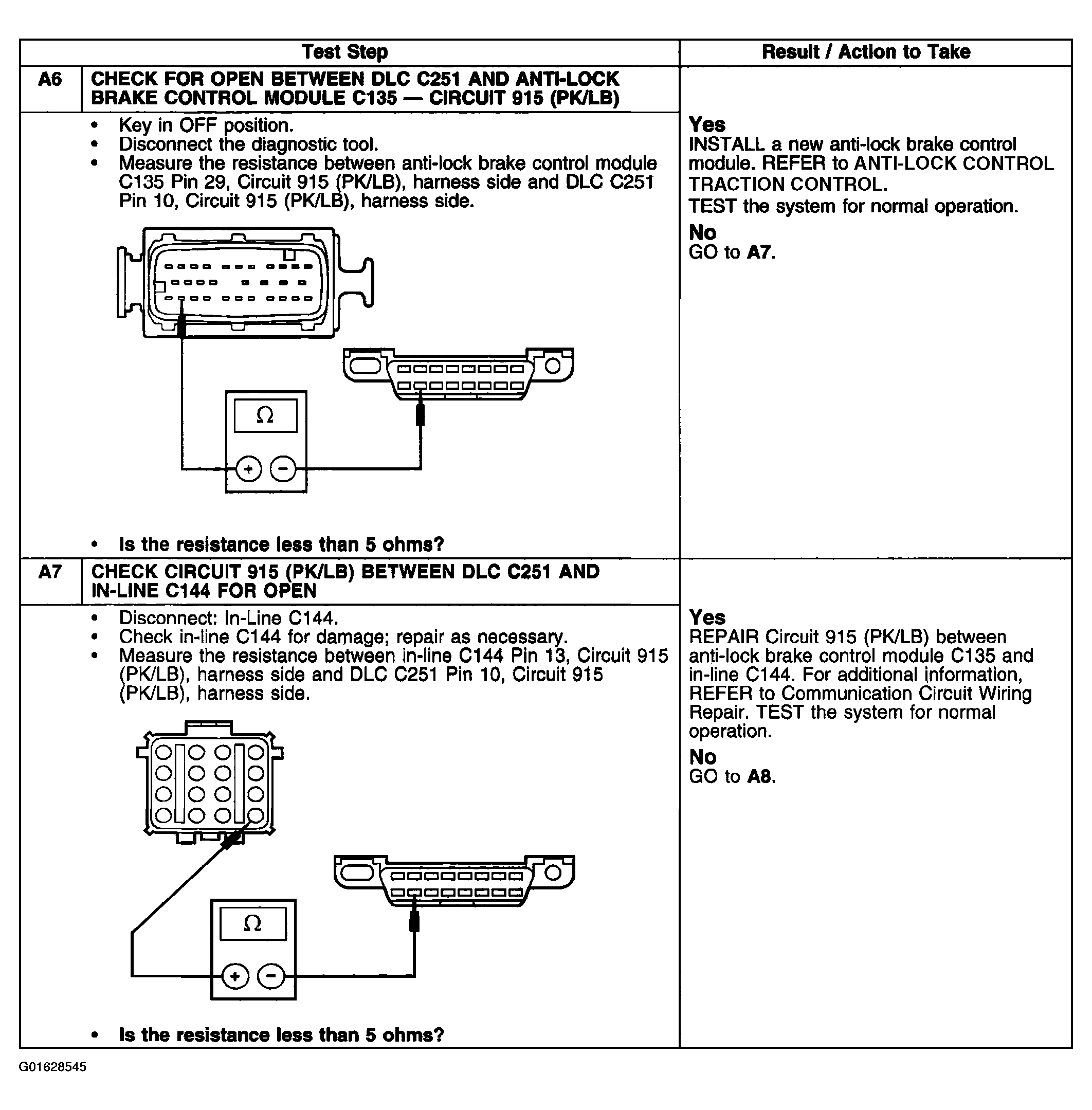

Fig 3: Pinpoint Test A Chart - Module Does Not Respond To Diagnostic Tool - Anti-Lock Brake Control Module (A6 & A7)

Courtesy of FORD MOTOR CO.

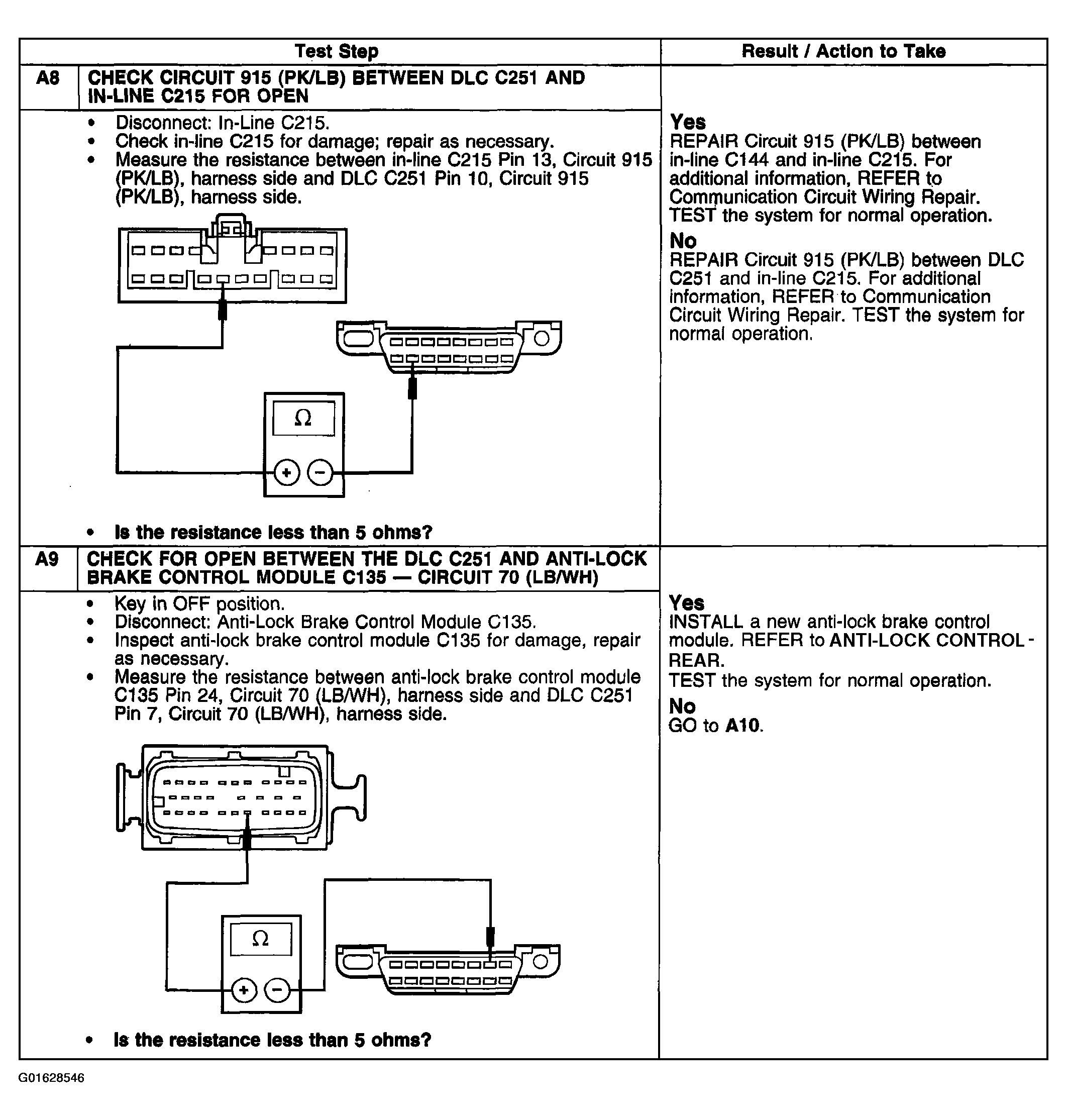

Fig 4: Pinpoint Test A Chart - Module Does Not Respond To Diagnostic Tool - Anti-Lock Brake Control Module (A8 & A9)

Courtesy of FORD MOTOR CO.

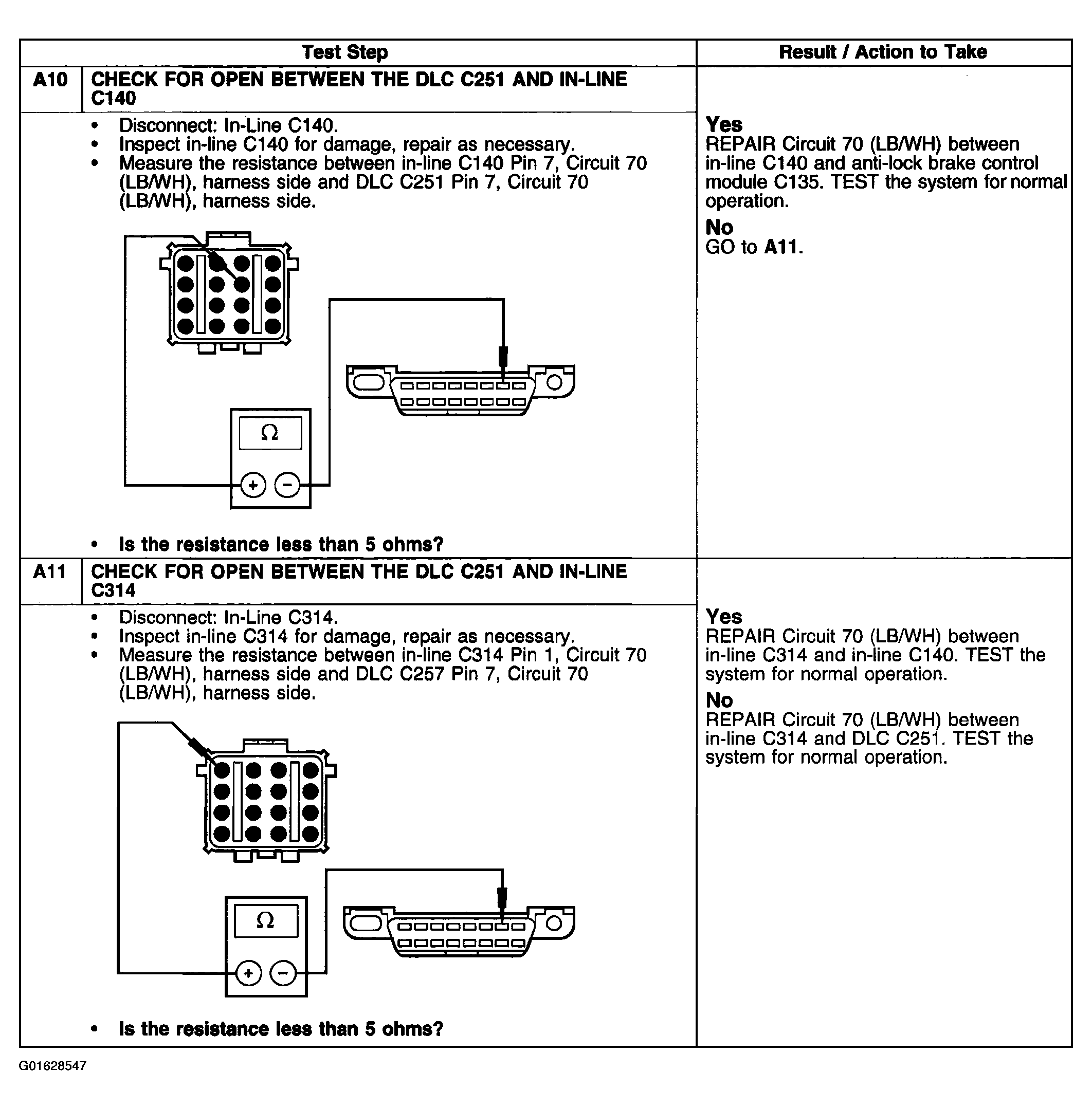

Fig 5: Pinpoint Test A Chart - Module Does Not Respond To Diagnostic Tool - Anti-Lock Brake Control Module (A10 & A11)

Courtesy of FORD MOTOR CO.
