Pinpoint Test E: The Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (Pcm)

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

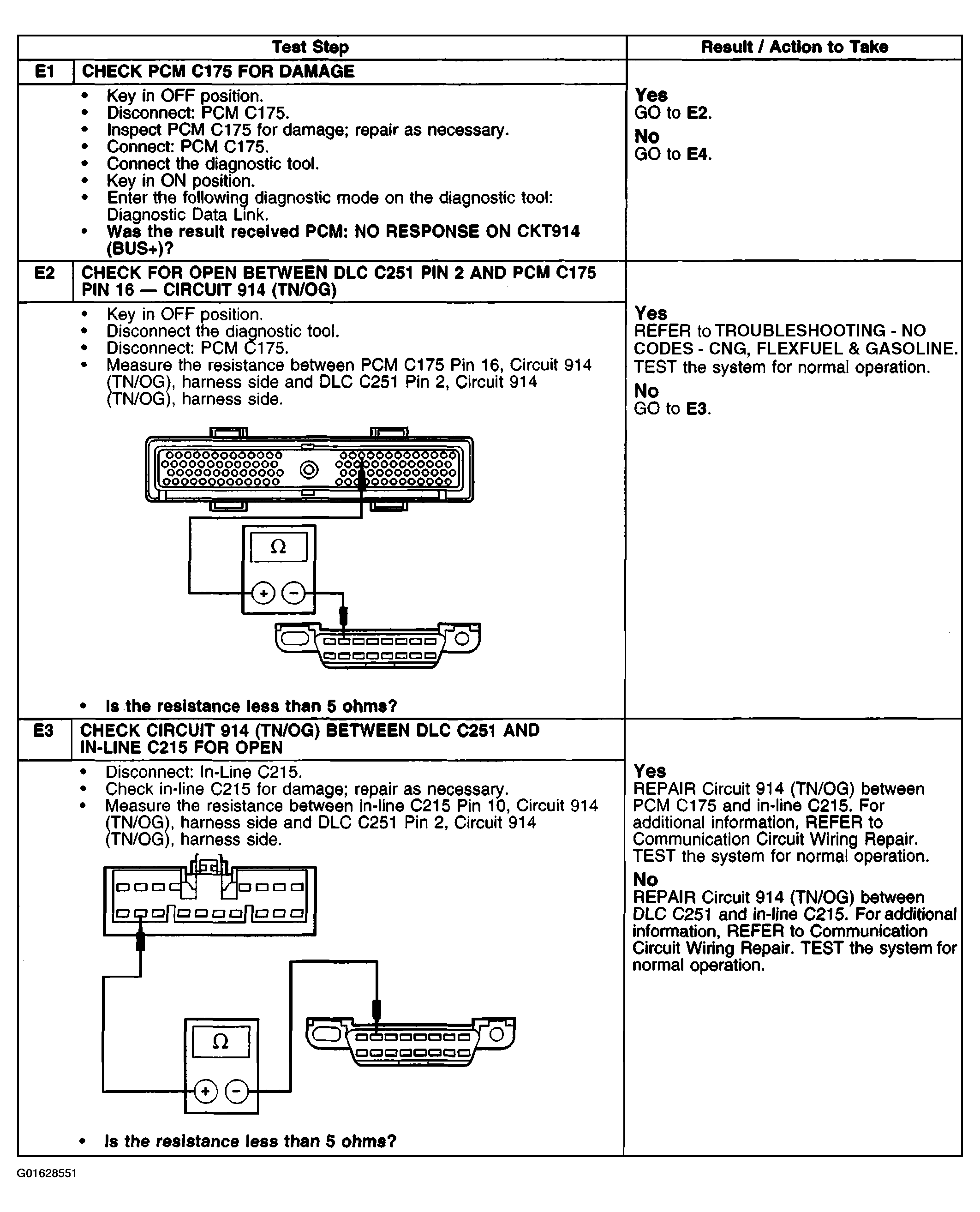

Fig 1: Pinpoint Test E Chart - Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (PCM) (E1-E3)

Courtesy of FORD MOTOR CO.

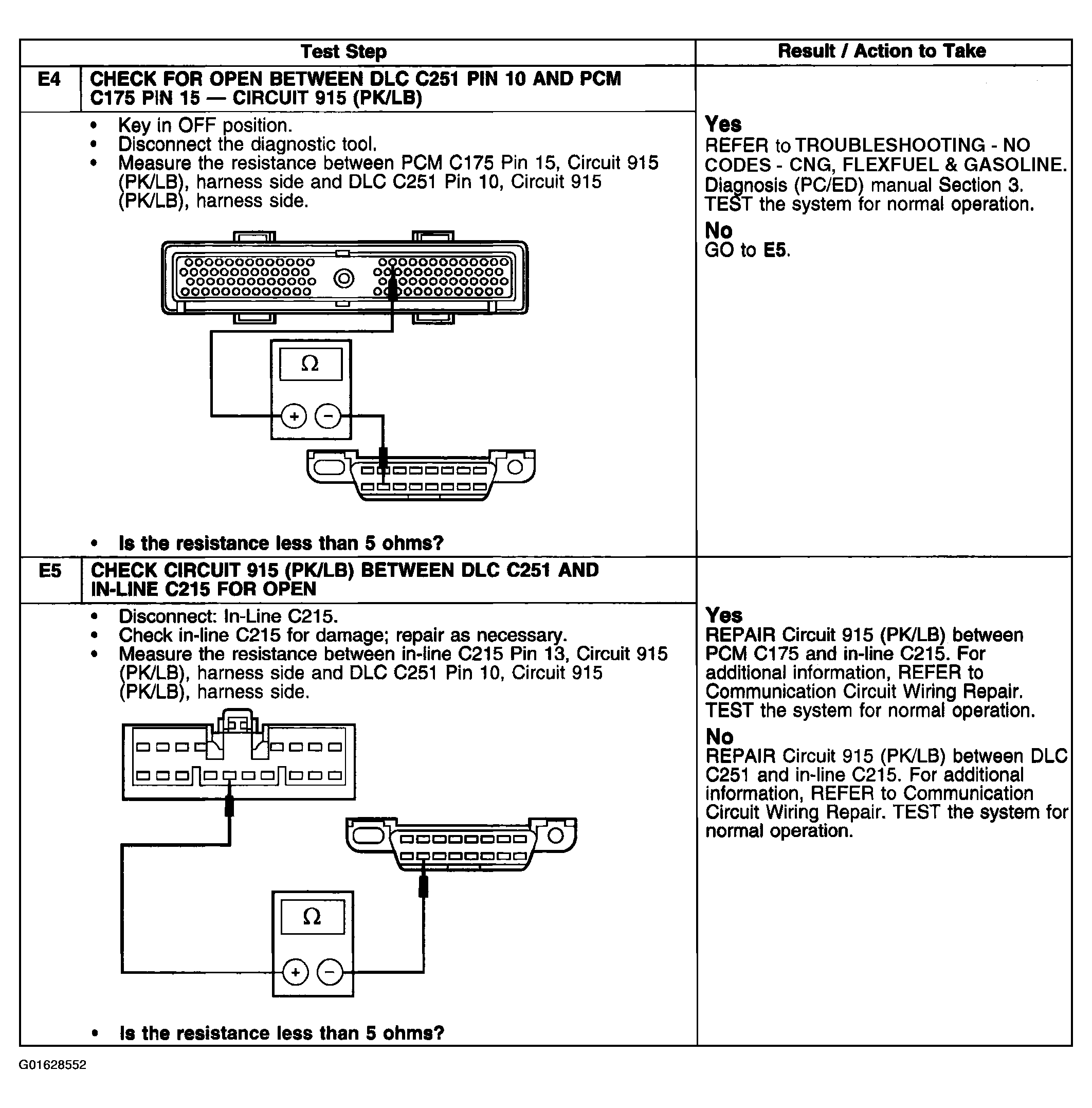

Fig 2: Pinpoint Test E Chart - Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (PCM) (E4 & E5)

Courtesy of FORD MOTOR CO.
