Module - Generic Electronic (Gem): Removal

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable (14301).
Remove the generic electronic module (GEM) (14B205).
1. Remove the five electrical connectors.
2. Release the locking tab and slide the module off the bracket.

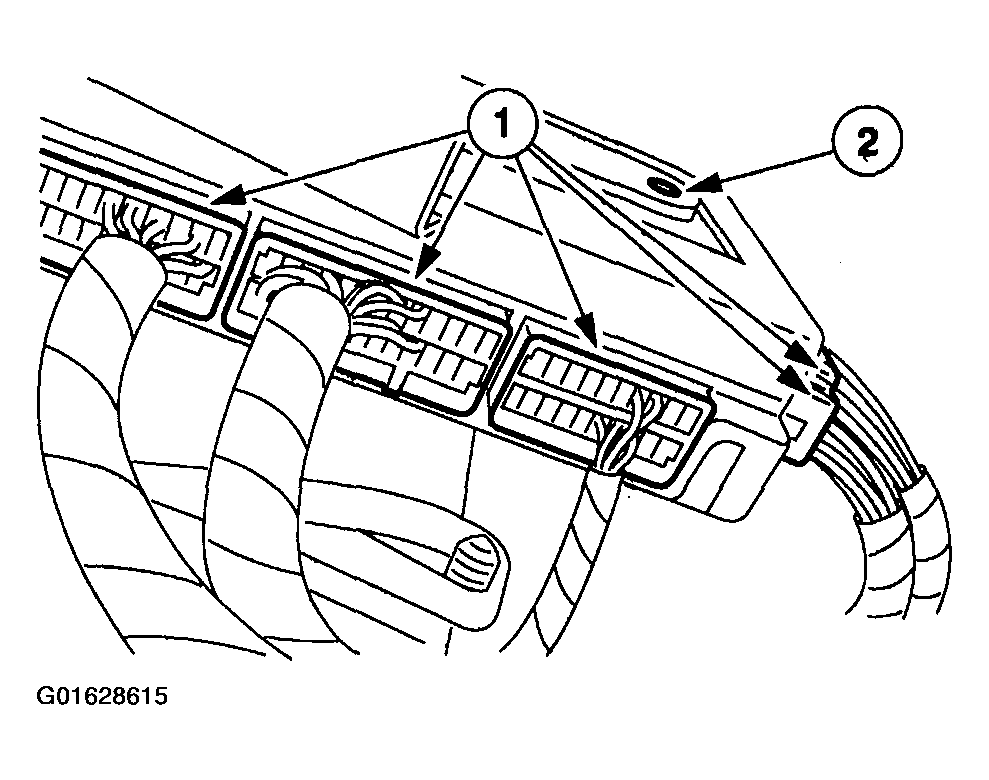

Fig 1: Removing Generic Electronic Module (GEM)

Courtesy of FORD MOTOR CO.
