Subframe: Service and Repair

SUBFRAME SUPPORT - CONVERTIBLE

Removal and Installation
1. Raise and support the vehicle.
2. Support the front subframe support.

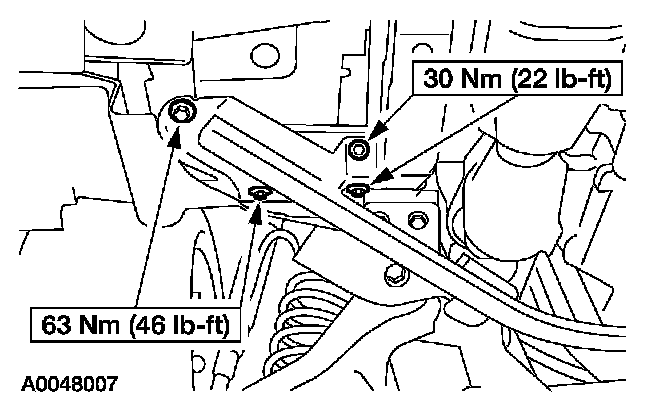

3. Remove the RH front subframe support bolts.

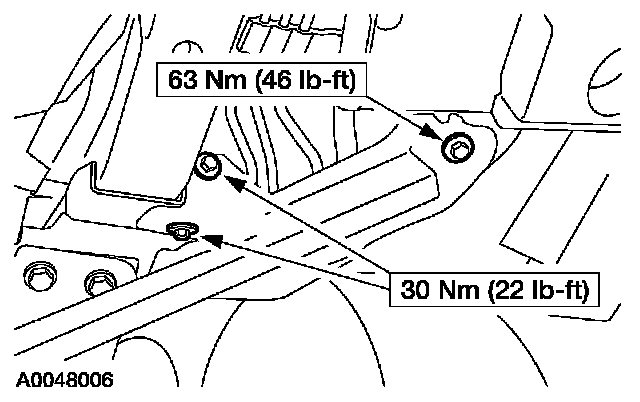

4. Remove the LH front subframe support bolts.

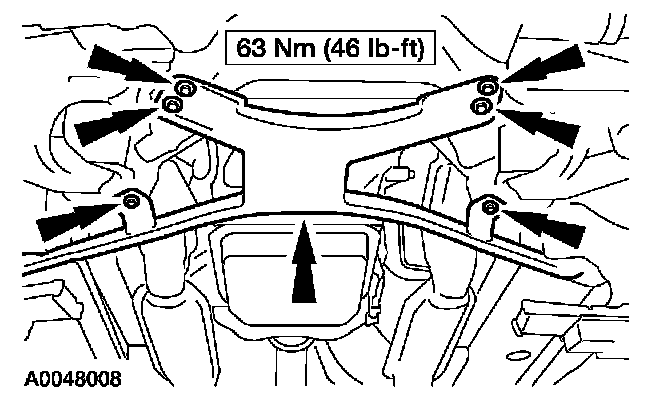

5. Remove the front subframe support.
- Remove the bolts and lower the front subframe support.

6. To install, reverse the removal procedure.
