Switch

SWITCH

REMOVAL
1. Remove the climate control assembly.







2. NOTE: All three switches are removed the same.

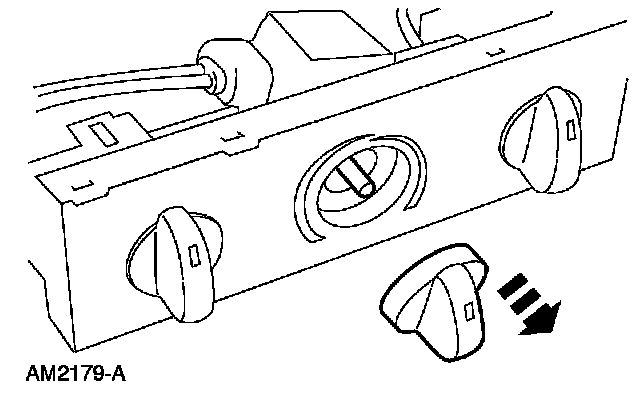

Remove the knob.

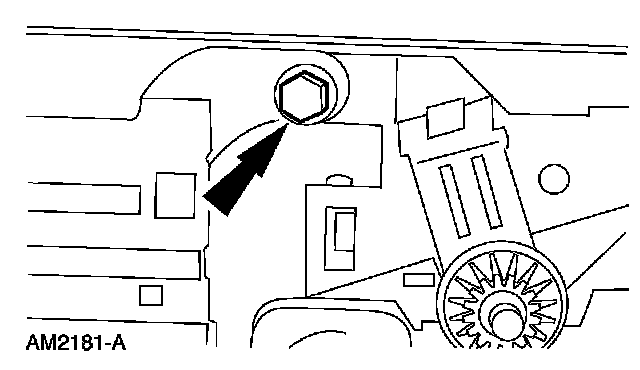

3. Remove the screw.

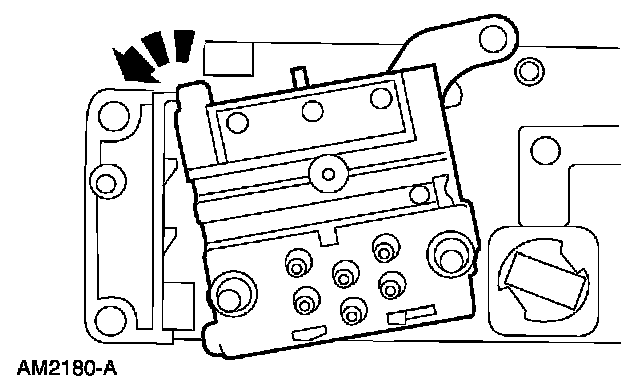

4. Rotate the switch and remove it from the control head assembly.

INSTALLATION
1. To install, reverse the removal procedure.
