Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

REMOVAL
1. Disconnect the battery ground cable.

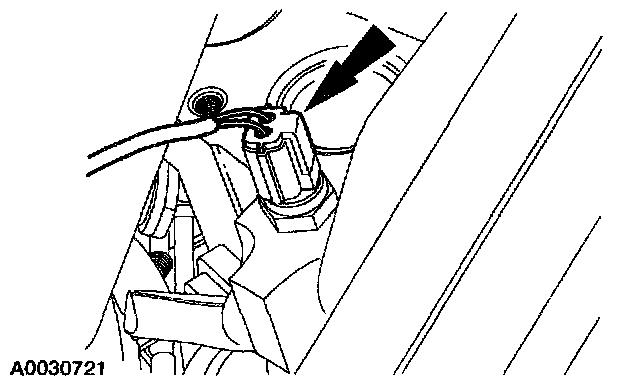

2. Disconnect the cylinder head temperature sensor connector.

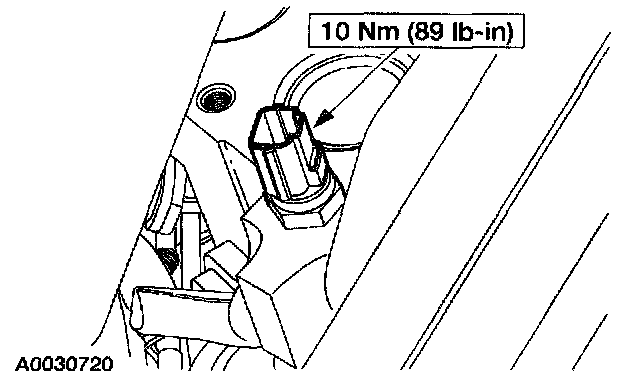

3. Remove the CHT sensor.

INSTALLATION
1. To install, reverse the removal procedure.
