Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

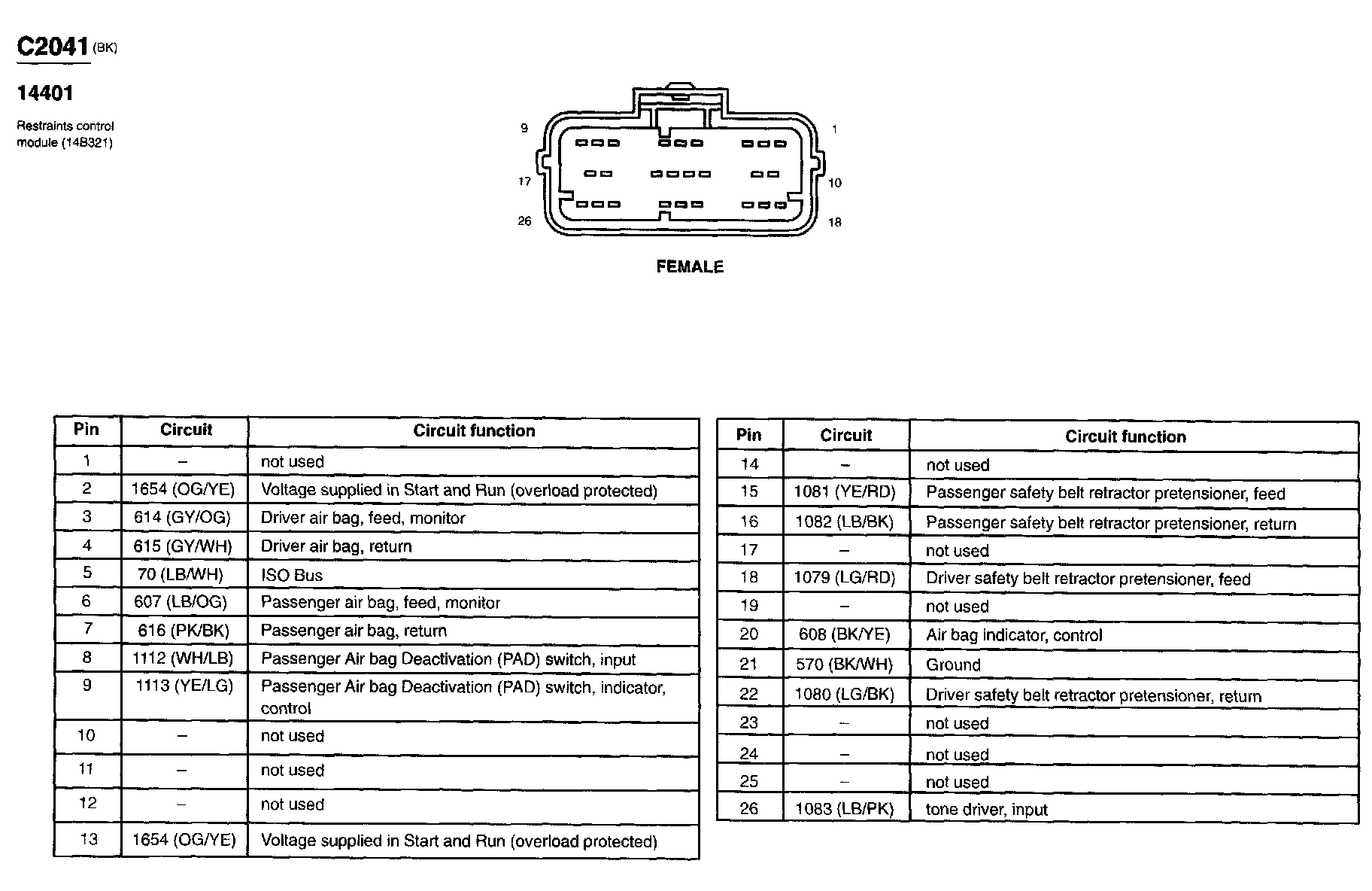

Air Bag Control Module
