Home >> Ford >> 2004 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> 2 WD
April 5, 2026: LEMON Manuals is launched! Read the announcement.

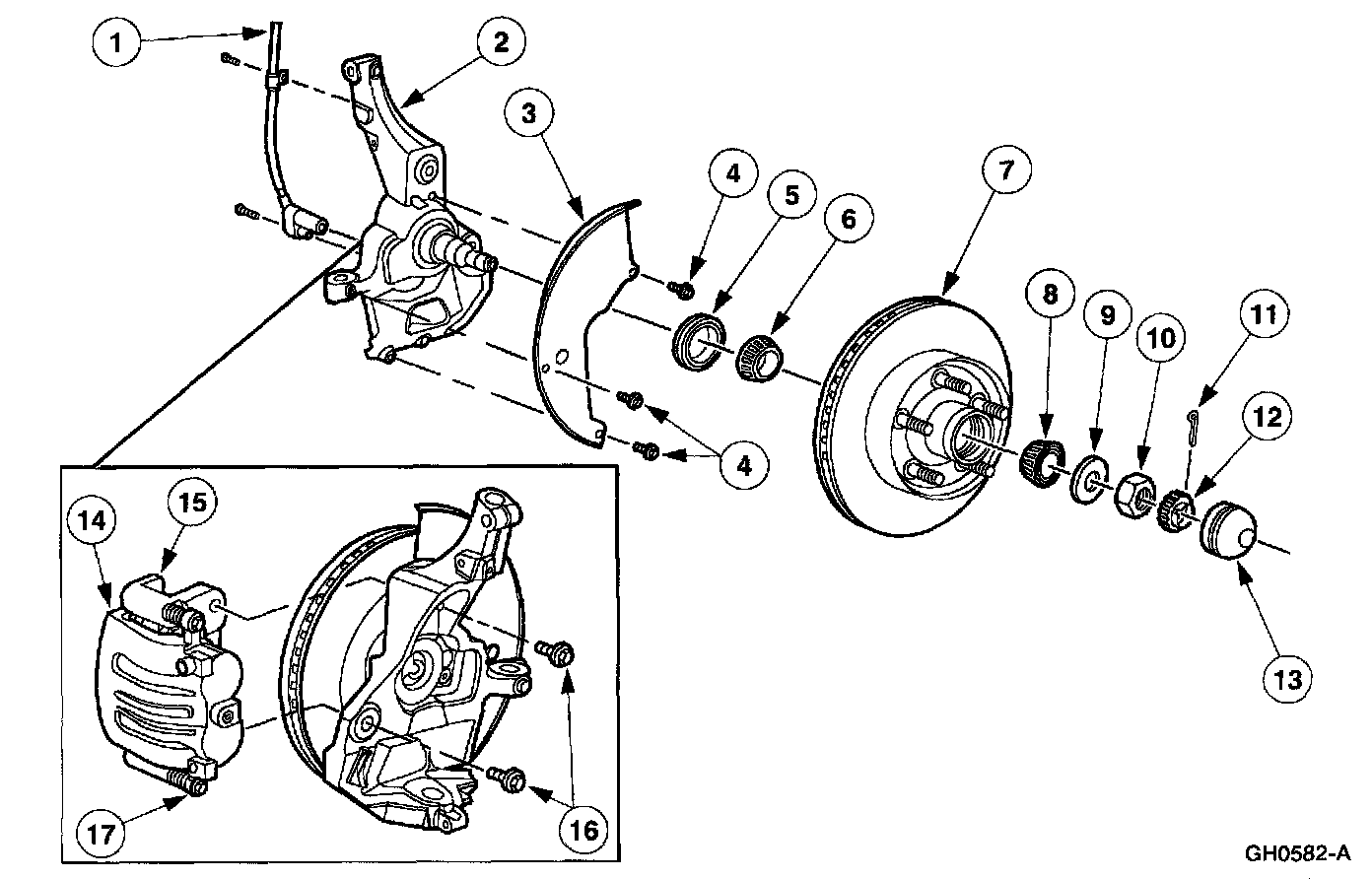

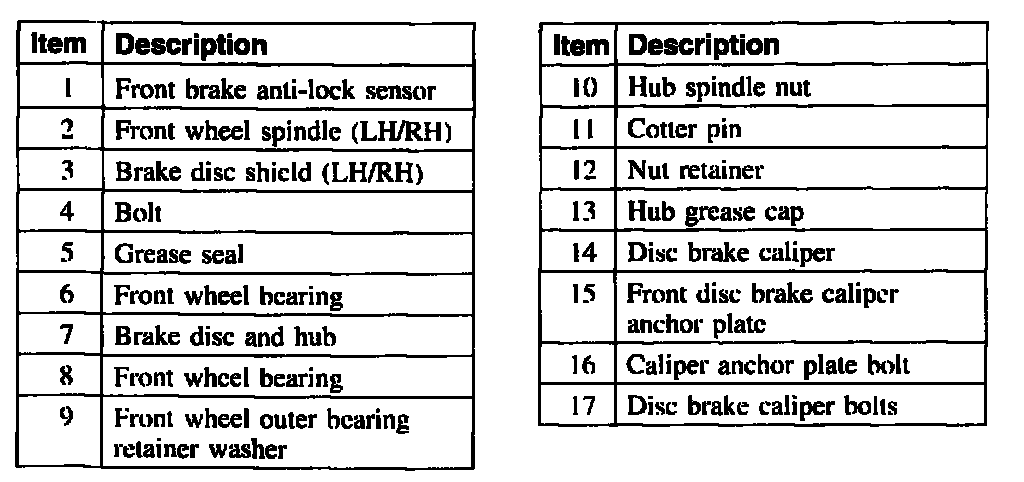

2 WD
