Knock Sensor: Service and Repair

KNOCK SENSOR (KS)

REMOVAL
1. Disconnect the battery ground cable.

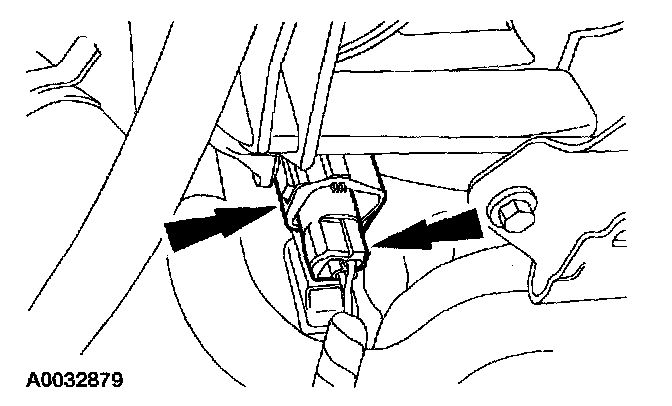

2. Disconnect the knock sensor (KS) electrical connector.

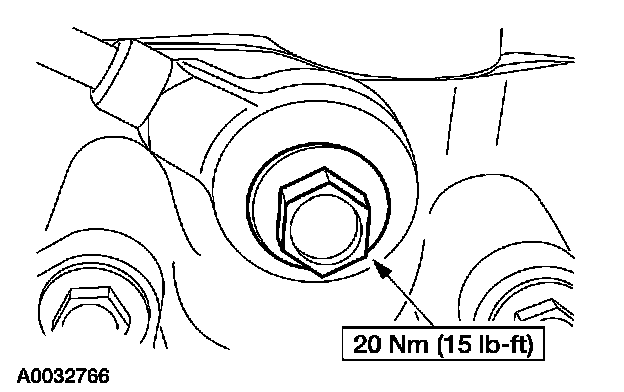

3. NOTE: The KS is a one-time use item and, if serviced, a new one must be installed.

Remove the bolt and remove and discard the KS.

INSTALLATION
1. To install, reverse the removal procedure.
- Install a new KS.
