Control Module: Service and Repair

Removal and Installation

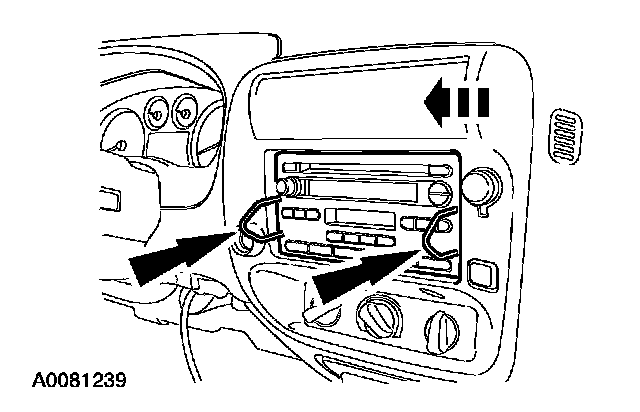

1. Remove the audio unit.
^ Insert the removal tool.
^ Remove and support the audio unit.

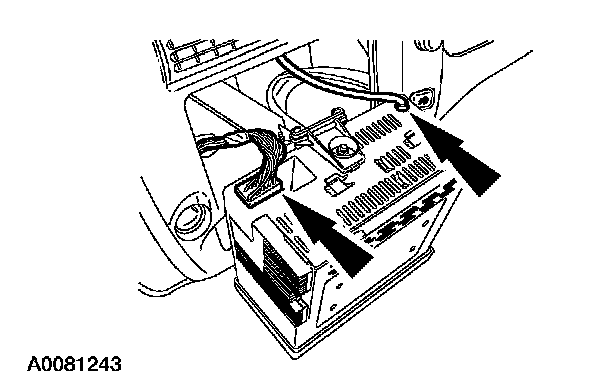

2. Disconnect the audio unit electrical connector and antenna cable.

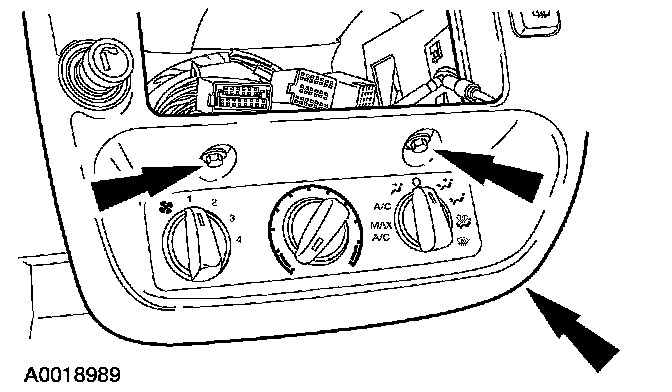

3. Remove the screws. Disengage the spring clips.
Remove the instrument panel finish panel.

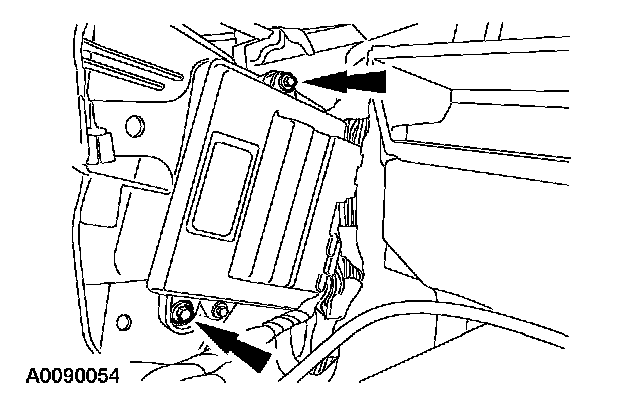

4. Remove the 4WD control module.
^ Disengage the locking tangs and remove the harness connectors.
^ Remove the screws.
^ Remove the 4WD control module.
5. To install, reverse the removal procedure.
