Pinpoint Test A: No Communication With The Anti-Lock Brake System Module

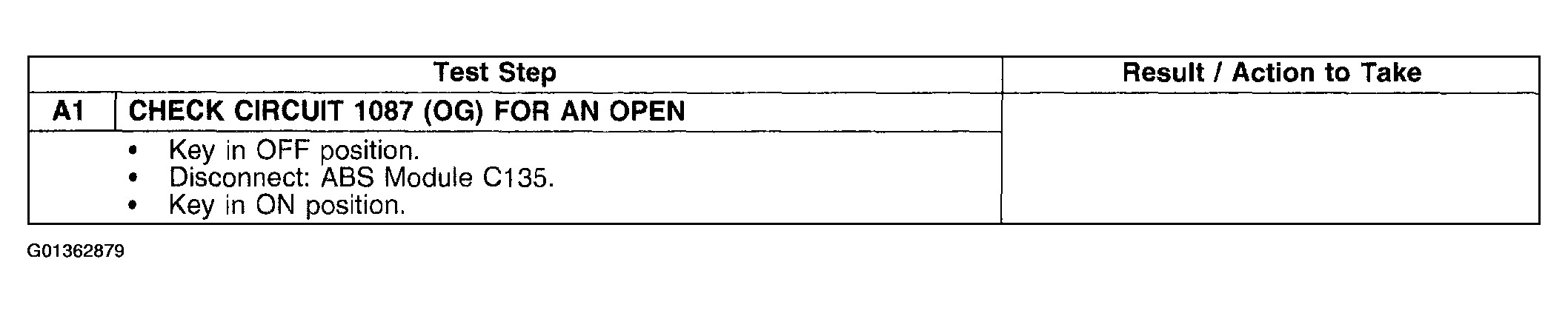

Fig 1: Pinpoint Test A: No Communication With The Anti-Lock Brake System Module (A1)

Courtesy of FORD MOTOR CO.

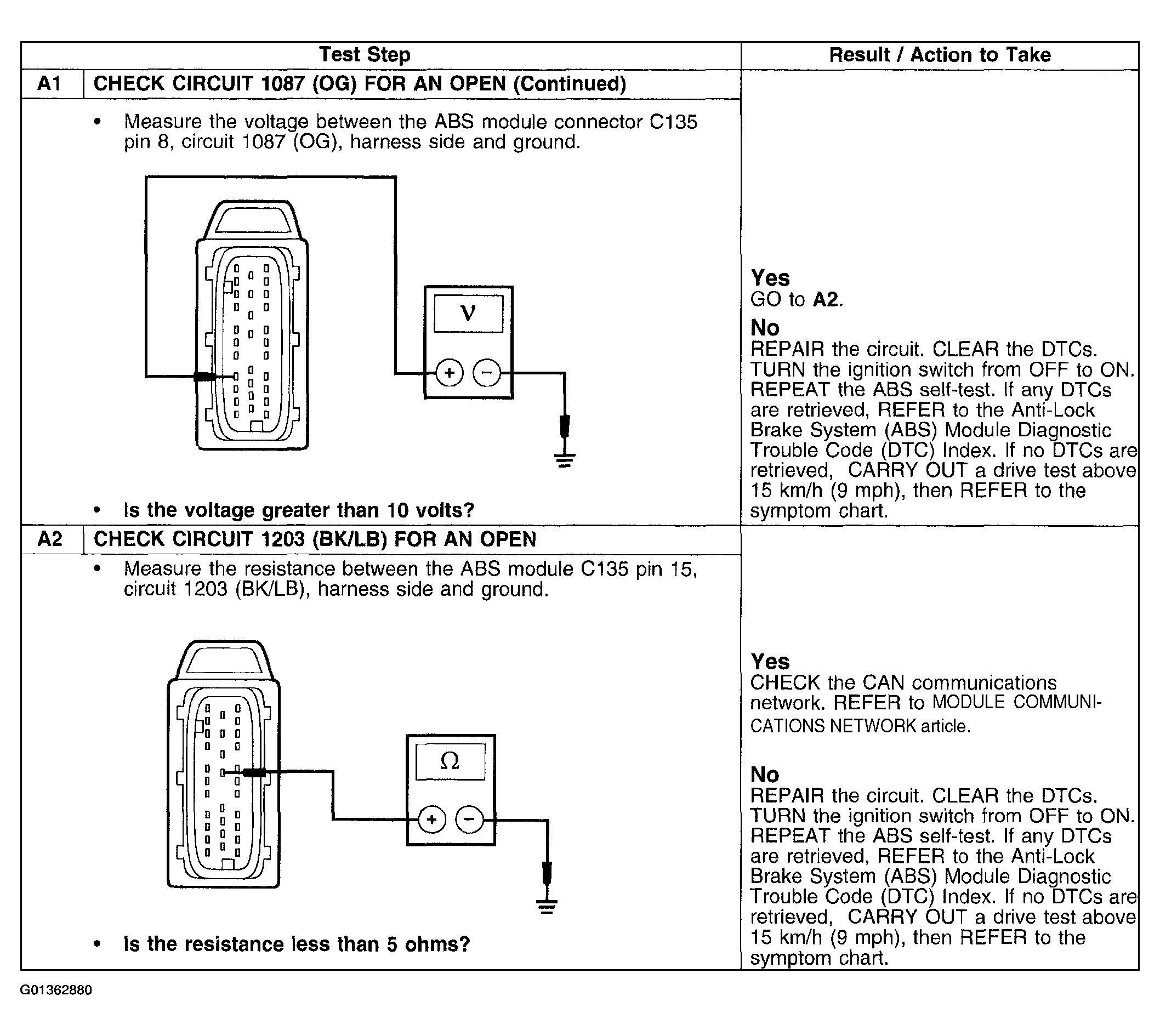

Fig 2: Pinpoint Test A: No Communication With The Anti-Lock Brake System Module (A1-A2)

Courtesy of FORD MOTOR CO.
