Pinpoint Test J: Poor Vehicle Tracking During Anti-Lock Function

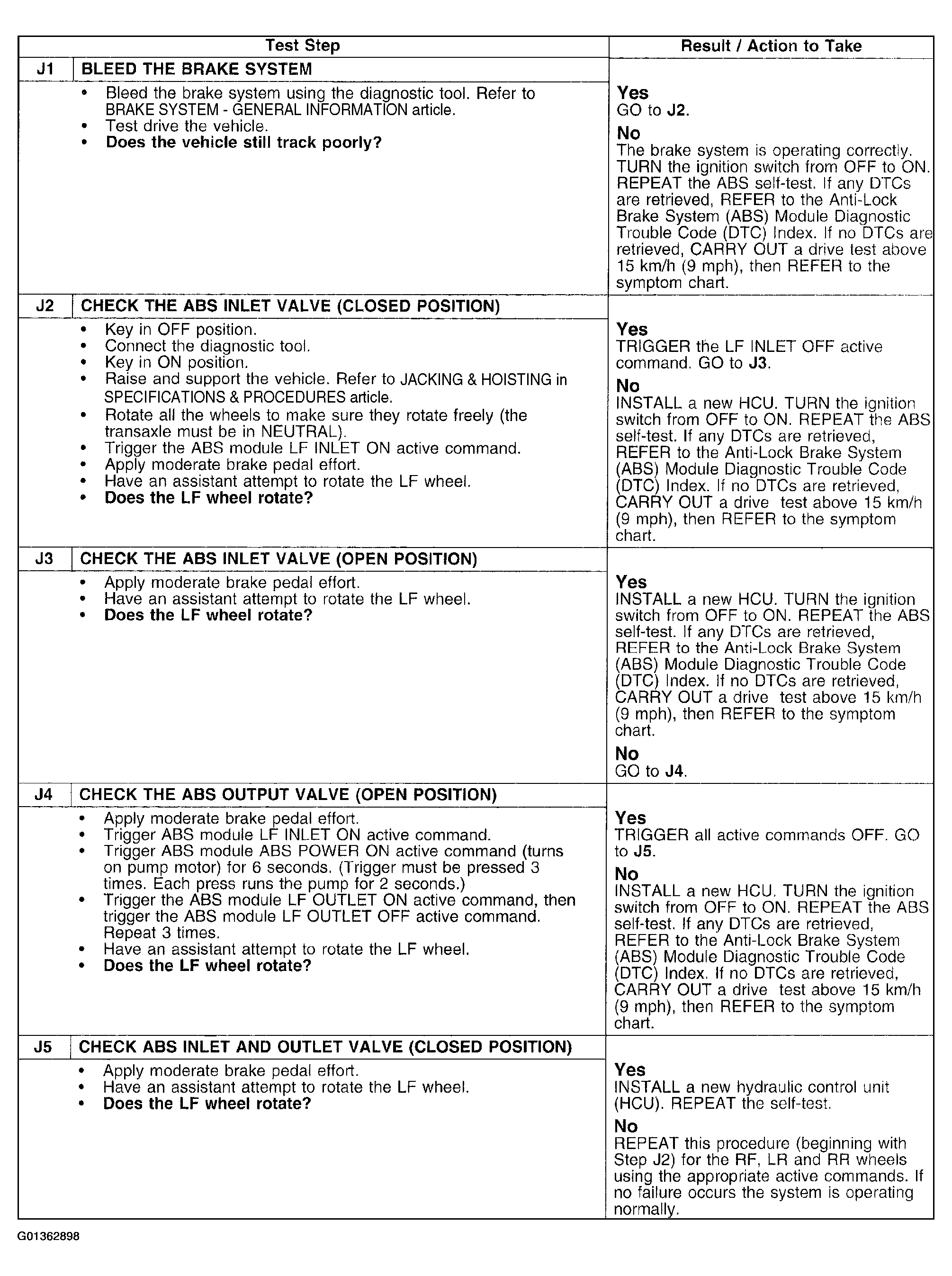

Fig 1: Pinpoint Test J: Poor Vehicle Tracking During Anti-Lock Function (J1-J5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
