Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Front Side Of Vehicle

G00257463

Courtesy of FORD MOTOR CO.

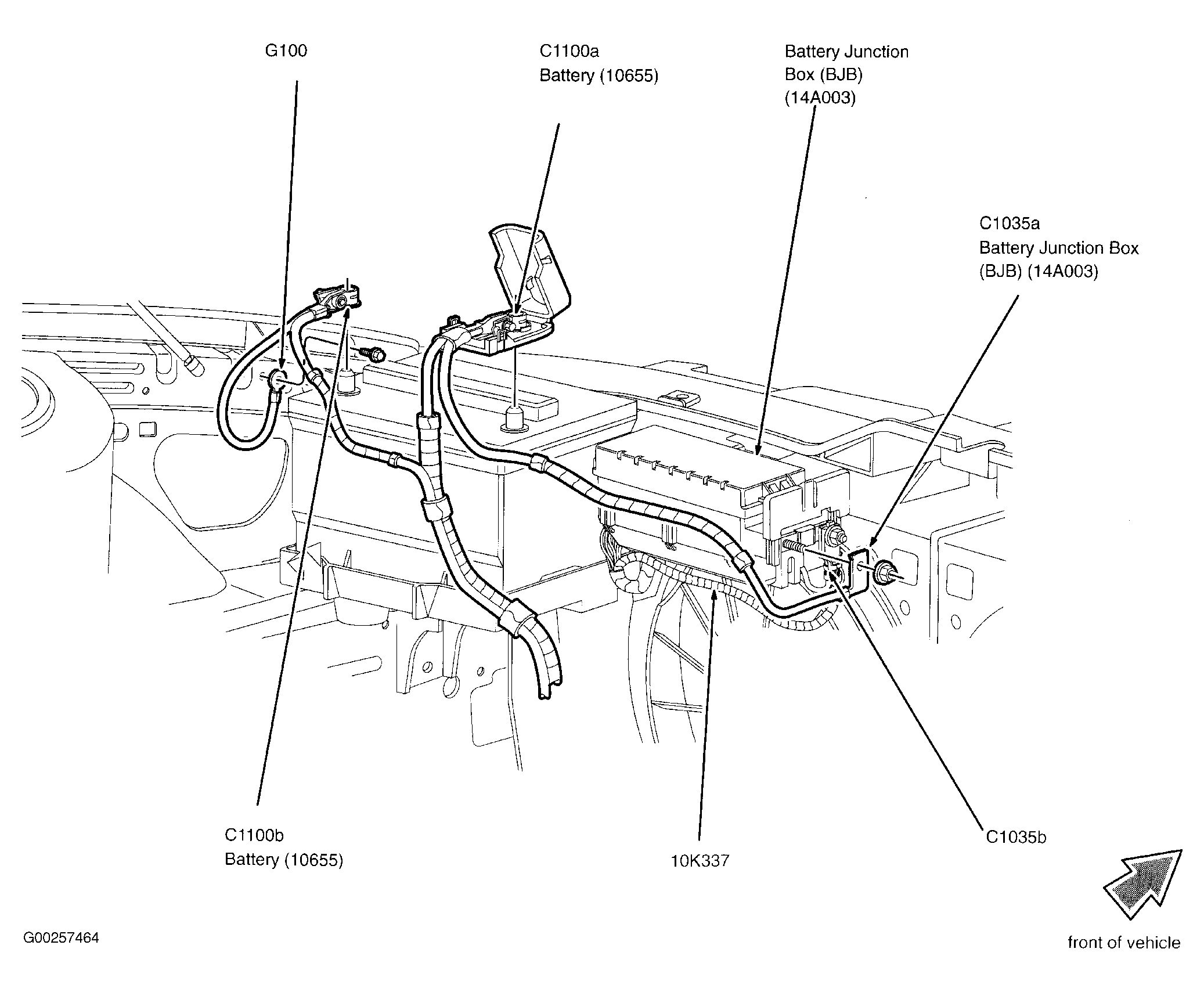

Fig 2: Left Front Side Of Engine Compartment (2V)

G00257464

Courtesy of FORD MOTOR CO.

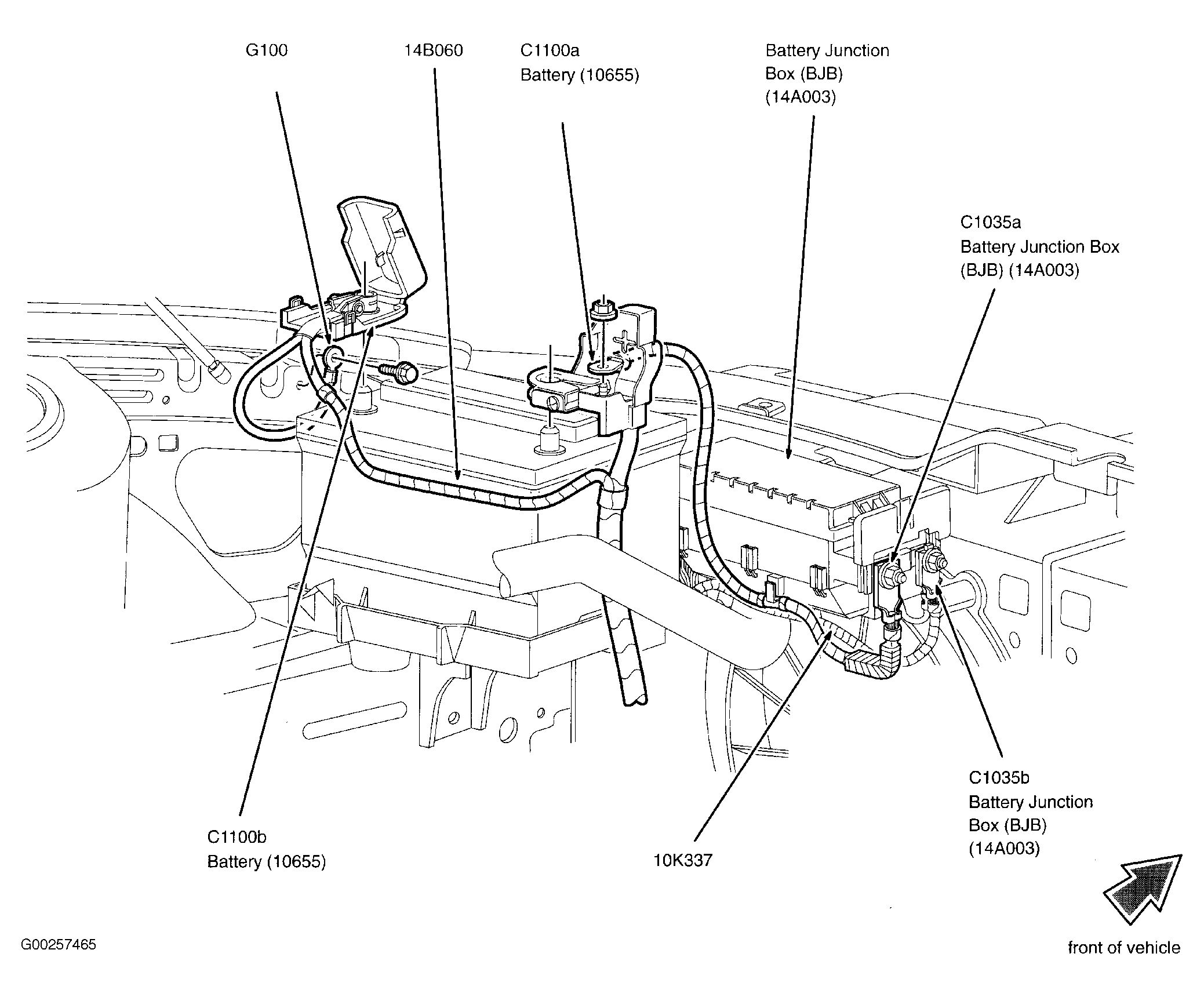

Fig 3: Left Front Side Of Engine Compartment (4V)

G00257465

Courtesy of FORD MOTOR CO.

Fig 4: Left Front Side Of Engine Compartment

G00257466

Courtesy of FORD MOTOR CO.

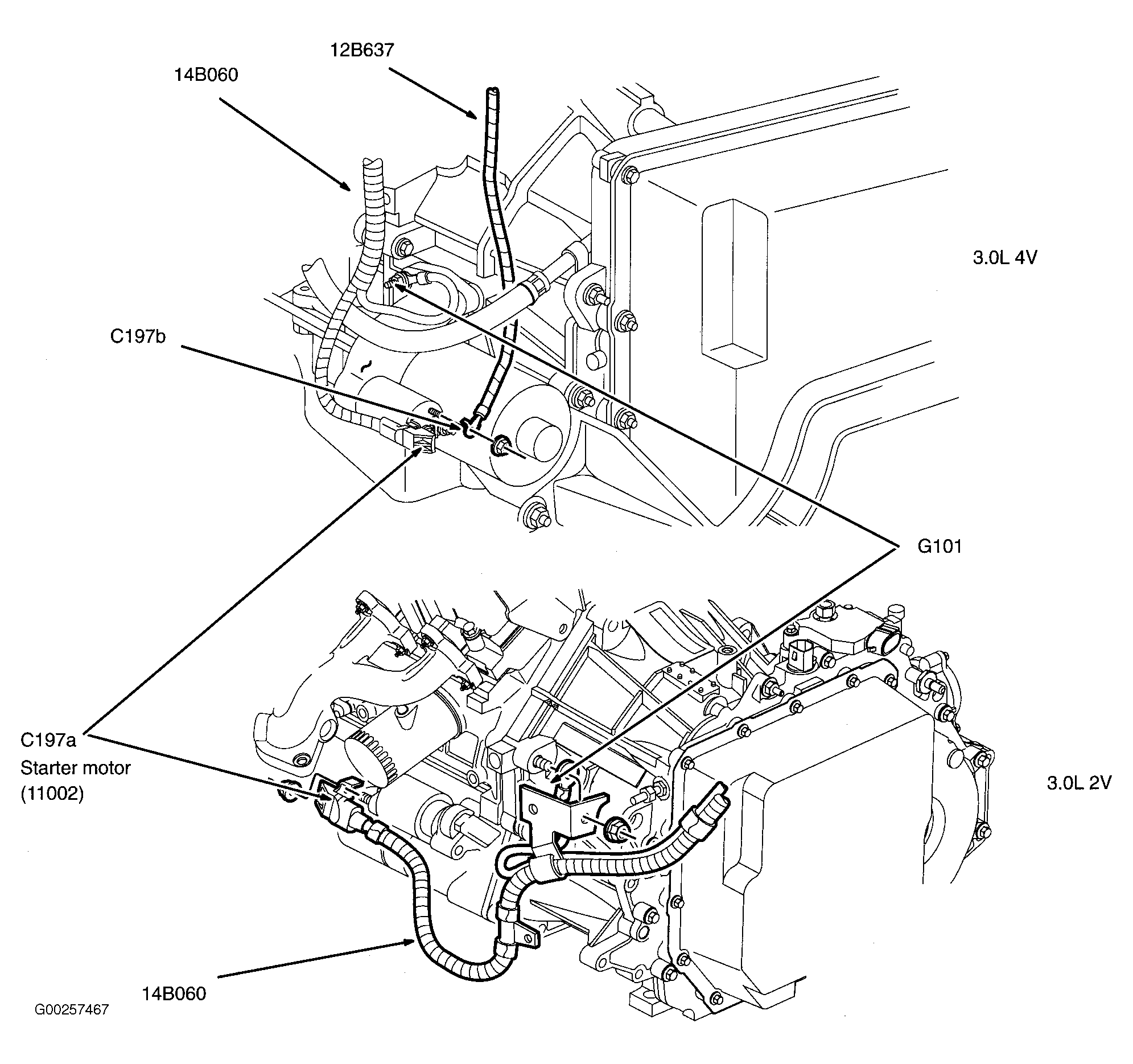

Fig 5: Bottom Front Center Of Engine Compartment

G00257467

Courtesy of FORD MOTOR CO.

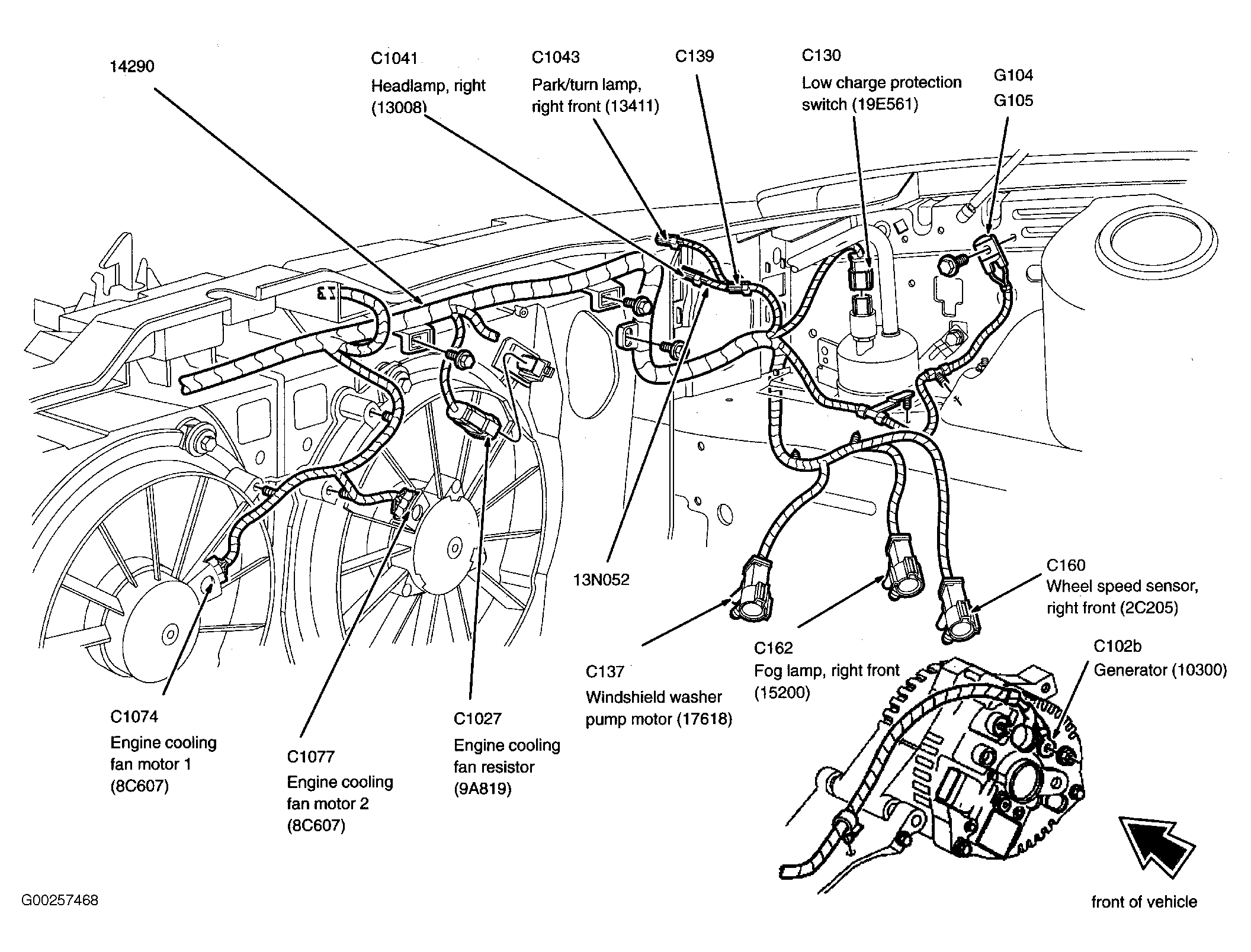

Fig 6: Right Front Side Of Engine Compartment

G00257468

Courtesy of FORD MOTOR CO.

Fig 7: Front Of Engine (2V)

G00257469

Courtesy of FORD MOTOR CO.

Fig 8: Rear Of Engine (2V)

G00257470

Courtesy of FORD MOTOR CO.

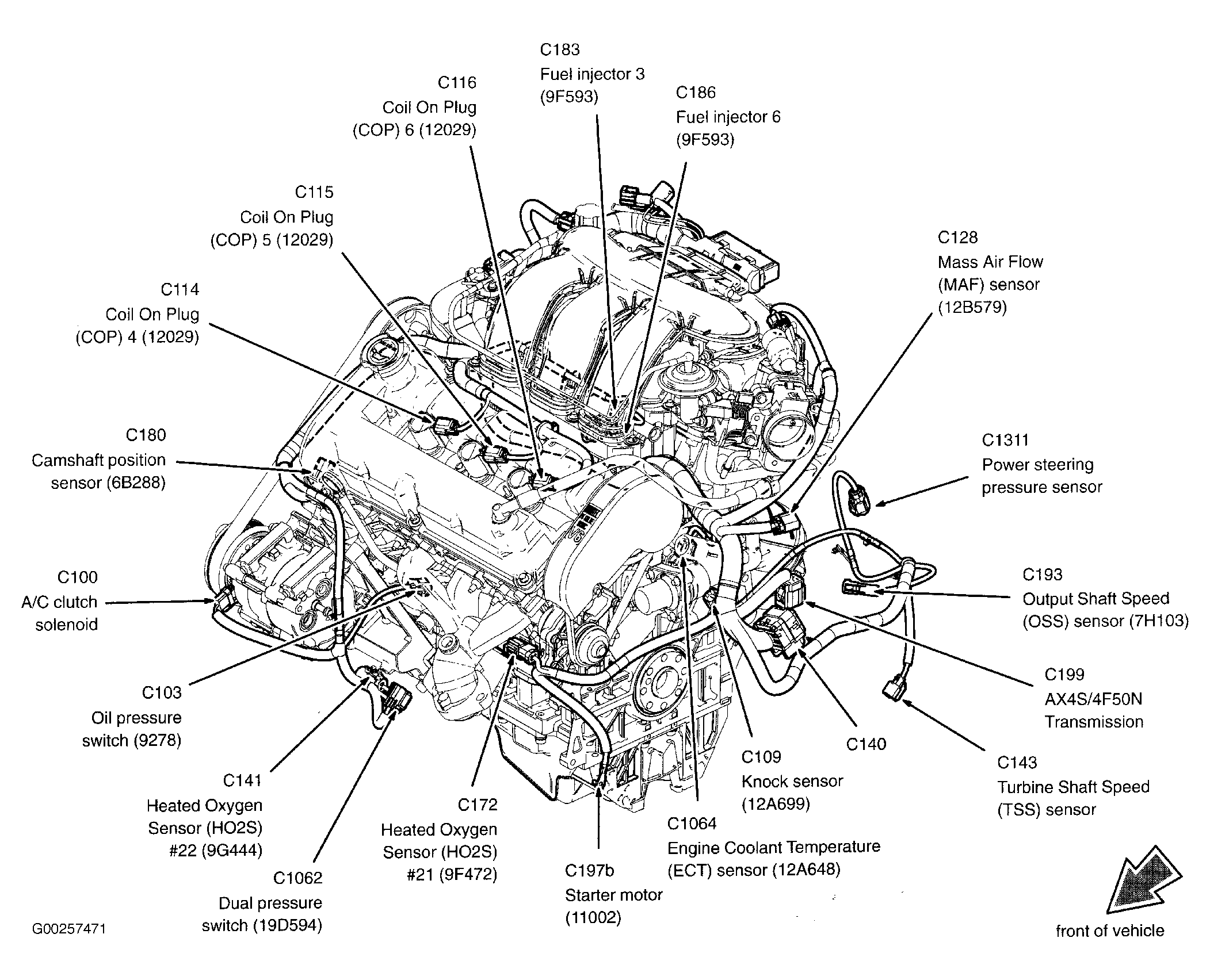

Fig 9: Front Of Engine (4V)

G00257471

Courtesy of FORD MOTOR CO.

Fig 10: Rear Of Engine (4V)

G00257472

Courtesy of FORD MOTOR CO.

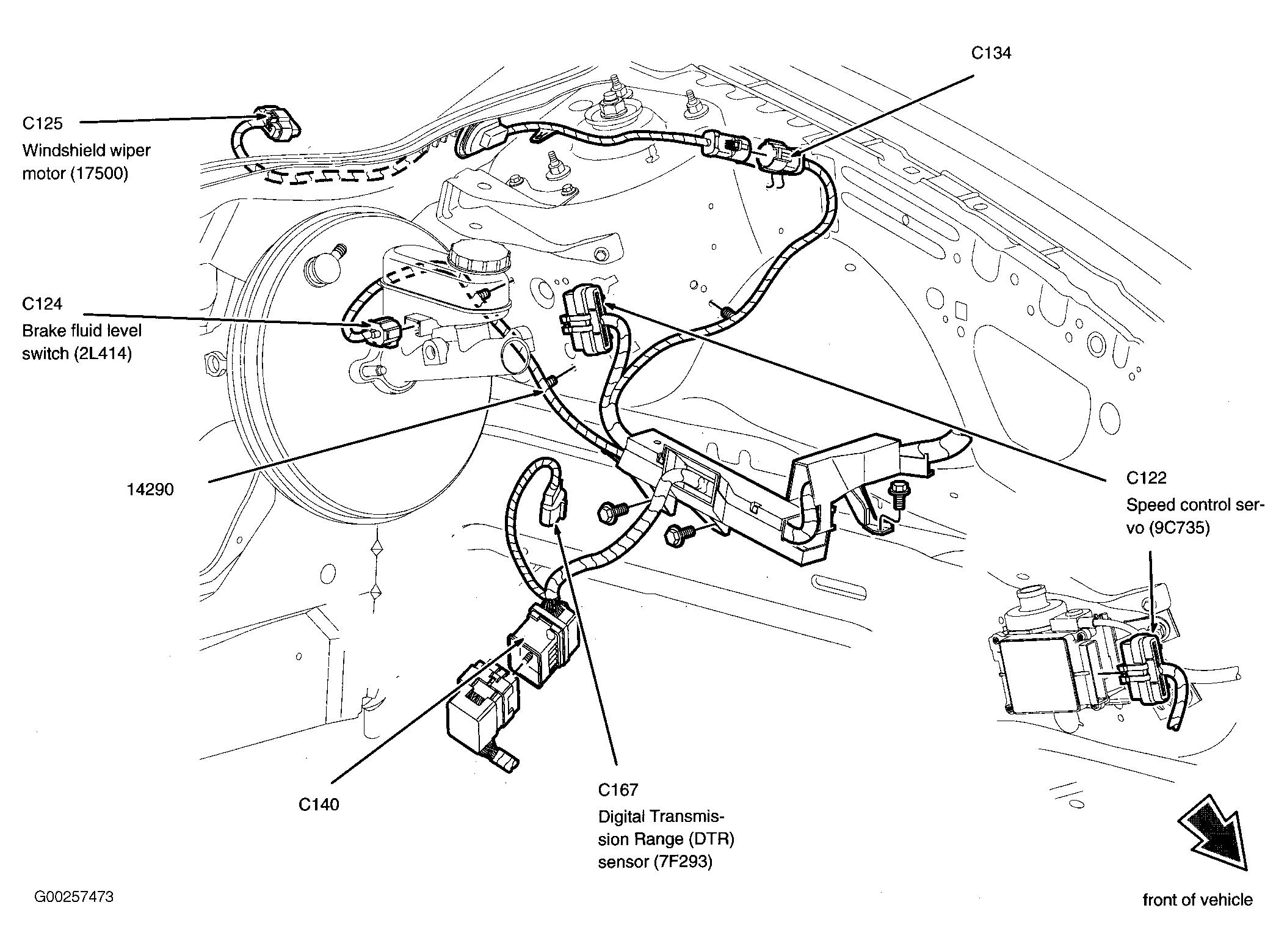

Fig 11: Top Left Rear Of Engine Compartment

G00257473

Courtesy of FORD MOTOR CO.

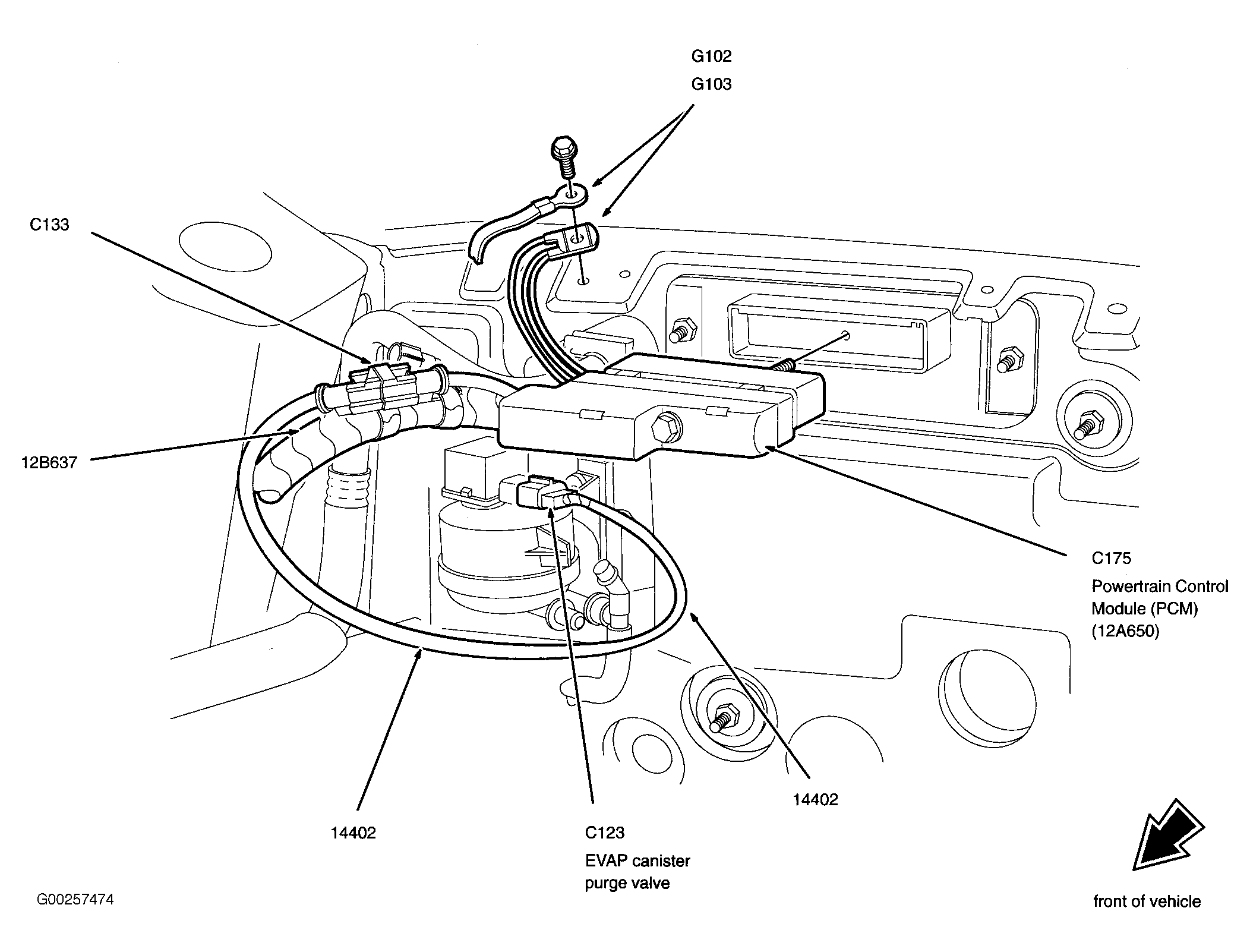

Fig 12: Right Rear Of Engine Compartment

G00257474

Courtesy of FORD MOTOR CO.

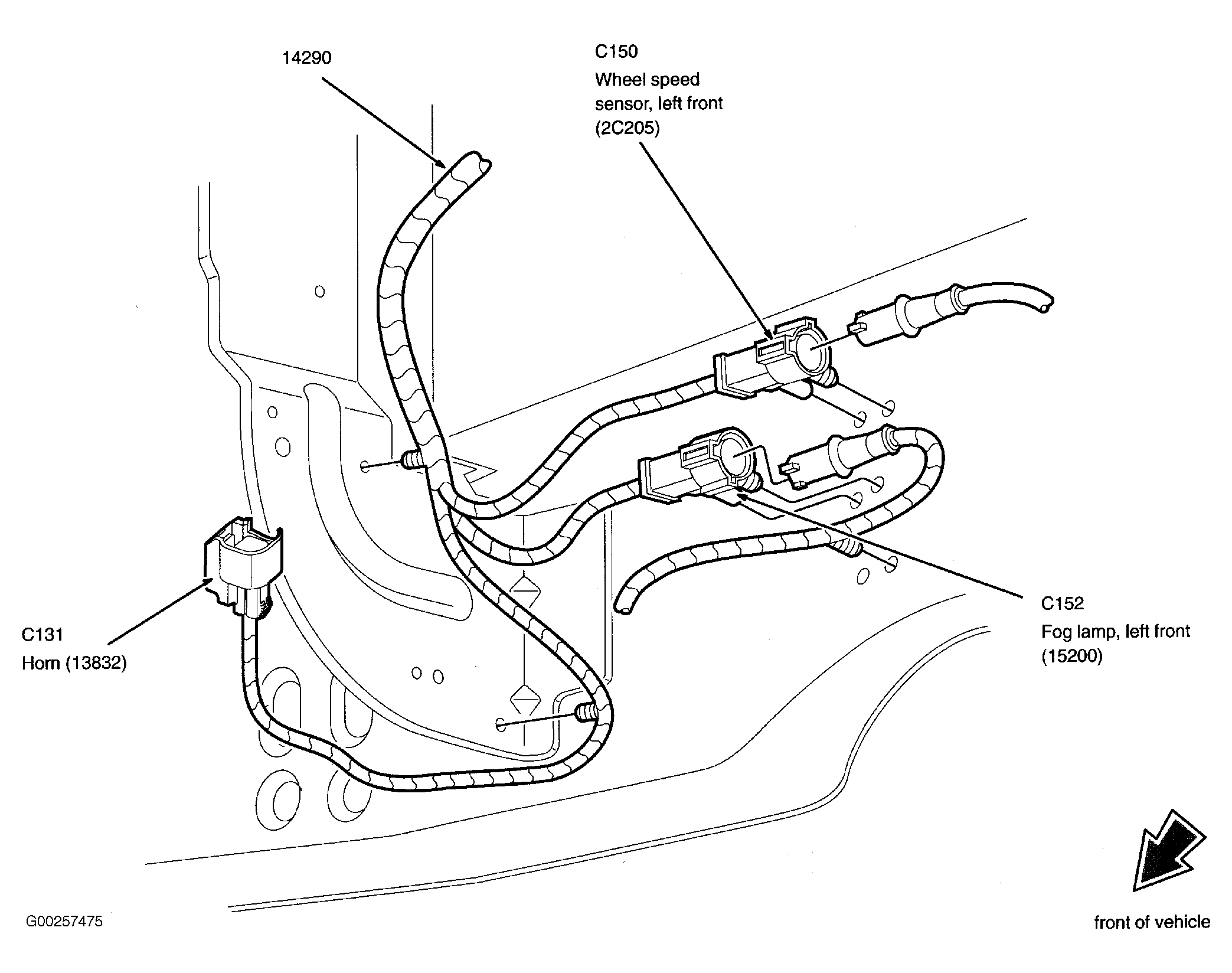

Fig 13: Left Front Of Engine Compartment

G00257475

Courtesy of FORD MOTOR CO.

Fig 14: Under Left Side Of Dash

G00257476

Courtesy of FORD MOTOR CO.

Fig 15: Behind Left Side Of Dash

G00257478

Courtesy of FORD MOTOR CO.

Fig 16: Center Of Dash

G00257480

Courtesy of FORD MOTOR CO.

Fig 17: Behind Right Side Of Dash

G00257481

Courtesy of FORD MOTOR CO.

Fig 18: Steering Column

G00257482

Courtesy of FORD MOTOR CO.

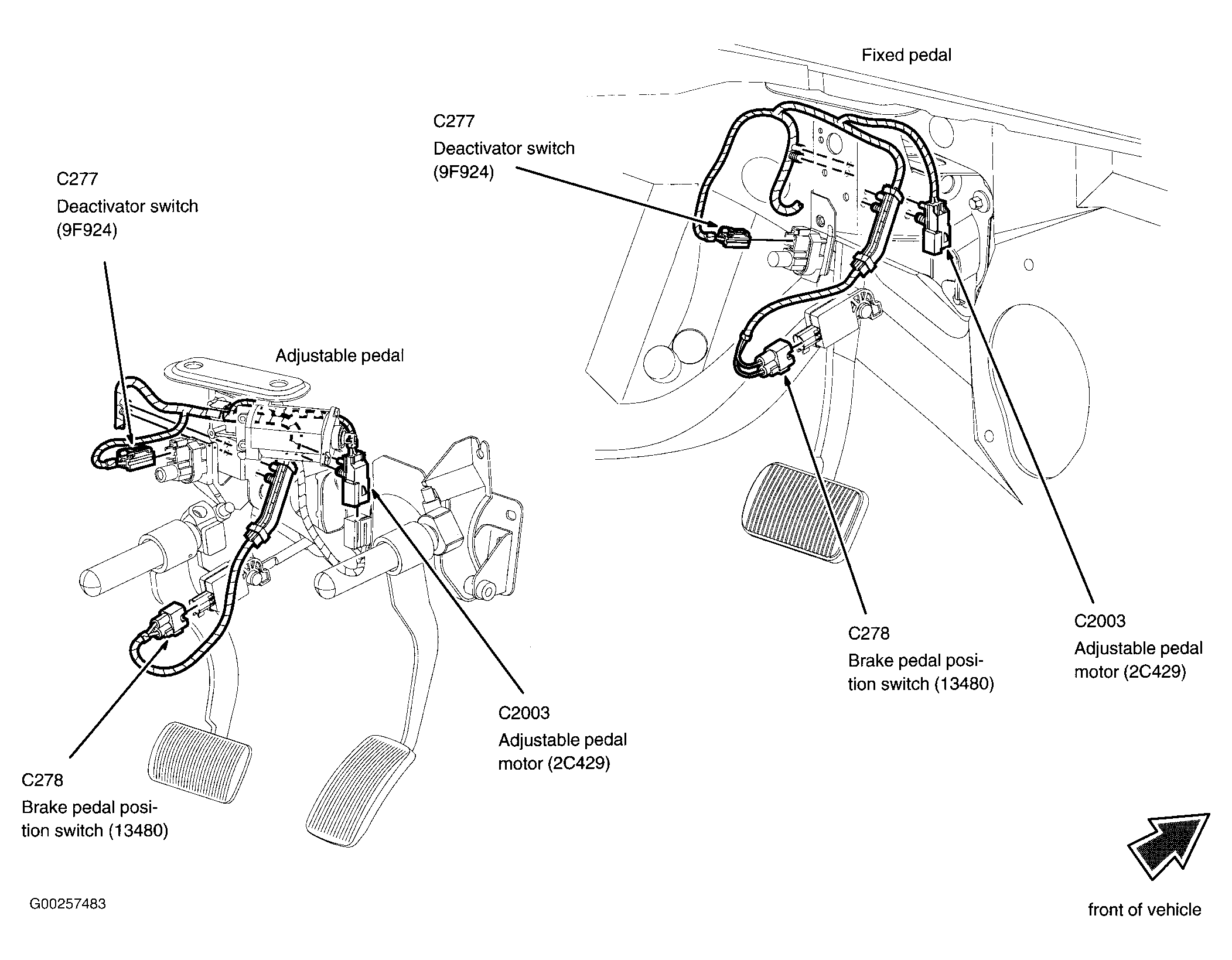

Fig 19: Brake Pedal Support

G00257483

Courtesy of FORD MOTOR CO.

Fig 20: Under Driver Seat

G00257484

Courtesy of FORD MOTOR CO.

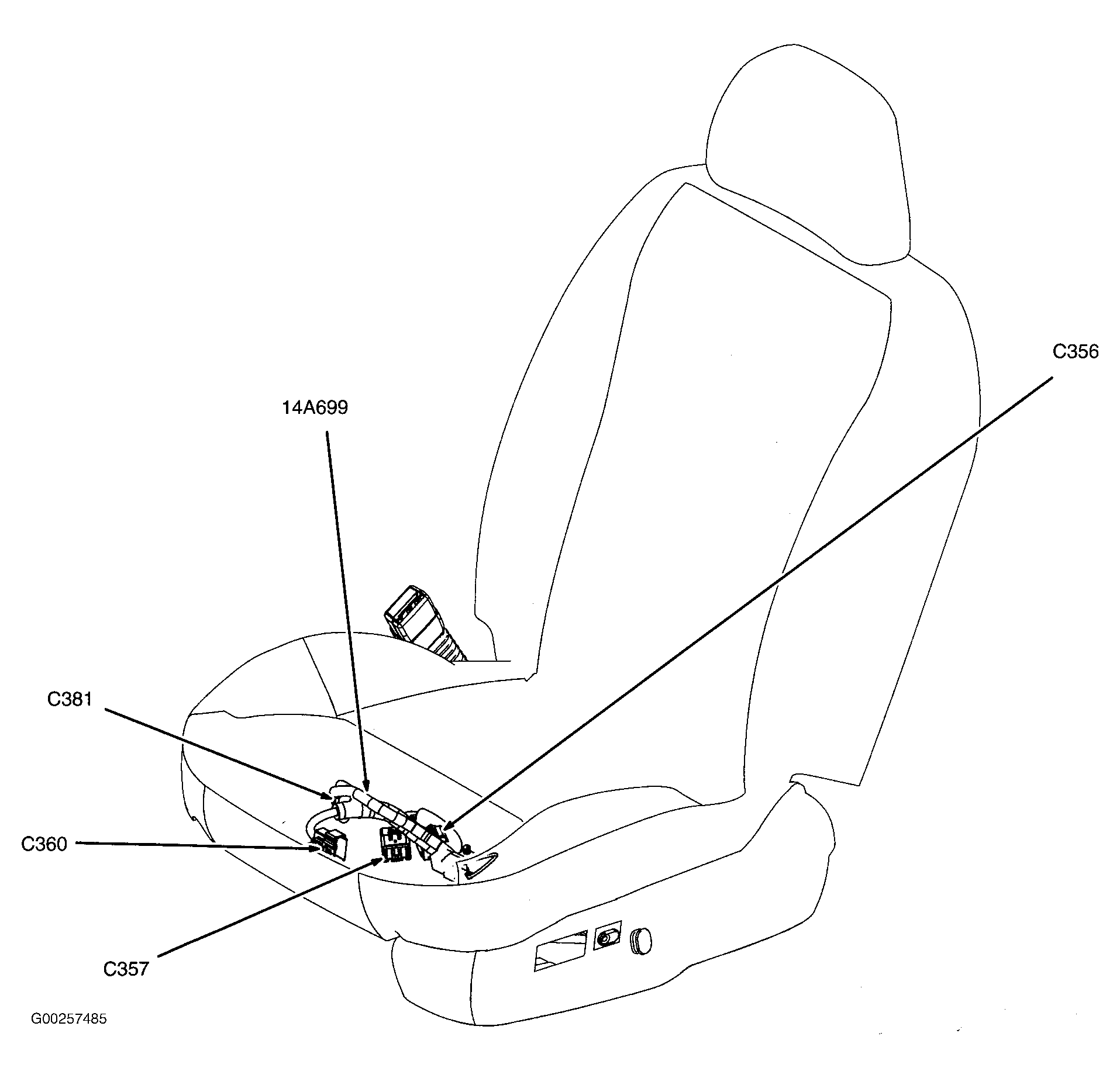

Fig 21: Driver Seat (Power)

G00257485

Courtesy of FORD MOTOR CO.

Fig 22: Under Passenger Seat (Manual)

G00257486

Courtesy of FORD MOTOR CO.

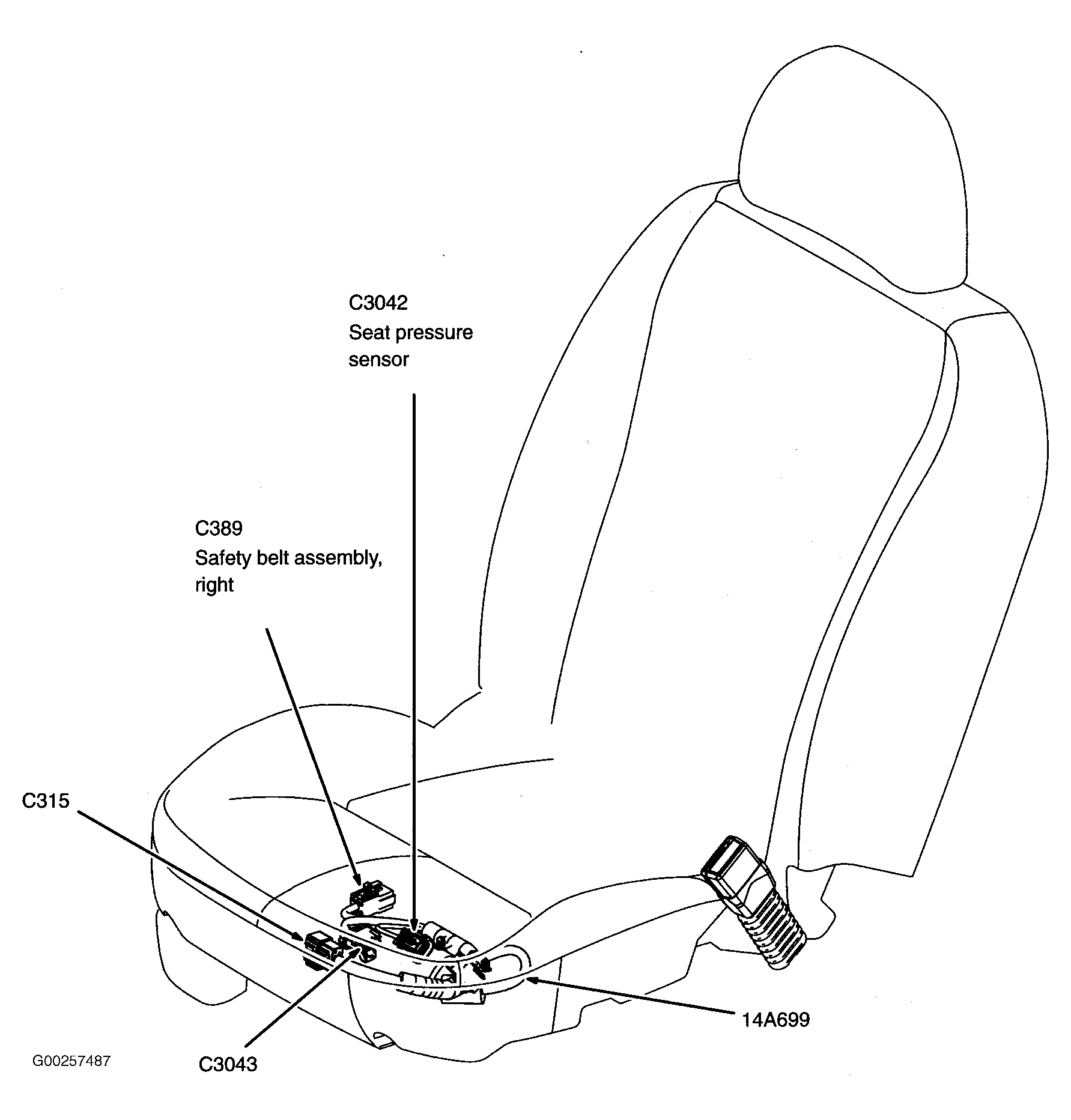

Fig 23: Passenger Seat (Power)

G00257487

Courtesy of FORD MOTOR CO.

Fig 24: Left Side Of Vehicle Floor

G00257488

Courtesy of FORD MOTOR CO.

Fig 25: Right Side Of Vehicle Floor

G00257489

Courtesy of FORD MOTOR CO.

Fig 26: Right "A" Pillar & Right "C" Pillar

G00257490

Courtesy of FORD MOTOR CO.

Fig 27: Behind Left Side Of Rear Seats (Wagon)

G00257492

Courtesy of FORD MOTOR CO.

Fig 28: Behind Right Side Of Rear Seats (Wagon)

G00257493

Courtesy of FORD MOTOR CO.

Fig 29: Behind Center Of Rear Seats Underbody

G00257494

Courtesy of FORD MOTOR CO.

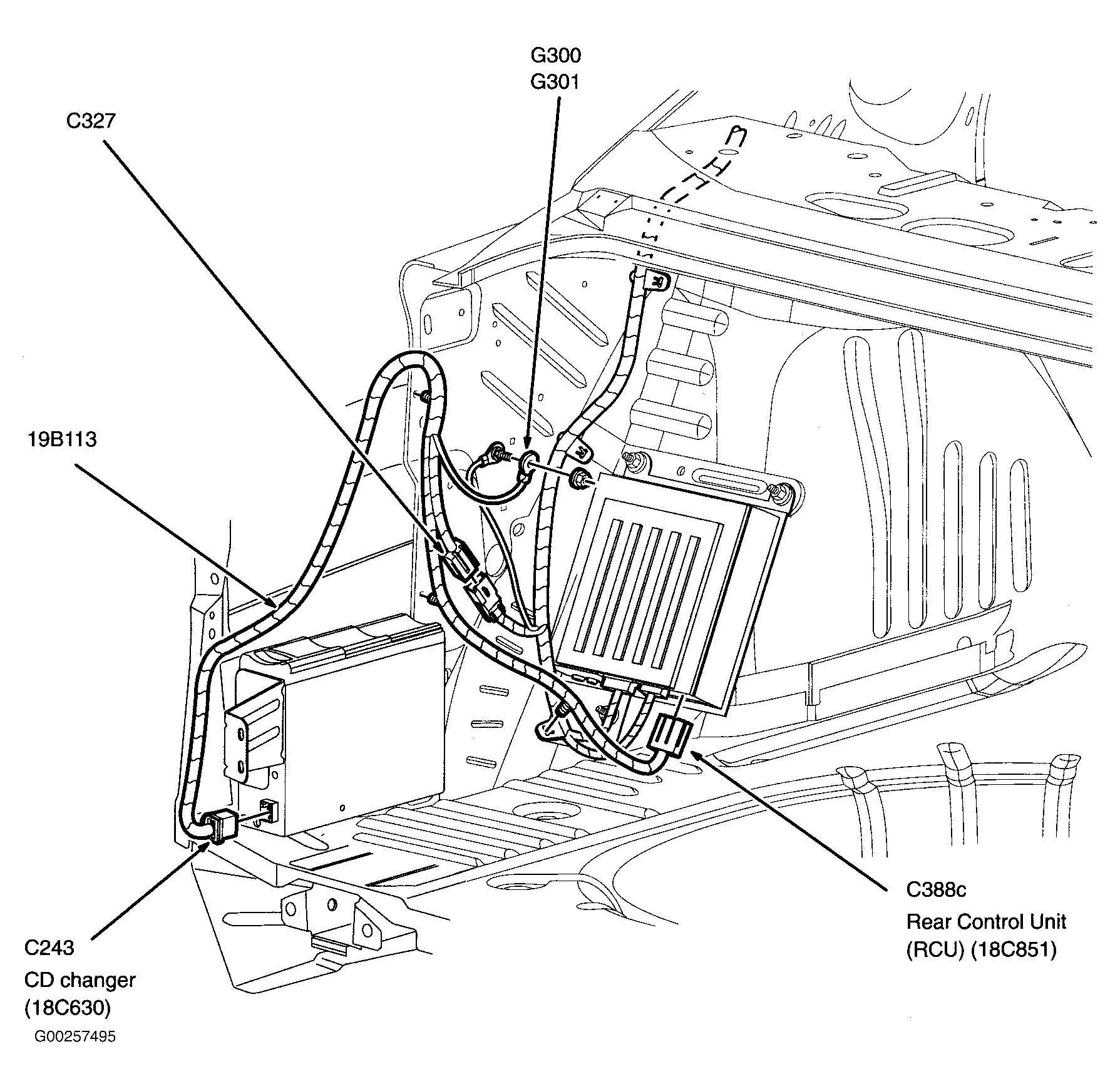

Fig 30: Left Side Of Luggage Compartment (Sedan)

G00257495

Courtesy of FORD MOTOR CO.

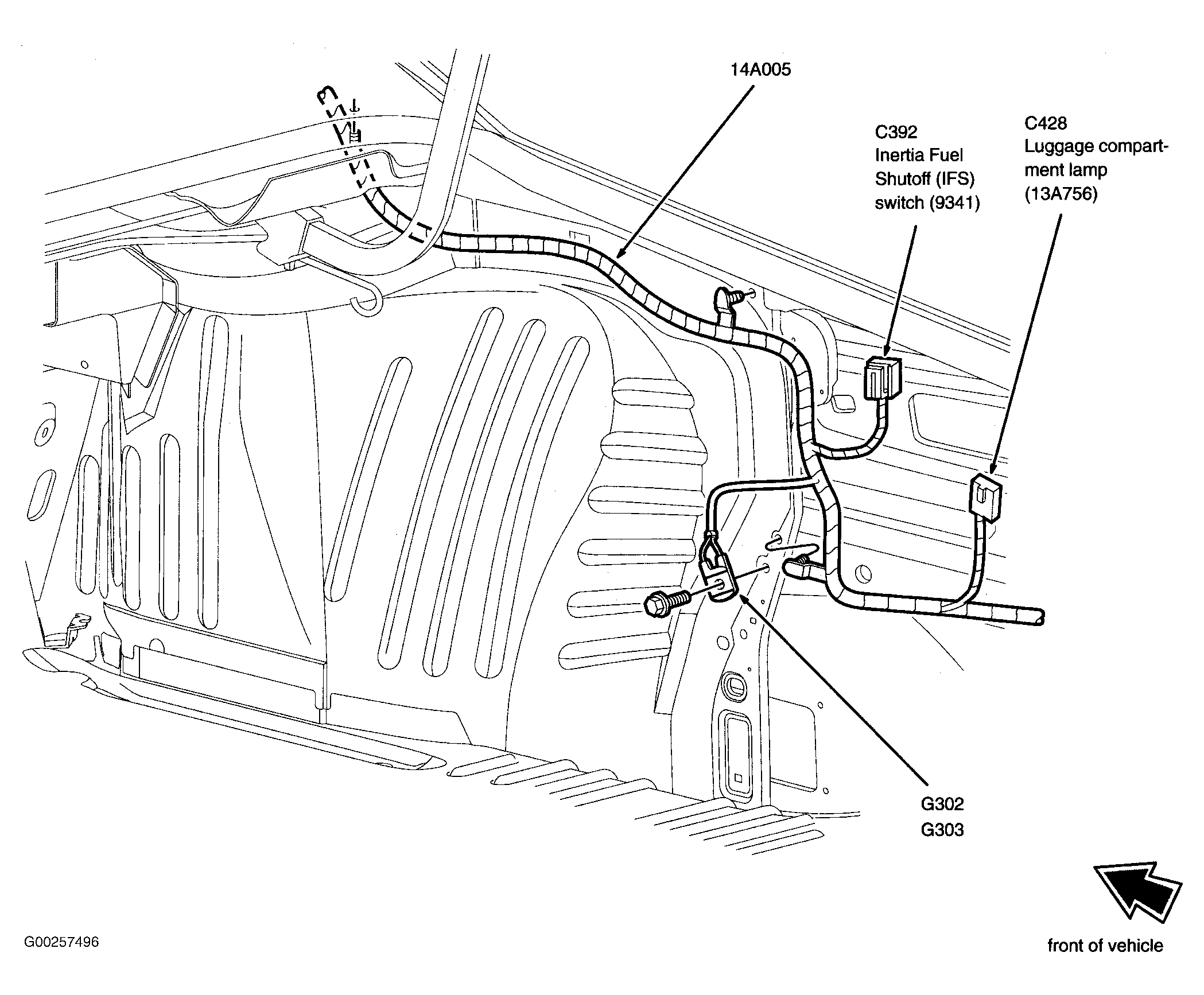

Fig 31: Top Right Side Of Luggage Compartment (Sedan)

G00257496

Courtesy of FORD MOTOR CO.

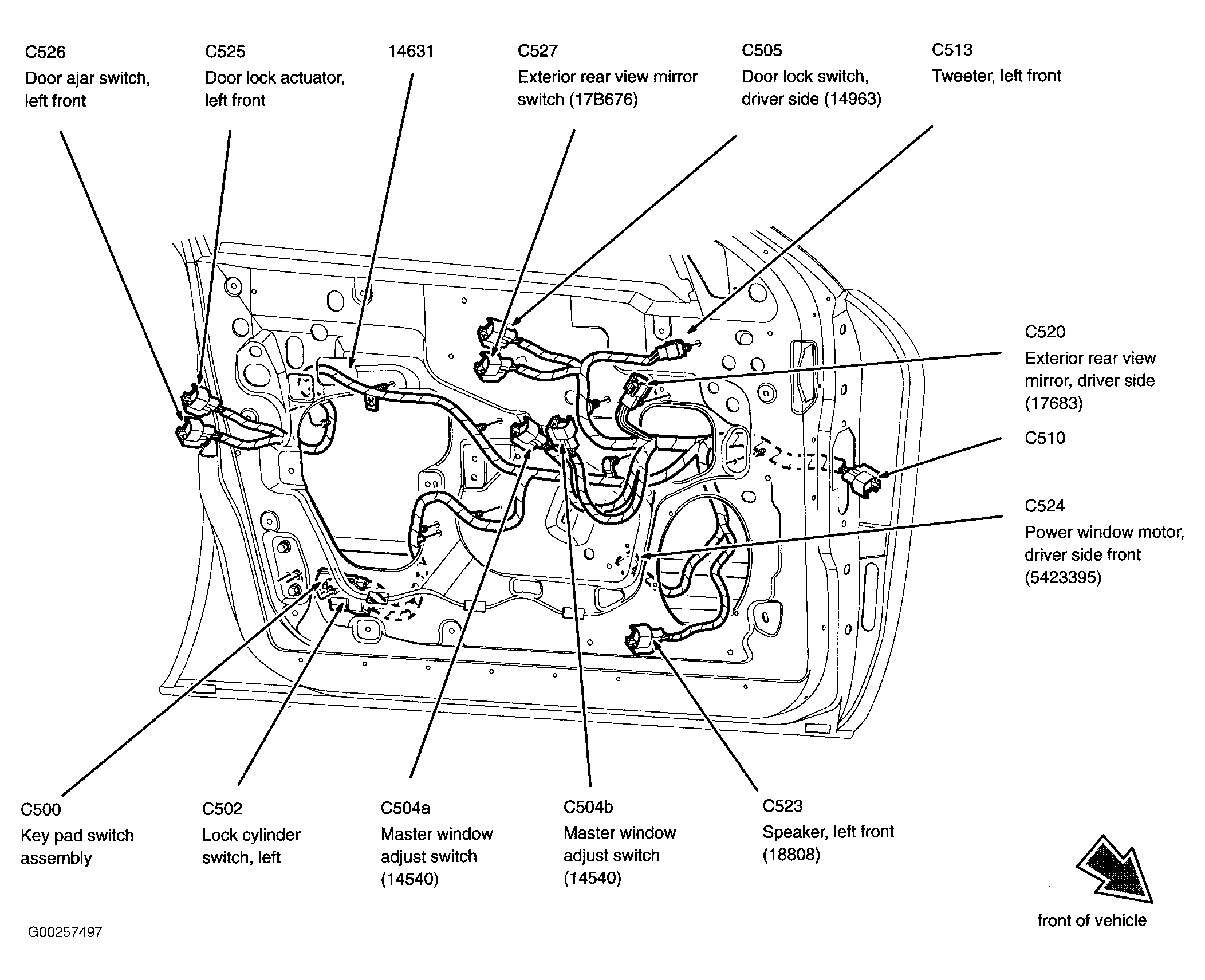

Fig 32: Left Front Door

G00257497

Courtesy of FORD MOTOR CO.

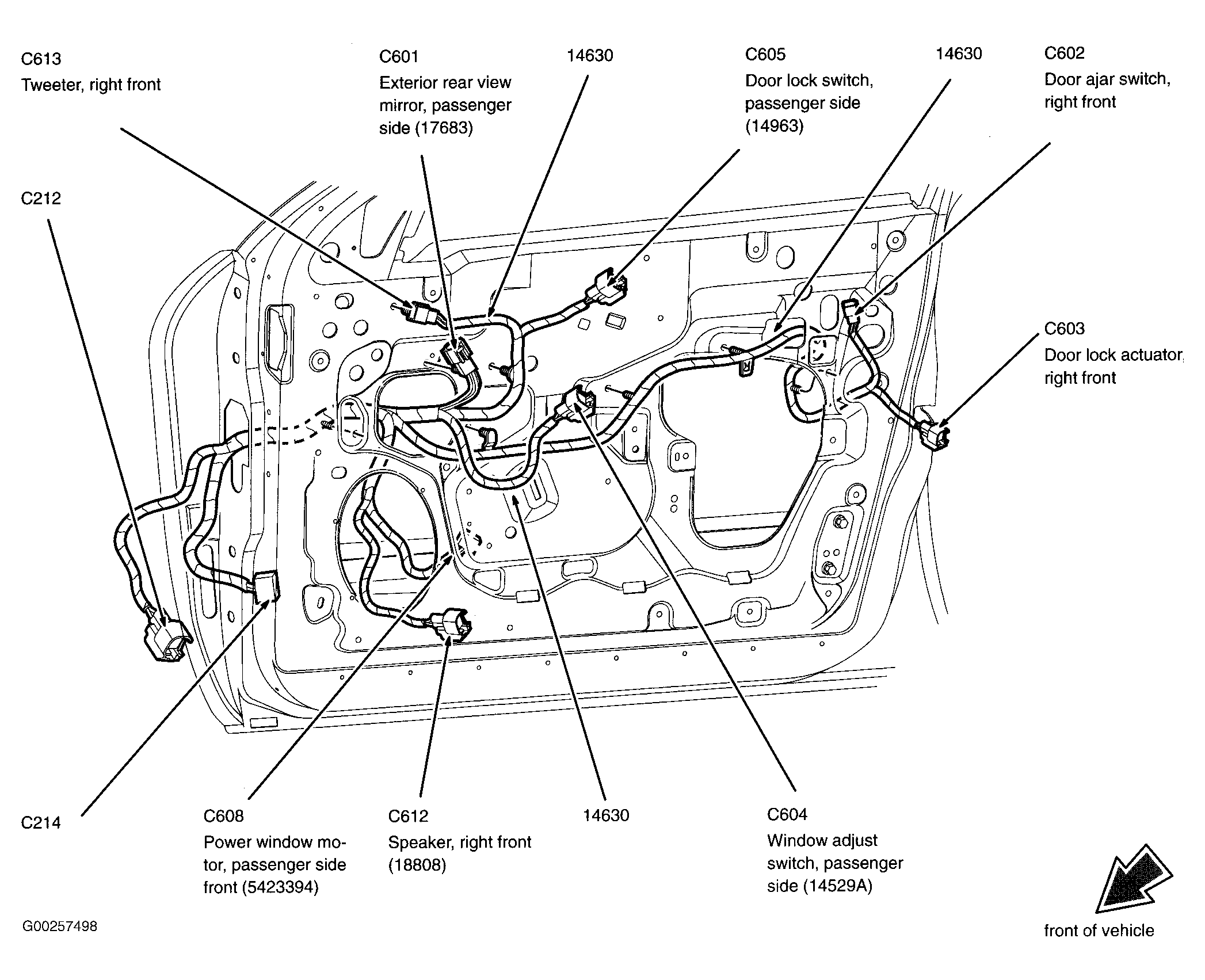

Fig 33: Right Front Door

G00257498

Courtesy of FORD MOTOR CO.

Fig 34: Rear Door

G00257499

Courtesy of FORD MOTOR CO.

Fig 35: Fuel Tank

G00257500

Courtesy of FORD MOTOR CO.

Fig 36: Decklid (Sedan)

G00257501

Courtesy of FORD MOTOR CO.

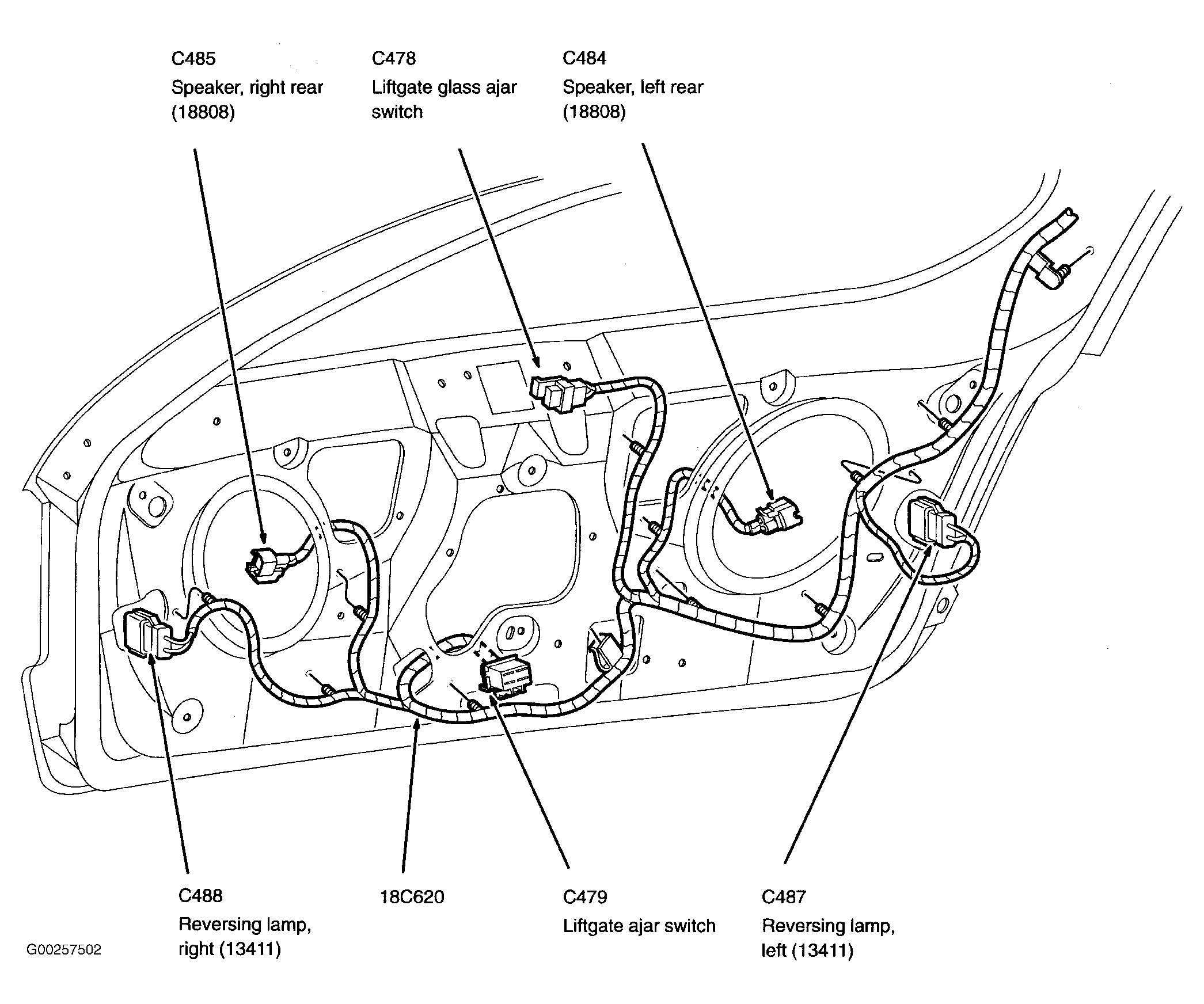

Fig 37: Liftgate (Wagon)

G00257502

Courtesy of FORD MOTOR CO.

Fig 38: Liftgage (Wagon)

G00257503

Courtesy of FORD MOTOR CO.

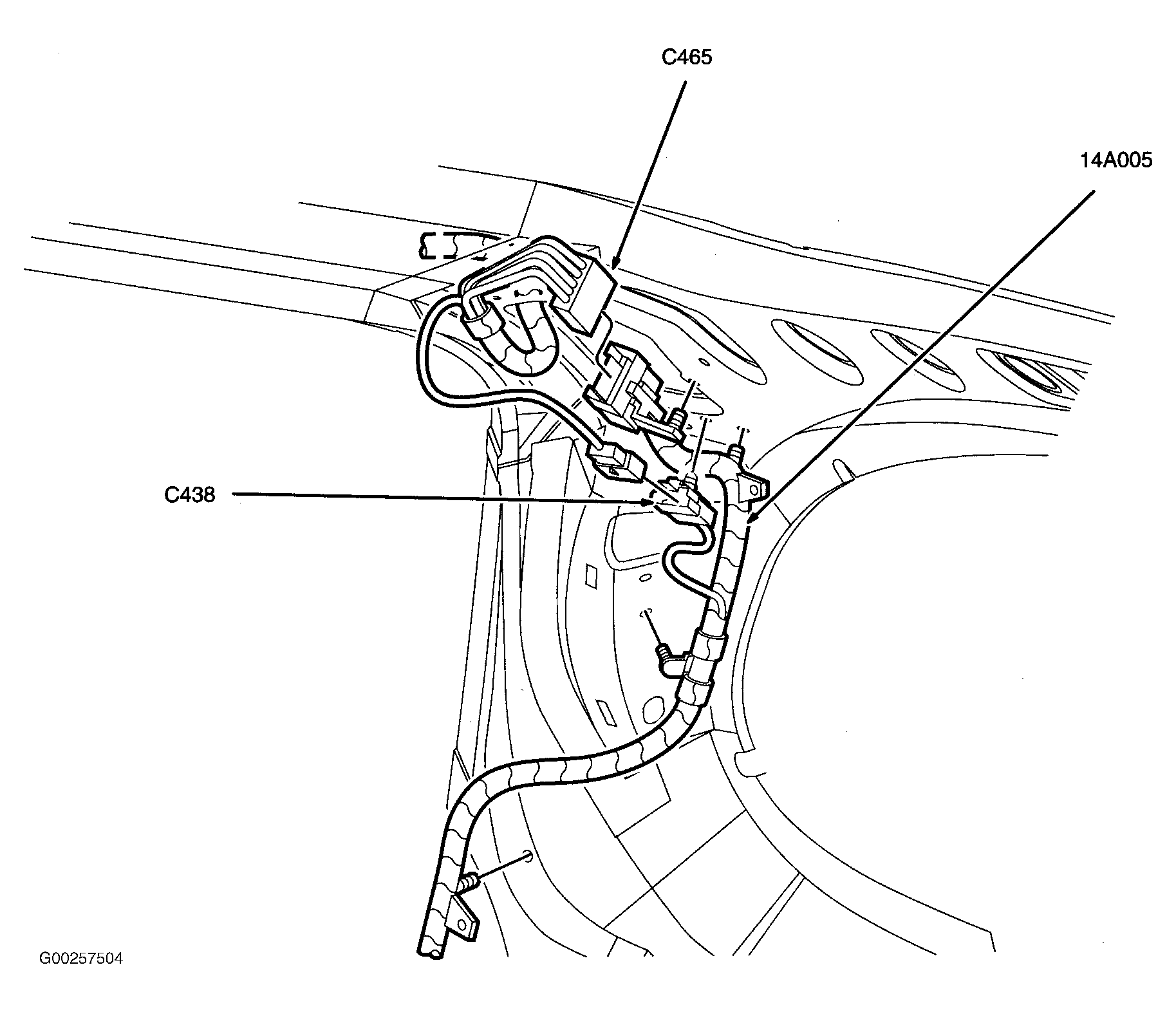

Fig 39: Liftgate

G00257504

Courtesy of FORD MOTOR CO.

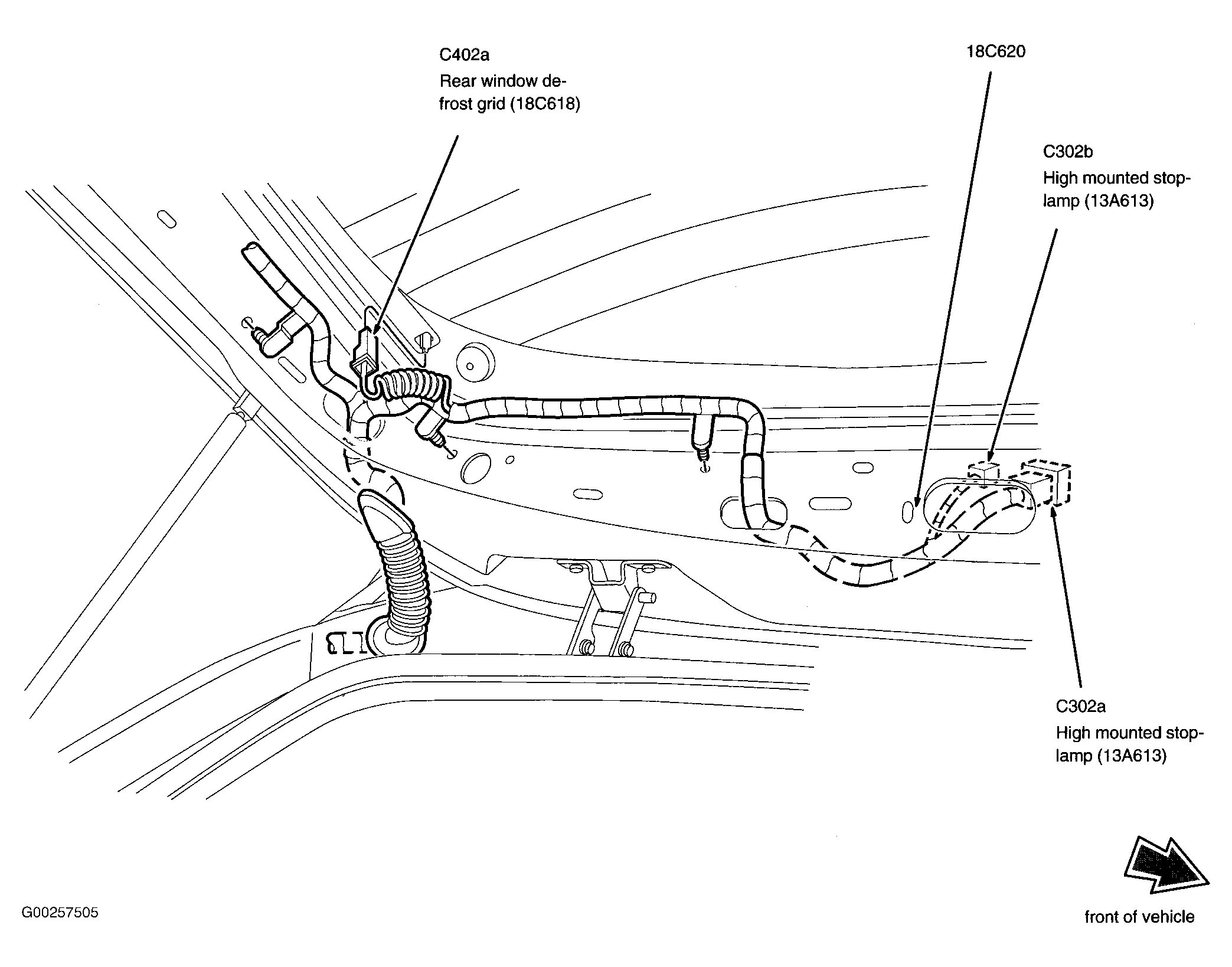

Fig 40: Liftgate

G00257505

Courtesy of FORD MOTOR CO.

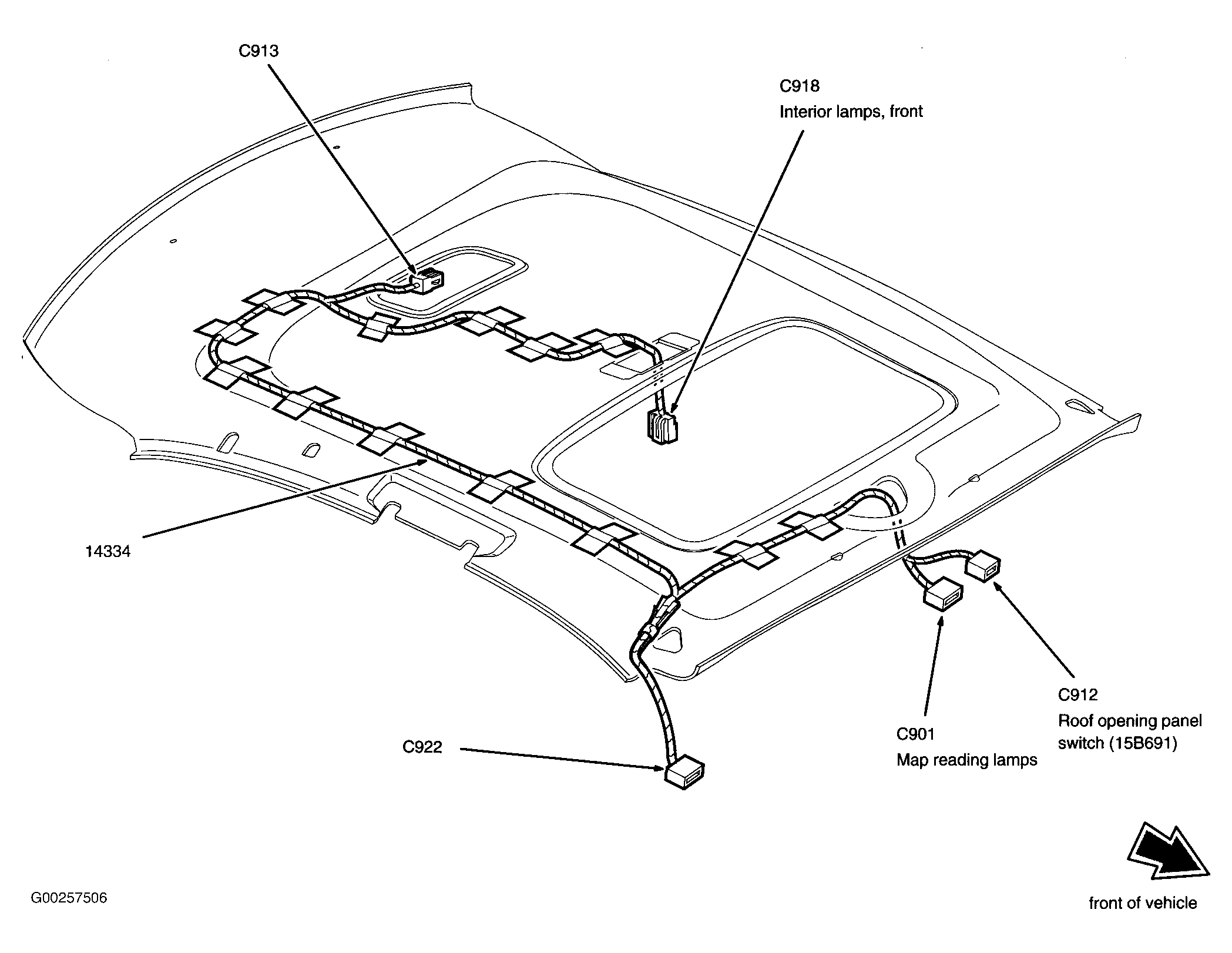

Fig 41: Roof

G00257506

Courtesy of FORD MOTOR CO.

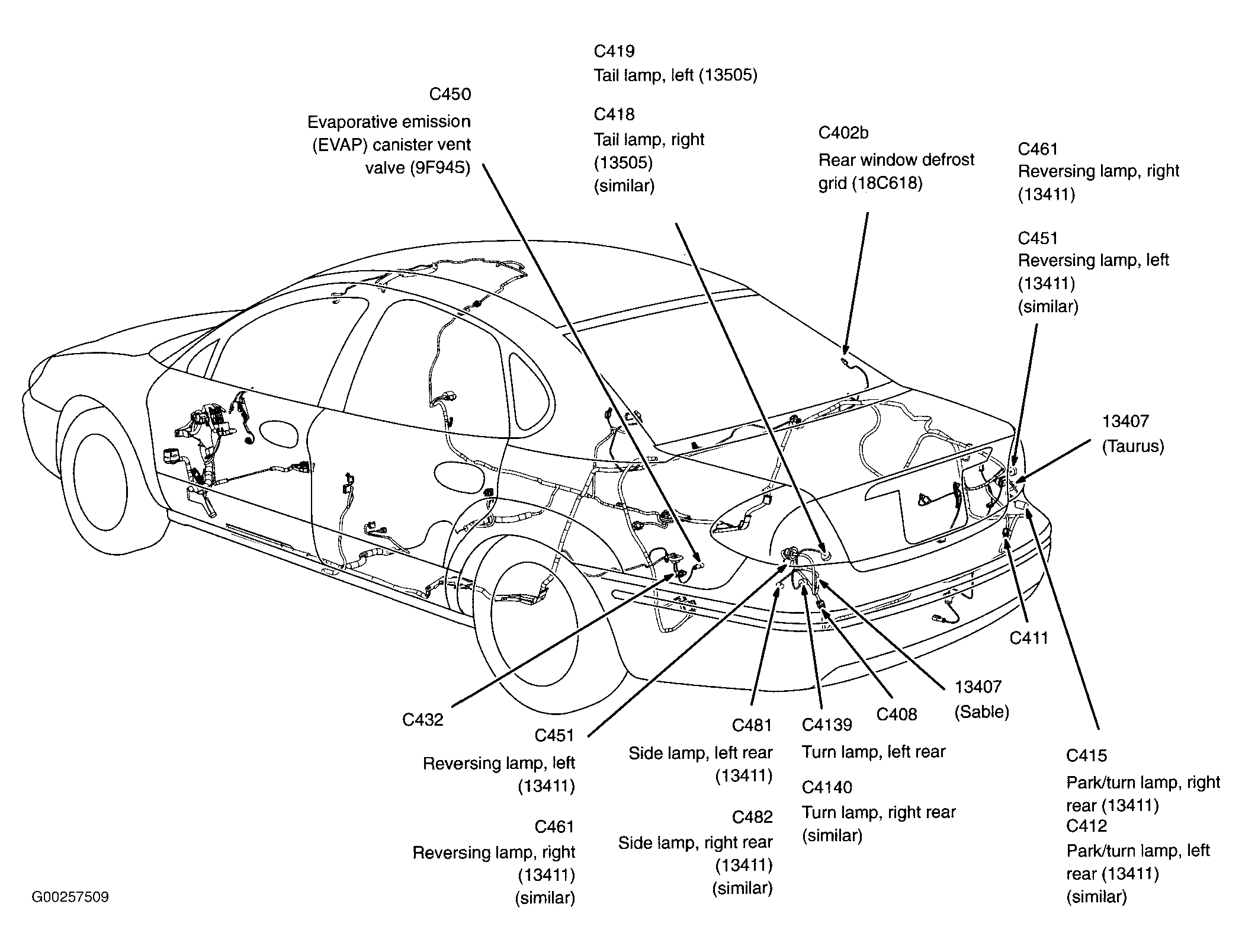

Fig 42: Vehicle Overview (Sedan)

G00257509

Courtesy of FORD MOTOR CO.

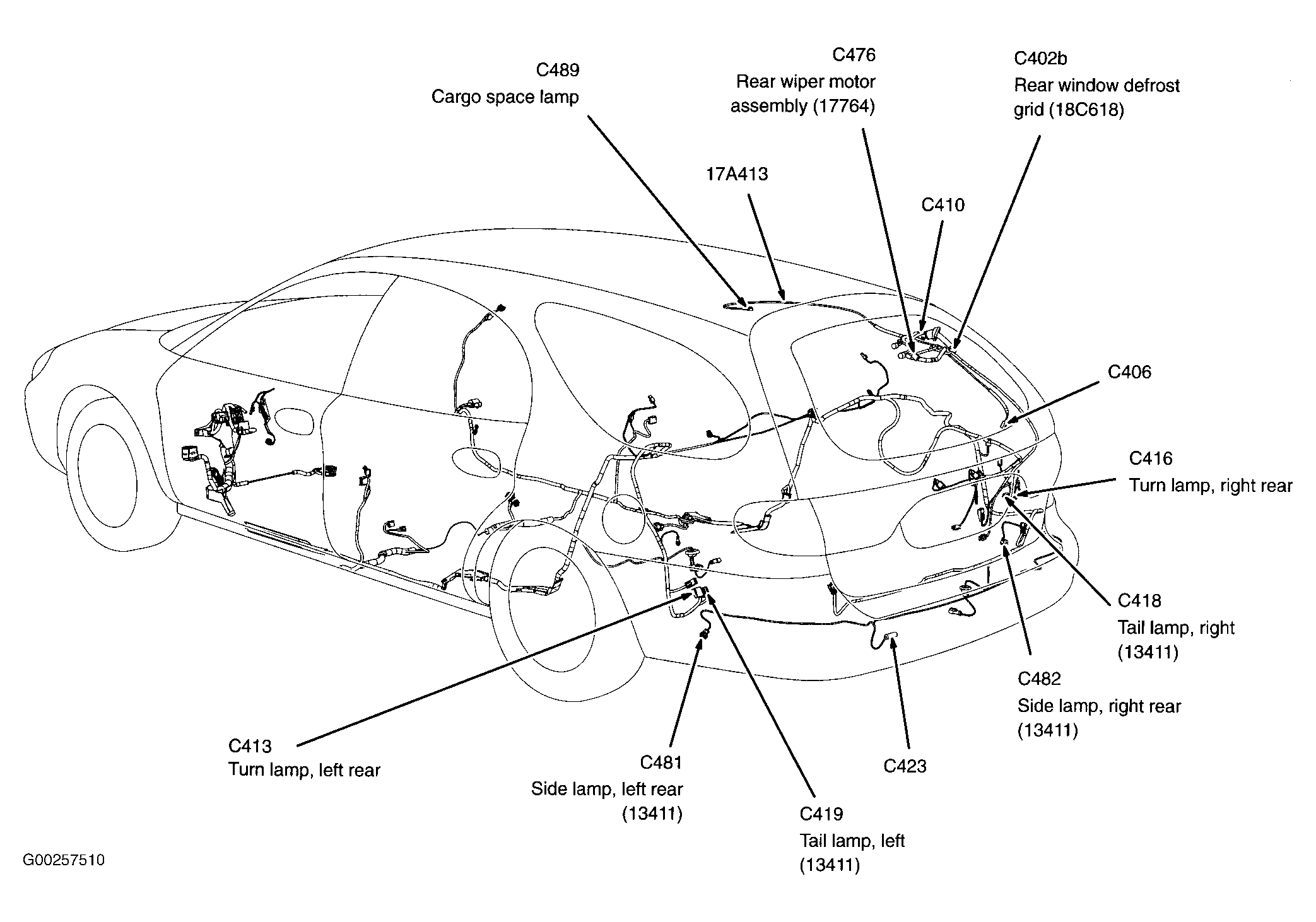

Fig 43: Vehicle Overview (Wagon)

G00257510

Courtesy of FORD MOTOR CO.

Fig 44: Battery Junction Box

G00262528

Courtesy of FORD MOTOR CO.

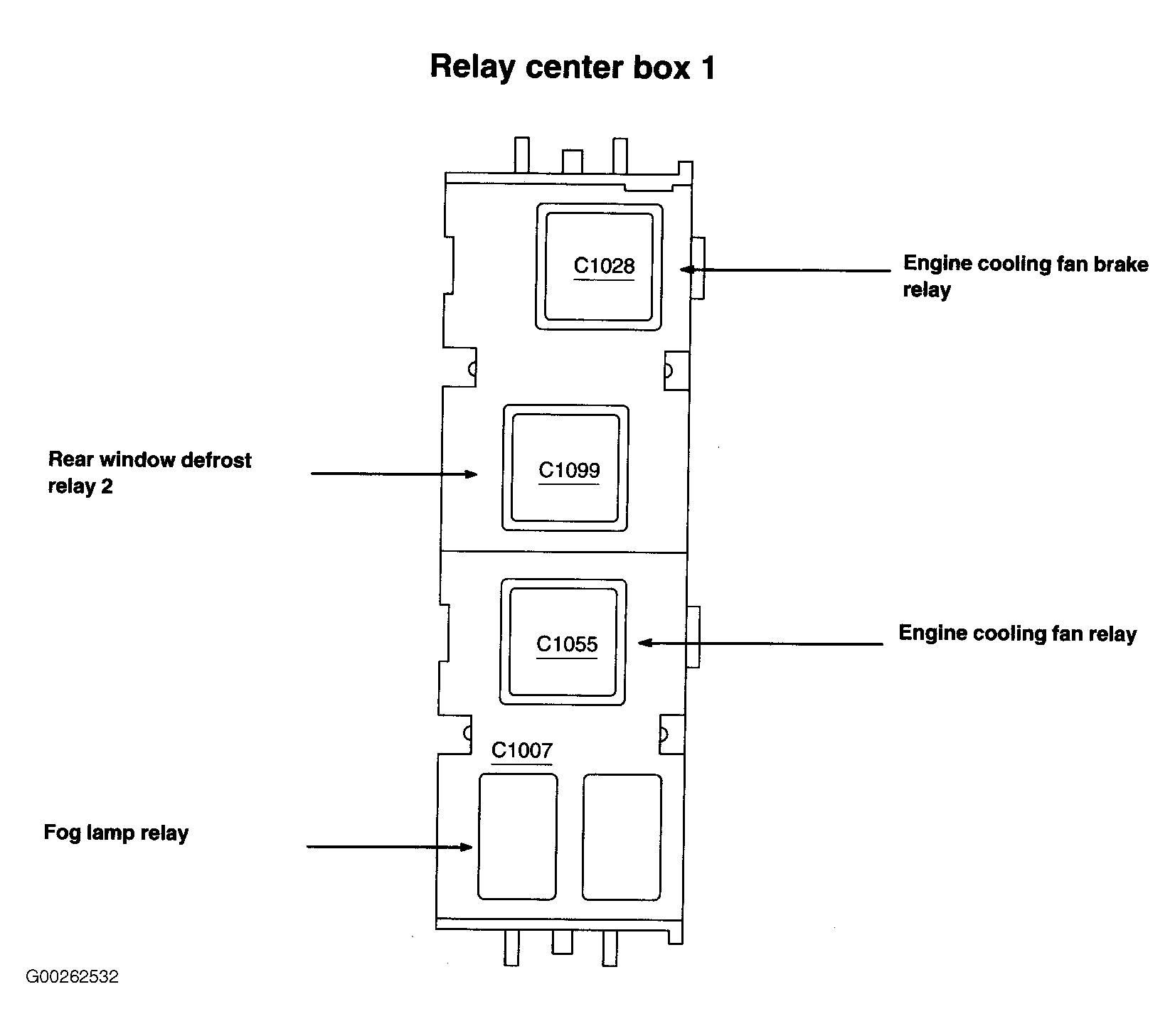

Fig 45: Relay Center Box 1

G00262532

Courtesy of FORD MOTOR CO.
