External Controls

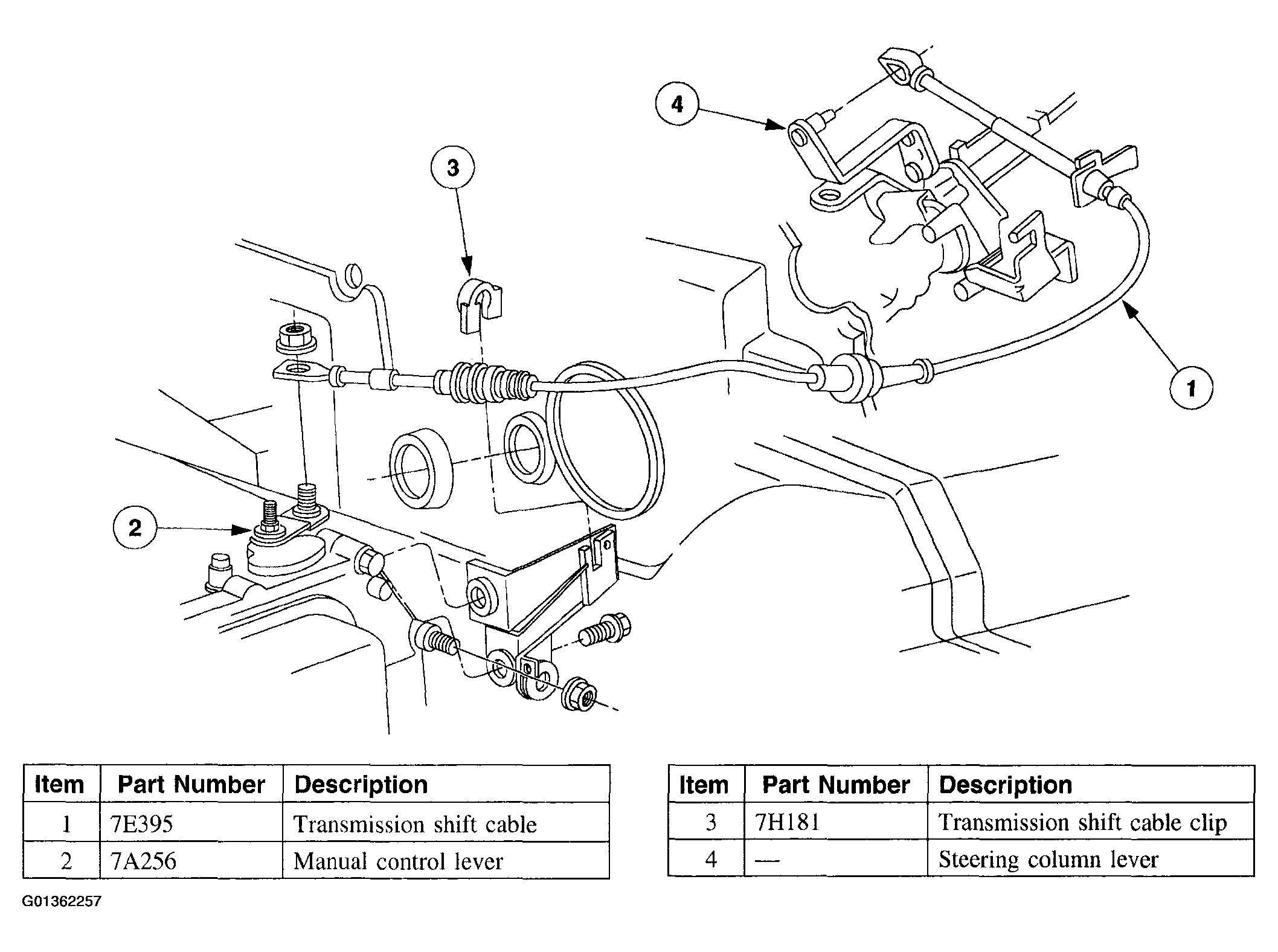

Fig 1: Exploded View Of External Controls - Column Shift Components

Courtesy of FORD MOTOR CO.

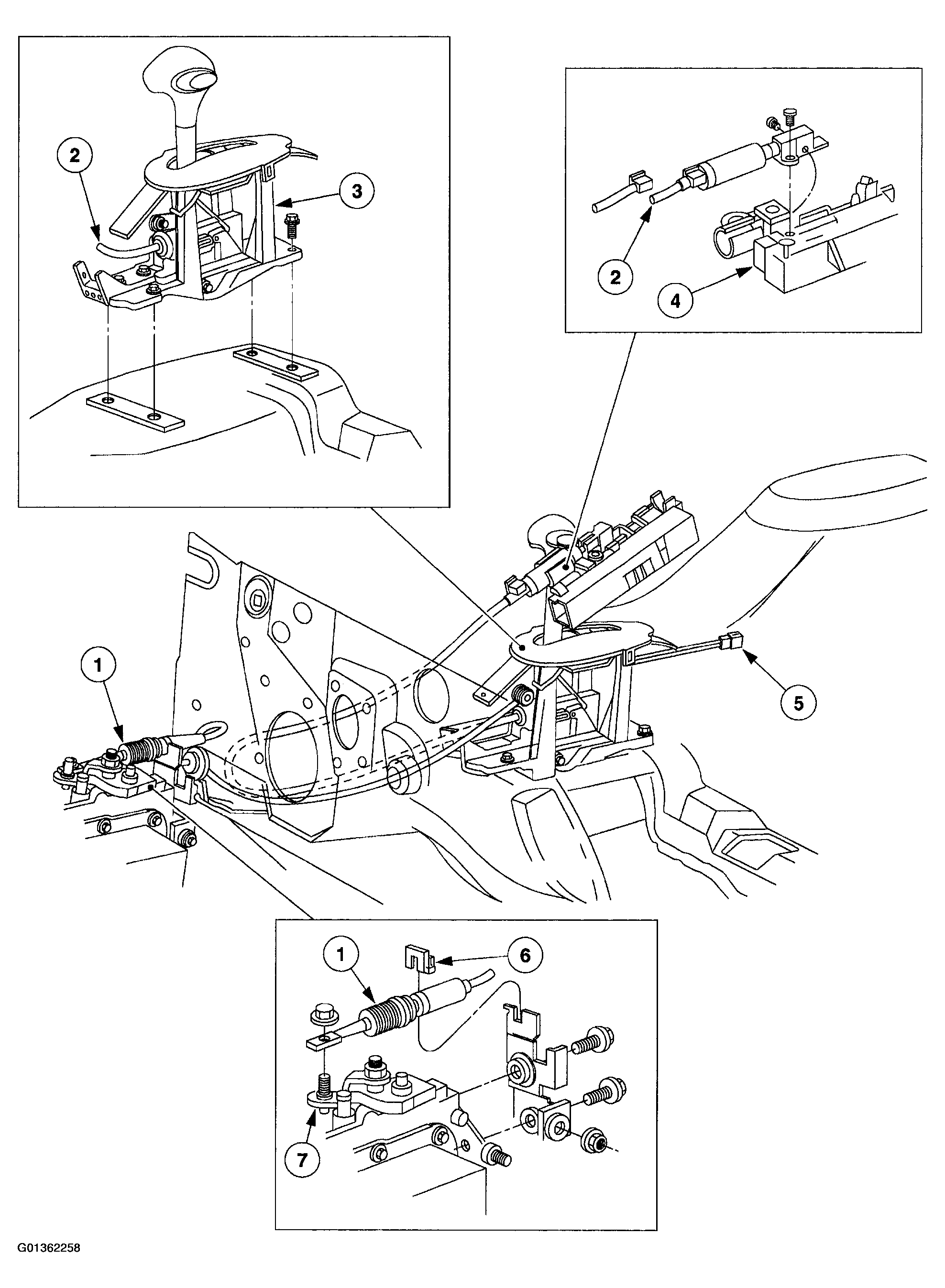

Fig 2: Exploded View Of External Controls - Floor Shift Components (1 Of 2)

Courtesy of FORD MOTOR CO.

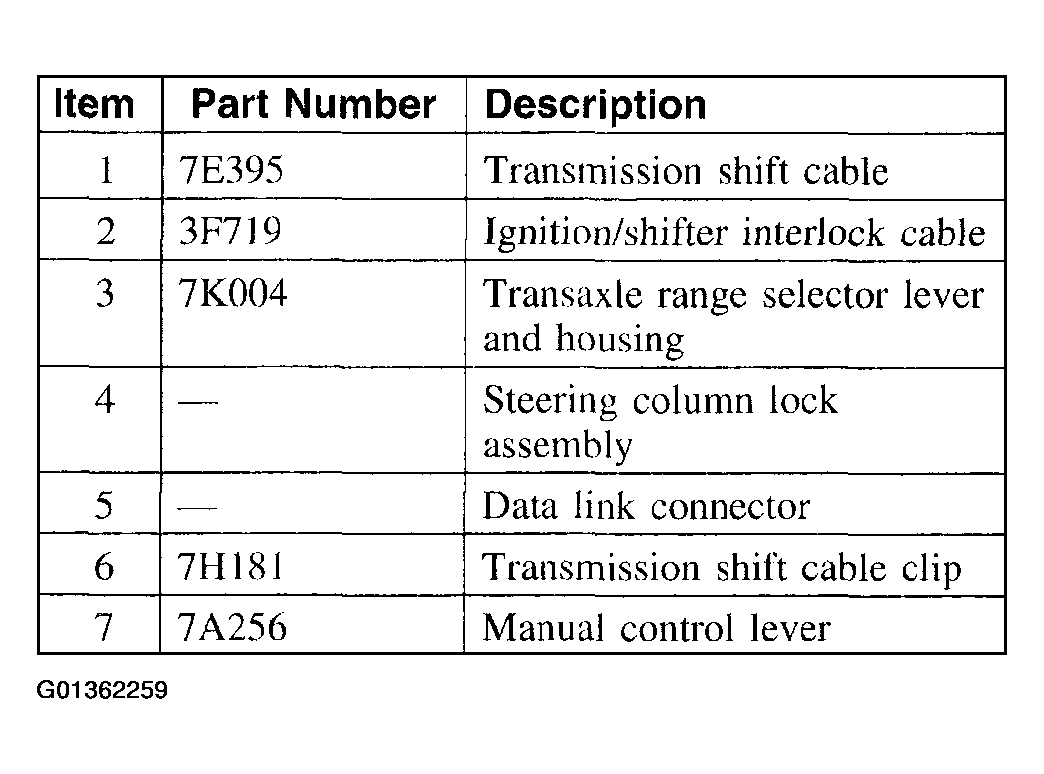

Fig 3: Exploded View Of External Controls - Floor Shift Components (2 Of 2)

Courtesy of FORD MOTOR CO.

The transaxle shift control linkage consists of:

• A steering column or floor-mounted transaxle range selector lever.
• A shift cable connecting the steering column to the transaxle range selector lever.
• An ignition/shifter interlock cable on floor shift vehicles which connects the transaxle range selector lever to the steering column lock assembly.
• An ignition/shift interlock actuator that is integral to the ignition/shift interlock cable.

  The ignition/shifter interlock cable:

• Locks the transaxle range selector lever in the PARK position when the ignition switch is in the LOCK position.
• Requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
