Automatic Transmission External Controls
>>
Diagnosis And Testing
>>
External Controls
>>
Symptom Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symptom Chart

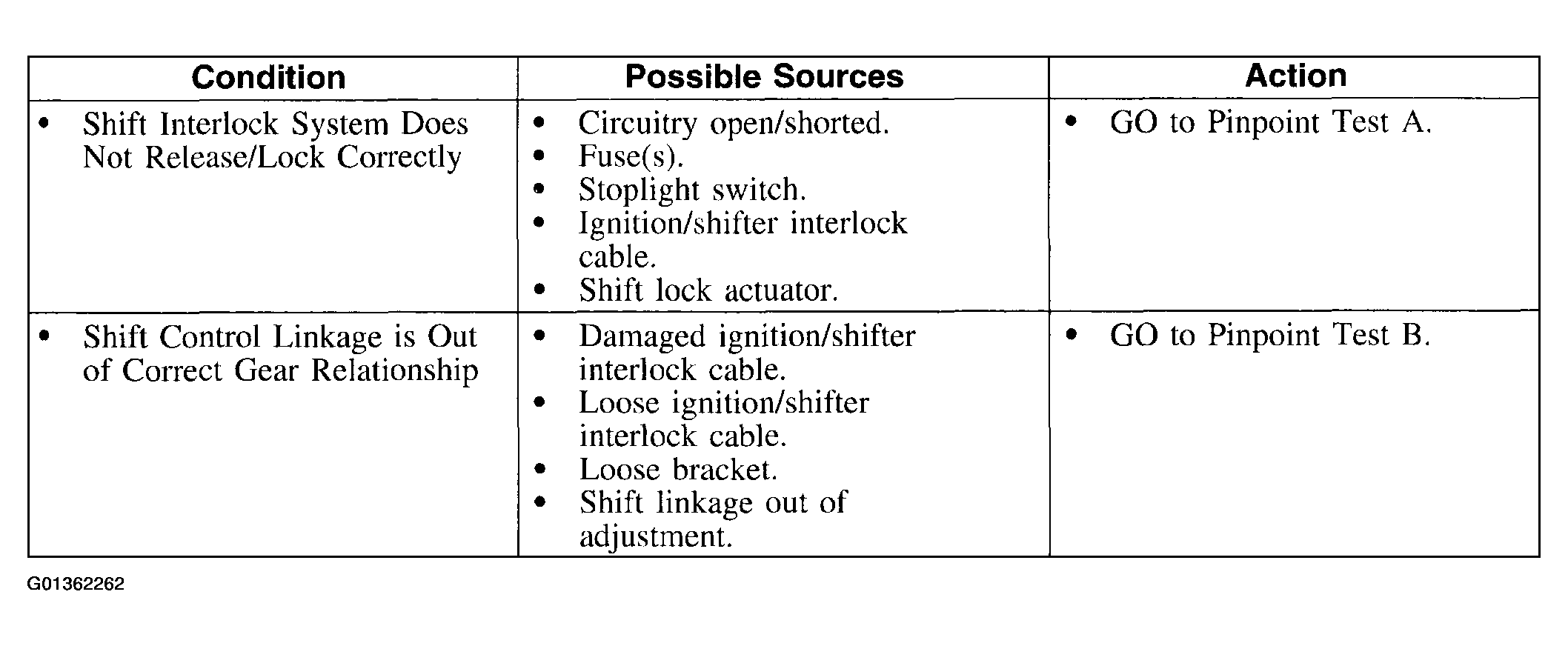

Fig 1: Problem Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
