Main Control Components

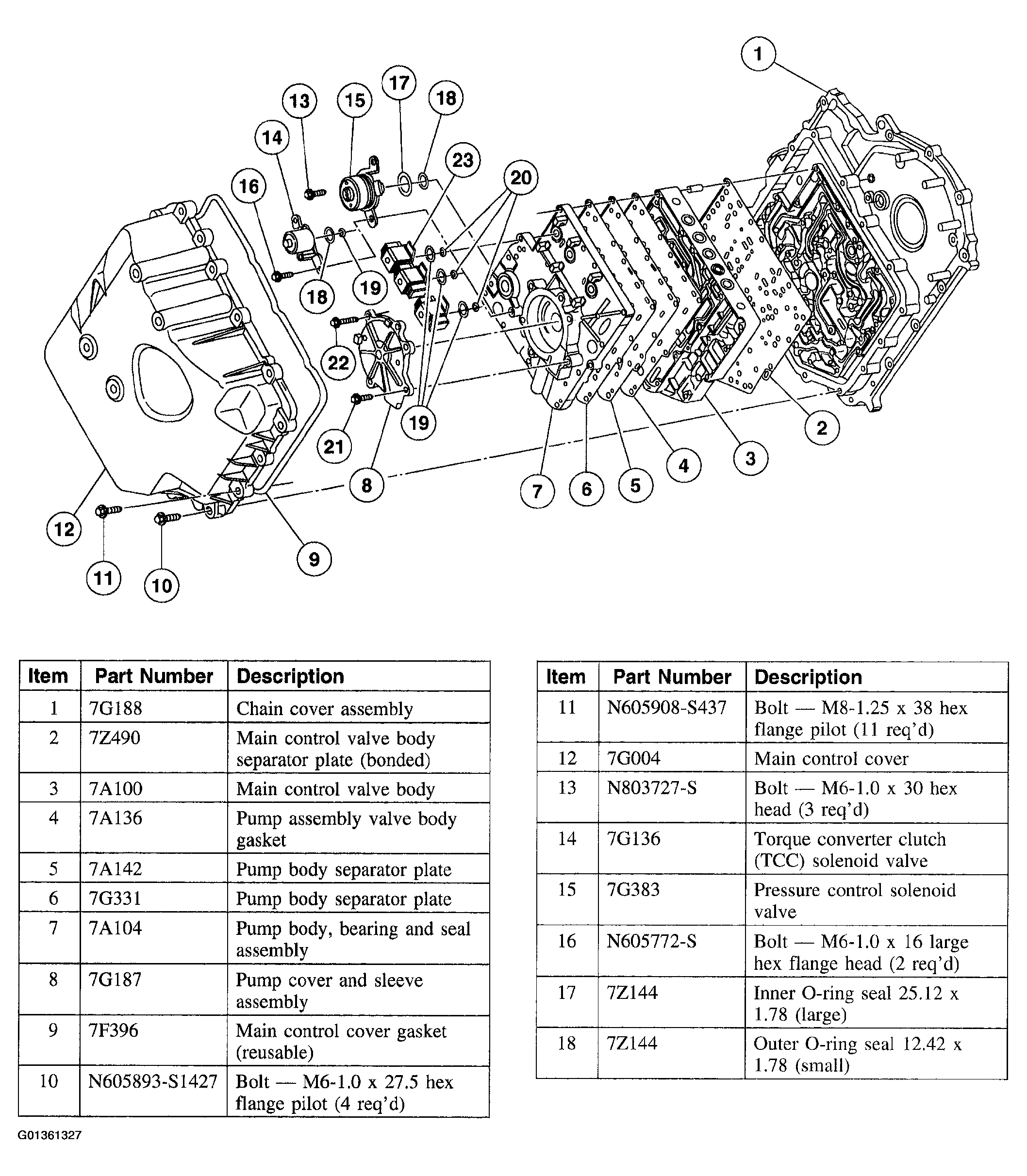

Fig 1: Identifying Thermostatic Fluid Control Valve (Items 1-18)
Courtesy of FORD MOTOR CO.

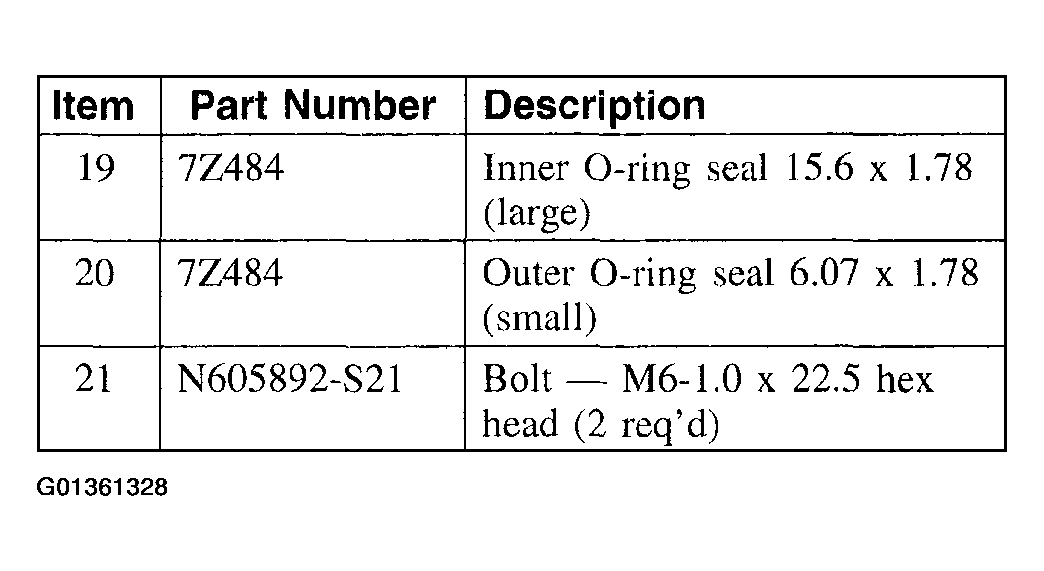

Fig 2: Identifying Thermostatic Fluid Control Valve (Items 19-21)
Courtesy of FORD MOTOR CO.
Fig 3: Identifying Thermostatic Fluid Control Valve (Items 22-23)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
