Main Control Valves

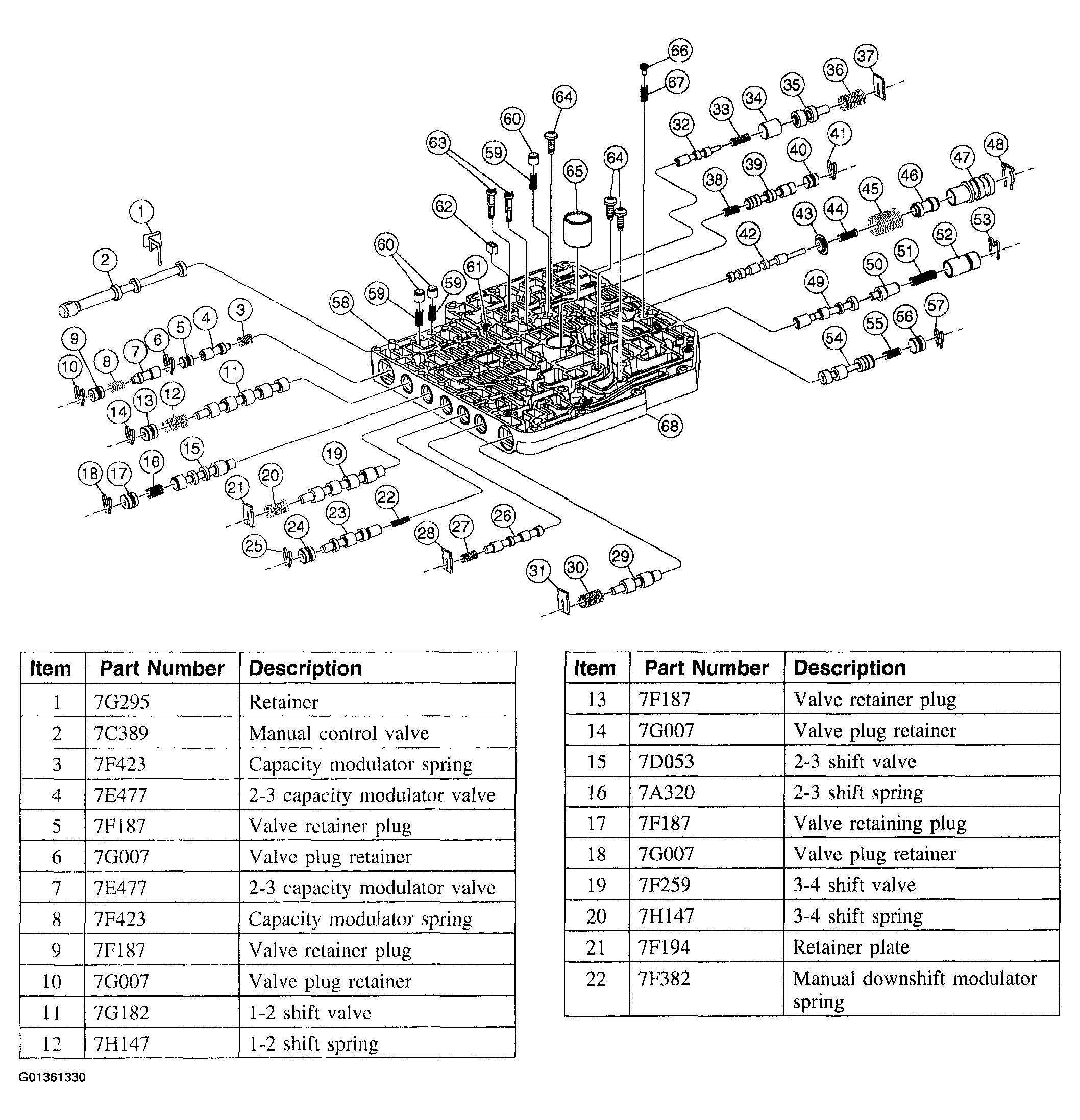

Fig 1: Identifying Main Control Valves (Items 1-22)
G01361330Courtesy of FORD MOTOR CO.

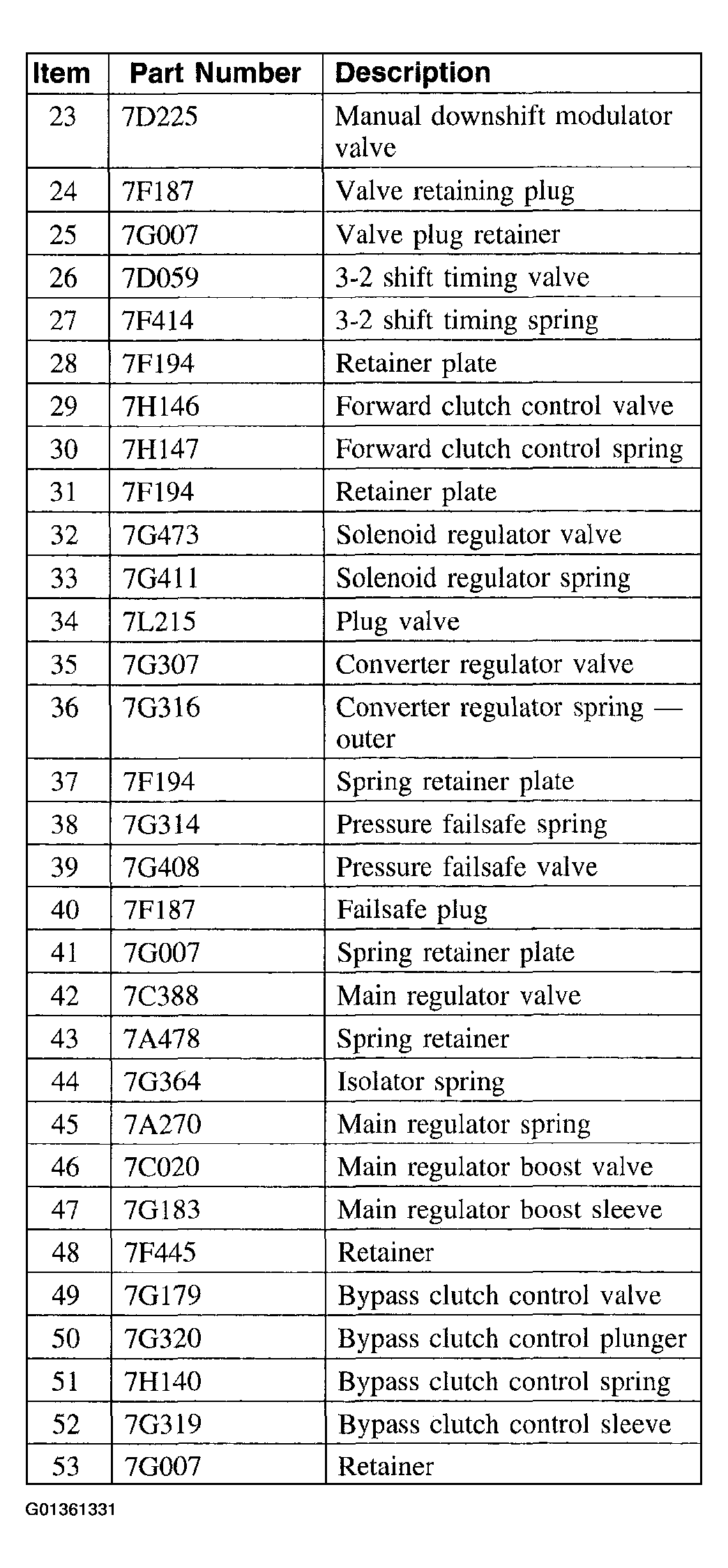

Fig 2: Parts Description Chart (Items 22-53)
G01361331Courtesy of FORD MOTOR CO.

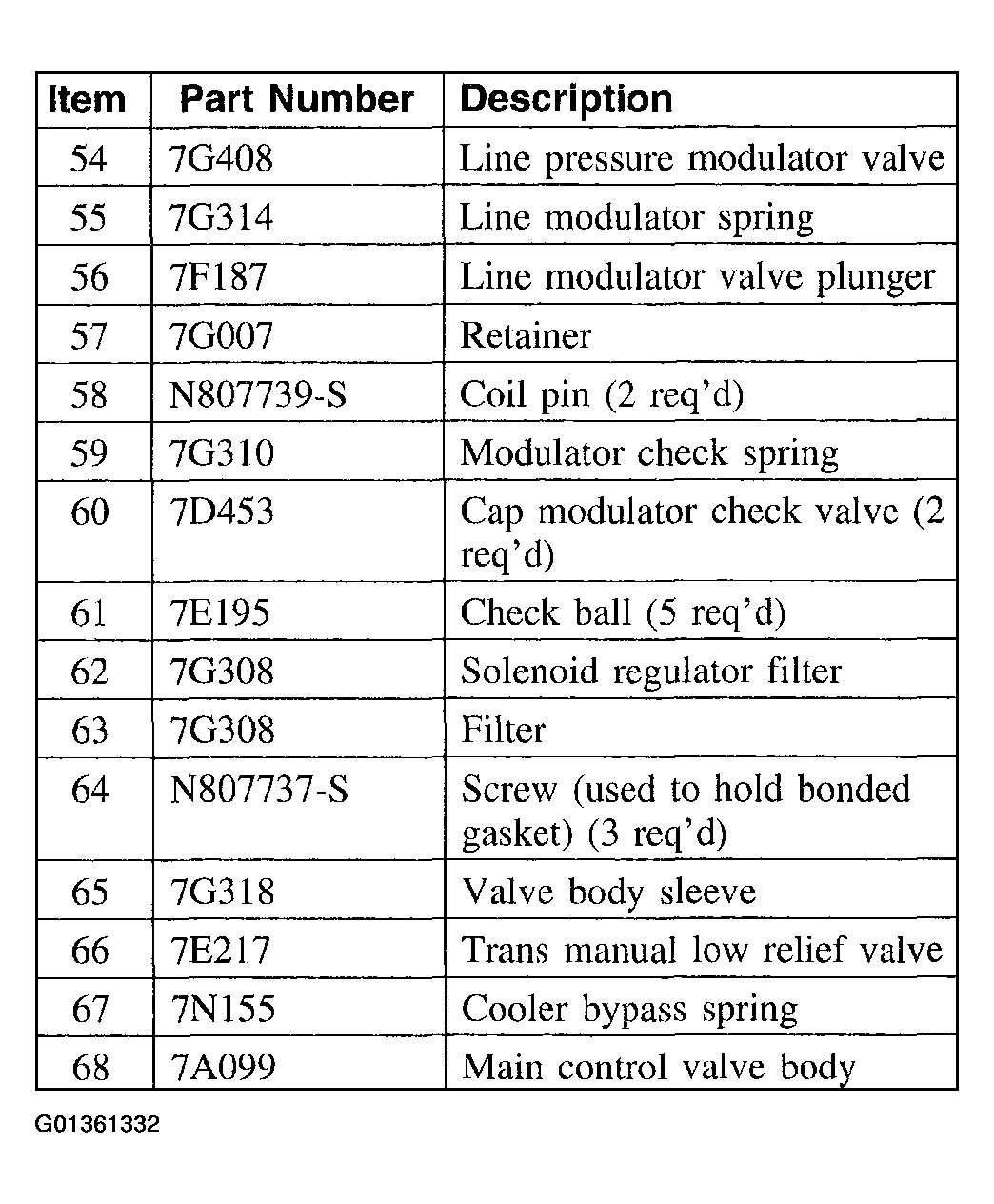

Fig 3: Parts Description Chart (Items 54-68)
G01361332Courtesy of FORD MOTOR CO.
