Driven Sprocket Support: Assembly

    CAUTION: The seal rings must be installed correctly. Transmission failure could result.

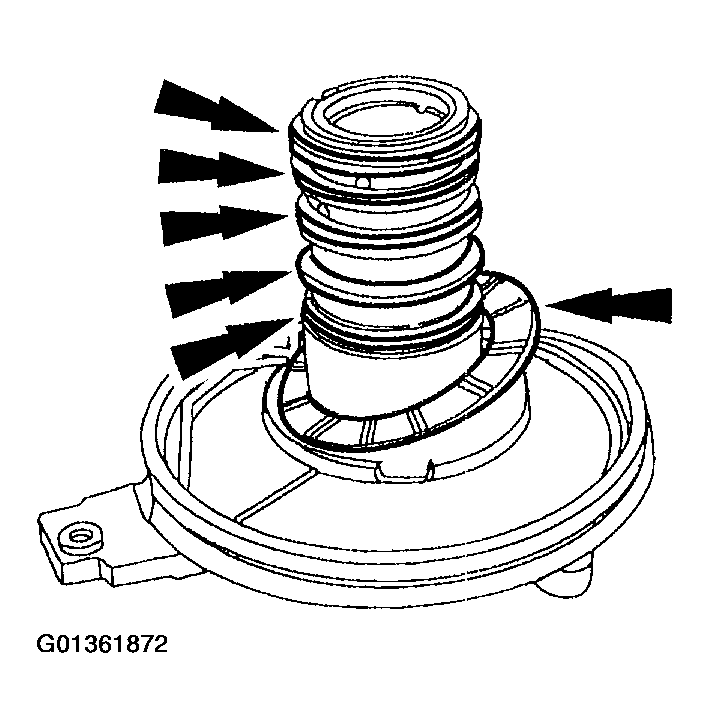

    Fig 1: Installing Teflon® Seals And No. 5 Thrust Washer
    G01361872Courtesy of FORD MOTOR CO.
  1. Install new Teflon® seals and the No. 5 thrust washer.
  2. Make sure that the seals are mated correctly.

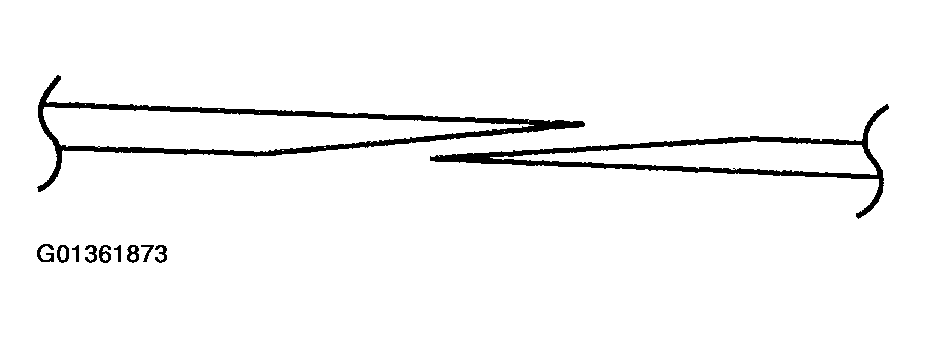

    Fig 2: Identifying Seals Are Mated Correctly
    G01361873Courtesy of FORD MOTOR CO.
