Reverse Clutch: Disassembly

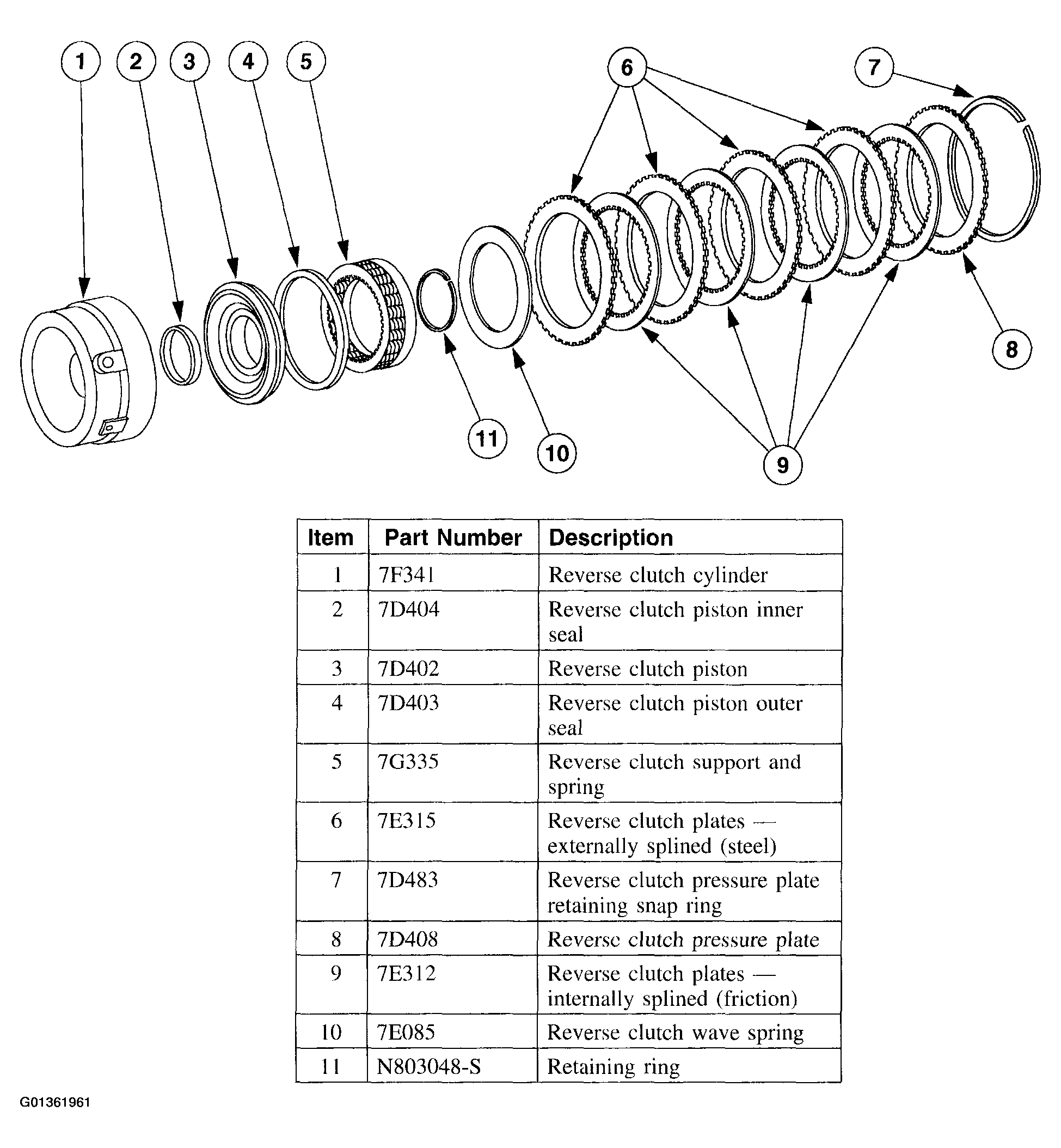

Fig 1: Identifying Reverse Clutch Components

Courtesy of FORD MOTOR CO.

Remove the reverse clutch pack assembly.
1. Remove the reverse clutch pressure plate retaining snap ring.
2. Remove the reverse clutch pressure plate.
3. Remove the clutch pack.
4. Remove the wave spring.

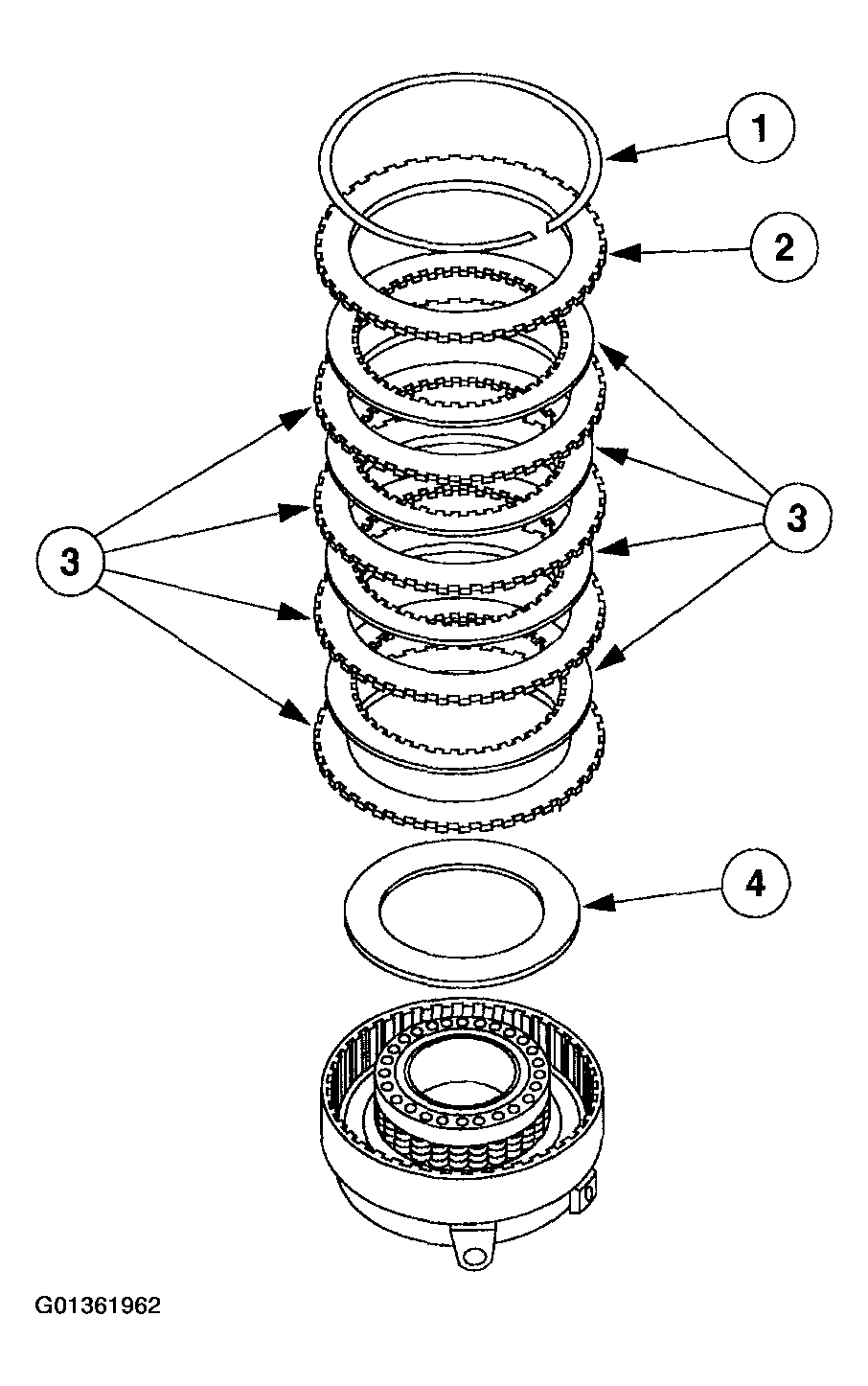

Fig 2: Disassembling Reverse Clutch Components

Courtesy of FORD MOTOR CO.

CAUTION: Do not fully compress the spring retainer.

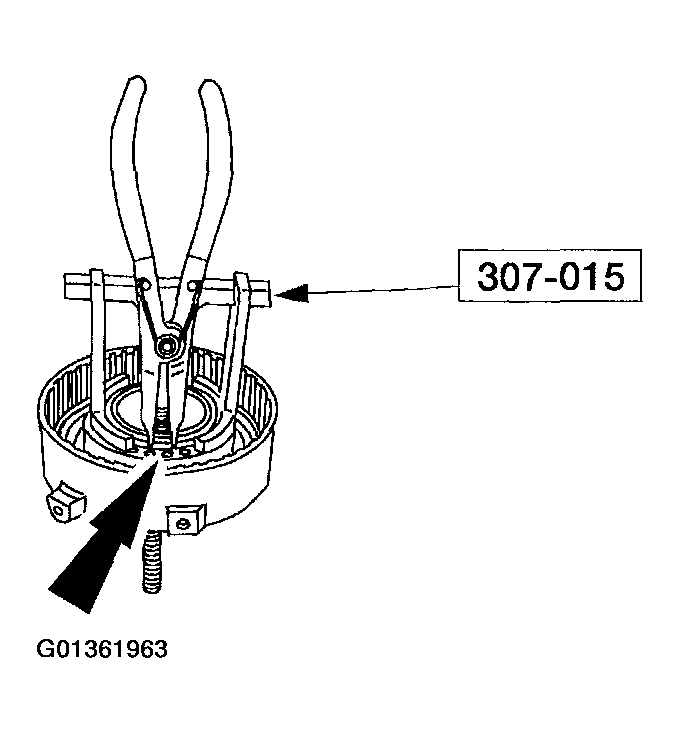

Fig 3: Removing Snap Ring

Courtesy of FORD MOTOR CO.

Use the special tool, remove the snap ring.

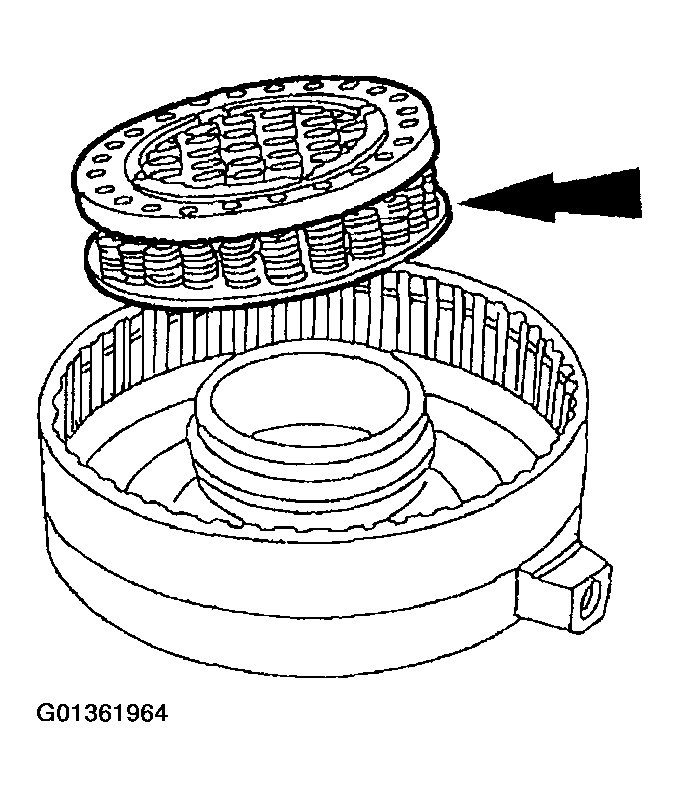

Remove the reverse clutch support and spring.

Fig 4: Removing Reverse Clutch Support And Spring
Courtesy of FORD MOTOR CO.

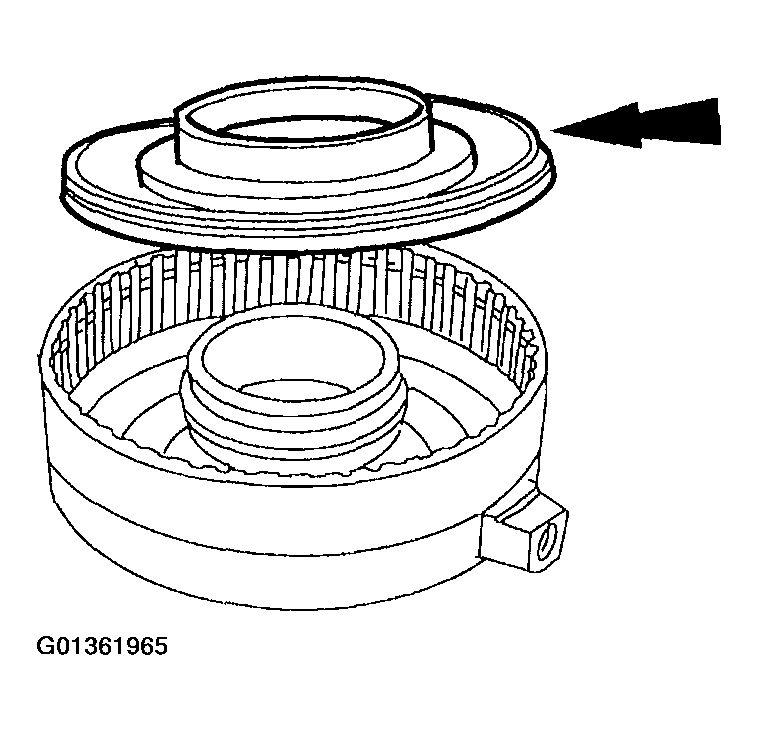

Remove the reverse clutch piston.

Fig 5: Removing Reverse Clutch Piston
Courtesy of FORD MOTOR CO.

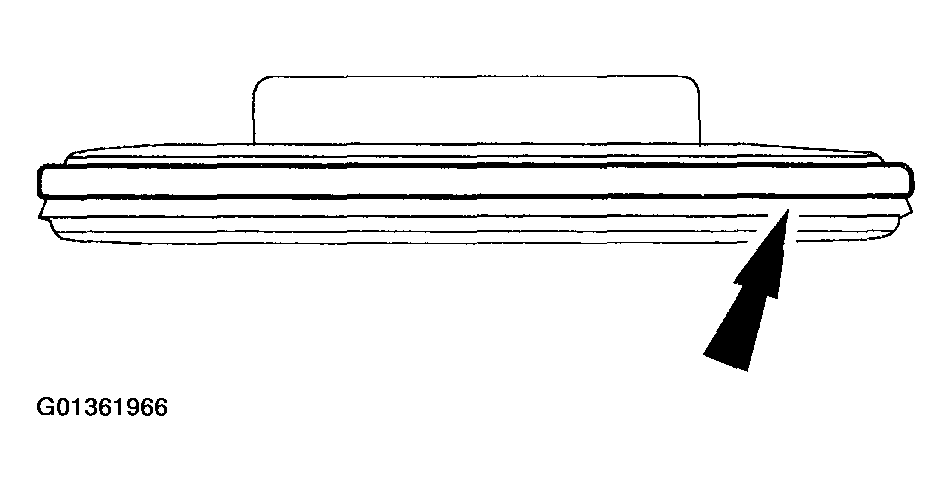

Remove the reverse clutch piston outer seal.

Fig 6: Removing Reverse Clutch Piston Outer Seal
Courtesy of FORD MOTOR CO.

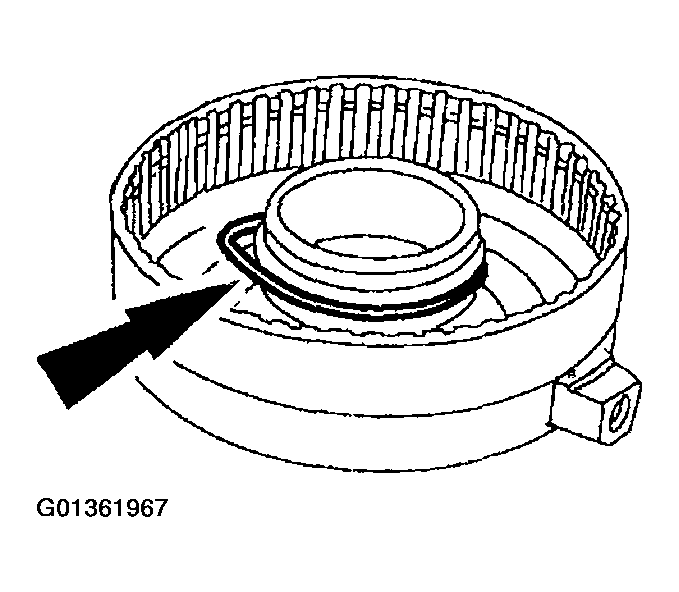

Remove the reverse clutch piston inner seal.

Fig 7: Removing Reverse Clutch Piston Inner Seal
Courtesy of FORD MOTOR CO.
