Fuel Tank Draining

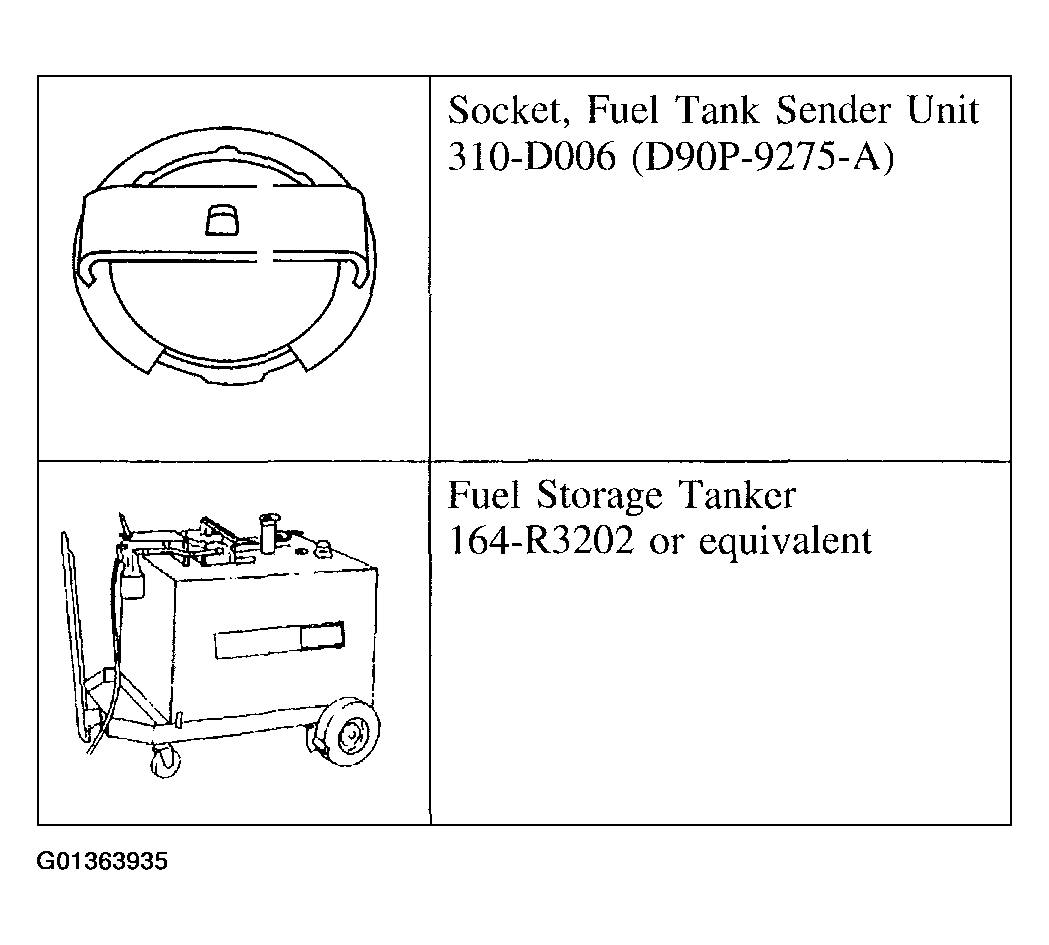

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

WARNING: Do not smoke or carry lighted tobacco or an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and can be ignited, resulting in possible personal injury.

WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & HOISTING .
Release the fuel system pressure. For additional information, refer to FUEL SYSTEM PRESSURE RELEASE - 3.0L (2V) or FUEL SYSTEM PRESSURE RELEASE - 3.0L (4V) .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Using suitable hose pinching pliers, clamp the fuel tank filler hoses in the locations shown.

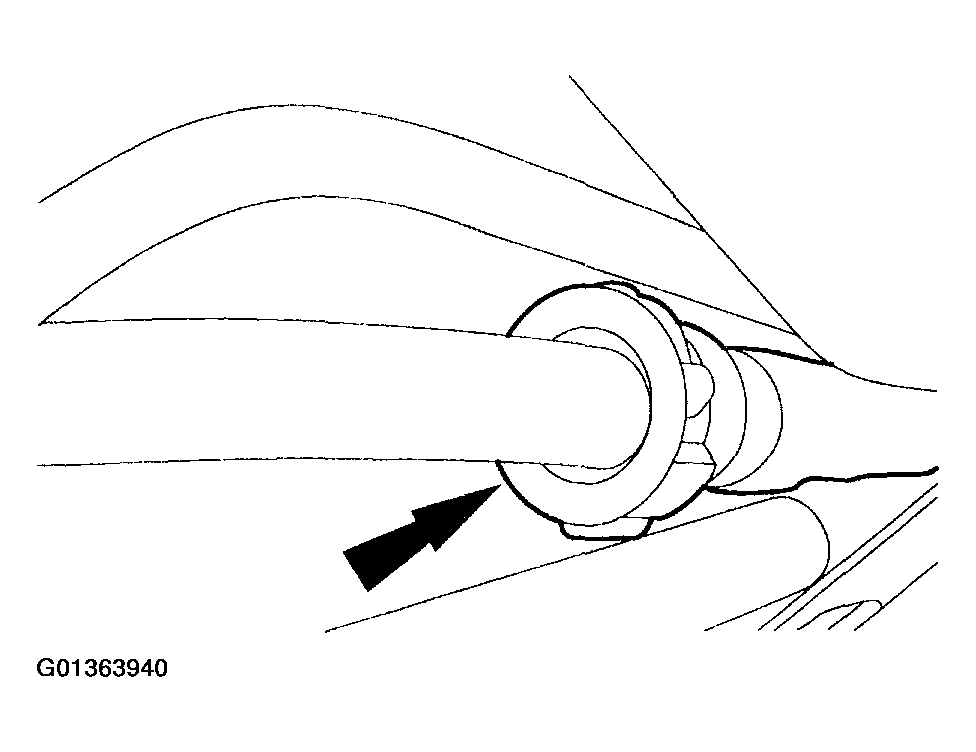

Fig 2: Clamping Fuel Tank Filler Hoses
Courtesy of FORD MOTOR CO.

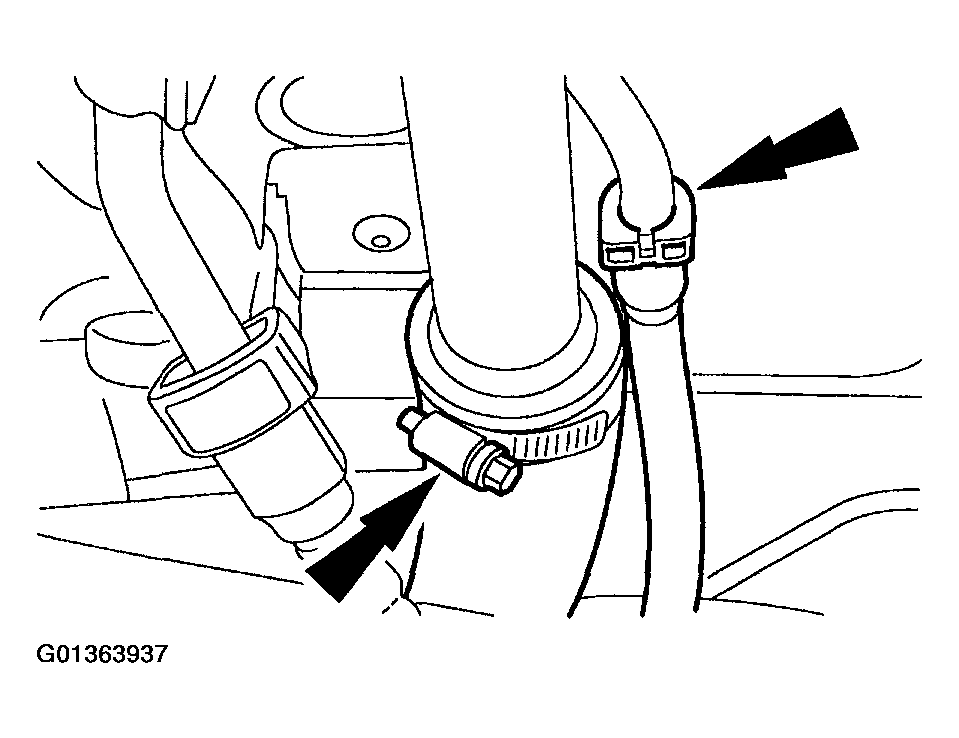

Release the fuel tank tube hose clamp and quick release coupling and disconnect the hoses from the fuel tank tubes.

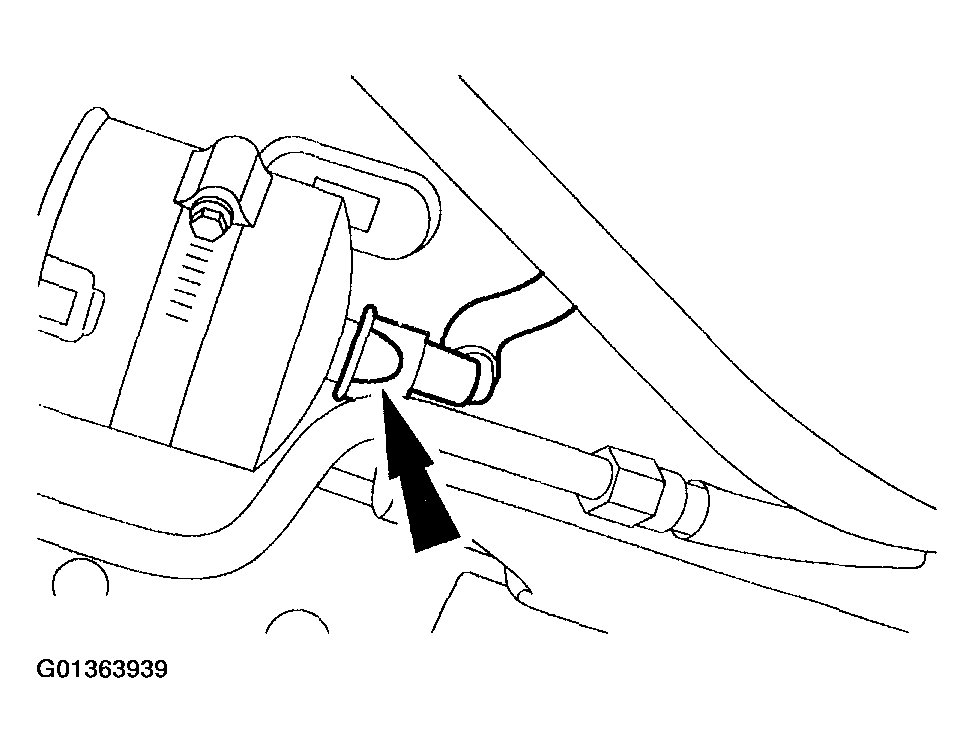

Fig 3: Releasing Fuel Tank Tube Hose Clamp And Quick Release Coupling
Courtesy of FORD MOTOR CO.
Disconnect the fuel pump electrical connector.

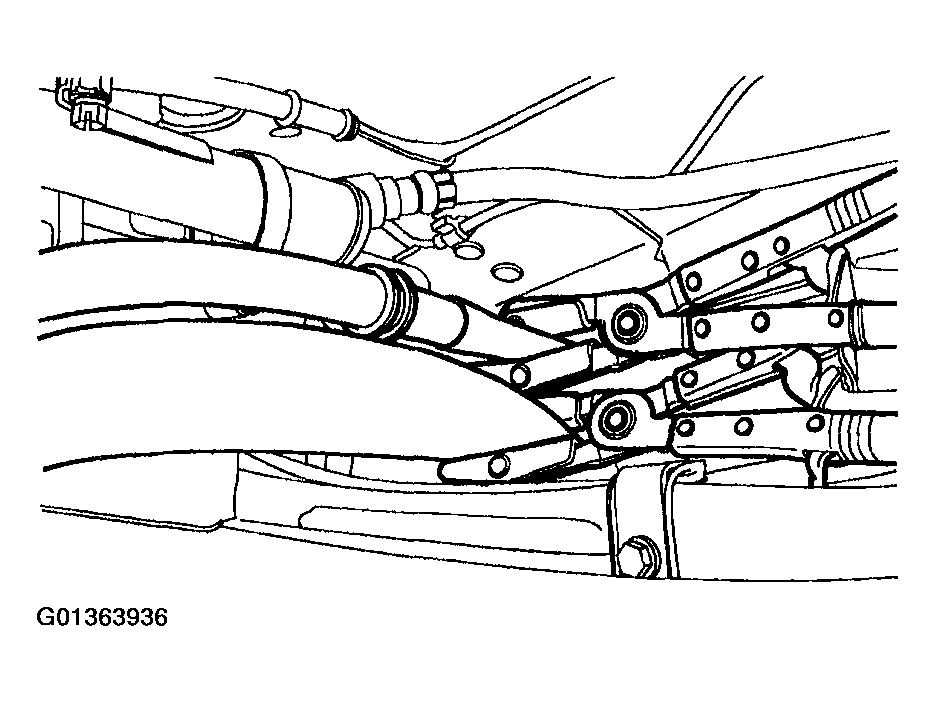

Fig 4: Disconnecting Fuel Pump Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the fuel filter inlet hose.

Fig 5: Disconnecting Fuel Filter Inlet Hose
Courtesy of FORD MOTOR CO.
Disconnect the vapor tube fitting. For additional information, refer to QUICK RELEASE COUPLING .

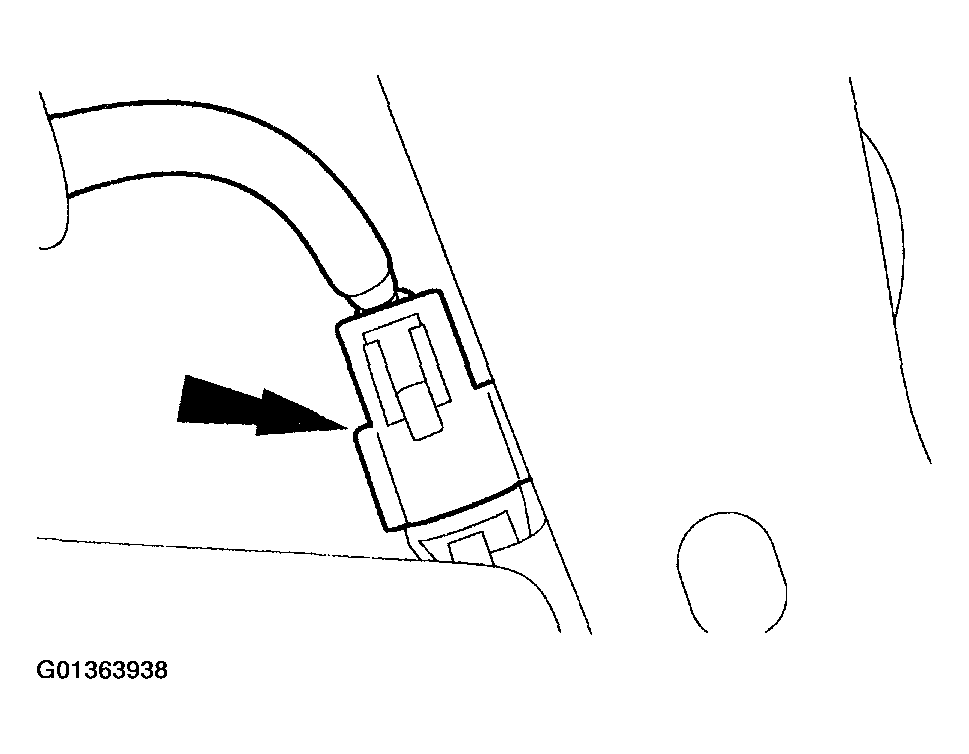

Fig 6: Disconnecting Vapor Tube Fitting
Courtesy of FORD MOTOR CO.
Position a suitable lifting device under the fuel tank.

Fig 7: Positioning Suitable Lifting Device Under Fuel Tank
Courtesy of FORD MOTOR CO.

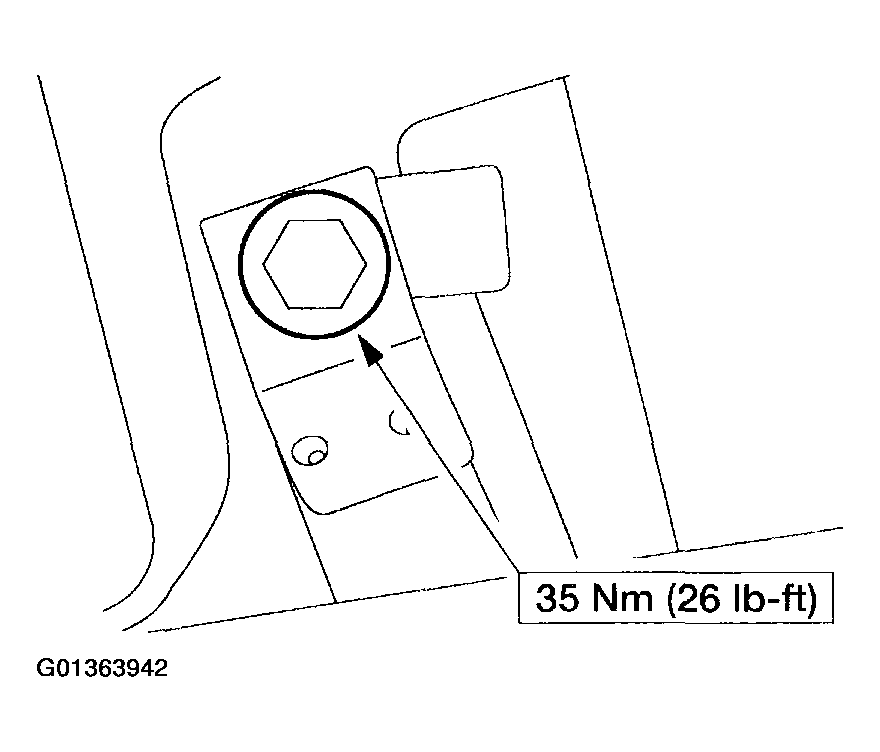

Remove the two fuel tank support strap bolts.

Fig 8: Removing Two Fuel Tank Support Strap Bolts
Courtesy of FORD MOTOR CO.
Partially lower the fuel tank to access the fuel pump module while swinging the fuel tank support straps away from the fuel tank.
Using the special tool, remove the fuel pump module retaining ring.

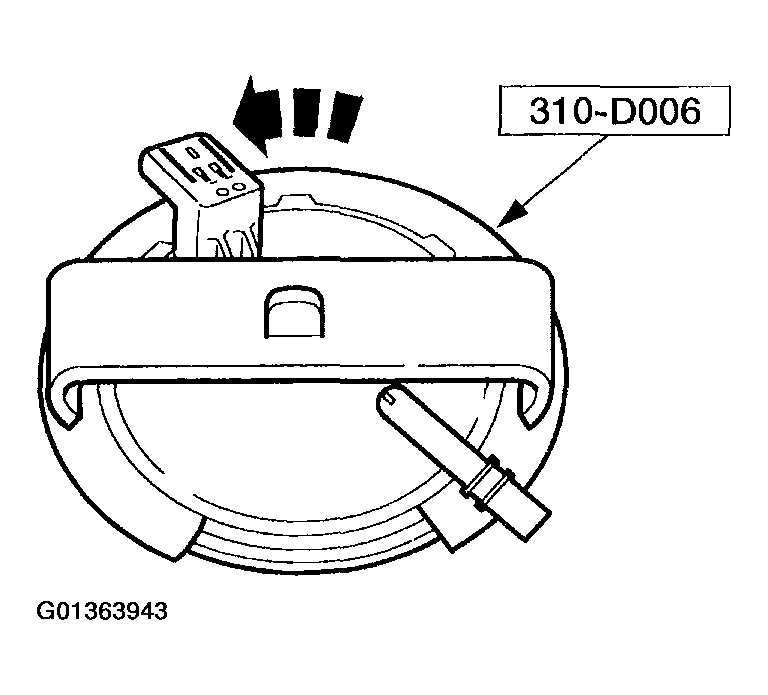

Fig 9: Removing Fuel Pump Module Retaining Ring
Courtesy of FORD MOTOR CO.

CAUTION: The fuel pump module must be handled carefully to avoid damage to the float arm, filter and convolute hoses.

NOTE: A stop should be felt when aligning the raised arrow on top of the fuel pump module to the dot on the fuel tank.

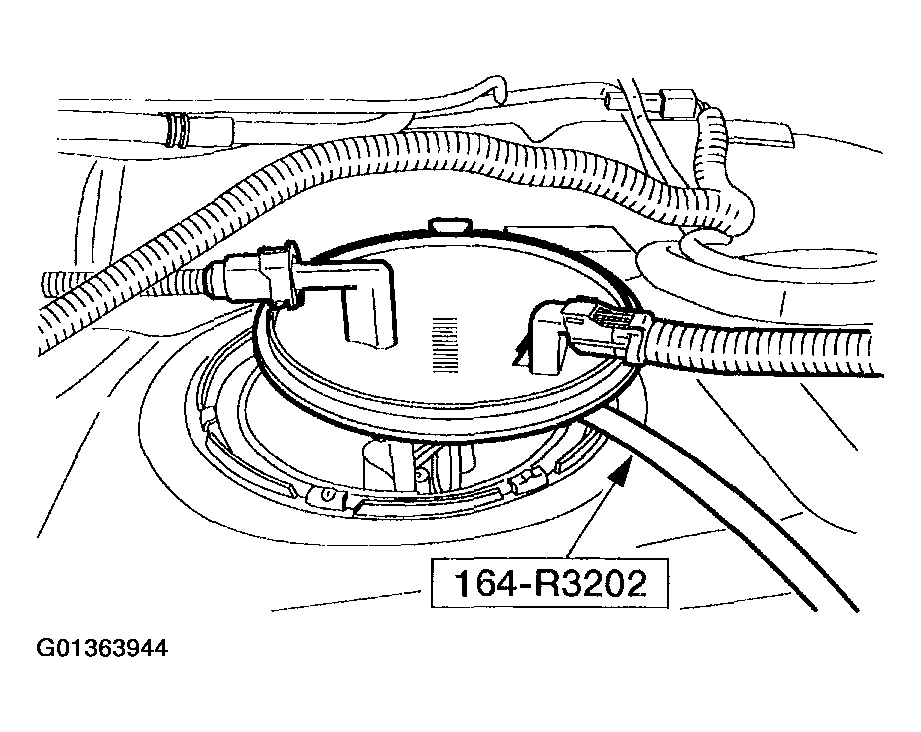

Fig 10: Positioning Aside Fuel Pump Module And Drain Fuel Tank, Using Special Tools

Courtesy of FORD MOTOR CO.

Position aside the fuel pump module and drain the fuel tank, using the special tools.
