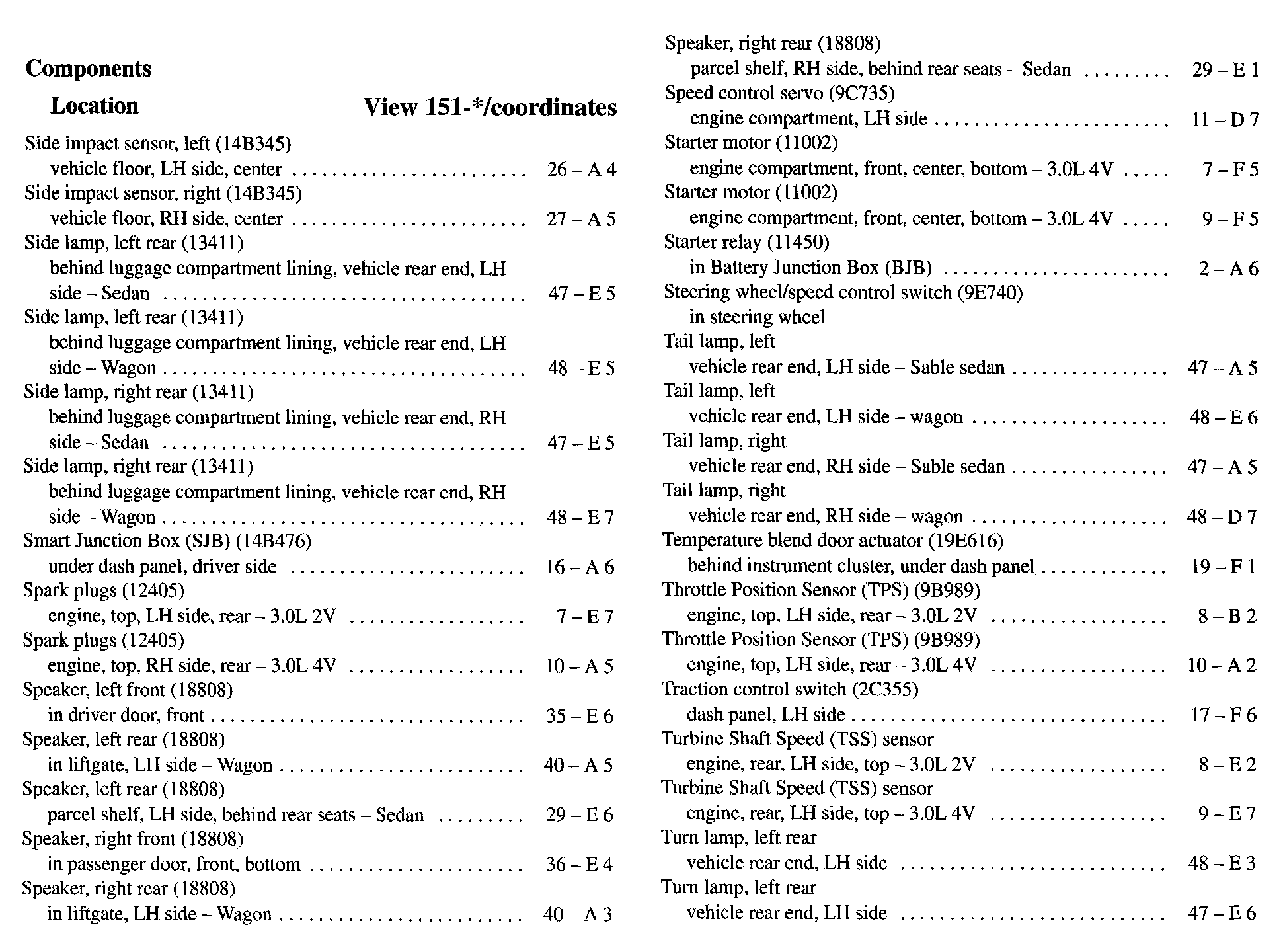

Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

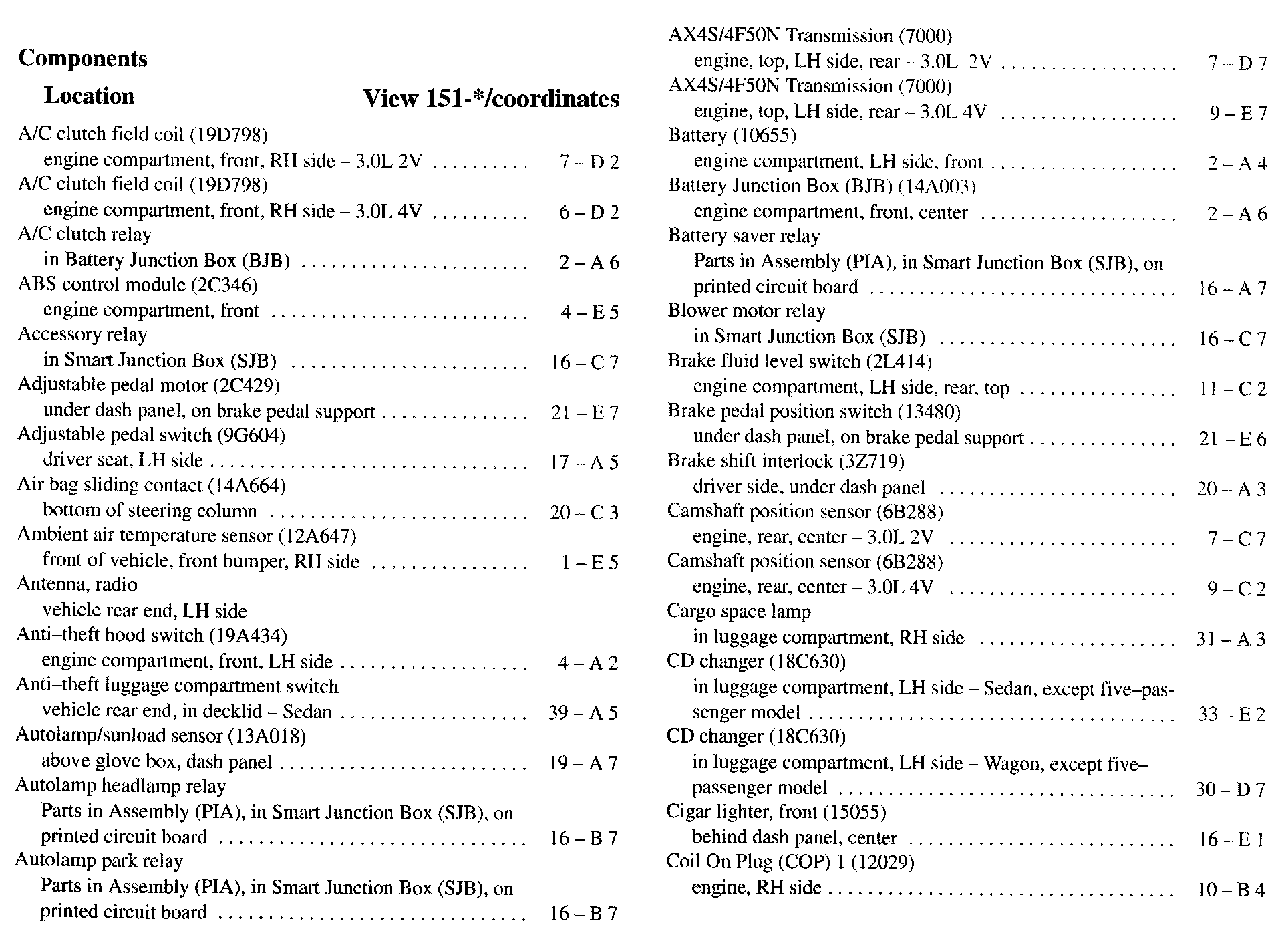

A/C - Co:

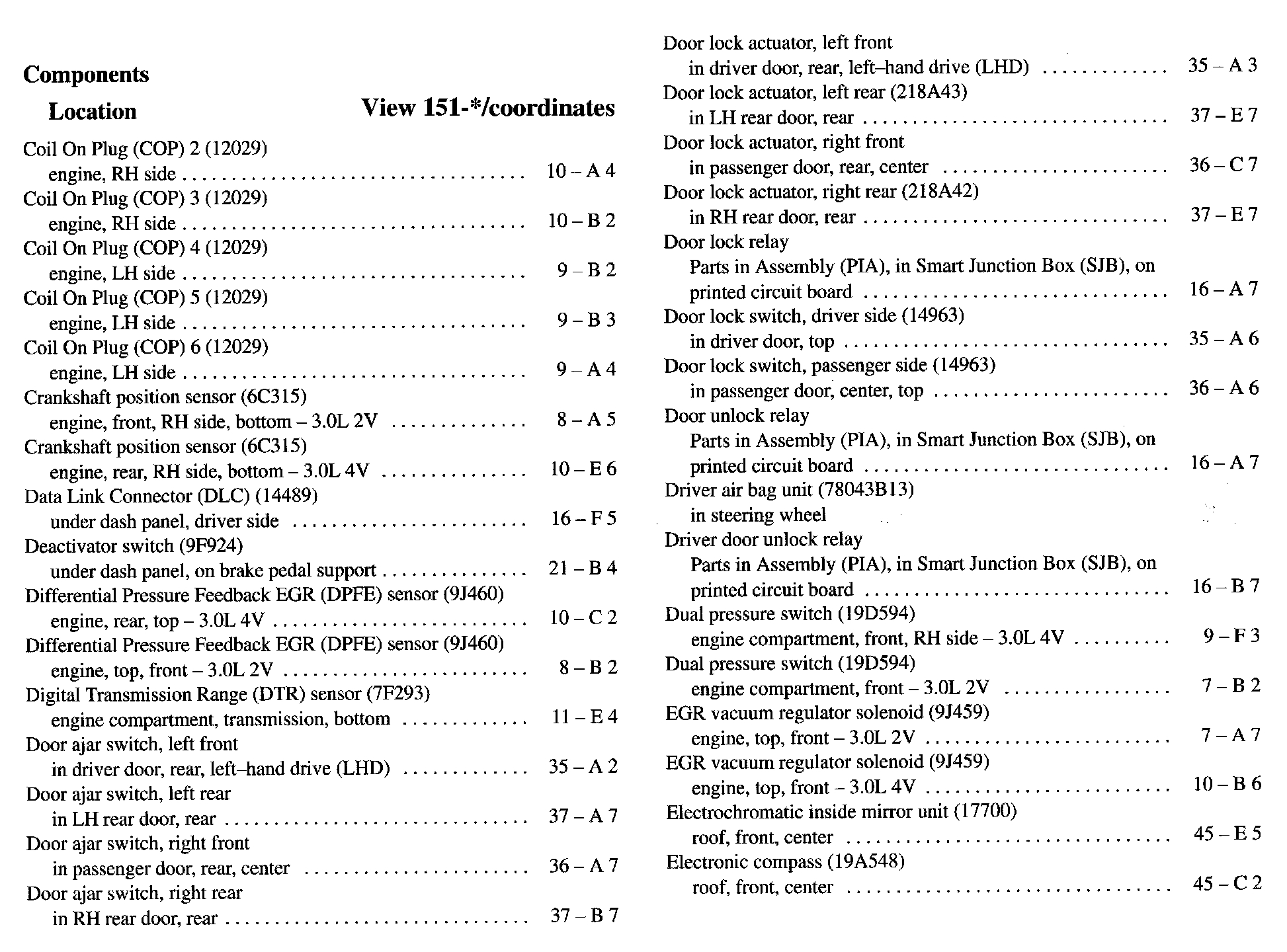

Co-El:

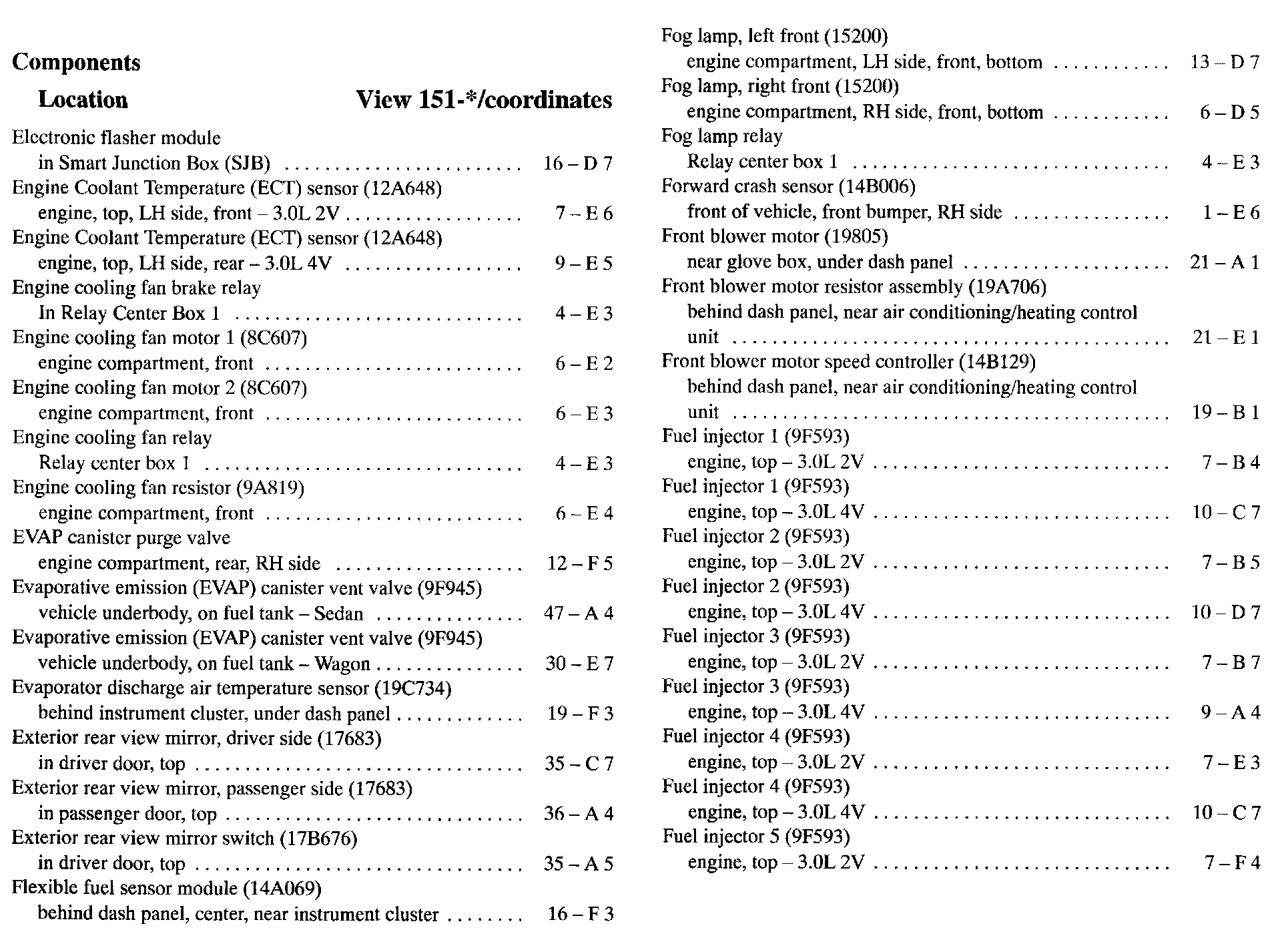

El-Fu:

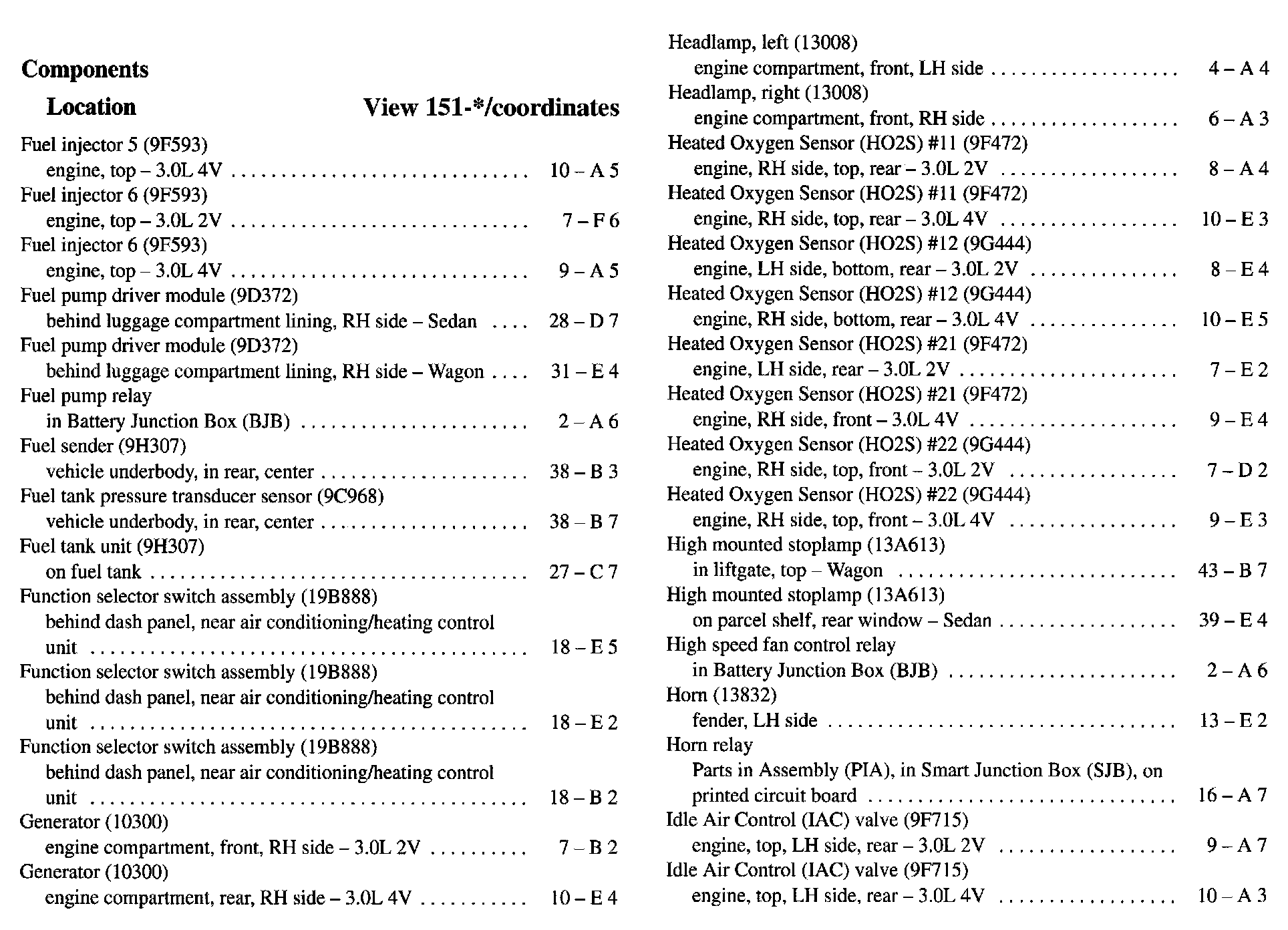

Fu-Id:

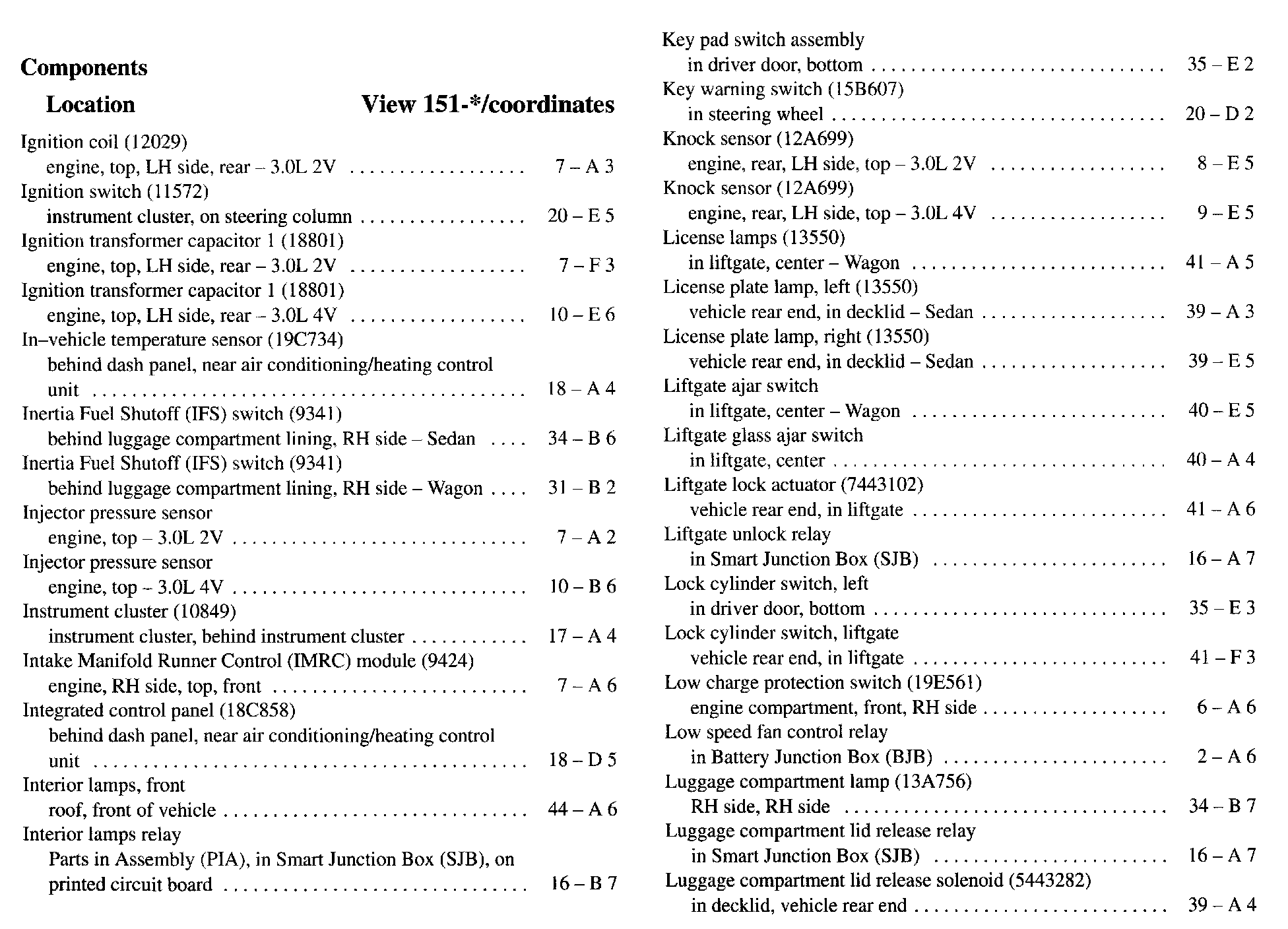

Ig-Lu:

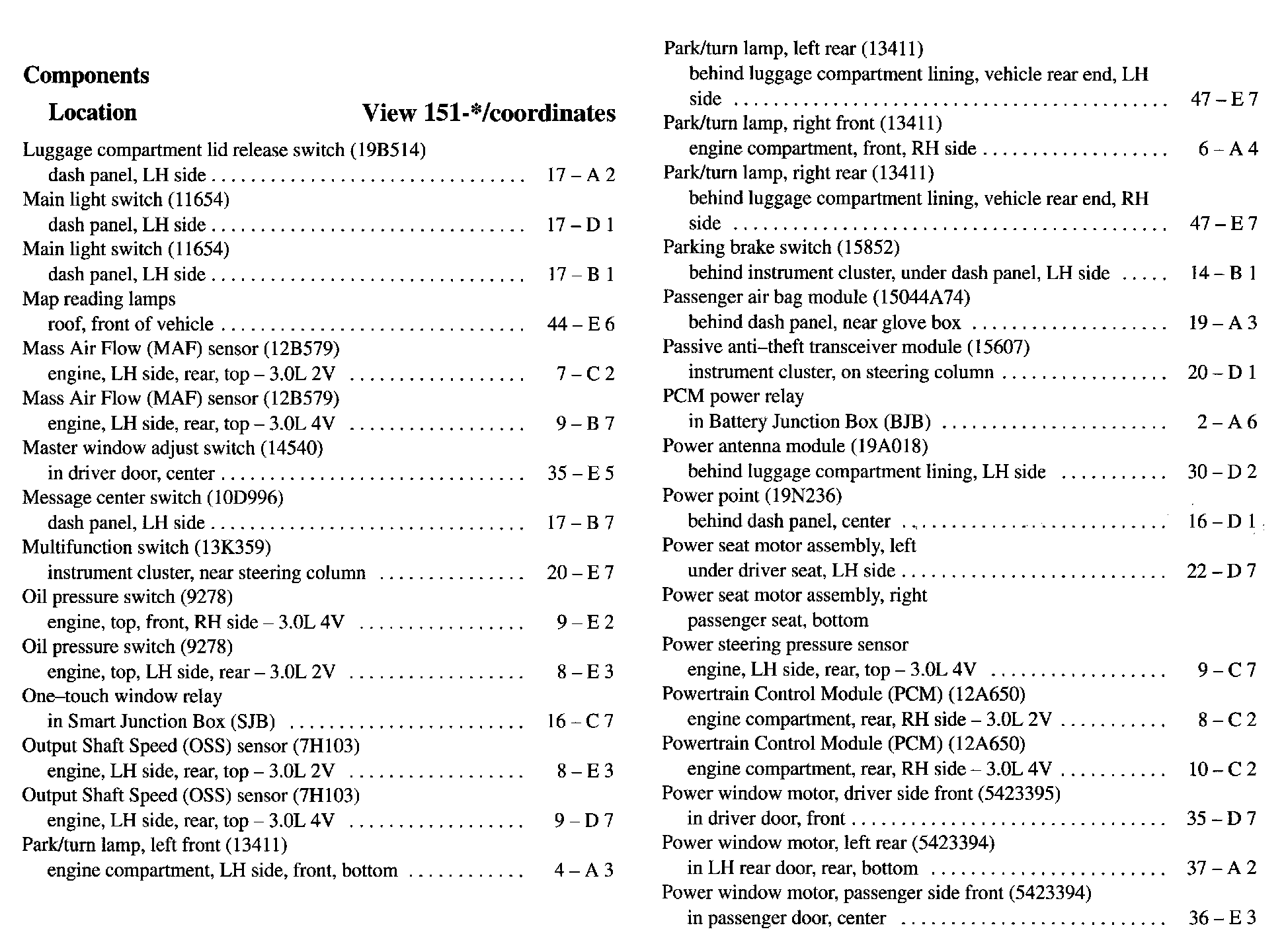

Lu-Po:

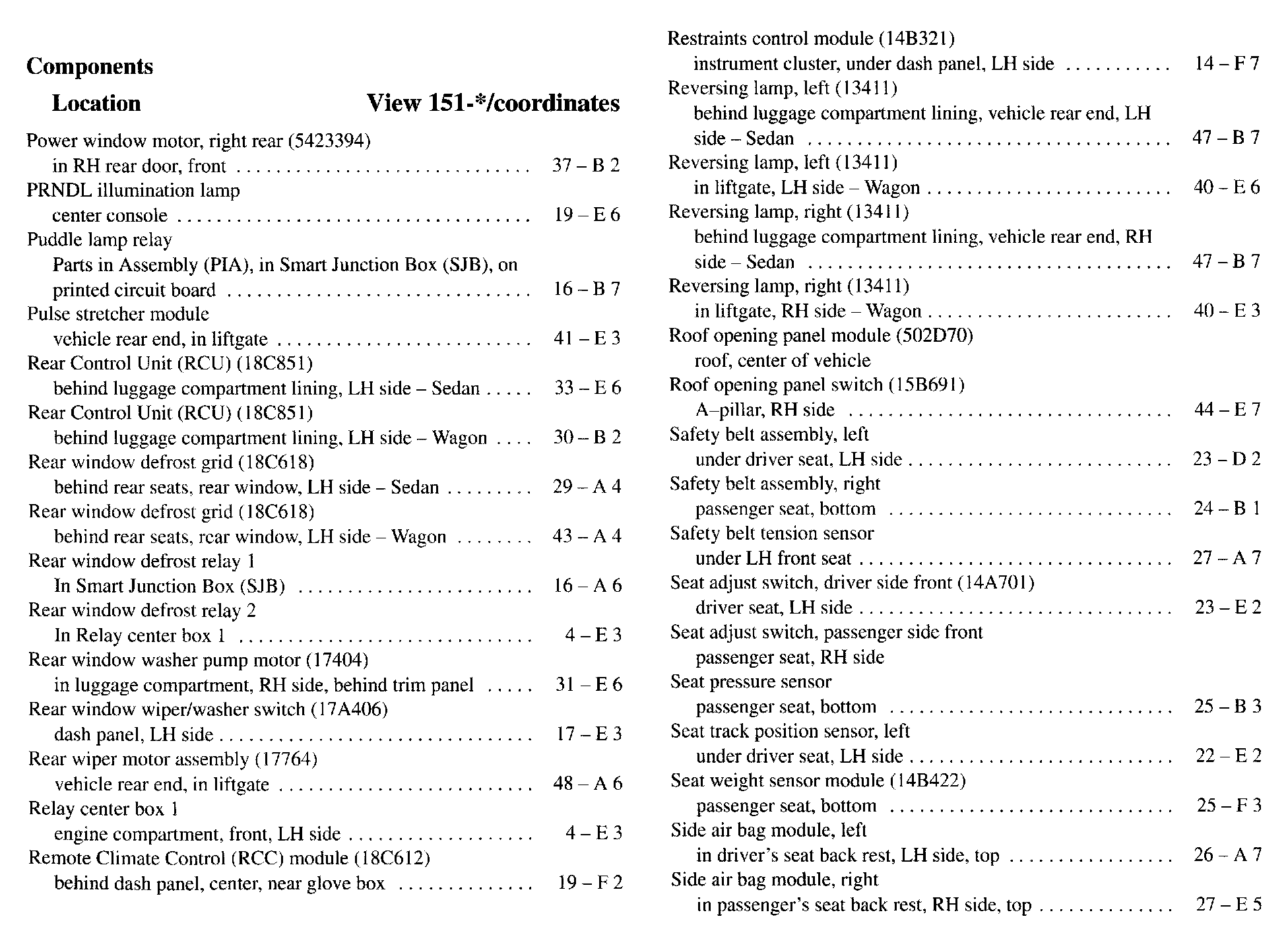

Po-Si:

Si-Tu:

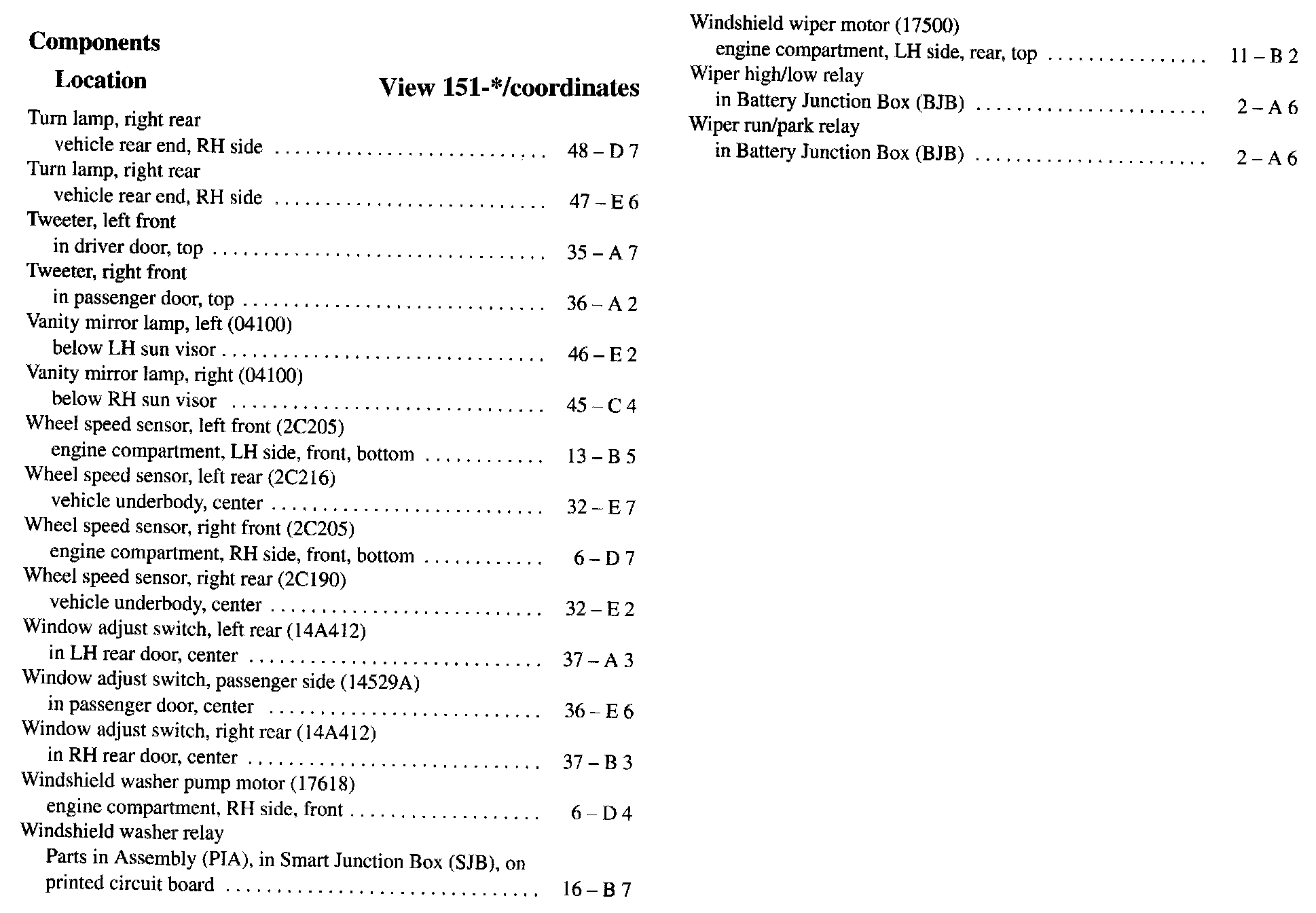

Tu-Wi:
