Main Components and Functions

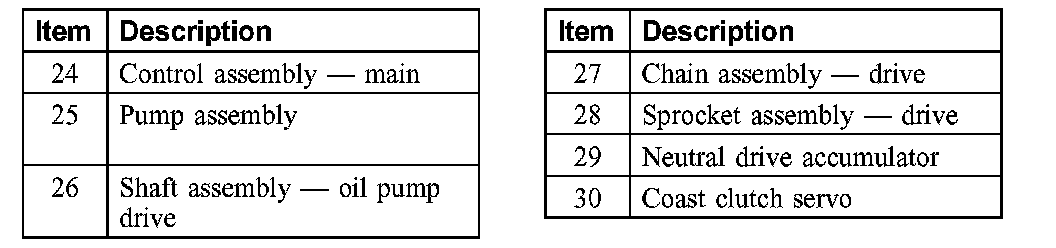

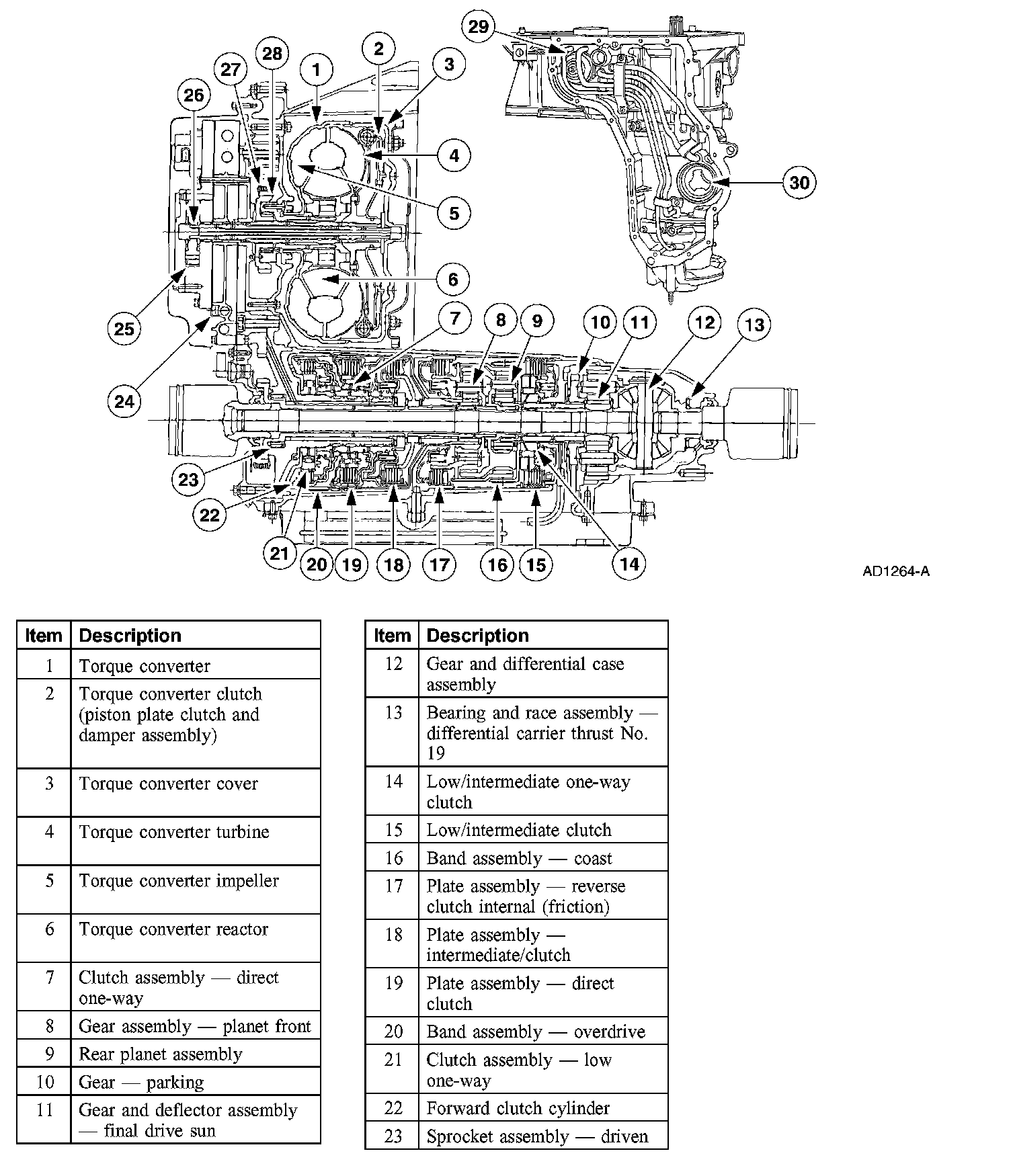

Main Components and Functions

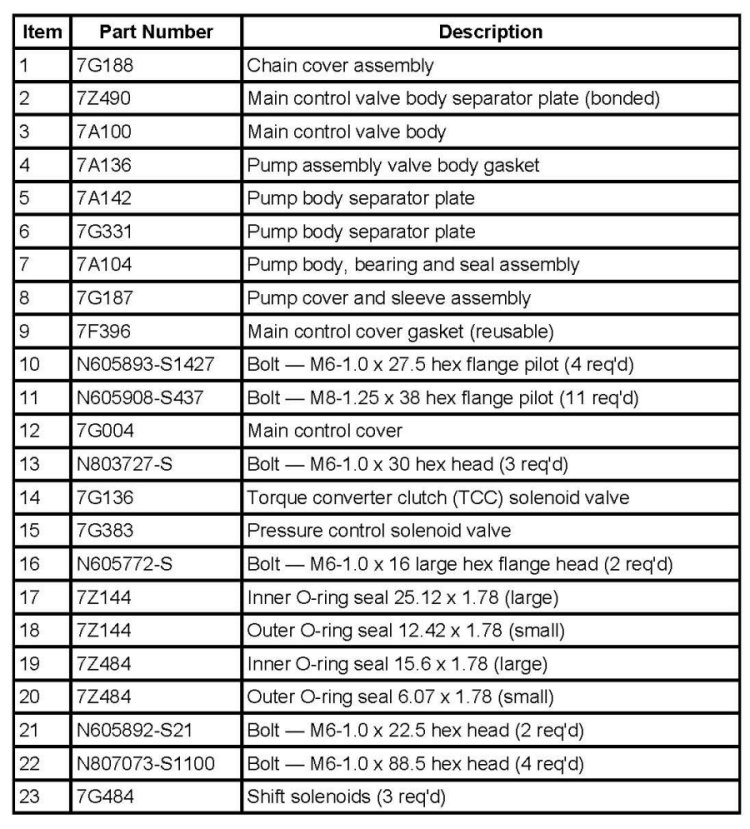

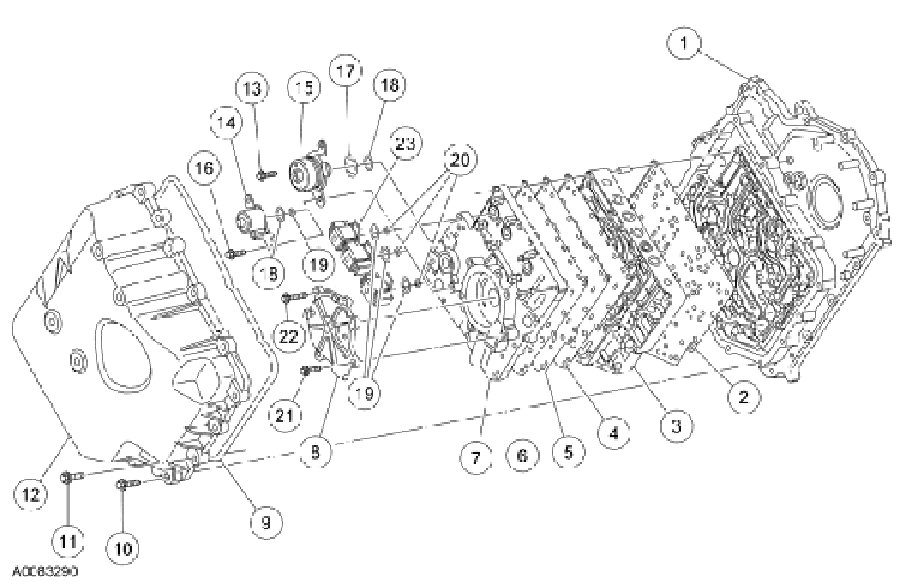

Main Control Components 1 Of 2:






Main Control Components 2 Of 2:

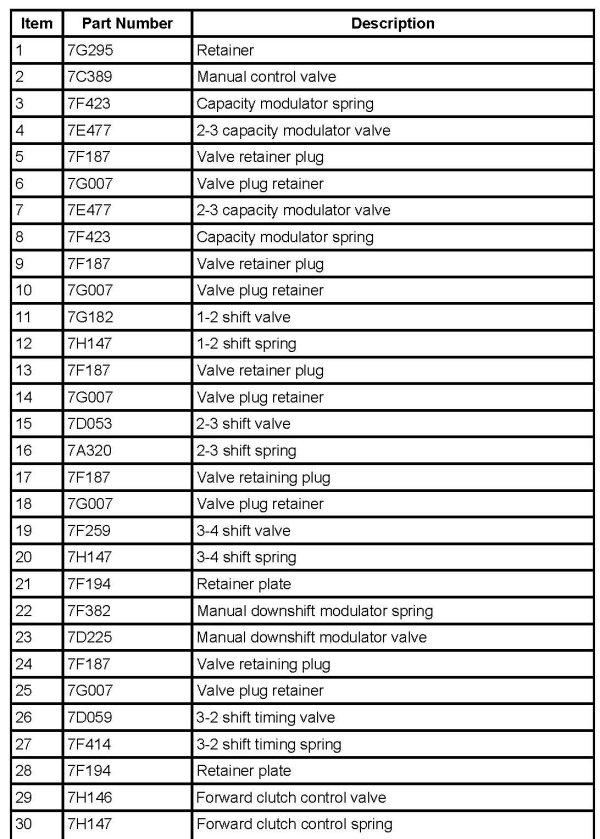

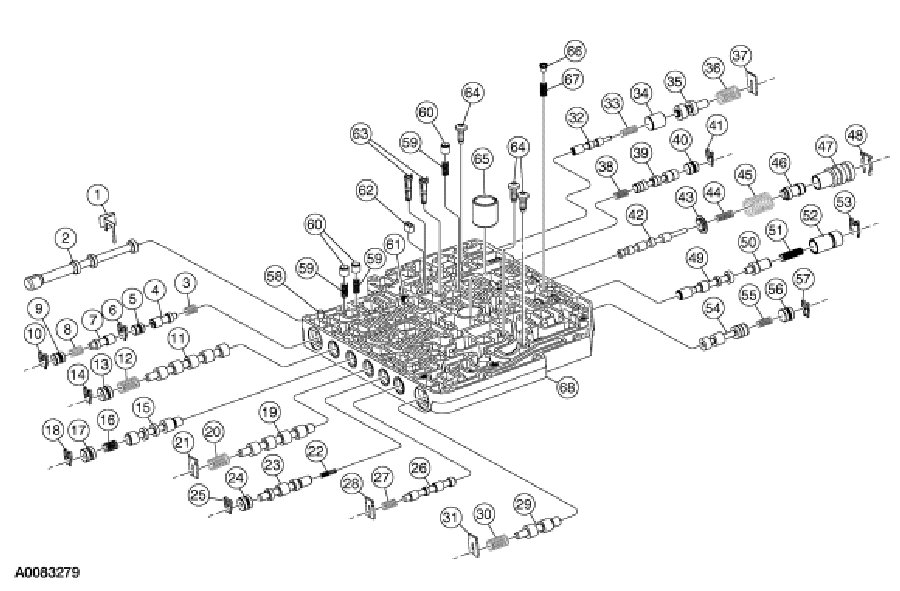

Main Control Valves 1 Of 3:

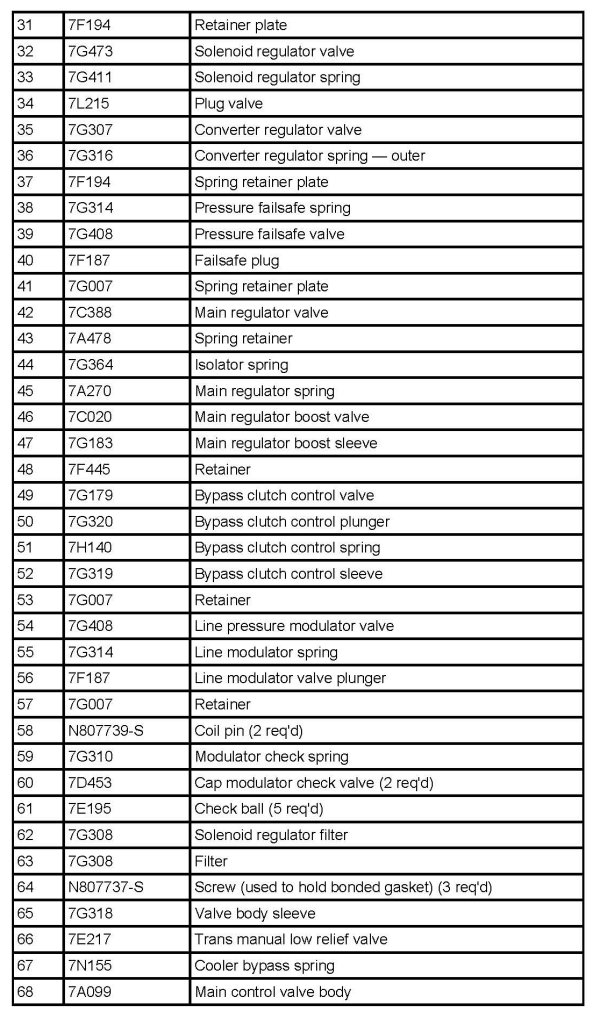

Main Control Valves 2 Of 3:






Main Control Valves 3 Of 3:
