Oil Pressure Sensor: Service and Repair

Oil Pressure Switch
Removal and Installation

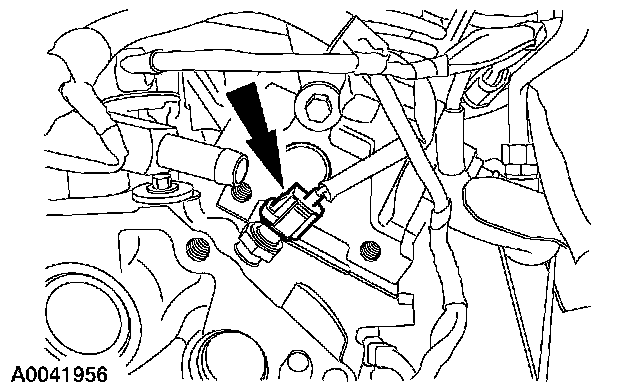

1. NOTE: Engine removed for clarity.

Disconnect the oil pressure switch electrical connector.

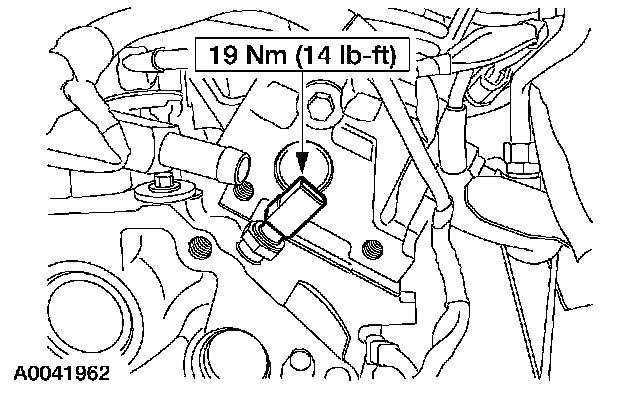

2. Remove the oil pressure switch.
3. To install, reverse the removal procedure.
