Test D
PINPOINT TEST D: THE
CHARGING SYSTEM
WARNING INDICATOR IS ON WITH THE ENGINE RUNNING AND THE BATTERY INCREASES VOLTAGE

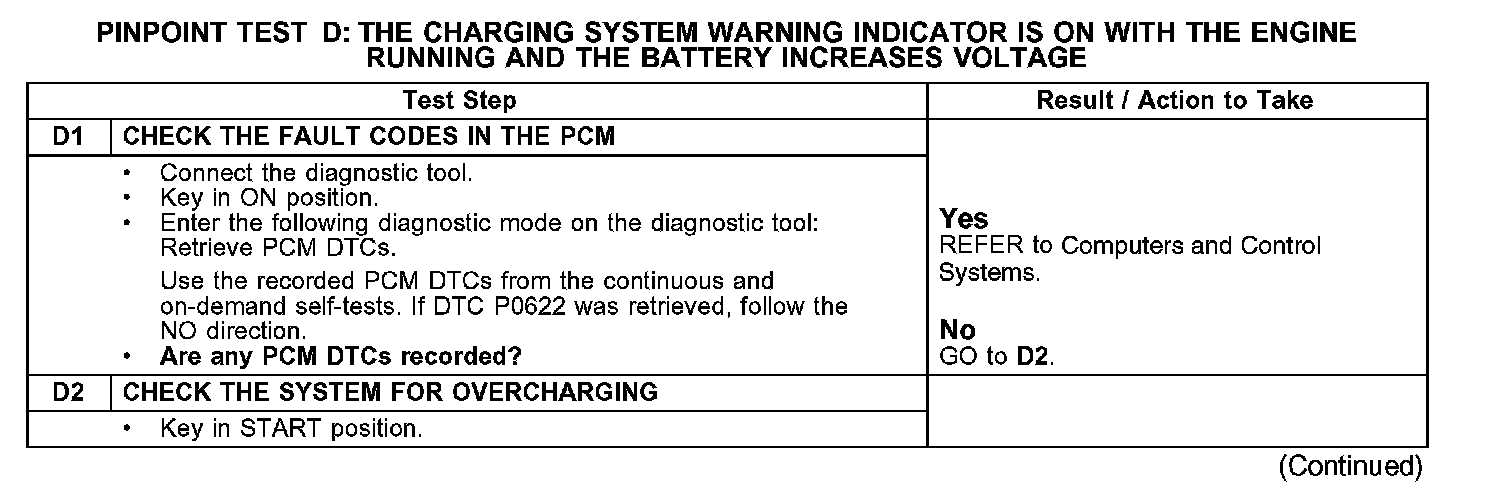

Test D1-D2:

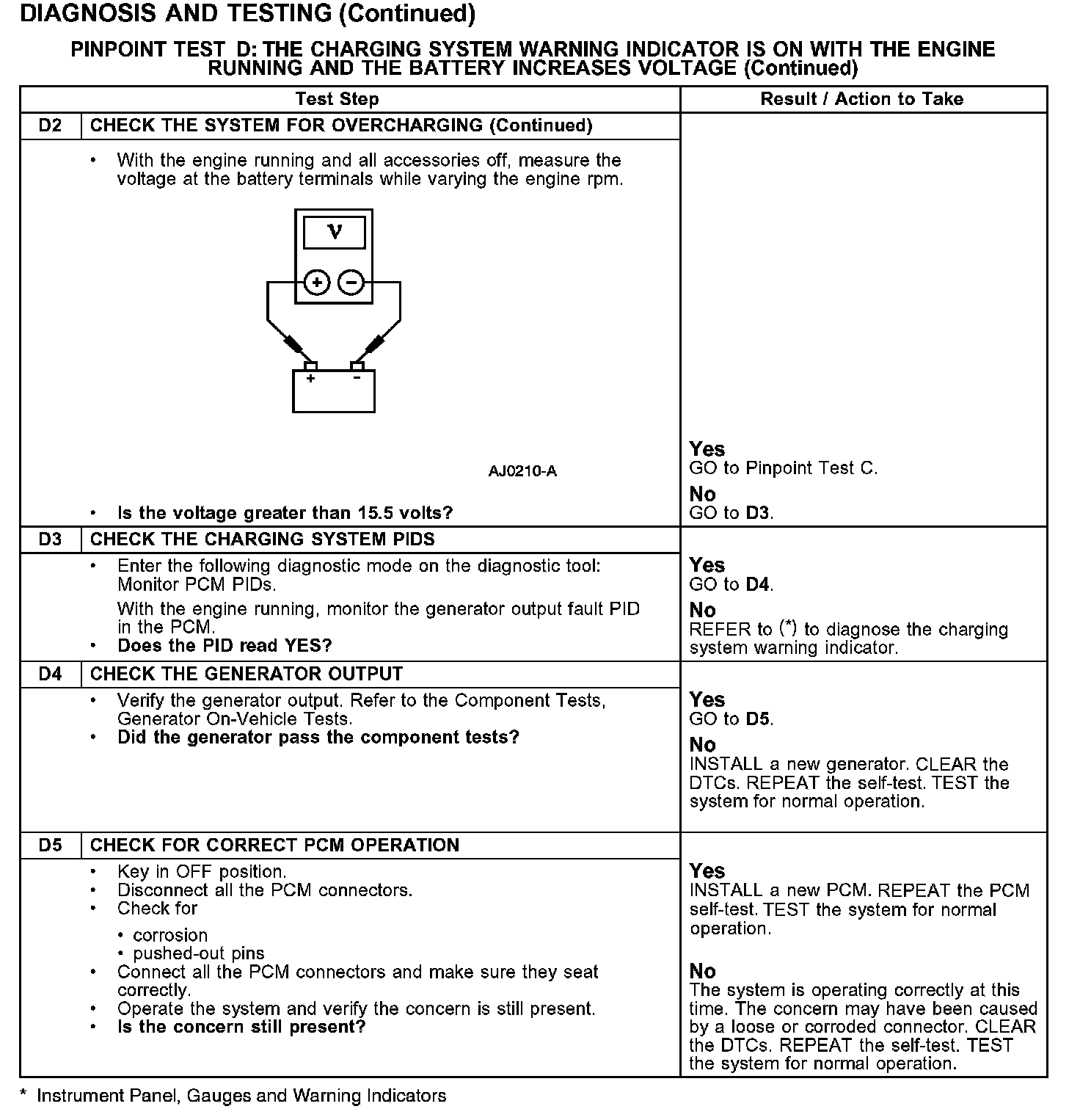

Test D2-D5:
