Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| ABS Test Connector | On left rear of engine compartment. See Figure. |
| Alternator Rectifier System | Right front fender. See Figure. |
| Battery | On right side of luggage compartment. See Figure. |
| Center Image Amplifier | Behind front center of dash. See Figure. |
| Data Link Connector | Under left side of dash. See Figure. |

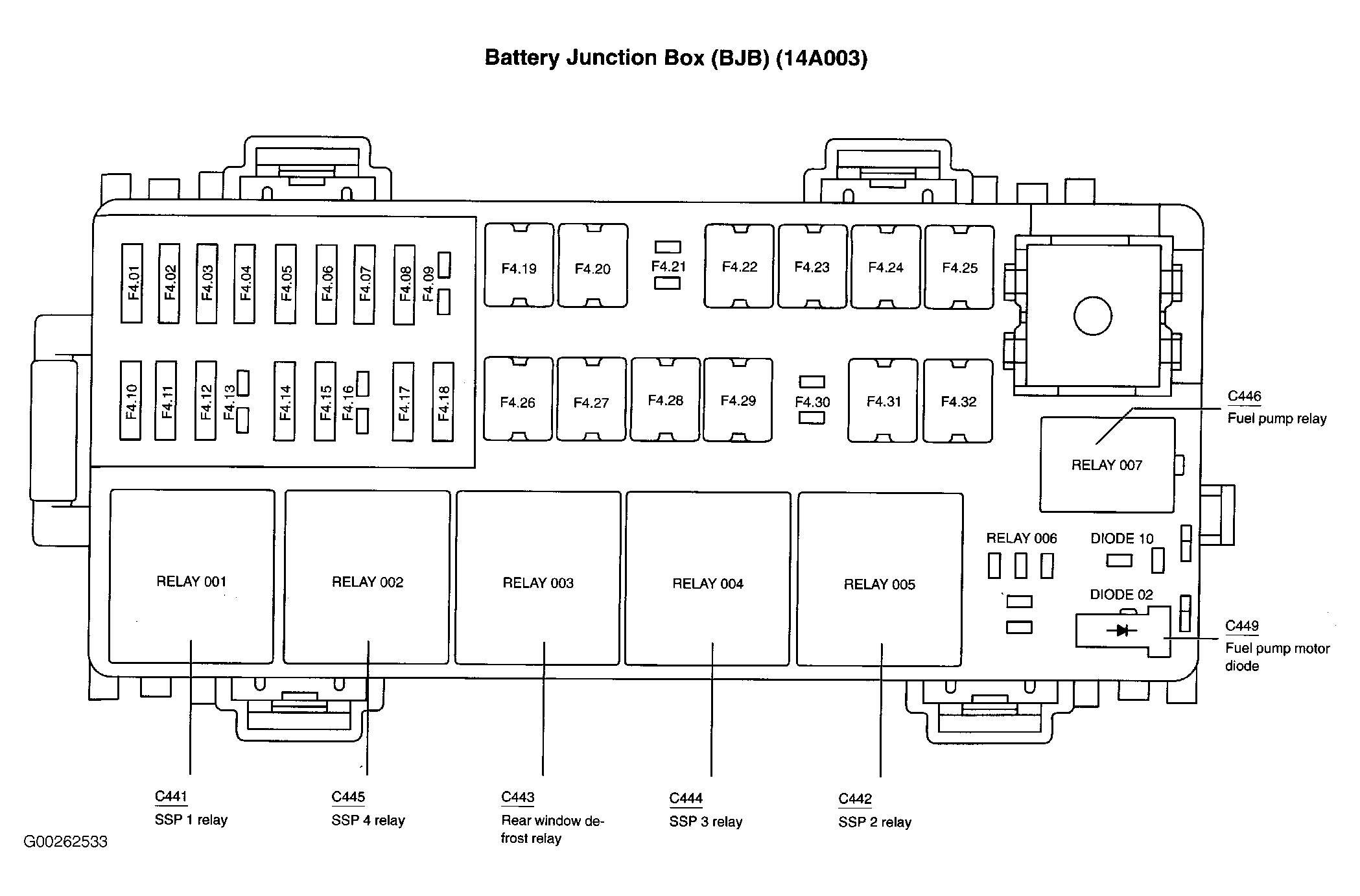

| Fuel Pump Motor Diode | In battery junction box. See Figure. |
| Generator | Right side of engine. See Figure. |
| Heated Wiper Park | Upper left end of dash. See Figure. |
| Heated Wiper Park | Upper right end of dash. See Figure. |

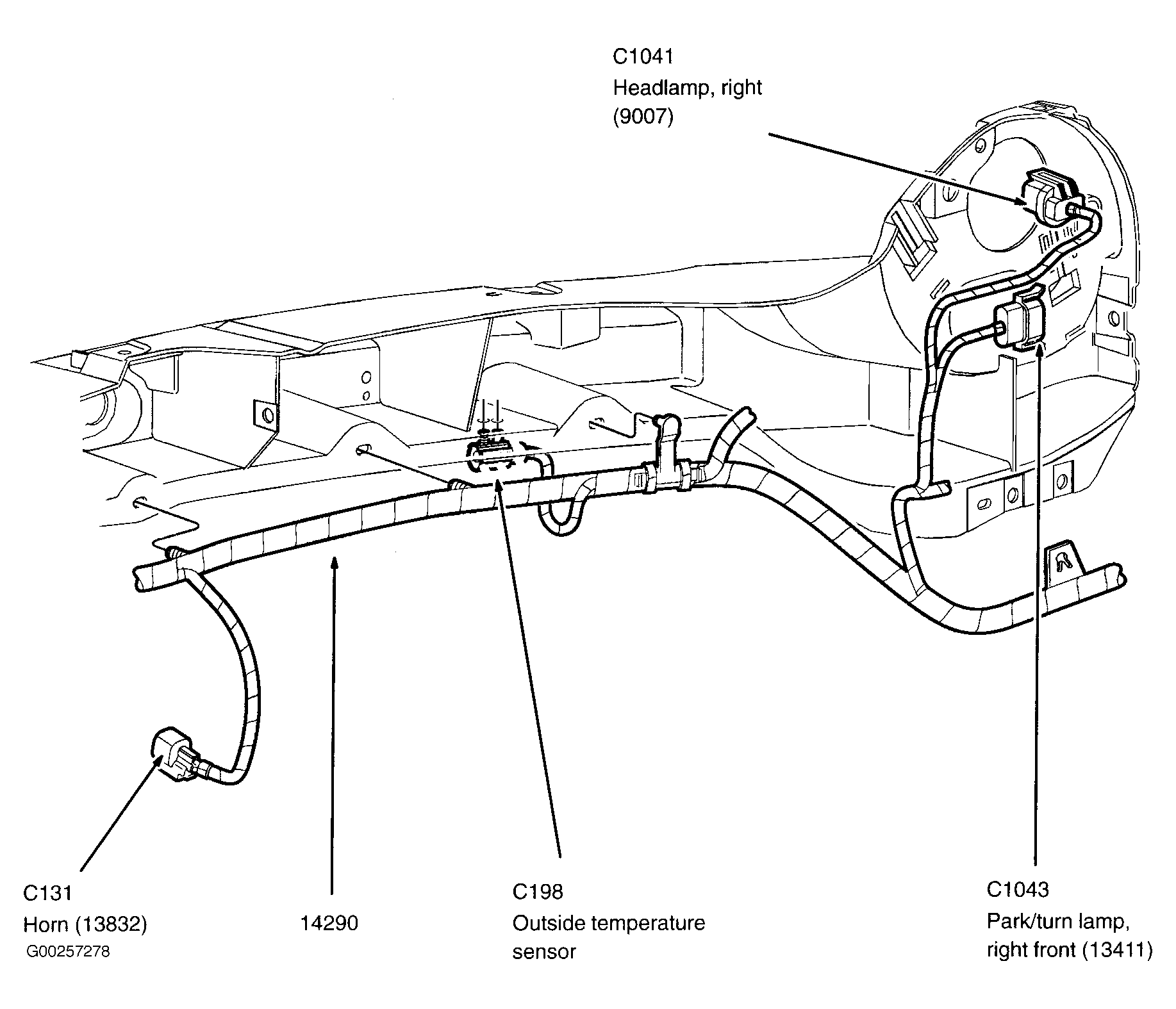

| Horn | On right front of engine compartment. See Figure. |
| Ignition Transformer Capacitor No. 1 | Left rear of engine. See Figure. |
| Ignition Transformer Capacitor No. 2 | In left rear of engine. See Figure. |

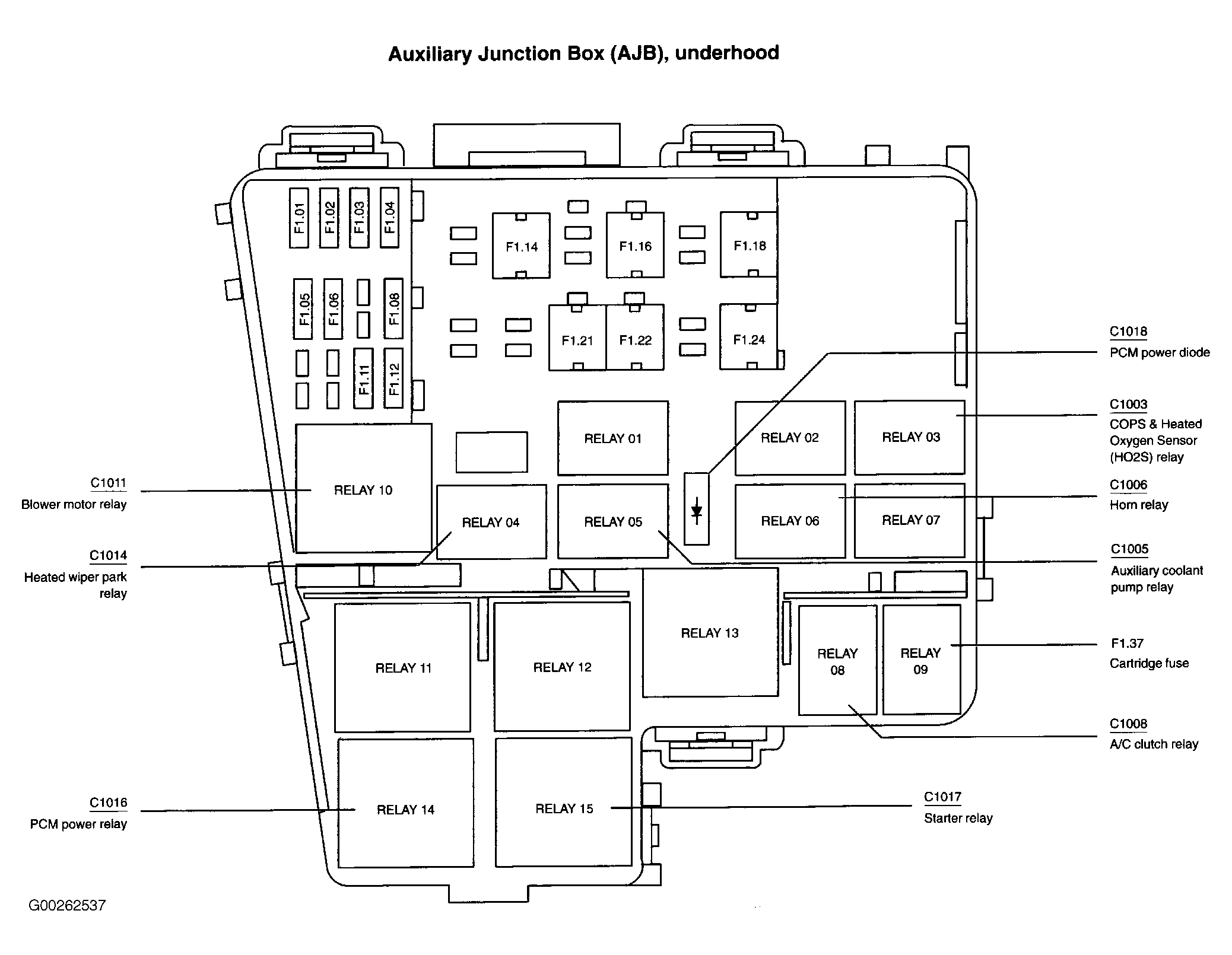

| PCM Power Diode | In underhood auxiliary junction box. See Figure. |
| Radio Capacitor | Under left side of dash. See Figure. |

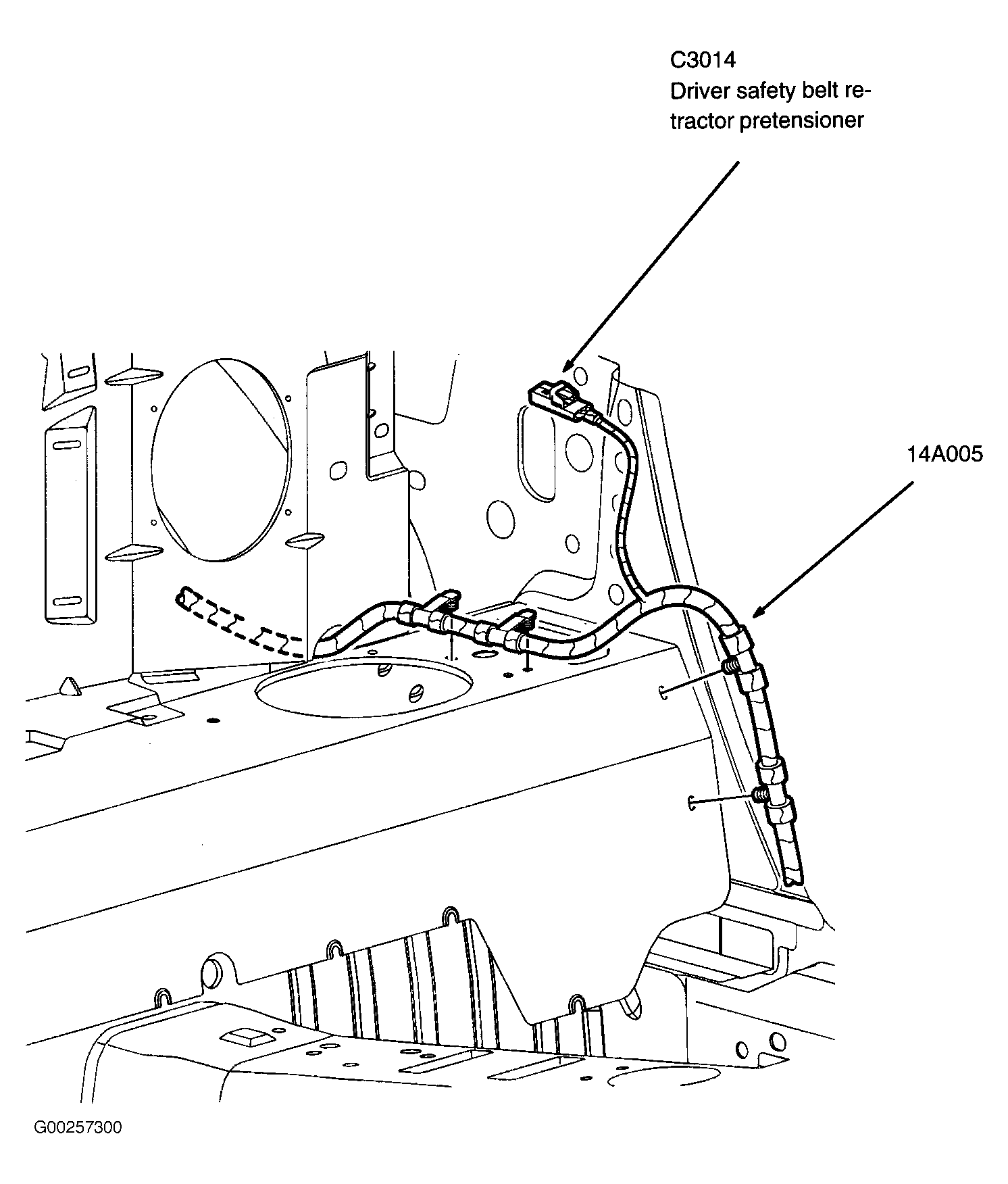

| Driver Safety Belt Retractor Pretensioner | At base of left "B" pillar, behind trim. See Figure. |
| Passenger Safety Belt Retractor Pretensioner | At base of right "B" pillar, behind trim. See Figure. |
| Rear Window Defrost Grid | Right side of rear window. See Figure. |
| Seat Back Heater (Driver) | Driver seat. See Figure. |
| Seat Back Heater (Right Front) | Right front seat. See Figure. |
| Seat Cushion Heater (Driver) | Driver seat. See Figure. |
| Seat Cushion Heater (Right Front) | Right front seat. See Figure. |
| Stud Dash Panel | Right front fender. See Figure. |
| Stud Dash Panel | Lower right end of dash. See Figure. |
| Subwoofer Amplifier | Behind right seat, on support bracket. See Figure. |
