Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Auxiliary Coolant Pump Motor | On right front of engine compartment. See Figure. |

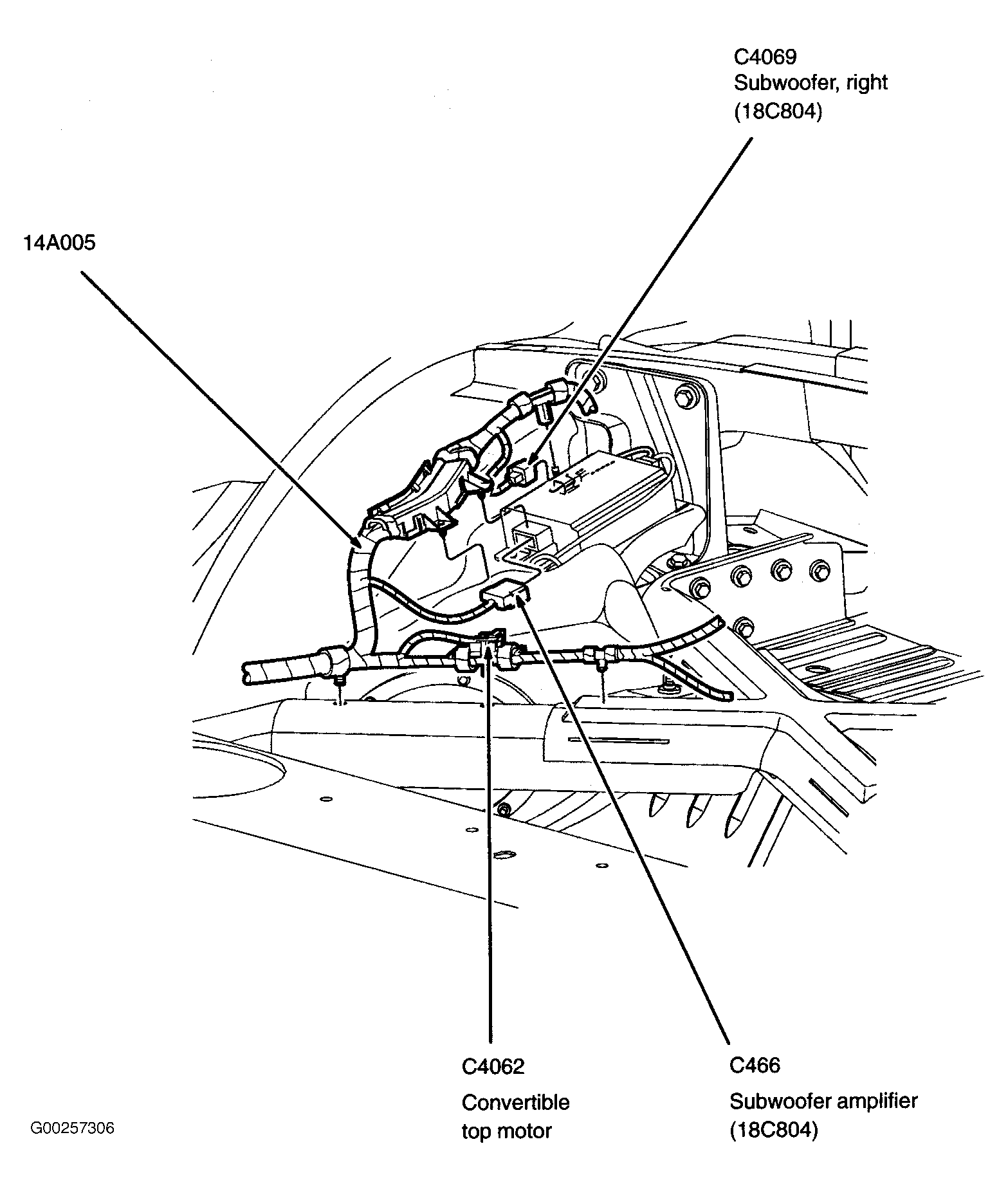

| Convertible Top Motor | Behind right seat, on support bracket. See Figure. |
| Cool Air Bypass Actuator | Behind center of dash, on HVAC assembly. See Figure. |
| Defrost Mode Actuator | Behind center of dash, on HVAC assembly. See Figure. |
| Door Lock Unit (Driver) | Rear of driver door. See Figure. |
| Door Lock Unit (Passenger) | Rear of passenger door. See Figure. |

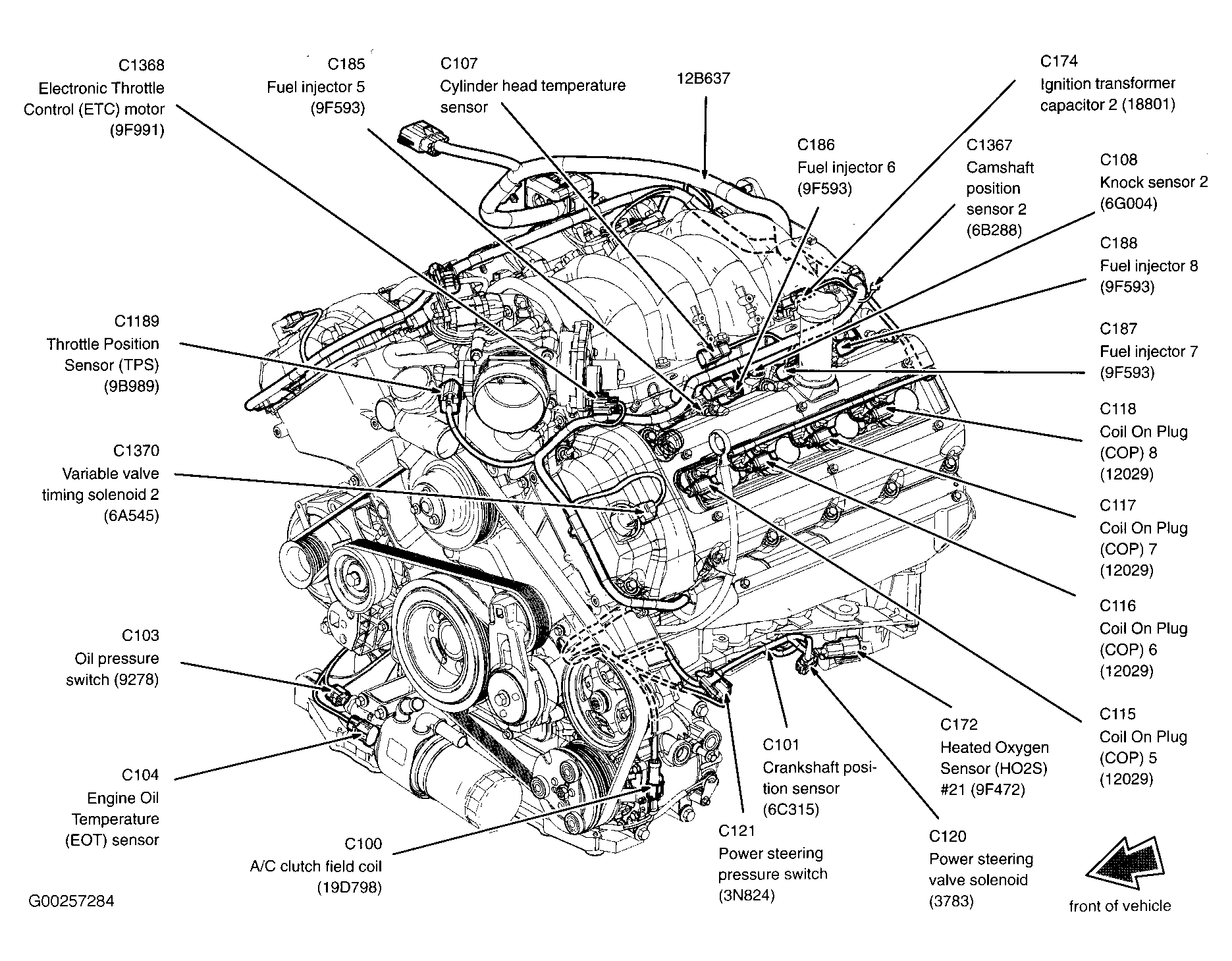

| Electronic Throttle Control Motor | On left front of engine. See Figure. |
| Engine Cooling Fan Motor | Front of engine compartment. See Figure. |
| Floor Mode Actuator | Behind center of dash, on HVAC assembly. See Figure. |
| Fresh/Recirculation Door Actuator | Behind center of dash, on HVAC assembly. See Figure. |
| Heater Blower Motor | Behind center of dash. See Figure. |
| Panel Mode Actuator | Behind right side of dash, on HVAC assembly. See Figure. |
| Power Seat Motor Assembly (Left) | Under driver seat. See Figure. |
| Power Seat Motor Assembly (Right) | Under passenger seat. See Figure. |
| Power Window Motor (Driver Door) | In driver door. See Figure. |
| Power Window Motor (Passenger Door) | In passenger door. See Figure. |

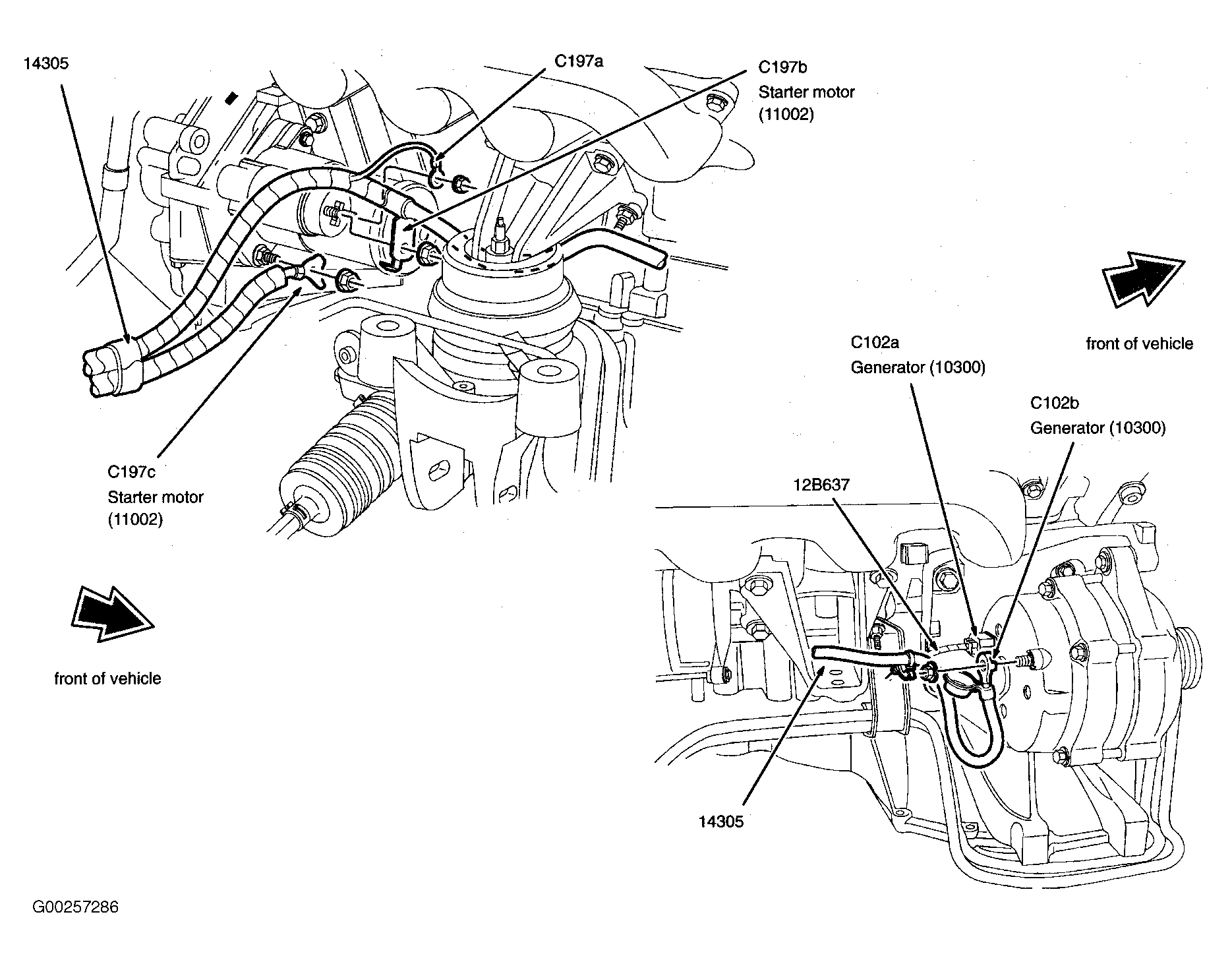

| Starter Motor | On engine. See Figure. |
| Steering Column Position Motor | On steering column. See Figure. |

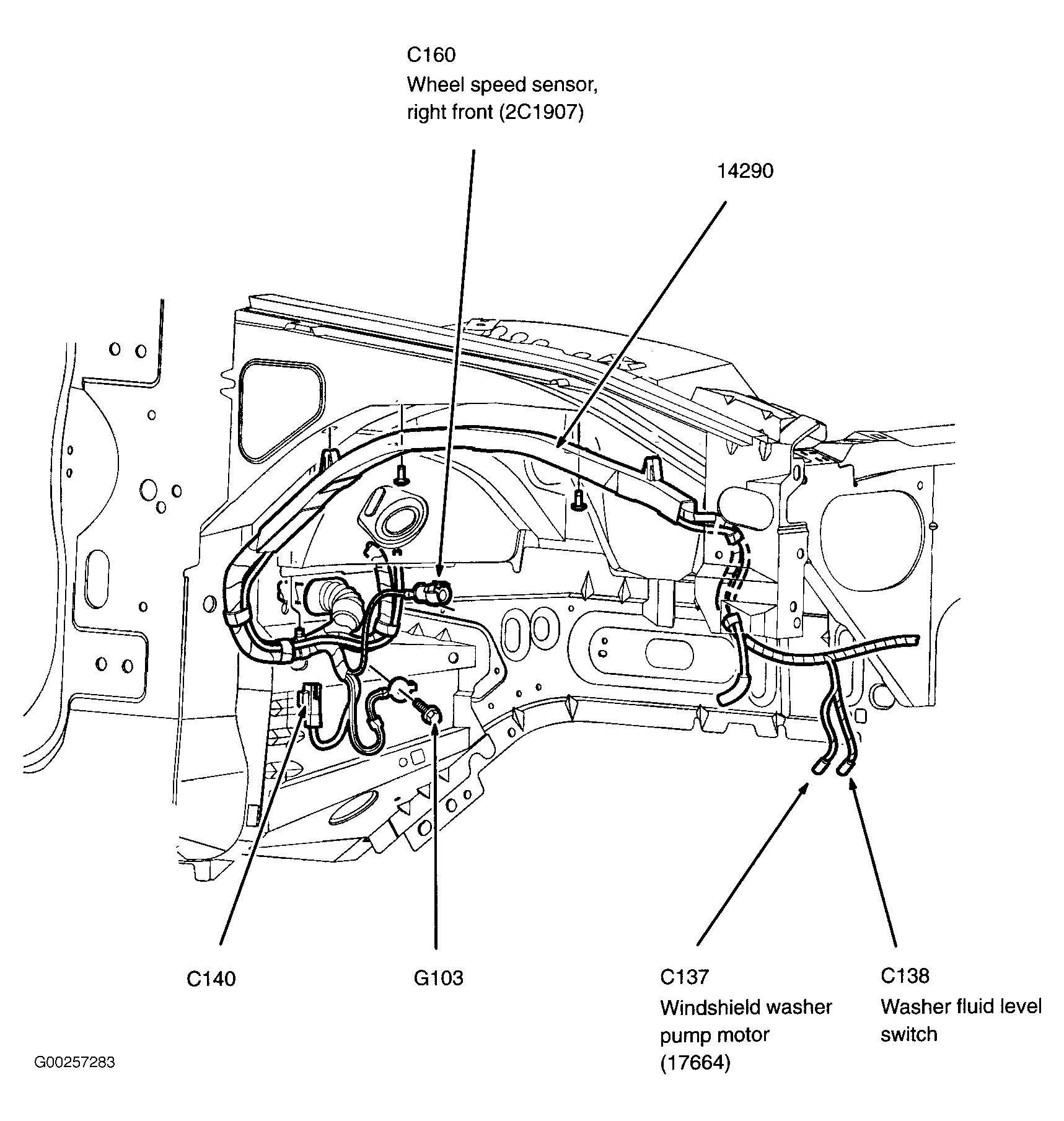

| Windshield Washer Pump Motor | On windshield washer fluid reservoir. See Figure. |
| Windshield Wiper Motor | On left center of firewall. See Figure. |
