Valve Guide Inner Diameter

  1. Measure the inner diameter of the valve guides in two directions where indicated.

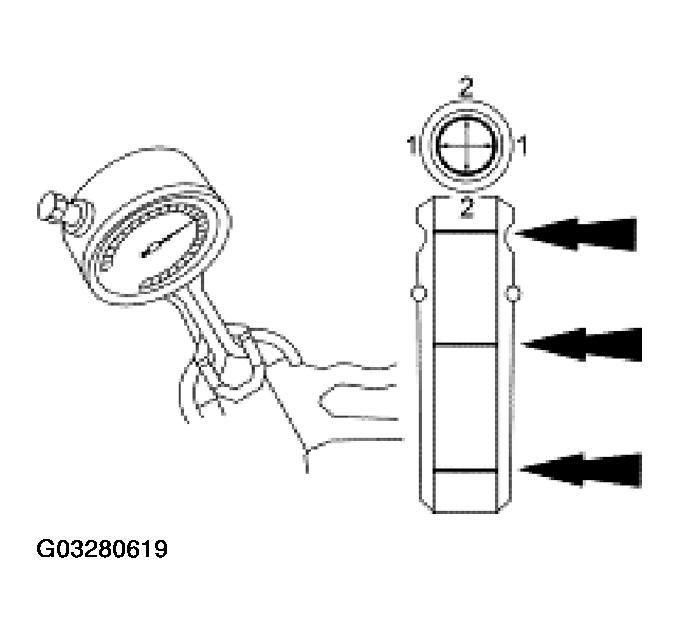

    Fig 1: Measuring Inner Diameter Of Valve Guides
    G03280619Courtesy of FORD MOTOR CO.
  2. If the valve guide is not within specifications, install a new cylinder head assembly. Refer to ENGINE - 3.9L article.
