Cylinder Head

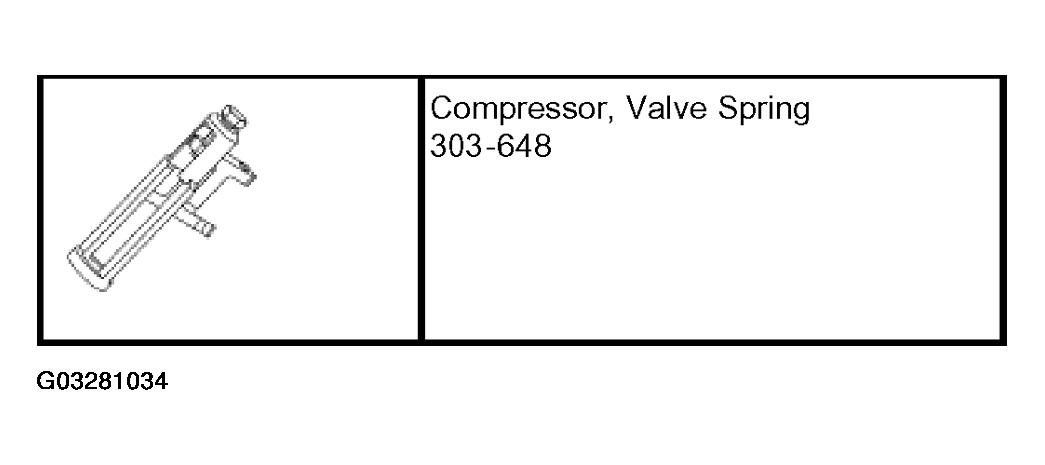

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

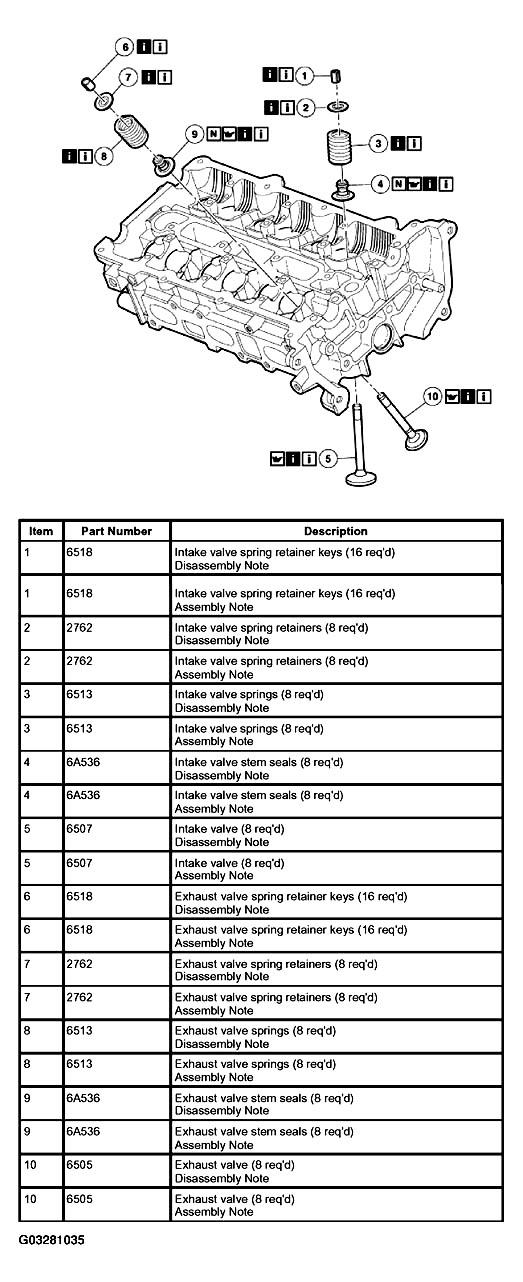

1. Remove the components in the order indicated in the following illustration and table.
   Fig 2: Removing Intake Valve Spring Retainer Key

   Courtesy of FORD MOTOR CO.
2. To assemble, reverse the disassembly procedure.

ITEMS 1-10: RETAINER KEYS, RETAINERS, VALVE SPRING, VALVE SEALS, AND VALVES DISASSEMBLY NOTE

1. Using the special tool, remove the valve spring retainer keys.

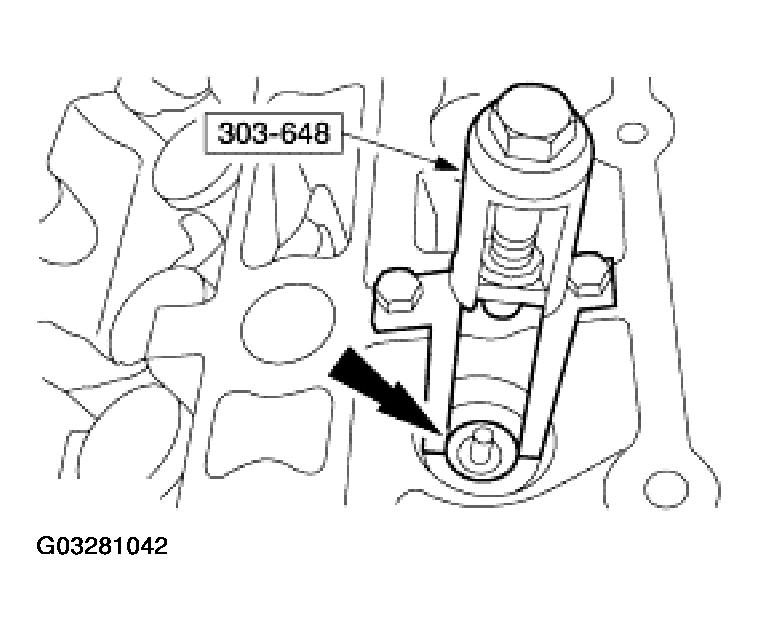

   Fig 3: Removing Valve Spring Retainer Keys

   Courtesy of FORD MOTOR CO.
2. Remove the valve spring assembly.
   1. Remove the valve spring retainer.
   2. Remove the valve spring.

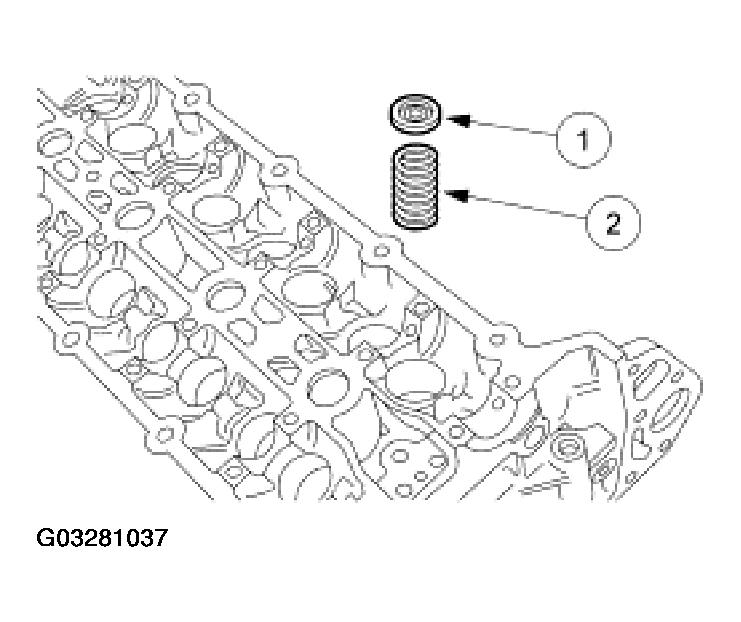

      Fig 4: Removing Valve Spring

      Courtesy of FORD MOTOR CO.
3. Remove the valve stem seal.

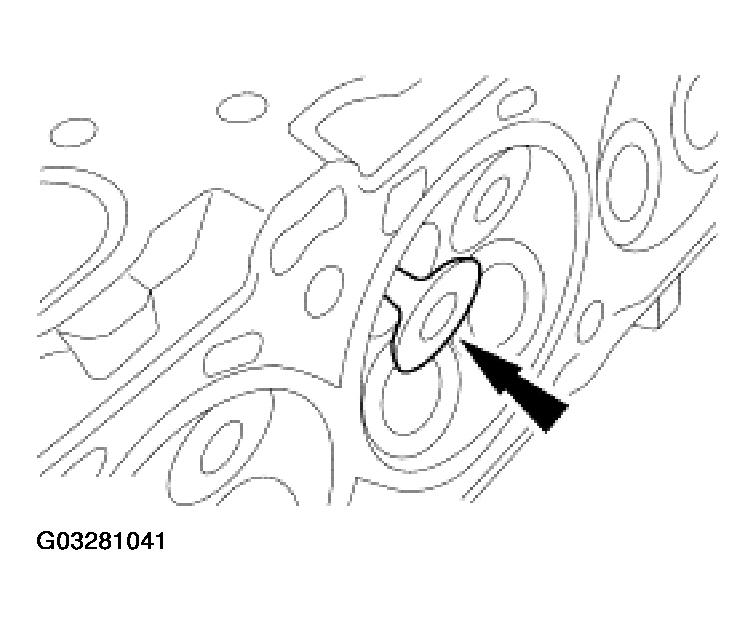

   Fig 5: Removing Valve Stem Seal

   Courtesy of FORD MOTOR CO.
4. Remove the valve.
   • For component tests for the valve, refer to ENGINE SYSTEM-GENERAL INFORMATION .
   • For component tests for the cylinder head, refer to ENGINE SYSTEM-GENERAL INFORMATION .
     Fig 6: Removing Valve

     Courtesy of FORD MOTOR CO.
5. Repeat the procedure until all of the valves are removed from the cylinder head.

ITEMS 10-1: RETAINER KEYS, RETAINERS, VALVE SPRING, VALVE SEALS, AND VALVES ASSEMBLY NOTE

NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

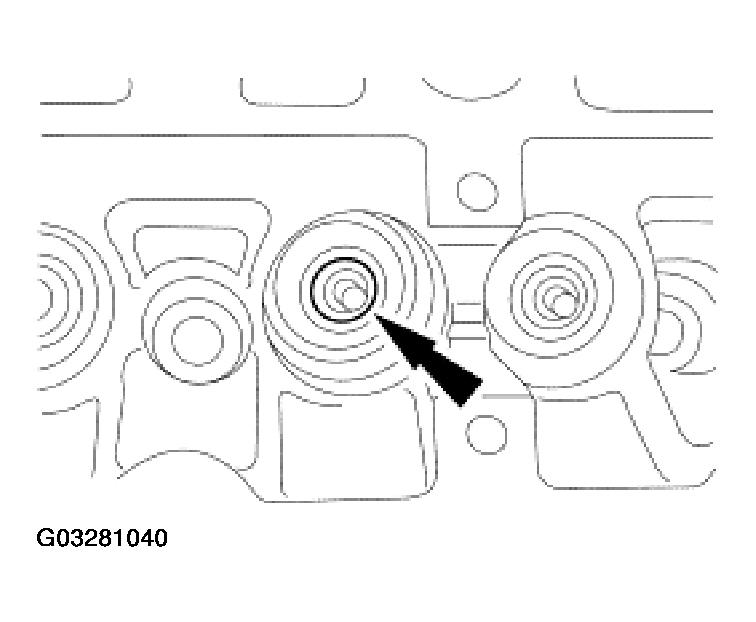

Fig 7: Installing Valve Stem Seal
Courtesy of FORD MOTOR CO.
1. Install the valve stem seal.

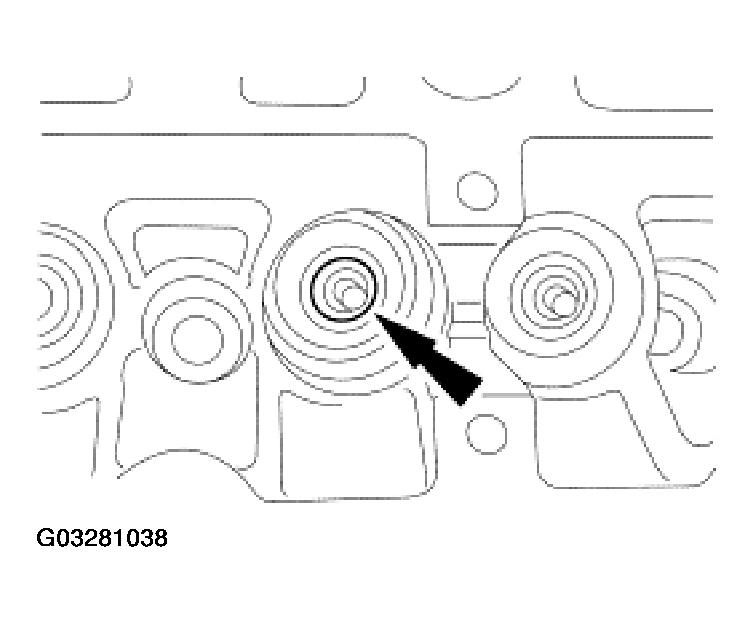

NOTE: Lubricate the valve stem with clean engine oil prior to installation.
Fig 8: Installing Valve
Courtesy of FORD MOTOR CO.
2. Install the valve.
3. Using the special tool, install the valve spring, retainer and retainer keys.
   Fig 9: Installing Valve Spring

   Courtesy of FORD MOTOR CO.
4. Repeat the procedure until all of the valves are installed into the cylinder head.
