Intake Manifold

1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE .
CAUTION: The coolant drain procedure must be followed exactly or damage to the engine can occur.
3. Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
4. Remove the cowl vent screen. For additional information, refer to BODY SYSTEM - INTERIOR .
5. Remove the engine compartment brace.

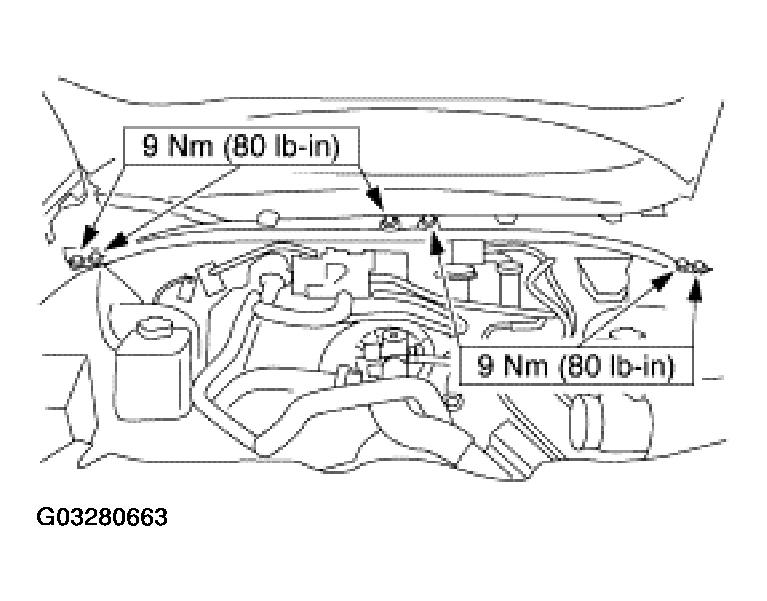

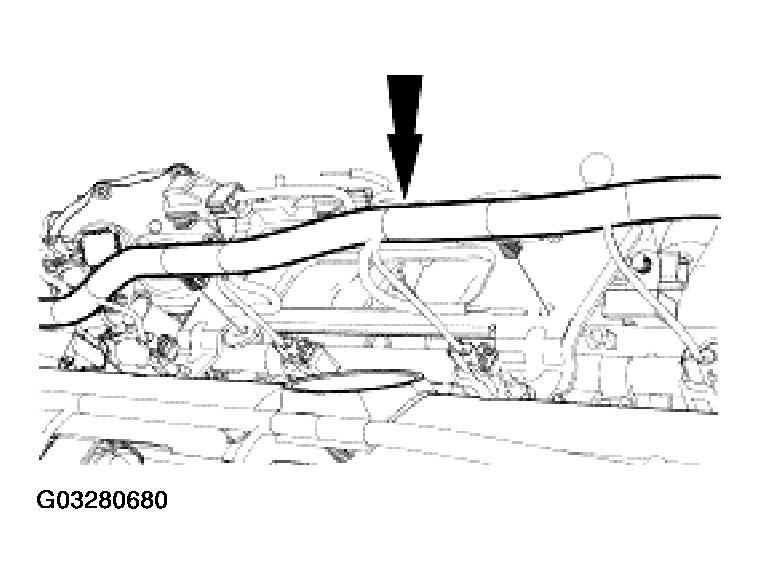

   Fig 1: Removing Engine Compartment Brace

   Courtesy of FORD MOTOR CO.
6. Disconnect the fuel line. For additional information, refer to FUEL SYSTEM .
7. Remove the components in the order indicated in the following illustration and table.

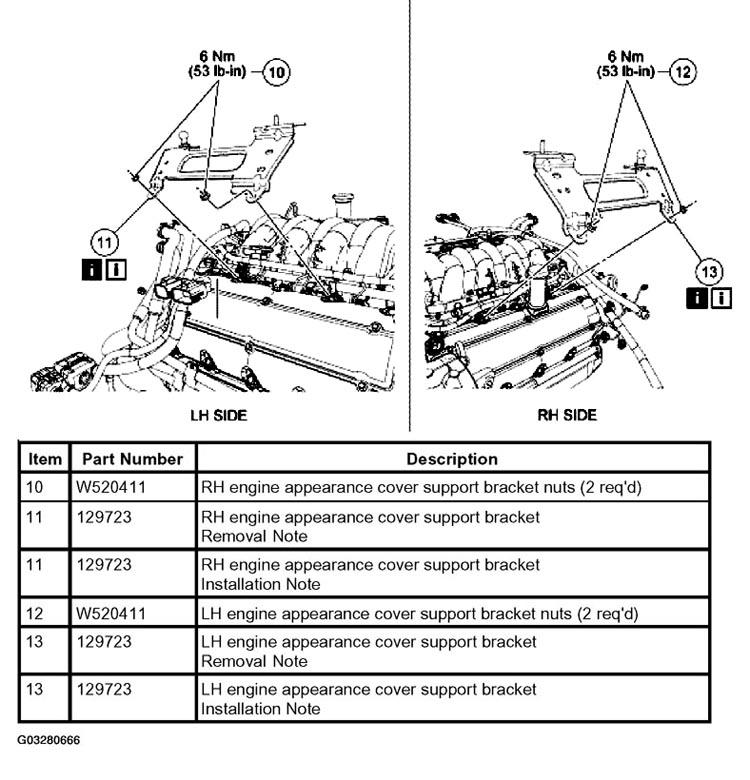

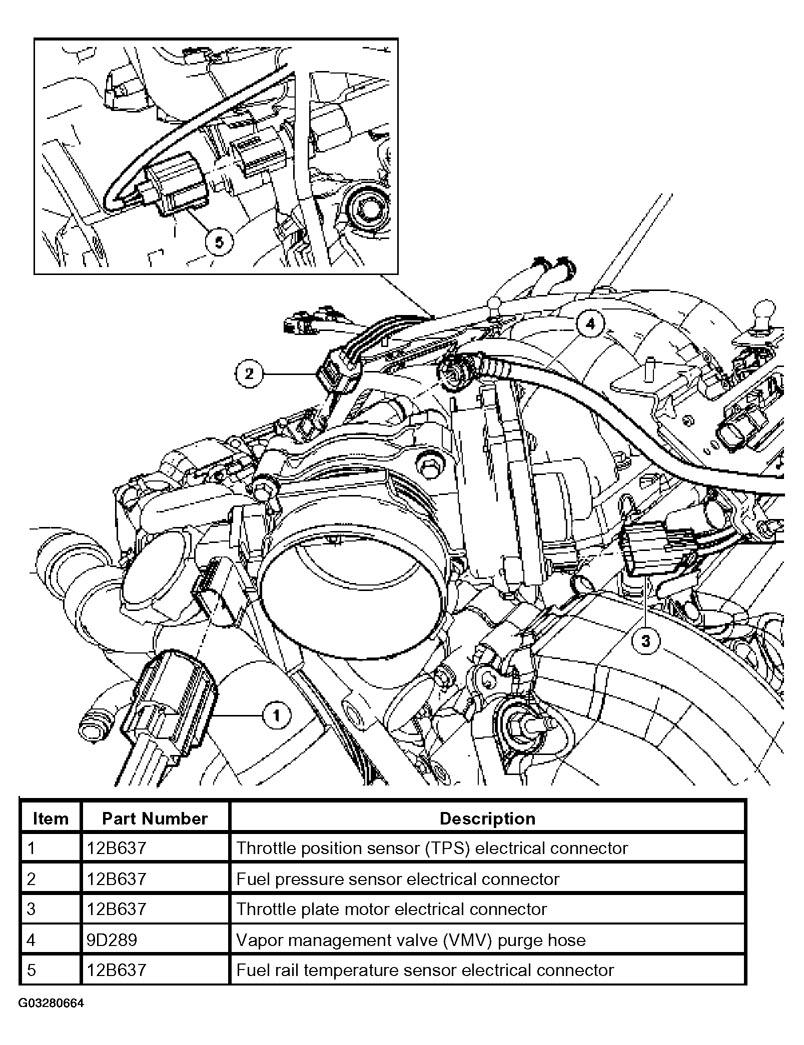

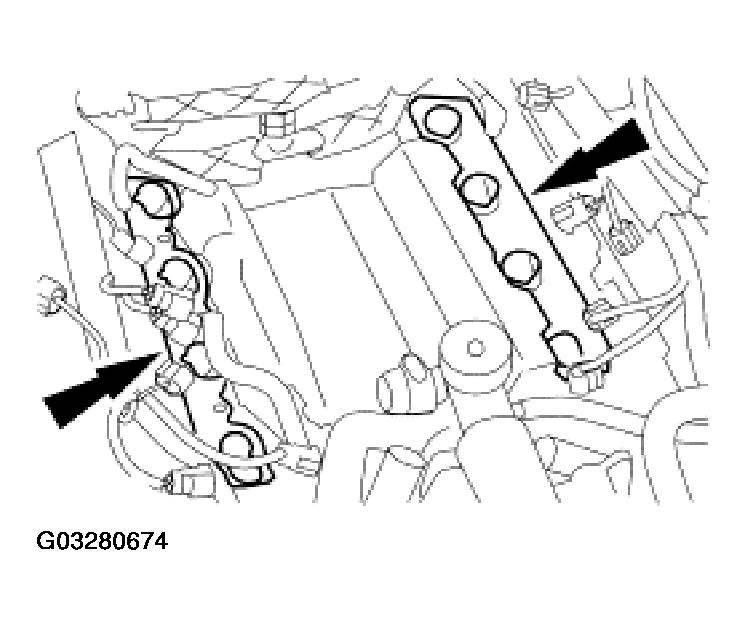

   Fig 2: Removing Components (1 Of 4)

   Courtesy of FORD MOTOR CO.
8. Remove the components in the order indicated in the following illustration and table.

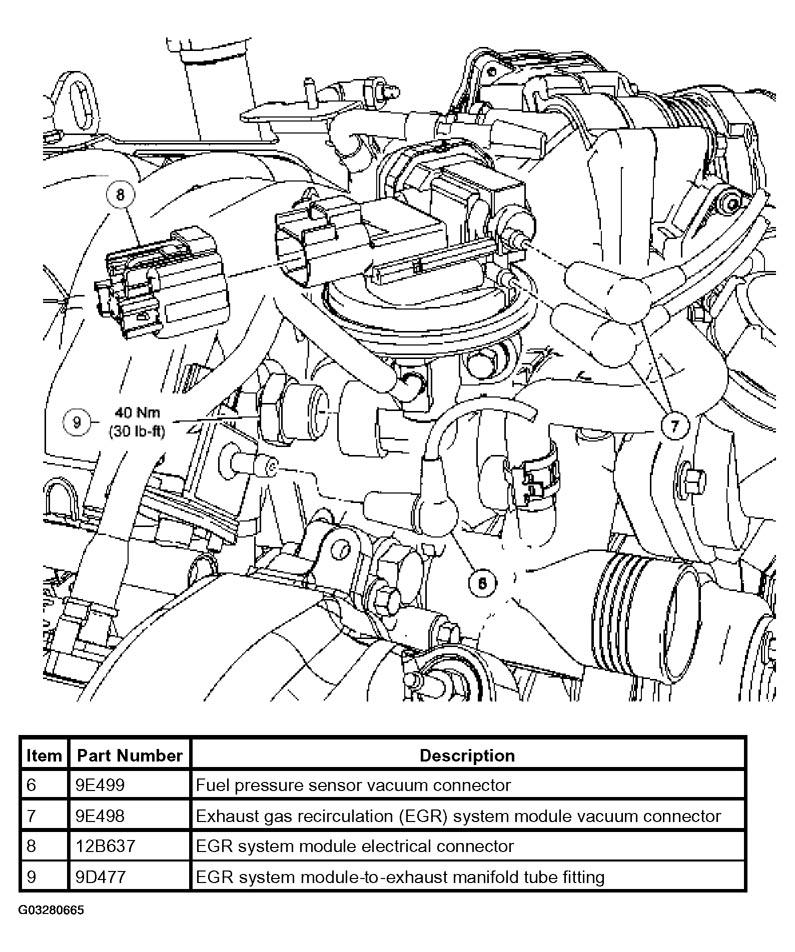

   Fig 3: Removing Components (2 Of 4)

   Courtesy of FORD MOTOR CO.
9. Remove the components in the order indicated in the following illustration and table.
   Fig 4: Removing Components (3 Of 4)

   Courtesy of FORD MOTOR CO.
10. Remove the components in the order indicated in the following illustration and table.

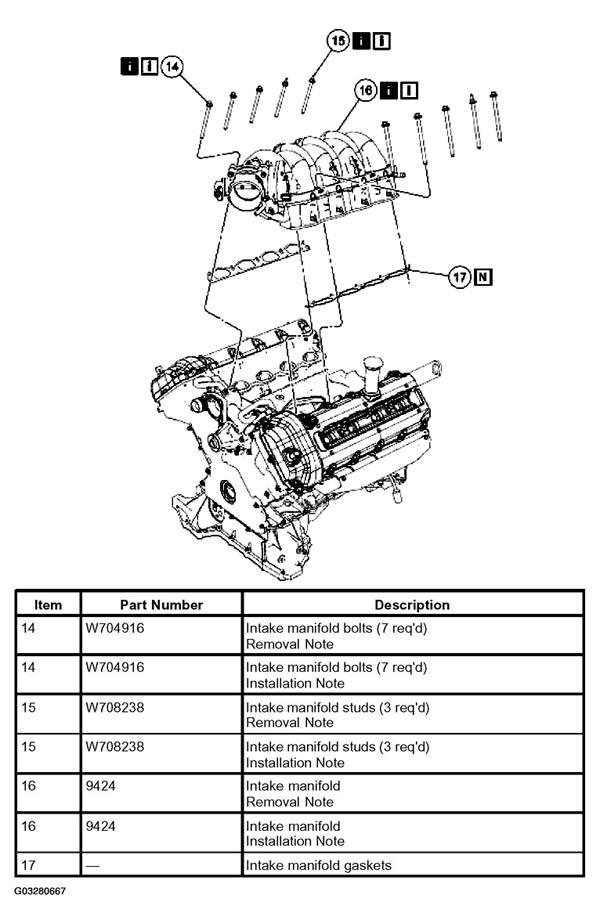

    Fig 5: Removing Components (4 Of 4)

    Courtesy of FORD MOTOR CO.
11. To install, reverse the removal procedure.

ITEMS 11 AND 13: ENGINE APPEARANCE COVER SUPPORT BRACKET REMOVAL NOTE

NOTE: LH is shown, RH is similar.

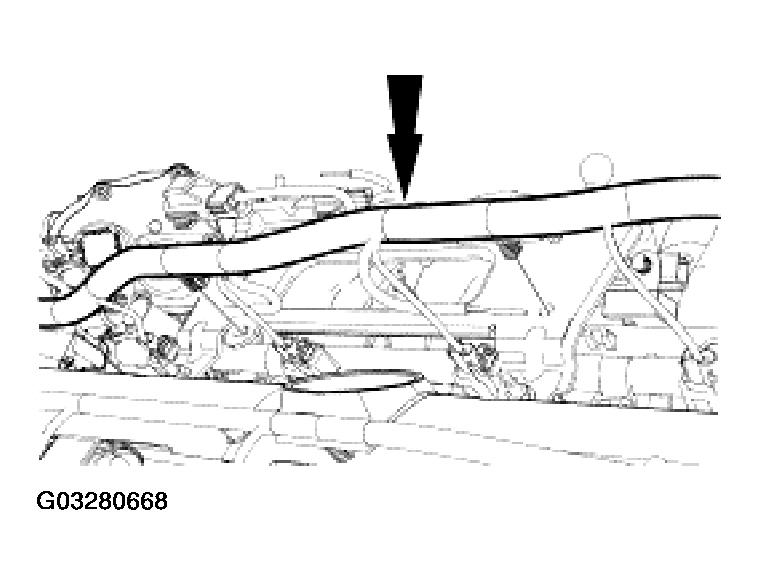

Fig 6: Disconnecting Engine Wiring Harness Retainers From Engine
Courtesy of FORD MOTOR CO.
1. Disconnect the engine wiring harness retainers from the engine appearance cover support bracket.

ITEMS 14, 15, AND 16: INTAKE MANIFOLD REMOVAL NOTE

NOTE: LH is shown, RH is similar.

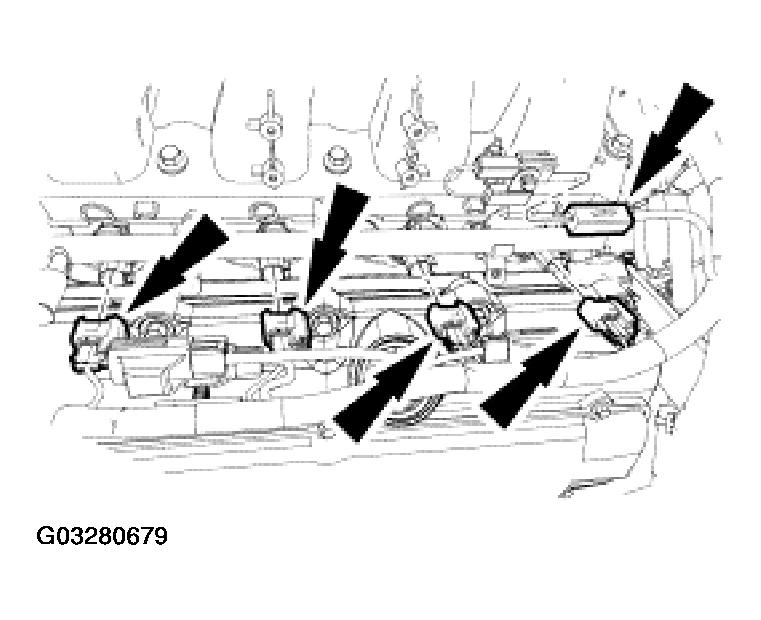

Fig 7: Disconnecting Fuel Injector & RFI Suppressor Electrical Connectors
Courtesy of FORD MOTOR CO.
1. Disconnect the fuel injector and RFI suppressor electrical connectors
2. Remove the nuts and the engine wiring harness retainer and position aside.

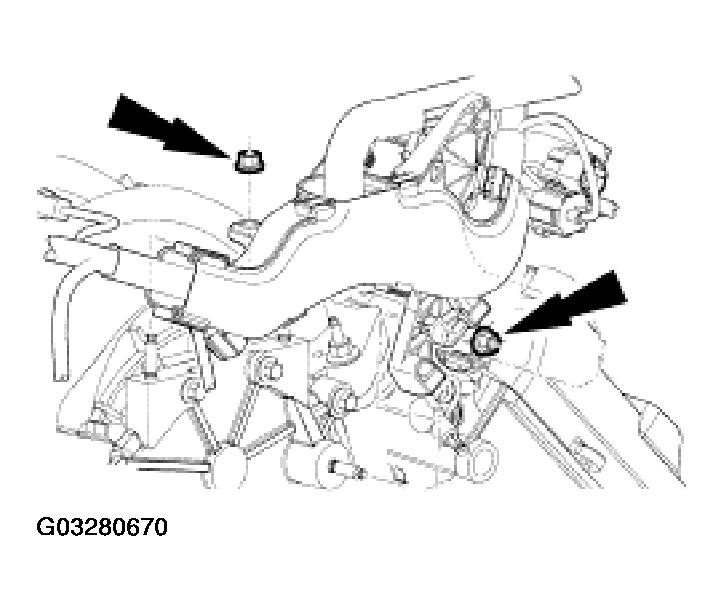

   Fig 8: Removing Nuts & Engine Wiring Harness

   Courtesy of FORD MOTOR CO.
NOTE: RH is shown, LH is similar.

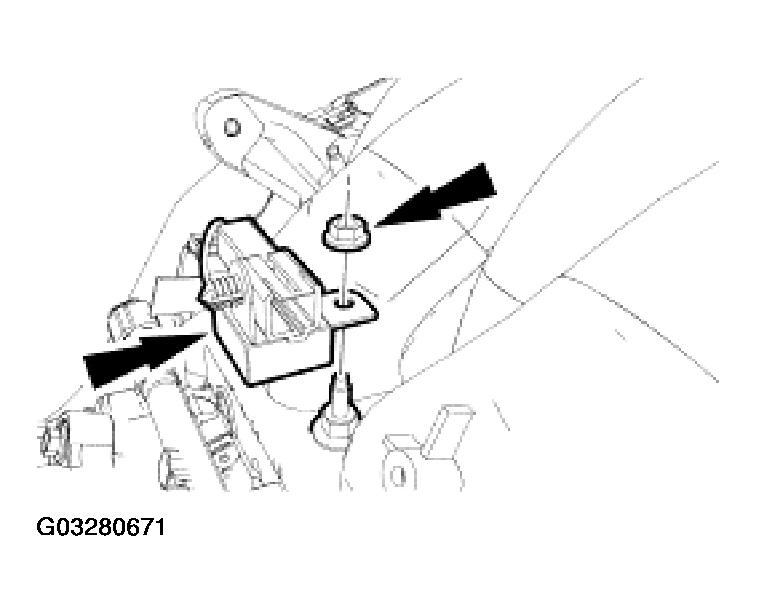

Fig 9: Removing Nut & RFI Suppressor
Courtesy of FORD MOTOR CO.
3. Remove the nut and the RFI suppressor.
4. Disconnect the throttle body heater hose.

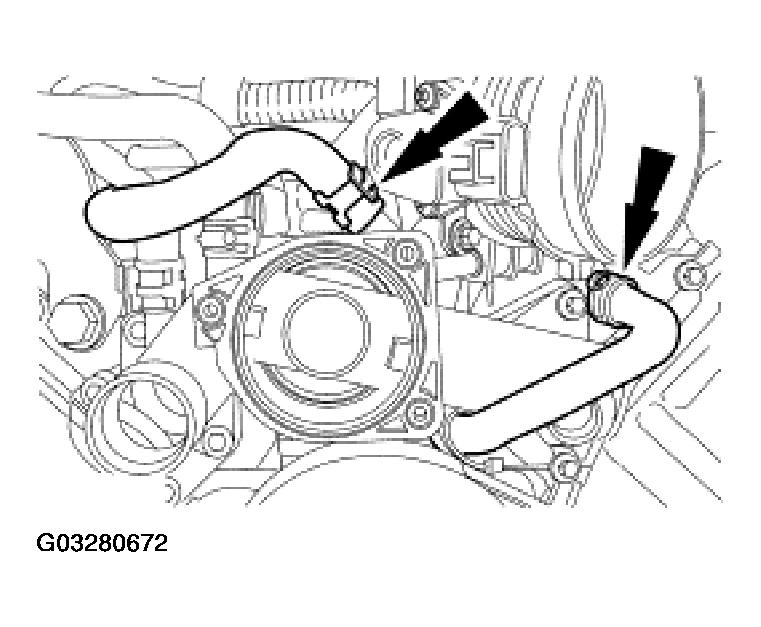

   Fig 10: Disconnecting Throttle Body Heater Hose

   Courtesy of FORD MOTOR CO.
NOTE: The throttle body and adapter are shown removed for clarity. It is not necessary to remove the throttle body and adapter to remove the intake manifold.

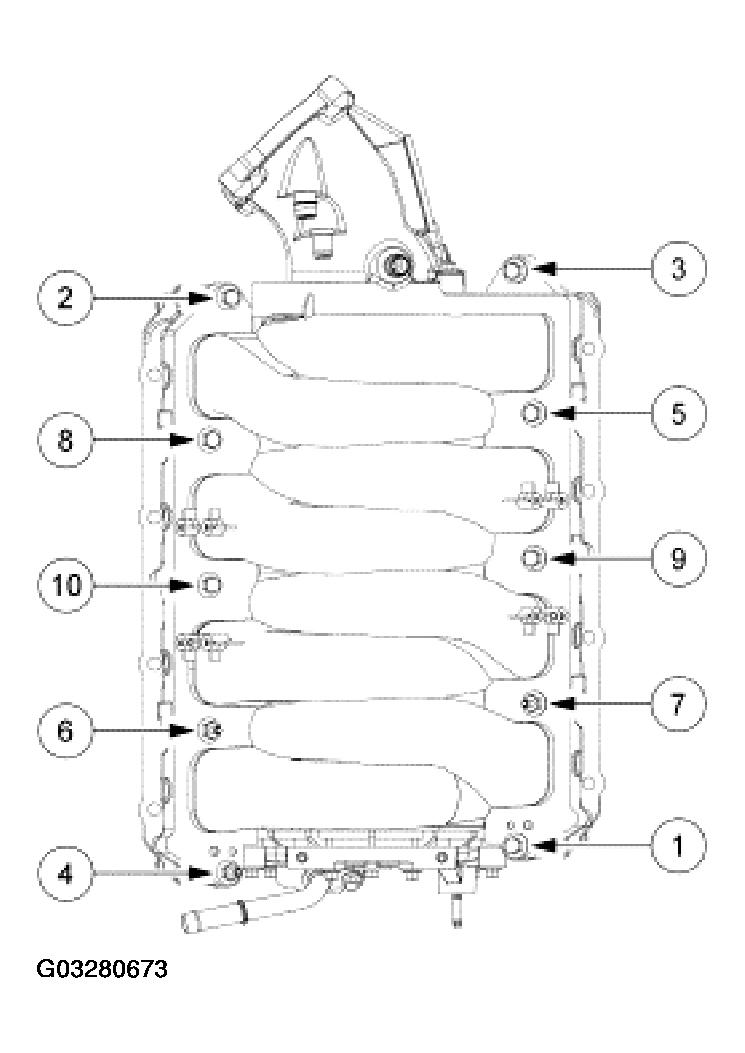

Fig 11: Removing Bolts & Studs In Sequence
Courtesy of FORD MOTOR CO.
5. Remove the bolts and studs in the sequence shown.
6. Remove the intake manifold.
CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to clean the surfaces.
Fig 12: Removing Intake Manifold
Courtesy of FORD MOTOR CO.
7. Clean the sealing surfaces.

ITEMS 14, 15, AND 16: INTAKE MANIFOLD INSTALLATION NOTE

1. Install new intake manifold gaskets.
NOTE: The throttle body and adapter are shown removed for clarity. It is not necessary to remove the throttle body and adapter to remove the intake manifold.

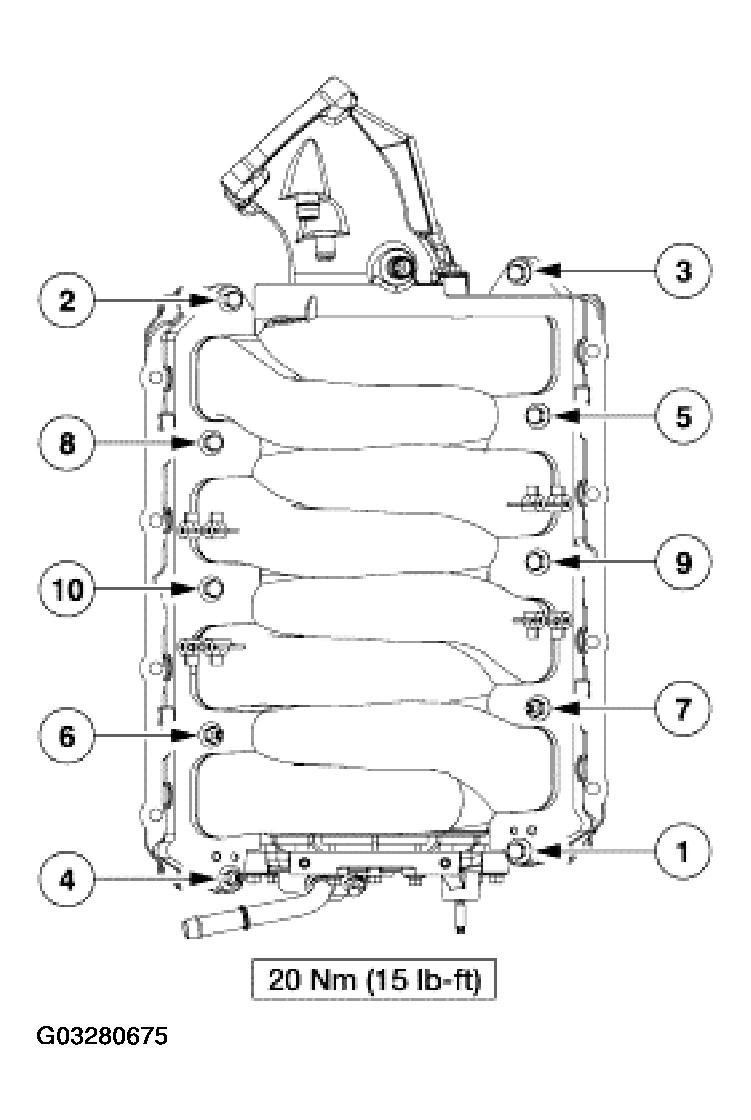

Fig 13: Installing Intake Manifold
Courtesy of FORD MOTOR CO.
2. Install the intake manifold and tighten the bolts in the sequence shown.
3. Connect the throttle body heater hose.
   Fig 14: Connecting Throttle Body Heater Hose

   Courtesy of FORD MOTOR CO.
NOTE: RH is shown, LH is similar.

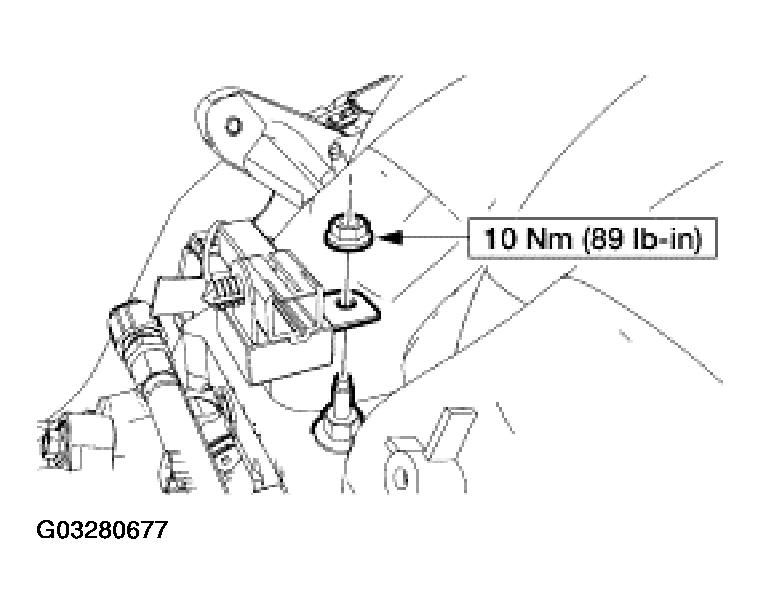

Fig 15: Installing RFI Suppressor & Nut
Courtesy of FORD MOTOR CO.
4. Install the RFI suppressor and the nut.
5. Install the engine wiring harness retainer and the nuts.

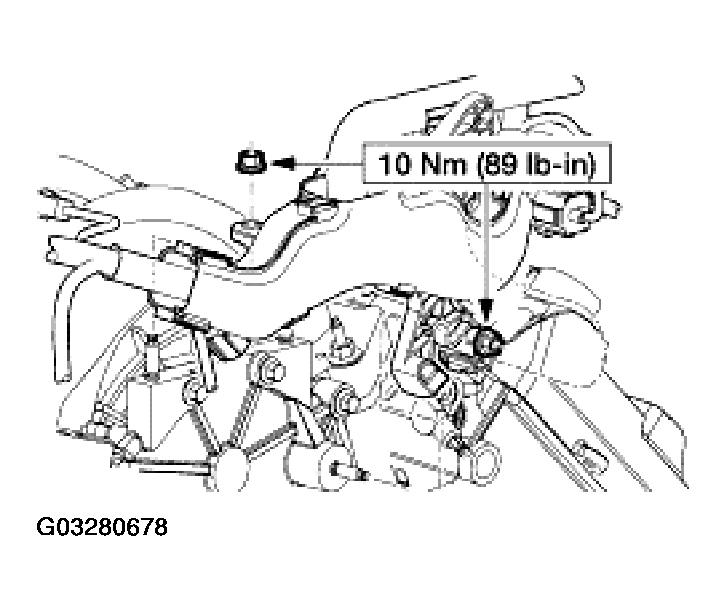

   Fig 16: Installing Engine Wiring Harness

   Courtesy of FORD MOTOR CO.
NOTE: LH is shown, RH is similar.

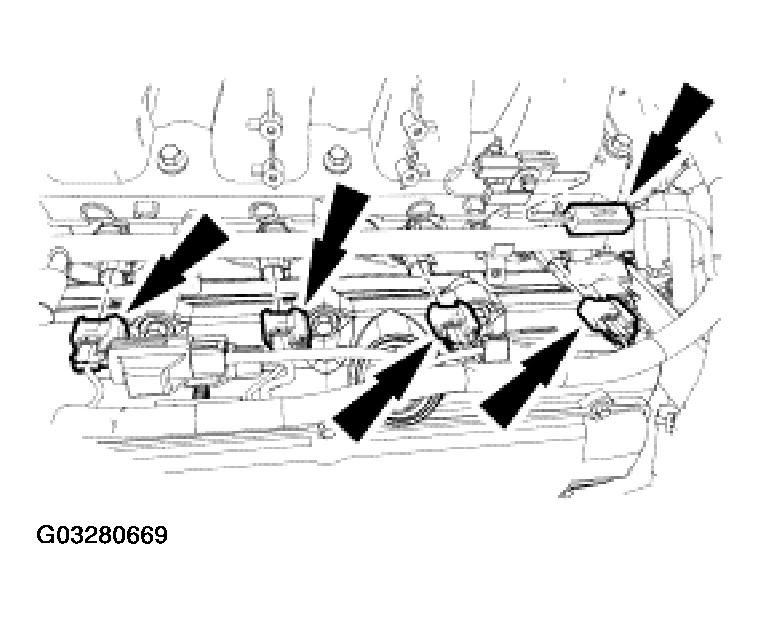

Fig 17: Connecting Fuel Injector & RFI Suppressor Electrical Connectors
Courtesy of FORD MOTOR CO.
6. Connect the fuel injector and RFI suppressor electrical connectors

ITEM 11 AND 13: ENGINE APPEARANCE COVER SUPPORT BRACKET INSTALLATION NOTE

NOTE: LH is shown, RH is similar.
Fig 18: Connecting Engine Wiring Harness Retainers To Engine
Courtesy of FORD MOTOR CO.
1. Connect the engine wiring harness retainers to the engine appearance cover support bracket.
