Valve Cover RH

1. Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS .
2. Remove the RH ignition coils. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS .
3. Remove the components in the order indicated in the following illustration and table.
   Fig 1: Removing Air Cleaner Outlet Tube

   Courtesy of FORD MOTOR CO.

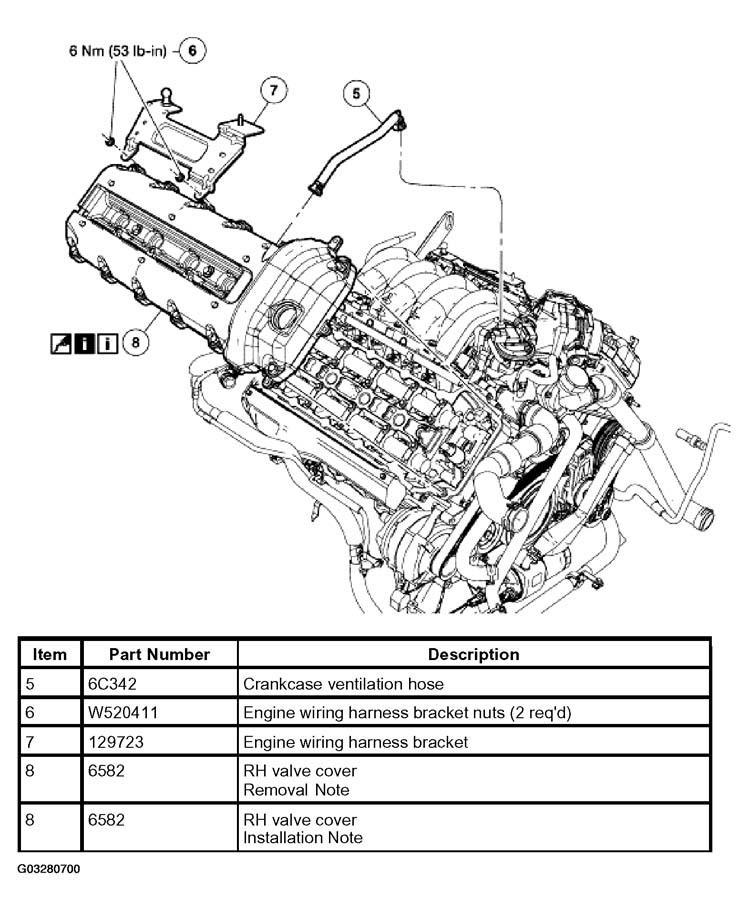

4. Remove the components in the order indicated in the following illustration and table.
   Fig 2: Removing Components

   Courtesy of FORD MOTOR CO.
5. To install, reverse the removal procedure.

ITEM 8: RH VALVE COVER REMOVAL NOTE

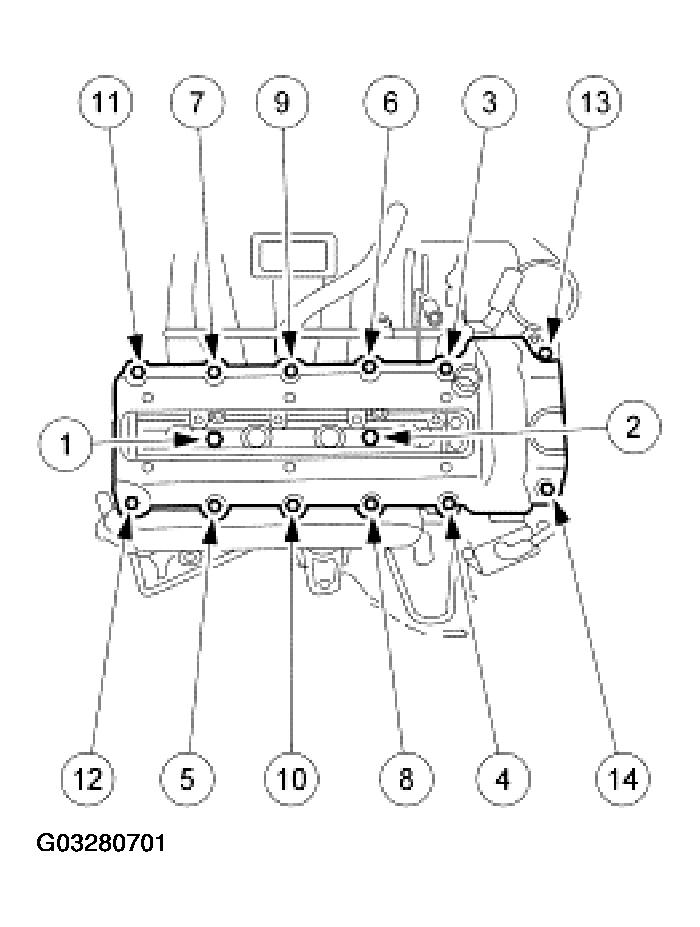

1. Remove the RH valve cover.
   • Loosen the bolts in the sequence shown.
   Fig 3: Removing RH Valve Cover

   Courtesy of FORD MOTOR CO.
CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of sealant.
Fig 4: Cleaning Sealing Surfaces
Courtesy of FORD MOTOR CO.
2. Clean the sealing surfaces.

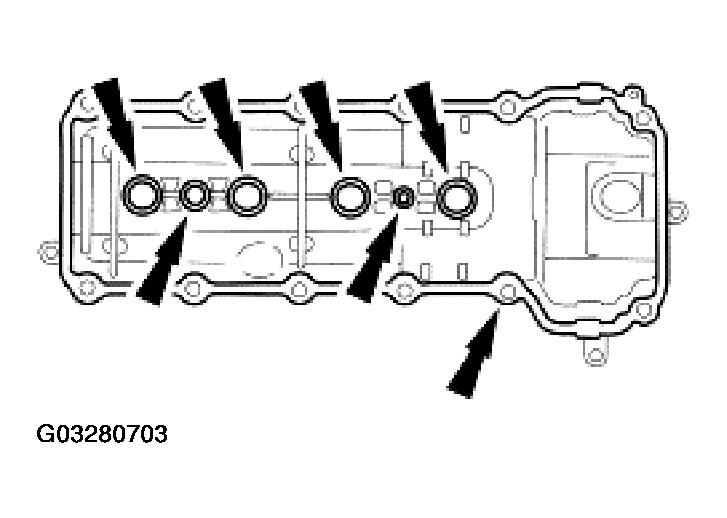

3. Inspect and install new gaskets as necessary.
   Fig 5: Inspecting & Install New Gaskets

   Courtesy of FORD MOTOR CO.

ITEM 8: RH VALVE COVER INSTALLATION NOTE

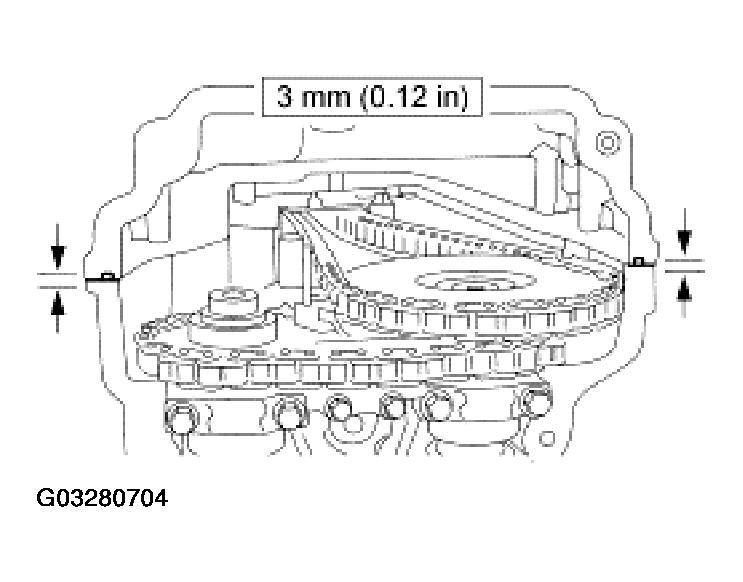

NOTE: If the valve cover is not secured within four minutes of sealant application the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, which ever is longer. Failure to follow this procedure can cause future oil leakage.
Fig 6: Applying Two Beads Of Silicone Gasket & Sealant
Courtesy of FORD MOTOR CO.
1. Apply two beads of silicone gasket and sealant as shown.

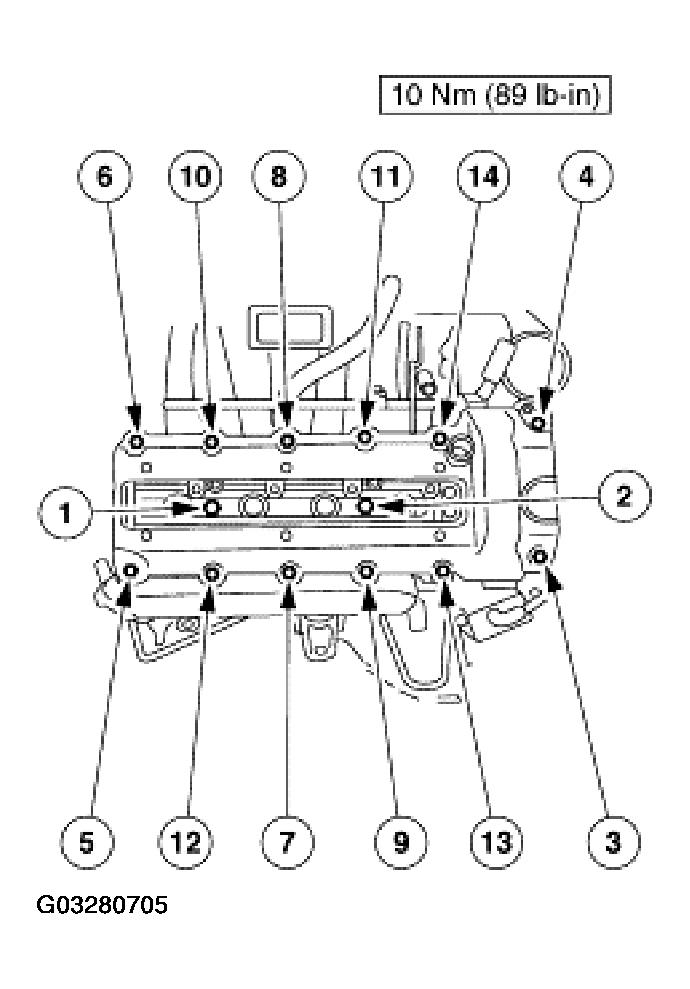

2. Install the RH valve cover.
   • Tighten the bolts in the sequence shown.
     Fig 7: Installing RH Valve Cover

     Courtesy of FORD MOTOR CO.
