Exhaust System - 3.9L: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

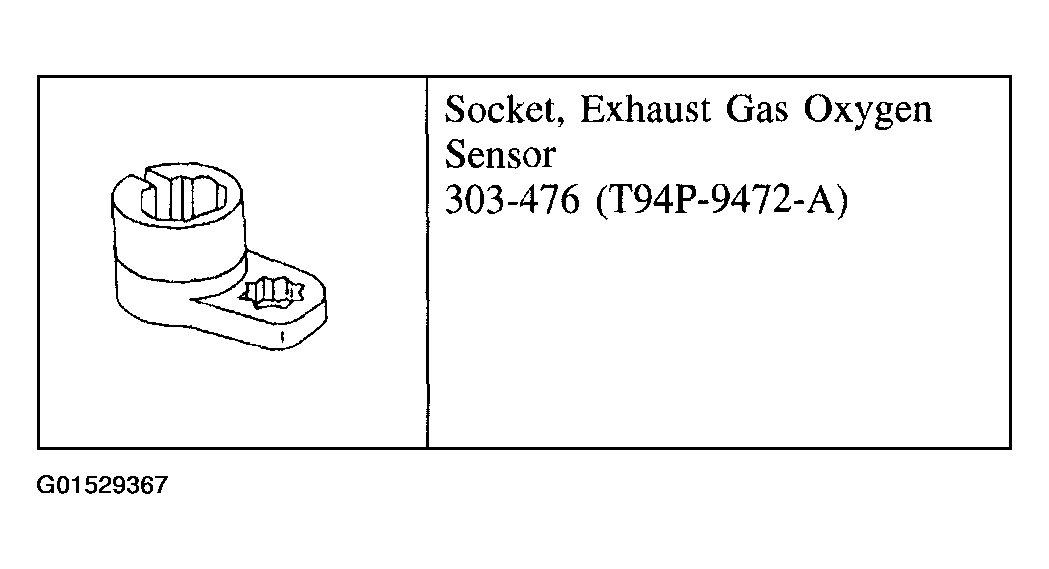

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Material

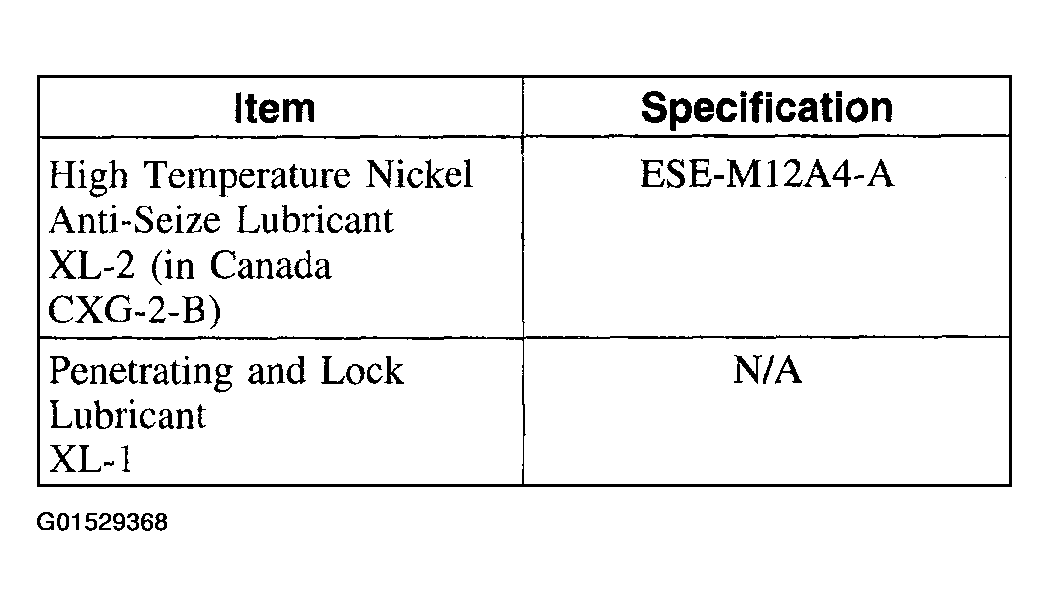

Fig 2: Material Specifications

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the bolts and the brace.

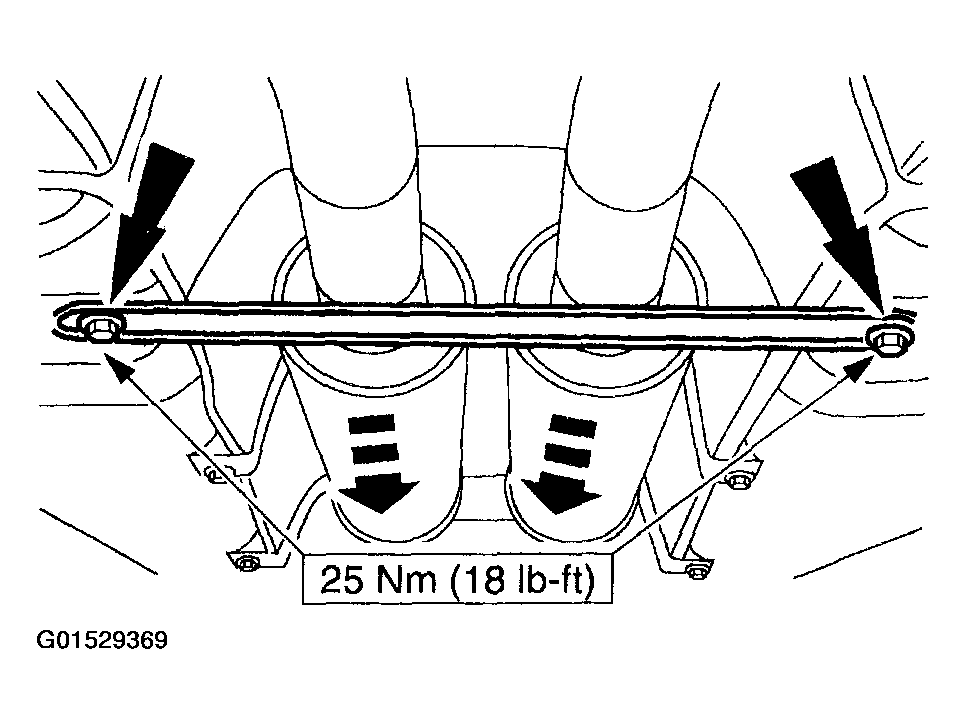

Fig 3: Locating Bolts
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the figure below.

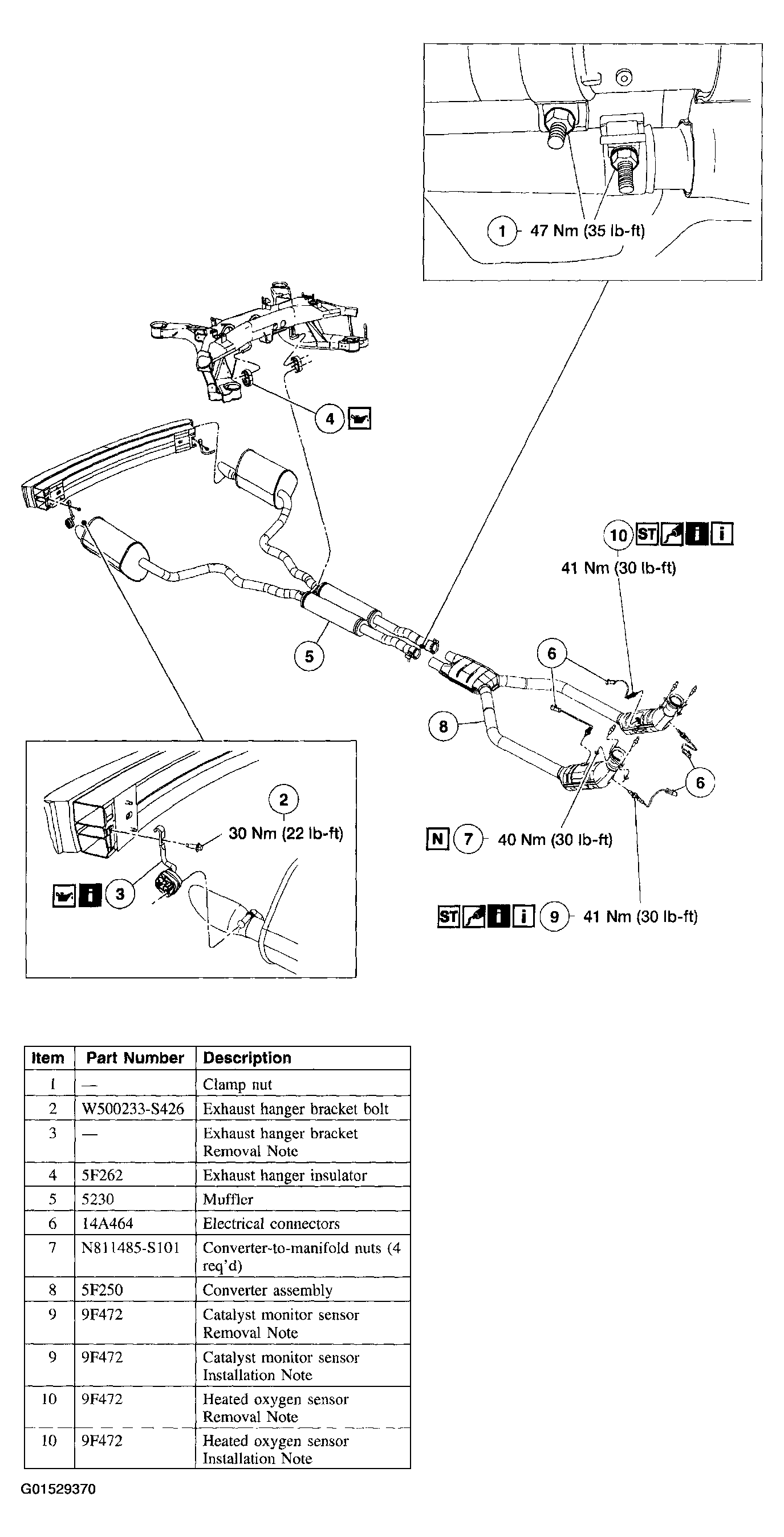

Fig 4: Exhaust System Components Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Check and, if necessary, align the exhaust system.
