Retractor Box C218a

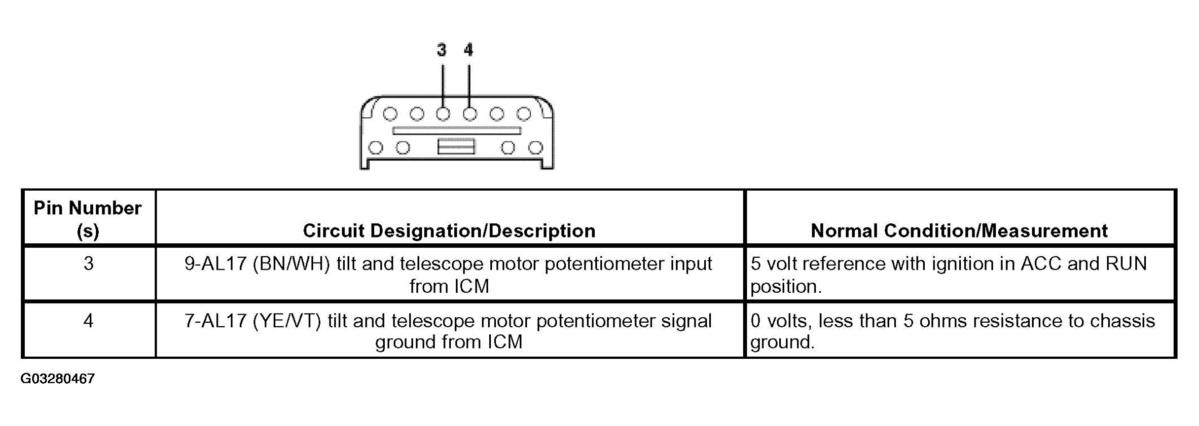

Fig 1: Identifying Retractor Box C218A Terminals
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
